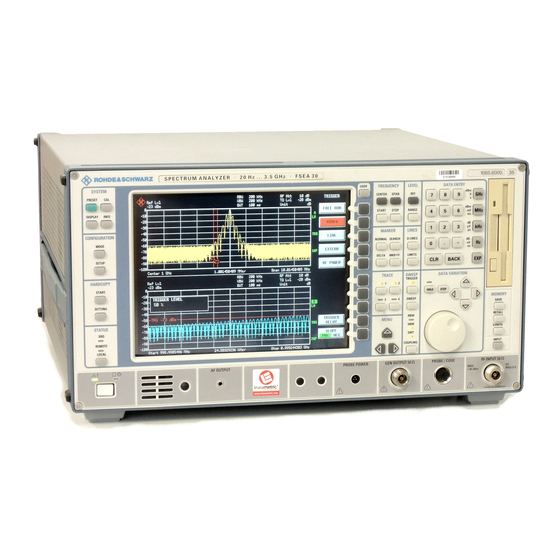

Rohde & Schwarz FSEA20 Operating Manual

Spectrum analyzer
Hide thumbs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
Table of Contents

Advertisement

Quick Links

TMG Corporate Website
Disclaimer:
All trademarks appearing within this PDF are trademarks of their respective owners.
Form 080/01
Complimentary Reference Material
This PDF has been made available as a complimentary service for you to assist in
evaluating this model for your testing requirements.
TMG offers a wide range of test equipment solutions, from renting short to long
term, buying refurbished and purchasing new. Financing options, such as
Financial Rental, and Leasing are also available on application.
TMG will assist if you are unsure whether this model will suit your requirements.
Call TMG if you need to organise repair and/or calibrate your unit.
If you click on the "Click-to-Call" logo below, you can all us for FREE!
TMG Products Website

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSEA20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz FSEA20

Summary of Contents for Rohde & Schwarz FSEA20

  • Page 1 Complimentary Reference Material This PDF has been made available as a complimentary service for you to assist in evaluating this model for your testing requirements. TMG offers a wide range of test equipment solutions, from renting short to long term, buying refurbished and purchasing new. Financing options, such as Financial Rental, and Leasing are also available on application.

  • Page 2: Volume

    Test and Measurement Division Operating Manual SPECTRUM ANALYZER FSEA20/30 1065.6000.20/.25/35 FSEB20/30 1066.3010.20/.25/35 FSEM20/30 1080.1505.20/.21/.25 1079.8500.30/.31/.35 FSEK20/30 1088.1491.20/.21/.25 1088.3494.30/.31/.35 Volume 2 Operating manual consists of 2 volumes Printed in the Federal Republic of Germany 1065.6016.12-14- 10/01...
  • Page 4 Tabbed Divider Overview Tabbed Divider Overview Volume 1 Data Sheet Safety Instructions Certificate of quality EC Certificate of Conformity Support Center List of R & S Representatives Manuals for Signal Analyzer FSE Tabbed Divider Chapter 1: Putting into Operation Chapter 2: Getting Started Chapter 3: Operation...
  • Page 6 Before putting the product into operation for the first time, make sure to read the following S a f e t y I n s t r u c t i o n s Rohde & Schwarz makes every effort to keep the safety standard of its products up to date and to offer its customers the highest possible degree of safety.

  • Page 7: Safety Instructions

    Safety Instructions Observing the safety instructions will help prevent personal injury or damage of any kind caused by dangerous situations. Therefore, carefully read through and adhere to the following safety instructions before putting the product into operation. It is also absolutely essential to observe the additional safety instructions on personal safety that appear in other parts of the documentation.
  • Page 8 Safety Instructions 4. If products/components are mechanically 10. Intentionally breaking the protective earth and/or thermically processed in a manner connection either in the feed line or in the that goes beyond their intended use, product itself is not permitted. Doing so can hazardous substances (heavy-metal dust result in the danger of an electric shock such as lead, beryllium, nickel) may be...
  • Page 9 Safety Instructions 19. If a product is to be permanently installed, matching Rohde & Schwarz type (see the connection between the PE terminal on spare parts list). Batteries and storage site and the product's PE conductor must batteries are hazardous waste. Dispose of be made first before any other connection them only in specially marked containers.
  • Page 10 Por favor lea imprescindiblemente antes de la primera puesta en funcionamiento las siguientes informaciones de seguridad Informaciones de seguridad Es el principio de Rohde & Schwarz de tener a sus productos siempre al día con los estandards de seguridad y de ofrecer a sus clientes el máximo grado de seguridad. Nuestros productos y todos los equipos adicionales son siempre fabricados y examinados según las normas de seguridad vigentes.
  • Page 11 Informaciones de seguridad Tener en cuenta las informaciones de seguridad sirve para tratar de evitar daños y peligros de toda clase. Es necesario de que se lean las siguientes informaciones de seguridad concienzudamente y se tengan en cuenta debidamente antes de la puesta en funcionamiento del producto. También deberán ser tenidas en cuenta las informaciones para la protección de personas que encontrarán en otro capítulo de esta documentación y que también son obligatorias de seguir.
  • Page 12 Informaciones de seguridad seguridad (control a primera vista, control de peligro a causa de la radiación conductor protector, medición de resistencia electromagnética. El empresario está de aislamiento, medición de medición de la comprometido a valorar y señalar areas de corriente conductora, control trabajo en las que se corra un riesgo de...
  • Page 13 Informaciones de seguridad 12. No utilice nunca el producto si está dañado el 20. En caso de que los productos que son cable eléctrico. Asegure a través de las instalados fijamente en un lugar sean sin medidas de protección y de instalación protector implementado, autointerruptor o adecuadas de que el cable de eléctrico no similares objetos de protección, deberá...
  • Page 14 Informaciones de seguridad 27. Baterías y acumuladores no deben de ser 31. Las asas instaladas en los productos sirven expuestos a temperaturas altas o al fuego. solamente de ayuda para el manejo que Guardar baterías y acumuladores fuera del solamente está previsto para personas. Por alcance de los niños.
  • Page 15 Manuals Contents of Manuals for Spectrum Analyzer FSE Operating Manual FSE The operating manual describes the following models and options: • FSEA20/30 9kHz/20 Hz to 3,5 GHz • FSEB20/30 9kHz/20 Hz to 7 GHz • FSEM20/30 9kHz/20 Hz to 26,5 GHz •...

  • Page 16: Service Manual

    Manuals Service Manual - Instrument The service manual - instrument informs on how to check compliance with rated specifications (per- formance test) and on the self tests. Service Manual The service manual is not delivered with the instrument but may be obtained from your R&S service department using the order number 1065.6016.94.

  • Page 18: Table Of Contents

    Contents - Remote Control - Basics Contents - Chapter 5 "Remote Control - "Basics" 5 Remote Control - Basics..................5.1 Introduction ............................5.1 Brief Instructions ..........................5.2 Switchover to Remote Control ....................... 5.2 Indications during Remote Control ..................5.2 Remote Control via IEC Bus....................5.3 Setting the Device Address ...................
  • Page 19 Contents - Remote Control - Basics STATus QUEStionable:FREQuency Register............. 5.26 STATus QUEStionable:LIMit Register ................ 5.27 STATus QUEStionable:LMARgin Register ..............5.28 STATus QUEStionable:POWer Register ..............5.29 STATus QUEStionable:SYNC Register ..............5.30 STATus QUEStionable:TRANsducer Register ............5.31 Application of the Status Reporting Systems................. 5.32 Service Request, Making Use of the Hierarchy Structure ...........

  • Page 20: Remote Control - Basics

    Introduction 5 Remote Control - Basics In this chapter you find: • instructions how to put the FSE into operation via remote control, • a general introduction to remote control of programmable instruments. This includes the description of the command structure and syntax according to the SCPI standard, the description of command execution and of the status registers, •...

  • Page 21: Brief Instructions

    Brief Instructions Brief Instructions The short and simple operating sequence given below permits fast putting into operation of the instrument and setting of its basic functions. As a prerequisite, the IEC-bus address, which is factory-set to 20, must not have been changed. 1.

  • Page 22: Remote Control Via Iec Bus

    Switchover to Remote Control Remote Control via IEC Bus Setting the Device Address In order to operate the instrument via the IEC-bus, it must be addressed using the set IEC-bus address. The IEC-bus address of the instrument is factory-set to 20. It can be changed manually in the SETUP - GENERAL SETUP menu or via IEC bus.

  • Page 23: Remote Control Via Rs-232-Interface

    Switchover to Remote Control Remote Control via RS-232-Interface Setting the Transmission Parameters To enable an error-free and correct data transmission, the parameters of the unit and the controller should have the same setting. Parameters can be manually changed in menu SETUP-GENERAL SETUP table PORT...

  • Page 24: Limitations

    Switchover to Remote Control Limitations The following limitations apply if the unit is remote-controlled via the RS-232-C interface: − No interface messages, some control codes are defined (see chapter 8). − Only the Common Commands *OPC? can be used for command synchronization, *WAI and *OPC are not available.

  • Page 25: Remote Control Via Rsib Interface

    Switchover to Remote Control Remote Control via RSIB Interface Notes: The RSIB interface is only available for instruments equipped with controller option, FSE-B15. Windows Environment To access the measuring instruments via the RSIB interface the DLLs should be installed in the corresponding directories: Instruments with Windows NT controller: •...

  • Page 26: Messages

    Messages Messages The messages transferred via the data lines of the IEC bus or the RSIB interface (see chapter 8) can be divided into two groups: – interface messages and – device messages. Some control characters are defined for the control of the RS-232-interface (see chapter 8). IEE/IEEE-Bus Interface Messages Interface messages are transferred on the data lines of the IEC bus, the "ATN"...

  • Page 27: Device Messages (Commands And Device Responses)

    Messages Device Messages (Commands and Device Responses) Device messages are transferred on the data lines of the IEC bus, the "ATN" control line not being active. ASCII code is used. The device messages are more or less equal for the different interfaces. A distinction is made according to the direction in which they are sent on the IEC bus: –...

  • Page 28: Structure And Syntax Of The Device Messages

    Structure and Syntax of the Device Messages Structure and Syntax of the Device Messages SCPI Introduction SCPI (Standard Commands for Programmable Instruments) describes a standard command set for programming instruments, irrespective of the type of instrument or manufacturer. The goal of the SCPI consortium is to standardize the device-specific commands to a large extent.
  • Page 29 Structure and Syntax of the Device Messages Device-specific commands Hierarchy: Device-specific commands hierarchical structure (see Fig. 5-1). The different levels are represented by combined headers. Headers of the highest level (root level) have only one key word. This key word denotes a complete command system. Example: This key word denotes the command system SENSe...
  • Page 30 Structure and Syntax of the Device Messages Optional key words: Some command systems permit certain key words to be optionally inserted into the header or omitted. These key words are marked by square brackets in the description. The full command length must be recognized by the instrument for reasons of compatibility with the SCPI standard.

  • Page 31: Structure Of A Command Line

    Structure and Syntax of the Device Messages Structure of a Command Line A command line may consist of one or several commands. It is terminated by a <New Line>, a <New Line> with EOI or an EOI together with the last data byte. Quick BASIC automatically produces an EOI together with the last data byte.

  • Page 32: Parameters

    Structure and Syntax of the Device Messages Parameters Most commands require a parameter to be specified. The parameters must be separated from the header by a "white space". Permissible parameters are numerical values, Boolean parameters, text, character strings and block data. The type of parameter required for the respective command and the permissible range of values are specified in the command description (see Section 3.6).

  • Page 33: Overview Of Syntax Elements

    Structure and Syntax of the Device Messages Text Text parameters observe the syntactic rules for key words, i.e. they can be entered using a short or long form. Like any parameter, they have to be separated from the header by a white space. In the case of a query, the short form of the text is provided.

  • Page 34: Instrument Model And Command Processing

    Instrument Model and Command Processing Instrument Model and Command Processing The instrument model shown in Fig. 5-2 has been made viewed from the standpoint of the servicing of IEC-bus commands. The individual components work independently of each other and simultaneously. They communicate by means of so-called "messages".

  • Page 35: Command Recognition

    Instrument Model and Command Processing Command Recognition The command recognition analyses the data received from the input unit. It proceeds in the order in which it receives the data. Only a DCL is serviced with priority, a GET (Group Execute Trigger), e.g., is only executed after the commands received before as well.

  • Page 36: Output Unit

    Instrument Model and Command Processing Output Unit The output unit collects the information requested by the controller, which it receives from the data set management. It processes it according to the SCPI rules and makes it available in the output buffer. The output buffer has a size of 4096 characters.

  • Page 37: Status Reporting System

    Status Reporting System Status Reporting System The status reporting system (cf. Fig. 5-3) stores all information on the present operating state of the instrument, e.g. that the instrument presently carries out an AUTORANGE and on errors which have occurred. This information is stored in the status registers and in the error queue. The status registers and the error queue can be queried via IEC bus.
  • Page 38 Status Reporting System CONDition part The CONDition part is directly written into by the hardware or the sum bit of the next lower register. Its contents reflects the current instrument status. This register part can only be read, but not written into or cleared. Its contents is not affected by reading.

  • Page 39: Overview Of The Status Registers

    Status Reporting System Overview of the Status Registers not used Subrange limit attained Subrange 10 Subrange 9 Subrange 8 Subrange 7 Subrange 6 Subrange 5 Subrange 4 Subrange 3 Subrange 2 Subrange 1 STATus:QUEStionable:TRANsducer & = logical AND not used not used not used = logical OR...

  • Page 40: Description Of The Status Registers

    Status Reporting System Description of the Status Registers Status Byte (STB) and Service Request Enable Register (SRE) The STB is already defined in IEEE 488.2. It provides a rough overview of the instrument status by collecting the pieces of information of the lower registers. It can thus be compared with the CONDition part of an SCPI register and assumes the highest level within the SCPI hierarchy.

  • Page 41: Ist Flag And Parallel Poll Enable Register (Ppe)

    Status Reporting System IST Flag and Parallel Poll Enable Register (PPE) By analogy with the SRQ, the IST flag combines the entire status information in a single bit. It can be queried by means of a parallel poll or using command "*IST?". The parallel poll enable register (PPE) determines which bits of the STB contribute to the IST flag.

  • Page 42: Status:operation Register

    Status Reporting System STATus:OPERation Register In the CONDition part, this register contains information on which actions the instrument is being executing or, in the EVENt part, information on which actions the instrument has executed since the last reading. It can be read using commands "STATus:OPERation:CONDition?" or "STATus :OPERation[:EVENt]?".

  • Page 43: Status:questionable Register

    Status Reporting System STATus:QUEStionable Register This register comprises information about indefinite states which may occur if the unit is operated without meeting the specifications. It can be queried by commands STATus:QUEStionable: CONDition? and STATus:QUEStionable[:EVENt]?. Table 5-5 Meaning of bits in STATus:QUEStionable register Bit No.

  • Page 44: Status Questionable:acplimit Register

    Status Reporting System STATus QUEStionable:ACPLimit Register This register Tcomprises information about the observance of limits during adjacent power measurements. queried with commands ’STATus:QUEStionable:ACPLimit :CONDition?’ and ’STATus:QUEStionable:ACPLimit[:EVENt]?’ Table 5- Meaning of bits in STATus:QUEStionable:ACPLimit register Bit No. Meaning ADJ UPPer FAIL(Screen A) This bit is set if the limit is exceeded in the upper adjacent channel.

  • Page 45: Status Questionable:frequency Register

    Status Reporting System STATus QUEStionable:FREQuency Register This register comprises information about the reference and local oscillator. It can be queried with commands STATus:QUEStionable:FREQuency:CONDition? and "STATus :QUEStionable:FREQuency[:EVENt]?. Table 5-6 Meaning of bits in STATus:QUEStionable:FREQuency register Bit No. Meaning OVEN COLD This bit is set if the reference oscillator has not yet attained its operating temperature. ’OCXO’ will then be displayed.

  • Page 46: Status Questionable:limit Register

    Status Reporting System STATus QUEStionable:LIMit Register This register comprises information about the observance of limit lines. It can be queried with commands STATus:QUEStionable:LIMit:CONDition? and STATus:QUEStionable:LIMit [:EVENt]?. Table 5-7 Meaning of bits in STATus:QUEStionable:LIMit register Bit No. Meaning LIMit 1 FAIL This bit is set if limit line 1 is violated.

  • Page 47: Status Questionable:lmargin Register

    Status Reporting System STATus QUEStionable:LMARgin Register This register comprises information about the observance of limit margins. It can be queried with commands "STATus:QUEStionable STATus:QUEStionable:LMARgin:CONDition? :LMARgin[:EVENt]?. Table 5-8 Meaning of bits in STATus:QUEStionable:LMARgin register Bit No. Meaning LMARgin 1 FAIL This bit is set if limit margin 1 is violated. LMARgin 2 FAIL This bit is set if limit margin 2 is violated.

  • Page 48: Status Questionable:power Register

    Status Reporting System STATus QUEStionable:POWer Register This register comprises all information about possible overloads of the unit. It can be queried with commands STATus:QUEStionable :POWer:CONDition? and "STATus :QUEStionable:POWer [:EVENt]?. Table 5-9 Meaning of bits in STATus:QUEStionable:POWer register Bit No. Meaning OVERload (Screen A) This bit is set if the RF input is overloaded.

  • Page 49: Status Questionable:sync Register

    Status Reporting System STATus QUEStionable:SYNC Register This register comprises information about sync and burst events related to Vector Analyzer mode, option FSE-B7, and to GSM measurements, options FSE-K10/20/30 and FSE-K11/21/31). It can be queried with commands "STATus STATus:QUEStionable:SYNC:CONDition? :QUEStionable:SYNC[:EVENt]?. Table 5-10 Meaning of bits in STATus:QUEStionable:SYNC register Bit No.

  • Page 50: Status Questionable:transducer Register

    Status Reporting System STATus QUEStionable:TRANsducer Register This register indicates that a transducer hold point is attained (bit 15) and what range is to be swept next (bit 0 to 10). The sweep can be continued with command INITiate2:CONMeasure. It can be queried with commands STATus:QUEStionable:TRANsducer:CONDition? and "STATus :QUEStionable:TRANsducer[:EVENt]?.

  • Page 51: Application Of The Status Reporting Systems

    Status Reporting System Application of the Status Reporting Systems In order to be able to effectively use the status reporting system, the information contained there must be transmitted to the controller and further processed there. There are several methods which are represented in the following.

  • Page 52: Parallel Poll

    Status Reporting System Parallel Poll In a parallel poll, up to eight instruments are simultaneously requested by the controller by means of a single command to transmit 1 bit of information each on the data lines, i.e., to set the data line allocated to each instrument to logically "0"...

  • Page 53: Resetting Values Of The Status Reporting System

    Status Reporting System Resetting Values of the Status Reporting System Table 5-12 comprises the different commands and events causing the status reporting system to be reset. None of the commands, except for *RST and SYSTem:PRESet influences the functional instrument settings. In particular, DCL does not change the instrument settings. Table 5-12 Resetting instrument functions Event...
  • Page 54 Contents - Description of Commands Contents - Chapter 6 "Remote Control - Description of Commands" 6 Description of Commands.................. 6.1 Notation ............................6.1 Common Commands........................6.4 ABORt Subsystem ........................... 6.8 CALCulate Subsystem........................6.8 CALCulate:DELTamarker Subsystem ..................6.9 CALCulate:DLINe Subsystem ....................6.15 CALCulate:FEED Subsystem ....................
  • Page 55 Contents - Description of Commands SENSe Subsystem ........................6.163 SENSe:ADEMod Subsystem....................6.163 SENSe:AVERage Subsystem ..................... 6.165 SENSe:BANDwidth Subsystem ................... 6.167 SENSe:CORRection-Subsystem..................6.171 SENSe:DETector Subsystem ....................6.181 SENSe:DDEMod Subsystem....................6.182 SENSe:FILTer Subsystem ....................6.190 SENSe:FREQuency Subsystem..................6.193 SENSe:MIXer - Subsystem ....................6.197 SENSe:MSUMmary Subsystem ..................
  • Page 56 Contents - Description of Commands TRACE Key Group ....................6.294 SWEEP Key Group ....................6.295 TRIGGER Key Group - Digital Demodulation ............6.295 TRIGGER Key Group - Analog Demodulation ............6.296 Operating Mode Tracking Generator (Option FSE-B8 to B11)..........6.297 CONFIGURATION Key Group ..................
  • Page 57 Contents - Description of Commands 1065.6016.12 I-6.4 E-16...
  • Page 58 Notation 6 Description of Commands Notation In the following sections, all commands implemented in the instrument are first listed in tables and then described in detail, separated according to the command system. The notation corresponds to the one of the SCPI standards to a large extent. The SCPI conformity information can be taken from the individual description of the commands.
  • Page 59 Notation Upper/lower case notation Upper/lower case letters serve to mark the long or short form of the key words of a command in the description (see Chapter 5). The instrument itself does not distinguish between upper and lower case letters. Special characters A selection of key words with an identical effect exists for several commands.
  • Page 60 Notation <numeric_value> <num> These indications mark parameters which may be entered as numeric values or be set using specific keywords (character data). The keywords given below are permitted: MINimum This keyword sets the parameter to the smallest possible value. MAXimum This keyword sets the parameter to the largest possible value.
  • Page 61 Common Commands Common Commands The common commands are taken from the IEEE 488.2 (IEC 625-2) standard. Same commands have the same effect on different devices. The headers of these commands consist of an asterisk "*" followed by three letters. Many common commands refer to the status reporting system which is described in detail in Chapter 5.
  • Page 62 Common Commands *ESE 0 to 255 EVENT STATUS ENABLE sets the event status enable register to the value indicated. Query *ESE? returns the contents of the event status enable register in decimal form. *ESR? STANDARD EVENT STATUS QUERY returns the contents of the event status register in decimal form (0 to 255) and subsequently sets the register to zero.
  • Page 63 Common Commands *OPT? OPTION IDENTIFICATION QUERY queries the options included in the instrument and returns a list of the options installed. The options are separated from each other by means of commas. Position Option FSE-B3 TV Demodulator FSE-B4 Low Phase Noise & OCXO FSE-B5 FFT-Filter reserved...
  • Page 64 Common Commands *PSC 0 | 1 POWER ON STATUS CLEAR determines whether the contents of the ENABle registers is maintained or reset in switching on. *PSC = 0 causes the contents of the status registers to be maintained. Thus a service request can be triggered in switching on in the case of a corresponding configuration of status registers ESE and SRE.
  • Page 65 ABORt / CALCulate Subsystem ABORt Subsystem The ABORt subsystem contains the commands for aborting triggered actions. An action can be triggered again immediately after being aborted. All commands trigger events which is why they are not assigned any *RST value. COMMAND PARAMETERS UNIT...
  • Page 66 CALCulate Subsystem CALCulate:DELTamarker Subsystem The CALCulate:DELTamarker subsystem checks the delta-marker functions in the instrument. COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :DELTamarker<1 to 4> [:STATe] <Boolean> :MODE ABSolute|RELative :AOFF no query :TRACe <numeric_value> <numeric_value> HZ | S | SYM :RELative? query only query only :MAXimum [:PEAK]...
  • Page 67 CALCulate Subsystem :CALCulate<1|2>:DELTamarker<1 to 4>:MODE ABSolute | RELative This command switches over between relative and absolute input of frequency of the delta marker. Example: ":CALC:DELT:MODE ABS" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS In the RELative mode, the frequency of the delta marker is programmed relative to the reference marker.
  • Page 68 CALCulate Subsystem :CALCulate<1|2>:DELTamarker<1 to 4>:Y? This command queries the value of the selected marker. Example: ":CALC:DELT:Y?" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS In complex presentations (vector signal analysis - polar diagrams), the real and the imaginary component as well as magnitude and phase are output separated by a comma.
  • Page 69 CALCulate Subsystem :CALCulate<1|2>:DELTamarker<1 to 4>:MAXimum:LEFT This command positions the delta marker to the next smaller maximum value to the left of the current value (i.e., in descending X direction) in the trace memory. Example: ":CALC:DELT:MAX:LEFT" Features: *RST value: SCPI: device-specific Modes: A, BTS, MS Modes:...
  • Page 70 CALCulate Subsystem :CALCulate<1|2>:DELTamarker<1 to 4>:FUNCtion:FIXed[:STATe] ON | OFF This command switches the relative measurement to a fixed reference value on or off. Example: ":CALC:DELT:FUNC:FIX ON" Features: *RST value: SCPI: device-specific. Modes: A, VA-D, BTS, MS The reference value is independent of the current trace. :CALCulate<1|2>:DELTamarker<1 to 4>:FUNCtion:FIXed:RPOint:Y <numeric_value>...
  • Page 71 CALCulate Subsystem :CALCulate<1|2>:DELTamarker<1 to 4>:FUNCtion:PNOise:RESult? This command queries the result of the phase noise measurement. Example: ":CALC:DELT:FUNC:PNO:RES?" Features: *RST value: SCPI: device-specific Modes: A, BTS, MS This command is only a query which is why it is not assigned an *RST value. :CALCulate<1|2>:DELTamarker<1 to 4>:STEP[:INCRement] <numeric_value>...
  • Page 72 CALCulate Subsystem CALCulate:DLINe Subsystem The CALCulate:DLINe subsystem checks the display lines in the instrument, i.e., the level, frequency and time lines (depending on the X-axis) as well as threshold and reference lines. COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :DLINe<1|2> <numeric_value> DBM | DB | DEG | RAD | S | HZ | PCT :STATe <Boolean>...
  • Page 73 CALCulate Subsystem :CALCulate<1|2>:THReshold MINimum to MAXimum (depending on current unit) This command defines the position of the thresholds. Example: ":CALC:THR -82dBm" Features: *RST value: - (STATe to OFF) SCPI: device-specific Modes: A, VA, BTS, MS For marker scan functions MAX PEAK, NEXT PEAK etc., the threshold serves as the lowest limit for maximum or minimum search.
  • Page 74 CALCulate Subsystem :CALCulate<1|2>:RLINe:STATe ON | OFF This command switches the reference line on or off. Example: ":CALC:RLIN:STAT ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :CALCulate<1|2>:FLINe<1|2> 0 GHz to f This command defines the position of the frequency lines. Example: ":CALC:FLIN2 120MHz"...
  • Page 75 CALCulate Subsystem CALCulate:FEED Subsystem The CALCulate:FEED subsystem selects the measured data in operating mode vector signal analysis. This subsystem is only valid in connection with option FSE-B7, Vector Signal Analysis. COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :FEED <string> Vector Signal Analysis/ no query :CALCulate<1|2>:FEED <string>...
  • Page 76 CALCulate Subsystem CALCulate:FORMat and CALCulate:FSK Subsystems The CALCulate:FORMat and CALCulate:FSK subsystems determine further processing and conversion of measured data in operating mode vector signal analysis. This sub system is only valid in connection with option FSE-B7, Vector Signal Analysis. COMMAND PARAMETERS UNIT COMMENT...
  • Page 77 CALCulate Subsystem CALCulate:LIMit Subsystem The CALCulate:LIMit subsystem comprises the limit lines and the corresponding limit checks. Limit lines can be defined as upper and lower limit lines. The individual values of the limit lines correspond to the values of the X-axis (CONTrol) which have to have the same number. COMMAND PARAMETERS UNIT...
  • Page 78 CALCulate Subsystem COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :LIMit<1 to 8> :COMMent <string> :COPY 1 to 8 | < name> :NAME <string> :DELete :BURSt Option FSE-K11 or FSE-K10 :PTEMplate? query only :POWer? query only :PFERror? query only :MACCuracy? query only, option FSE-K20/K21 :SPECtrum Option FSE-K11 or FSE-K10 :MODulation?
  • Page 79 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:STATe ON | OFF This command switches the limit check for the selected limit line on or off. With limit check switched off, the limit line is disabled. Example: ":CALC:LIM:STAT ON" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS The result of the limit check can be queried with CALCulate:LIMit:FAIL?.
  • Page 80 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:CONTrol:DOMain FREQuency | TIME This command defines the X-axis in the frequency or time domain. Example: ":CALC:LIM:CONT:DOM TIME" Features: *RST value: FREQuency SCPI: device-specific Modes: A, VA, BTS, MS :CALCulate<1|2>:LIMit<1 to 8>:CONTrol:OFFSet <numeric_value> This command defines an offset for the X-axis value of the selected relative limit line in the frequency or time domain.
  • Page 81 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:CONTrol:SPACing LINear | LOGarithmic This command makes a selection between linear and logarithmic interpolation for determining the limit line from the frequency points. Example: ":CALC:LIM:CONT:SPAC LIN" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :CALCulate<1|2>:LIMit<1 to 8>:UPPer[:DATA] <numeric_value>,<numeric_value>..
  • Page 82 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:UPPer:MODE RELative | ABSolute This command selects the relative or absolute scaling for the Y-axis of the selected upper limit line. Example: ":CALC:LIM:UPP:MODE REL" Features: *RST value: ABSolute SCPI: device-specific Modes: A, VA, BTS, MS :CALCulate<1|2>:LIMit<1 to 8>:UPPer:SHIFt <numeric_value> This command shifts a limit line, which has relative values for the Y-axis (levels or linear units such as volt).
  • Page 83 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:LOWer:STATe ON | OFF This command defines the selected limit line as lower limit line. Example: ":CALC:LIM:LOWer:STAT ON" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS The limit check is switched on with command CALCulate:LIMit:STATe ON. The result of the limit check can be queried with CALCulate:LIMit:FAIL? .
  • Page 84 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:LOWer:SPACing LINear | LOGarithmic This command makes a selection between linear and logarithmic interpolation for the lower limit line. Example: ":CALC:LIM:LOW:SPAC LIN" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :CALCulate<1|2>:LIMit<1 to 8>:FAIL? This command queries the result of the limit check. Example: ":CALC:LIM:FAIL?"...
  • Page 85 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:COPY 1 to 8 | <name> This command copies one limit line onto another one. Parameter: 1 to 8 ::= number of the new limit line or, alternatively: <name> ::= name of the new limit line given as a string Example: ":CALC:LIM1:COPY 2"...
  • Page 86 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:BURSt:PTEMplate? This command queries the result of the limit check for a power vs. time measurement. Parameter: The result is displayed in character data form. Possible values are: PASSED limit not exceeded FAILED limit exceeded RUNNING measurement not completed Examples: ":CALC:LIM:BURS:PTEM?"...
  • Page 87 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:BURSt:MACCuracy? This command queries the total result of the modulation accuracy measurement. Parameter: limit not exceeded limit exceeded Example: ":CALC:LIM:BURS:MACC?" Result:1 Features: *RST value: SCPI: device-specific Modes: BTS, MS This command is a query and therefore not assigned a *RST value. If the command is triggered off before the cphase-frequency measurement was started for the first time, a query error results.
  • Page 88 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:SPECtrum:MODulation:FAILs? ARFCn | TXBand | RXBand | COMBined | DCSRx1800 This command queries the number of limit violations of the spectrum due to modulation measurement for list mode.The number of limit violations is the total of all violations above and below the carrier.
  • Page 89 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:SPECtrum:SWITching? This command queries the total result of the spectrum due to switching transients measurements for list mode. For frequency mode, the limit violations are queried with command CALCulate:LIMit:FAIL? Parameter: The result is displayed in character data form. Possible values are: PASSED limit not exceeded FAILED...
  • Page 90 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:SPURious:FAILs? TXBand | OTXBand | RXBand | IDLeband This command queries the number of limit violations of the spurious emissions measurement. Examples: ":CALC:LIM:SPUR:FAIL? OTXB" Features: *RST value: SCPI: device-specific Modes: BTS, MS TXBand TX-band OTXBand Not TX-band RXBand RX-band (option FSE-K11 only) IDLeband...
  • Page 91 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:ACPower:ACHannel:STATe ON | OFF This command activates the limit check for the adjacent channel when adjacent channel power measurement is performed. Before, the limit check must be activated using CALC:LIM:ACP ON. Examples: ":CALC:LIM:ACP:ACH:STAT ON" Features: *RST value: SCPI: device-specific Modes:...
  • Page 92 CALCulate Subsystem :CALCulate<1|2>:LIMit<1 to 8>:ACPower:ALTernate<1|2>:STATe ON | OFF This command activates the limit check for the first/second alternate adjacent channel for adjacent channel power measurements. Before, the limit check must be activated using CALC:LIM:ACP ON. Examples: ":CALC:LIM:ACP:ALT2:STAT ON" Features: *RST value: SCPI: device-specific Modes:...
  • Page 93 CALCulate Subsystem CALCulate:MARKer Subsystem The CALCulate:MARKer subsystem checks the marker functions in the instrument. COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :MARKer<1 to 4> [:STATe] <Boolean> :AOFF no query :TRACe <numeric_value> <numeric_value> HZ | S | SYM :SLIMits [:STATe] <Boolean> :COUNt <Boolean> :RESolution <numeric_value>...
  • Page 94 CALCulate Subsystem COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :MARKer :FUNCtion :STRack [:STATe] <Boolean> :ADEMod Option Vector Analyzer [:RESult?] PPEak | MPEak | MIDDle | RMS query only [:RESult?] PPEak | MPEak | MIDDle | RMS | query only RDEV [:RESult?] PPEak | MPEak | MIDDle | RMS query only :AFRequency [:RESult?]...
  • Page 95 CALCulate Subsystem COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :MARKer :FUNCtion :SUMMary :PPEak Option Vector Analyzer [:STATe] <Boolean> :RESult? query only :AVERage :RESult? query only :PHOLd :RESult? query only :MPEak Option Vector Analyzer [:STATe] <Boolean> :RESult? query only :AVERage :RESult? query only :PHOLd :RESult? query only...
  • Page 96 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>[:STATe] ON | OFF This command switches on or off the currently selected marker. If no indication is made, marker 1 is selected automatically. Example: ":CALC:MARK3 ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :CALCulate<1|2>:MARKer<1 to 4>:AOFF This command switches off all active markers.
  • Page 97 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:COUNt ON | OFF This command switches on or off the frequency counter at the marker position. Example: ":CALC:MARK:COUN ON" Features: *RST value: SCPI: device-specific Mode: :CALCulate<1|2>:MARKer<1 to 4>:COUNt:RESolution 0.1 | 1 | 10 | 100 | 1000 | 10000 Hz This command specifies the resolution of the frequency counter.
  • Page 98 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:Y? This command queries the selected marker value. Example: ":CALC:MARK:Y?" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :CALCulate<1|2>:MARKer<1 to 4>:MAXimum[:PEAK] This command positions the marker to the current maximum value in the trace memory. Example: ":CALC:MARK:MAX"...
  • Page 99 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:MAXimum:LEFT This command positions the marker to the next smaller maximum value to the left of the current value (i.e., in descending X direction) in the trace memory. Example: ":CALC:MARK:MAX:LEFT" Features: *RST value: SCPI: device-specific Modes: A, BTS, MS This command is an event which is why it is not assigned an *RST value and has no query.
  • Page 100 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:STEP[:INCRement] <numeric_value> This command defines the marker step width. Example: ":CALC:MARK:STEP 10kHz" (frequency domain) CALC:MARK:STEP 5ms" (time domain) Features: *RST value: - (STEP is set to AUTO) SCPI: device-specific Mode: This command sets STEP:AUTO to OFF. The numeric suffix in MARKer<1 to 4> is not significant. :CALCulate<1|2>:MARKer<1 to 4>:STEP:AUTO ON | OFF This command switches the automatic adaptation of the marker step width on or off.
  • Page 101 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:NDBDown <numeric_value> This command defines the "N dB Down" value. Example: ":CALC:MARK:FUNC:NDBD 3dB" Features: *RST value: SCPI: device-specific Mode: The temporary markers T1 and T2 are positioned by n dB below the active reference marker. The frequency spacing of these markers can be queried with CALCulate:MARKer:FUNCtion: NDBDown:RESult?.
  • Page 102 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:ZOOM <numeric_value> This command defines the range to be enlarged around the active marker. Example: ":CALC:MARK:FUNC:ZOOM 1kHz" Features: *RST value: SCPI: device-specific Mode: The subsequent frequency sweep is stopped at the marker position and the frequency of the signal is counted.
  • Page 103 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:DEModulation[:STATe] ON | OFF This command switches the demodulation on or off. Example: ":CALC:MARK:FUNC:DEM ON" Features: *RST value: SCPI: device-specific Mode: With demodulation switched on, the frequency sweep is stopped at the marker position and the signal is demodulated during the given stop time.
  • Page 104 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SFACtor:FREQuency? This command queries the frequencies of the shape factor measurement. Example: ":CALC:MARK:FUNC:SFAC:FREQ?" Features: *RST value: SCPI: device-specific Modes: A, BTS, MS Four frequency values (at -60 dB, -6 or. -3 dB, -6 or -3 dB, -60dB) are indicated in ascending order. They are separated by a comma.
  • Page 105 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:ADEMod:FM[:RESult]? PPEak | MPEak | MIDDle | RMS | RDEV This command queries the results of the FM modulation measurement of the analog demodulation. Example: ":CALC:MARK:FUNC:ADEM:FM? PPE" Features: *RST value: SCPI: device-specific Mode: VA-A PPEak Result of the measurement with detector +PK MPEak Result of the measurement with detector -PK Result of averaging ±PK/2...
  • Page 106 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:ADEMod:CARRier[:RESult]? This command queries the results of the carrier frequency measurement. Example: ":CALC:MARK:FUNC:ADEM:CARR?" Features: *RST value: SCPI: device-specific Mode: VA-A This command is only a query which is why it is not assigned an *RST value. :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:ADEMod:SINad[:STATe] ON | OFF This command switches the SINAD measurement on or off.
  • Page 107 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:DDEMod:RESult? MERM | MEPK | MEPS | PERM | PEPK | PEPS | EVRM | EVPK | EVPS | IQOF | IQIM | ADR | FERR | FEPK | RHO| DEV | FSRM | FSPK | FSPS | DTTS This command queries the error measurement results of digital demodulation.The results correspond to the values obtained when the symbol table (SYMBOL TABLE/ ERRORS softkey) is selected in manual operation.
  • Page 108 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:POWer:RESult?ACPower | CPOWer | OBANdwidth | OBWidth | CN | CN0 This command queries the results of the power measurement (see also CALCulate:MARKer: FUNCtion:POWer:SELect.) Example: ":CALC:MARK:FUNC:POW:RES? OBW" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS ACPower adjacent channel power measurement;...
  • Page 109 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:POWer:PRESet NADC | TETRA | PDC | PHS | CDPD | FWCDma | RWCDma | FW3Gppcdma | RW3Gppcdma| M2CDma | D2CDma | F8CDma | R8CDma | F19Cdma | R19Cdma | NONE| FO8Cdma | RO8Cdma | FO19CDMA | RO19CDMA | TCDMa This command selects the settings for power measurement of one of the standards.
  • Page 110 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:MAXimum[:STATe] ON | OFF This command switches on or off the measurement of the maximum of the absolute value. Example: ":CALC:MARK:FUNC:SUMM:MAX ON" Features: *RST value: SCPI: device-specific Mode: When the measurement is switched on, the summary marker is automatically activated (command SUMMary:STATe set to ON).
  • Page 111 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:PPEak[:STATe] ON | OFF This command switches on or off the measurement of the positive peak value if the calculation and. Example: ":CALC:MARK:FUNC:SUMM:PPE ON" Features: *RST value: SCPI: device-specific Mode: When the measurement is switched on, the summary marker is automatically activated (command SUMMary:STATe set to ON).
  • Page 112 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:MPEak[:STATe] ON | OFF This command switches on or off the measurement of the negative peak value. Example: ":CALC:MARK:FUNC:SUMM:MPE ON" Features: *RST value: SCPI: device-specific Mode: When the measurement is switched on, the summary marker is automatically activated (command SUMMary:STATe set to ON).
  • Page 113 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:MIDDle[:STATe] ON | OFF This command switches on or off the measurement of the arithmetical mean between positive and negative peak value. Example: ":CALC:MARK:FUNC:SUMM:MIDD ON" Features: *RST value: SCPI: device-specific Mode: When the measurement is switched on, the summary marker is automatically activated (command SUMMary:STATe set to ON).
  • Page 114 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:RMS[:STATe] ON | OFF This command switches on or off the measurement of the effective (rms) value of the total trace. Example: ":CALC:MARK:FUNC:SUM:RMS ON" Features: *RST value: SCPI: device-specific Modes: A-Z, VA When the measurement is switched on, the summary marker is automatically activated (command SUMMary:STATe set to ON).
  • Page 115 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:MEAN[:STATe] ON | OFF This command switches on or off the measurement of the mean value of the total trace. Example: ":CALC:MARK:FUNC:SUMM:MEAN ON" Features: *RST value: SCPI: device-specific Modes: A-Z, VA When the measurement is switched on, the summary marker is automatically activated (command SUMMary:STATe set to ON).
  • Page 116 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:PHOLd ON | OFF This command switches on or off the peak-hold function. Example: ":CALC:MARK:FUNC:SUMM:PHOL ON" Features: *RST value: SCPI: device-specific Modes: A-Z, VA The peak-hold function is reset by switching off and on, again. :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:SUMMary:AVERage ON | OFF This command switches the calculation of the average value on or off.
  • Page 117 CALCulate Subsystem :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:STARt This command sets the start frequency to the frequency of the current marker. Example: ":CALC:MARK:FUNC:STAR" Features: *RST value: SCPI: device-specific Mode: This command is an "event" which is why it is not assigned an *RST value and has no query. :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:STOP This command sets the stop frequency to the frequency of the current marker.
  • Page 118 CALCulate Subsystem CALCulate:MATH Subsystem The CALCulate:MATH - subsystem allows to process data from the SENSe-subsystem in numeric expressions. COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> :MATH<1 to 4> [:EXPRession] [:DEFine] <expr> :STATe <Boolean> :CALCulate<1|2>:MATH<1 to 4>[:EXPression][:DEFine] <expr> This command defines the mathematical expression for relating traces and reference line. Command CALCulate:MATH:STATe switches the mathematical relation of traces on or off .
  • Page 119 CALCulate Subsystem CALCulate:X and CALCulate:UNIT Subsystem The CALCulate:X and CALCulate:Unit subsystems define the units for vector signal analyzer mode and power measurements. COMMAND PARAMETERS UNIT COMMENT CALCulate<1|2> Vector Signal Analysis :UNIT :TIME S | SYM :UNIT :ANGLe DEG | RAD Vector Signal Analysis :POWer DBM | V | W | DB |...
  • Page 120 CALibration Subsystem CALibration Subsystem The commands of the CALibration subsystem perform instrument calibrations. COMMAND PARAMETERS UNIT COMMENT CALibration [:ALL]? query only :BANDwidth [:RESolution]? query only :BWIDth [:RESolution]? query only :IQ? query only / Vector Signal Analysis :LDETector? query only :LOSuppression? query only :PPEak? query only...
  • Page 121 CALibration Subsystem :CALibration:LDETector? This command performs a calibration of the log module’s characteristic and of the detectors. A "0" is returned if the calibration was successful. Example: ":CAL:LDET?" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :CALibration:LOSuppression? This command performs a calibration of the local oscillator suppression. . A "0" is returned if the calibration was successful.
  • Page 122 CONFigure-Subsystem CONFigure Subsystem The CONFigure subsystem contains commands for configuring complex measurement tasks, like those provided by the options GSM BTS Analyzer (FSE-K11) or GSM MS Analyzer (FSE-K10). The CONFigure subsystem is closely linked to the functions of the FETCH and READ subsystems, where the measurement cycles are started and/or the results of the measurements are queried.

  • Page 123: I-5.1

    CONFigure-Subsystem :CONFigure[:BTS]:MEASurement? This command queries which measurement is currently set. PFERror Phase-/Frequency Error MACCuracy Modulation Accuracy POWer Carrier Power PTEMplate Power v. Time MODulation Modulation Spectrum SWITching Transient Spectrum SPURious Spurious Example: Answer: "PFER" ":CONF:MEAS?" Features: *RST-value: - SCPI: device-specific Mode: This command is a query and has therefore no *RST value assigned.
  • Page 124 CONFigure-Subsystem :CONFigure[:BTS]:LIMit:PPEak <numeric_value> This command determines the phase error limits in degrees for the phase/frequency measurement (peak value). Example: ":CONF:LIM:PPE 66" Feature: *RST value: depending on standard SCPI: device-specific Mode: :CONFigure[:BTS]:LIMit:PRMS <numeric_value> This command determines the phase error limits in degrees for the phase/frequency measurement (mean value).
  • Page 125 CONFigure-Subsystem :CONFigure[:BTS]:LIMit:PERCentile<numeric_value> This command determines the 95% percentile limits. The percentile defines the value which the EVM may exceed 5% of all symbols at maximum. Example: ":CONF:LIM:PERC 30" Features: *RST value depending on the standard SCPI: device-specific Mode: :CONFigure[:BTS]:LIMit:FREQuency <numeric_value> This command determines the frequency error limits in ppm for the phase/frequency measurement.
  • Page 126 CONFigure-Subsystem :CONFigure[:BTS]:POWer:STATic 0 to 6 This command defines the static power control level of the base station. Example: ":CONF:POW:STAT 3" Features: *RST value: SCPI: device-specific Mode: :CONFigure[:BTS]:POWer:DYNamic 0 to 15 This command defines the dynamic power control level of the base station. Example: ":CONF:POW:DYN 5"...
  • Page 127 CONFigure-Subsystem :CONFigure[:BTS]:POWer:SINGle:CLEar This command clears the table containing the single-step carrier power measurements. Example: ":CONF:POW:SING:CLE" Feature: *RST value: SCPI: device-specific Mode: This command is an event and has therefore neither *RST value nor query. :CONFigure[:BTS]:CHANnel:SLOT 0 to 7 This command selects the slot number within a transmission frame of the base station. Example: ":CONF:CHAN:SLOT 3"...
  • Page 128 CONFigure-Subsystem :CONFigure[:BTS]:CHANnel:TSC:AUTO ON | OFF This command couples the midamble (training sequence TSC_0 to 7) to the slot, i.e. if the slot number is changed the training sequence in the ON state is automatically adapted. In the OFF state, the training sequence set is conserved even if the slot number is changed. Example: ":CONF:CHAN:TSC:AUTO ON"...
  • Page 129 CONFigure-Subsystem :CONFigure[:BTS]:TXSupp ON | OFF This command defines that an additional carrier suppression of min. 20dB is taken into account for the measurement. If there is already suppression, a more sensitive setting of the instrument is selected. Example: ":CONF:TXS ON" Features: *RST value: SCPI:...
  • Page 130 CONFigure-Subsystem CONFigure:BURSt Subsystem This subsystem provides the commands for configuring the measurements in the GSM BTS Analyzer mode (option FSE-K11) or GSM MS Analyzer mode (option FSE-K10) which are performed on individual bursts. (carrier power, phase/frequency error, power vs. time). COMMAND PARAMETERS UNIT...
  • Page 131 CONFigure-Subsystem :CONFigure:BURSt:PFERror:CONDition NORMal | EXTReme This command defines the conditions for phase-frequency measurement. Example: ":CONF:BURS:PFER:COND EXTR" Features: *RST value: NORMal SCPI: device-specific Modes: BTS, MS :CONFigure:BURSt:MACCuracy[:IMMediate] This command selects measurement of the measurement accuracy of the base station or mobile. Example: ":CONF:BURS:MACC"...
  • Page 132 CONFigure-Subsystem :CONFigure:BURSt:POWer[:IMMediate] This command selects measurement of the average carrier power of the base station or mobile. Example: ":CONF:BURS:POW" Features: *RST value: SCPI: device-specific Modes: BTS, MS This command is an event and thus has no query and no *RST value assigned. :CONFigure:BURSt:POWer:COUNt 1 to 1000 This command sets the number of bursts used for the determination of measured values.
  • Page 133 CONFigure-Subsystem :CONFigure:BURSt:PTEMplate:SELect FULL | TOP | RISing | FALLing This command defined the burst section to be measured. Example: ":CONF:BURS:PTEM:SEL TOP" Features: *RST value: FULL SCPI: device-specific Modes: BTS, MS :CONFigure:BURSt:REFerence:AUTO ON | OFF This command switches between automatic and user-activated preview of power versus time. When switched to AUTO, the preview is always performed, when switched to OFF it is omitted.
  • Page 134 CONFigure-Subsystem CONFigure:MS Subsystem This subsystem provides the commands for configuring the GSM MS Analyzer mode (Option FSE- K10/FSE-K20) for analyzing the behavior of mobiles corresponding to the standards P-GSM, E-GSM, R- GSM, DCS1800 or PCS1900. EDGE measurement require option FSE-K20, and tests in the GSM 850 MHz band option FSE-K30.
  • Page 135 CONFigure-Subsystem :CONFigure[:MS]:MEASurement? This command queries which measurement is currently set. PFERror Phase-/Frequency Error MACCuracy Modulation Accuracy POWer Carrier Power PTEMplate Power v. Time MODulation Modulation Spectrum SWITching Transient Spectrum SPURious Spurious Example: Answer: "PFER" ":CONF:MEAS?" Features: *RST value: - SCPI: device specific Mode: This command is a query and has therefore no *RST value assigned.
  • Page 136 CONFigure-Subsystem :CONFigure[:MS]:LIMit:PPEak <numeric_value> This command determines the phase error limits in degrees for the phase/frequency measurement (peak value). Example: ":CONF:LIM:PPE 66" Feature: *RST value: depending on standard SCPI: device-specific Mode: :CONFigure[:MS]:LIMit:PRMS <numeric_value> This command determines the phase error limits in degrees for the phase/frequency measurement (mean value).
  • Page 137 CONFigure-Subsystem :CONFigure[:MS]:LIMit:PERCentile<numeric_value> This command defines the limit for the 95% percentile. Example: ":CONF:LIM:PERC 30" Features: *RST value depending on the standard SCPI: device-specific Mode: :CONFigure[:MS]:LIMit:FREQuency <numeric_value> This command determines the frequency error limits in ppm for the phase/frequency measurement. Example: ":CONF:LIM:FREQ 36"...
  • Page 138 CONFigure-Subsystem :CONFigure[:MS]:POWer:COUPled ON | OFF This command switches between user-defined (OFF) and standard-defined (ON) level values. Example: ":CONF:POW:COUP ON" Feature: *RST value: standard user-defined SCPI: device-specific Mode: :CONFigure[:MS]:POWer:LEVel 0 to 31 This command defines the power control level of the mobile. Example: ":CONF:POW:LEV 5"...
  • Page 139 CONFigure-Subsystem :CONFigure[:MS]:POWer:SINGle[:STATe] ON | OFF This command switches single measurement of carrier power on and off. Example: ":CONF:POW:SING ON" Feature: *RST value: SCPI: device-specific Mode: :CONFigure[:MS]:POWer:SINGle:CLEar This command clears the table containing the single-step carrier power measurements. Example: ":CONF:POW:SING:CLE" Feature: *RST value: SCPI: device-specific...
  • Page 140 CONFigure-Subsystem :CONFigure[:MS]:NETWork[:TYPE] PGSM | PGSM900 | EGSM |EGSM900 | DCS |GSM1800 | PCS|GSM1900 | RGSM | RGSM900 | GSM850 This command selects the standard type according to which the mobile will work. Example: ":CONF:NETW DCS" Features: *RST value: SCPI: device-specific Mode: :CONFigure[:MS]:NETWork:PHASe 1 | 2 [,PLUS]...
  • Page 141 CONFigure-Subsystem :CONFigure[:MS]:SWEeptime STANdard | AUTO This command selects the sweep-time computing mode for the spurious measurement: Example: ":CONF:SWE AUTO" Feature: *RST value: STANdard SCPI: device-specific Mode: STANdard The computation of the sweep time is based on a worst-case estimation AUTO The sweep time is reduced by a factor of 8 (assuming all slots are on).
  • Page 142 CONFigure-Subsystem CONFigure:SPECtrum Subsystem This subsystem provides the commands for configuring the measurements in the GSM BTS Analyzer mode (FSE-K11) or in the GSM MS Analyzer mode (FSE-K10) used to determine the power of the spectral contributions due to modulation and switching (modulation spectrum, transient spectrum). COMMAND PARAMETERS UNIT...
  • Page 143 CONFigure-Subsystem :CONFigure:SPECtrum:MODulation:RANGe ARFCn | TXBand | RXBand | COMBined | DCSRx1800 | G8Rxband | PCSRx1900 This command selects the frequency range for the measurement. Example: ":CONF:SPEC:MOD:RANG TXB" Features: *RST value: ARFCn SCPI: device-specific Modes: BTS, MS ARFCN ± 1.8 MHz ARFCn TXBand TX-Band...
  • Page 144 CONFigure-Subsystem CONFigure:SPURious Subsystem This subsystem provides commands for configuring the measurements in the GSM BTS (FSE-K11) or GSM MS (FSE-K10) Analyzer mode used for measuring the power of spurious emissions. COMMAND PARAMETERS UNIT COMMENT CONFigure :SPURious [:IMMediate] no query, Option FSE-K11, FSE-K10 :COUNt <numeric_value>...
  • Page 145 CONFigure-Subsystem :CONFigure:SPURious:RANGe TXBand | OTXBand | RXBand | IDLeband | COMBined This command selects the frequency range used for the measurement. Example: ":CONF:SPUR:RANG OTX" Features: *RST value: SCPI: device-specific Modes: BTS, MS TXBand TX-Band OTXBand Not TX-Band RXBand RX-Band (option FSE-K11 only) IDLeband Idle band (option FSE-K10 only) TX-Band ±...
  • Page 146 DIAGnostic-Subsystem DIAGnostic Subsystem The DIAGnostic subsystem contains the commands which support instrument diagnostics for maintenance, service and repair. In accordance with the SCPI standard, all of these commands are device-specific. COMMAND PARAMETERS UNIT COMMENT DIAGnostic :SERVice :INPut [:SELect] CALibration | RF :FUNCtion <numeric_value>,>numeric_value>...
  • Page 147 DIAGnostic Subsystem :DIAGnostic:INFO:CCOunt:ATTenuation<1 | 2 | 3>? This command queries the cycle counters of the attenuators. The suffix selects the attenuator: 1: Basic instrument 2: Tracking Generator 3: FSE-B13 The result is output as a list of values separated by a ’,’. The list starts with the date. Example: ":DIAG:INFO:CCO:ATT?"...
  • Page 148 DISPlay Subsystem DISPlay Subsystem The DISPlay subsystem controls the selection and presentation of textual and graphic information as well as of trace data on the display. The displays in the split-screen mode are assigned to WINDow 1 (screen A) or 2 (screen B) . COMMAND PARAMETERS UNIT...
  • Page 149 DISPlay Subsystem COMMAND PARAMETERS UNIT COMMENT [:WINDow<1|2>] :TRACe<1 to 4> :MODE WRITe | VIEW | AVERage | MAXHold | MINHold :CWRite <Boolean> Vector Signal Analysis :ANALog <Boolean> :HCONtinuous <Boolean> [:STATe] <Boolean> :SYMBol DOTS | BARS | OFF Vector Signal Analysis :EYE :COUNt <numeric_value>...
  • Page 150 DISPlay Subsystem :DISPlay:CMAP<1 to 13>:DEFault This command resets the screen colors of the instrument to their default settings. Example: ":DISP:CMAP:DEF" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS This command is an event and has thus no query and no *RST value assigned. The numeric suffix in CMAP<1 to 13>...
  • Page 151 DISPlay Subsystem :DISPlay[:WINDow<1|2>]:SELect This command selects the active measurement window via the numeric suffix in WINDow . This way, a switch is possible from FULL SCREEN A to FULL SCREEN B (see example). Example: ":DISP:FORM SPLit" ":DISP:WIND2:SEL" ":DISP:FORM SINGle" Features: *RST value: SCPI: device-specific...
  • Page 152 DISPlay Subsystem :DISPlay[:WINDow<1|2>]:TIME ON | OFF This command switches on or off the screen display of date and time. Example: ":DISP:TIME ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS The numeric suffix in WINDow<1|2> is not significant. :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:X[:SCALe]:RVALue <numeric_value>...
  • Page 153 DISPlay Subsystem :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:X[:SCALe]:ZOOM[:FREQuency]:CENTer <numeric_value> This command shifts the zoomed frequency range to the specified center frequency. Example: ":DISP:TRAC:X:ZOOM:CENT 1GHZ" Features: *RST value: -- (depending on the current frequency setting) SCPI: device-specific Mode: The numeric suffix in TRACe<1 to 4> is not significant. :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:Y[:SCALe] 10dB to 200dB This command defines the display range of the Y-axis (level axis) with logarithmic scaling (DISP:TRAC:Y:SPAC...
  • Page 154 DISPlay Subsystem :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:Y[:SCALe]:RLEVel:OFFSet -200dB to 200dB This command defines the offset of the reference level. Example: ":DISP:TRAC:Y:RLEV:OFFS -10dB" Features: *RST value: SCPI: conforming Modes: A, VA The numeric suffix in TRACe<1 to 4> is not significant. :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:Y[:SCALe]:RVALue <numeric_value>...
  • Page 155 DISPlay Subsystem :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:Y[:SCALe]:RPOSition 0 to 100PCT This command defines the position of the reference value. Example: ":DISP:TRAC:Y:RPOS 50PCT" Features: *RST value: 100PCT (tracking generator) 50PCT (vector analyzer) SCPI: conforming Modes: A, VA The numeric suffix in TRACe<1 to 4> is not significant. This command is only valid in conjunction with option Tracking Generator or in vector analyzer mode.
  • Page 156 DISPlay Subsystem :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:MODE:CWRite ON | OFF This command selects continuous display of the measured values (continuous write). Example: ":DISP:TRAC3:MODE:CWR ON" Features: *RST value: SCPI: device-specific Mode: :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:MODE:ANALog ON | OFF This command selects continuous display of the measured values in the analyzer mode (analog trace).
  • Page 157 DISPlay Subsystem :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:SYMBol DOTS | BARS | OFF This command determines the display of the points of decision on the trace. Example: ":DISP:TRAC:SYMB BARS" Features: *RST value: SCPI: device-specific Mode: VA-D :DISPlay[:WINDow<1|2>]:TRACe<1 to 4>:EYE:COUNt 1 to Result Length This command determines the display range of the eye diagram in symbols.
  • Page 158 FETCh-Subsystem FETCh Subsystem The FETCh subsystem contains commands for reading out results of complex measurement tasks like those provided by options GSM BTS Analyzer, FSE-K11, or GSM MS Analyzer, FSE-K10. The FETCh- subsystem is closely linked to the functions of the CONFigure and READ-subsystems, where the measurement sequences are configured, the measurements are started and their results are queried.
  • Page 159 FETCh-Subsystem :FETCh:BURSt:PERRor:RMS:STATus? This command reads out the status of the RMS-measurement of the phase error taken over the selected number of bursts. 0: failed, 1: passed Example: ":FETC:BURS:PERR:RMS:STAT?" Features: *RST value: SCPI: device-specific Modes: BTS, MS If no measurement has been performed yet, a query error results. This command is a query and has therefore no *RST value assigned.
  • Page 160 FETCh-Subsystem :FETCh:BURSt:PERRor:PEAK:STATus? This command reads out the status of the peak measurement of the phase error taken over the selected number of bursts. 0: failed, 1: passed Example: ":FETC:BURS:PERR:PEAK:STAT?" Features: *RST value SCPI: device-specific Modes: BTS, MS If no measurement has been performed yet, a query error results. This command is a query only and therefore has no *RST value assigned.
  • Page 161 FETCh-Subsystem :FETCh:BURSt:FERRor:STATus? This command reads out the status of the measurement of the frequency error taken over the selected number of bursts. 0: failed, 1: passed Example: ":FETC:BURS:FERR:STAT?" Features: *RST value: SCPI: device specific Modes: BTS, MS If no measurement has been performed yet, a query error results. This command is a query only and therefore has no *RST value assigned.
  • Page 162 FETCh-Subsystem :FETCh:BURSt:POWer[:IMMediate]? Carrier Power measurement (:CONFigure:MS:POWer:SINGle:STATe OFF): This command reads out the result of the last step performed during the measurement of the output power of the base station or mobile. Parameter: The result is output as an ASCII string in the following format: <Static Power Ctrl>,<Dyn Power Ctrl>,<Rat-Level>,<Act-Level>, <Delta>,<Status>...
  • Page 163 FETCh-Subsystem :FETCh:BURSt:POWer:ALL? Carrier Power measurement (:CONFigure:MS:POWer:SINGle:STATe OFF): This command reads out the results of all individual steps during the measurement of the output power of the base station or mobile. Parameter: The result is output as an ASCII string in the following format: <Static Power Ctrl>,<Dyn Power Ctrl>,<Rat-Level>,<Act-Level>, <Delta>,<Status>...
  • Page 164 FETCh-Subsystem :FETCh:BURSt:MACCuracy:RMS:STATus? This command reads out the status of the RMS measurement of the modulation accuracy taken over the selected number of bursts. 0: failed, 1: passed Example: ":FETC:BURS:MACC:RMS:STAT?" Features: *RST value: SCPI: device-specific Modes: BTS, MS If no measurement has been performed yet, a query error results. This command is a query only and therefore has no *RST value assigned.
  • Page 165 FETCh-Subsystem :FETCh:BURSt:MACCuracy:PEAK:AVERage? This command reads out the average of the PEAK measurement of the modulation accuracy taken over the selected number of bursts. Example: ":FETC:BURS:MACC:PEAK:AVER?" Features: *RST value: SCPI: device-specific Modes: BTS, MS If no measurement has been performed yet, a query error results. This command is a query only and therefore has no *RST value assigned.
  • Page 166 FETCh-Subsystem :FETCh:BURSt:MACCuracy:OSUPpress:MAXimum? This command reads out the maximum of the original offset supression measurement of the modulation accuracy taken over the selected number of bursts. Example: ":FETC:BURS:MACC:OSUP:MAX?" Features: *RST value: SCPI: device-specific Modes: BTS, MS If no measurement has been performed yet, a query error results. This command is a query only and therefore has no *RST value assigned.
  • Page 167 FETCh-Subsystem :FETCh:BURSt:MACCuracy:FREQuency:STATus? This command reads out the status of the frequency error measurement of the modulation accuracy taken over the selected number of bursts. 0: failed, 1: passed Example: ":FETC:BURS:MACC:FREQ:STAT?" Features: *RST value: SCPI: device-specific Modes: BTS, MS If no measurement has been performed yet, a query error results. This command is a query only and therefore has no *RST value assigned.
  • Page 168 FETCh-Subsystem FETCh:PTEMplate Subsystem This subsystem provides the commands for reading out results of measurements in the GSM BTS (FSE-K11) or GSM MS (FSE-K10) Analyzer mode which are used to determine the carrier power of , power versus time measurement without first restarting a new measurement. Command Parameter Unit...
  • Page 169 FETCh-Subsystem FETCh:SPECtrum Subsystem This subsystem provides the commands for reading out results of measurements in the GSM BTS (FSE-K11) or GSM MS (FSE-K10) Analyzer mode, used to measure the power of the spectral contributions due to modulation and switching (modulation spectrum, transient spectrum) without first restarting a new measurement.
  • Page 170 FETCh-Subsystem Example: ":FETC:SPEC:MOD? TXB" Result: 0,890E6,915E6,-87.4,-108.0,ABS,FAILED, 1,893.2E6,893.2E6,-83.2,-108.0,ABS,FAILED, 2,895.7E6,895.7E6,-87.4,-108.0,ABS,FAILED Features: *RST value: SCPI: device-specific Modes: BTS, MS ARFCN ± 1.8 MHz ARFCn TXBand TX-Band RXBand RX-Band ARFCN ± 1.8 MHz / TX-Band (option FSE-K11 only) COMBined DCSRx1800 RX band DCS 1800 (option FSE-K10 only) If no measurement has been performed yet, a query error results.
  • Page 171 FETCh-Subsystem :FETCh:SPECtrum:SWITching[:ALL]? This command reads out the result of the measurement of the transient spectrum of the base station or mobile. Parameter: The result is output as a list of partial result strings separated by ’,’ as for the command :FETCh:SPECtrum:MODulation[:ALL]?. Example: ":FETC:SPEC:SWIT?"...
  • Page 172 FETCh-Subsystem FETCh:SPURious Subsystem This subsystem provides the commands for reading out results of measurements in the GSM BTS (FSE-K11) or GSM MS (FSE-K10) Analyzer mode which are used to determine spurious emissions, without first restarting a new measurement. COMMAND PARAMETERS UNIT COMMENT FETCh...
  • Page 173 FETCh-Subsystem Example: ":FETC:SPUR? TXB" Result: 0,890E6,915E6,-87.4,-108.0,ABS,FAILED, 1,893.2E6,893.2E6,-83.2,-108.0,ABS,FAILED, 2,895.7E6,895.7E6,-87.4,-108.0,ABS,FAILED Features: *RST value: SCPI: device-specific Modes: BTS, MS TXBand TX-band OTXBand Not TX-band RXBand RX-band (option FSE-K11 only) IDLeband Idle band (option FSE-K10 only) If no measurement has been performed yet, a query error results. This command is a query only and therefore has no *RST value assigned.

  • Page 174: Format Subsystem

    FORMat-Subsystem FORMat Subsystem The FORMat subsystem specifies the data format of the data transmitted from and to the instrument. COMMAND PARAMETERS UNIT COMMENT FORMat [:DATA] ASCii|REAL|UINT[,<numeric_value>] :DEXPort :DSEParator POINt|COMMa :HEADer [:STATe] <Boolean> :APPend [:STATe] <Boolean> :COMMent <string> :FORMat[:DATA] ASCii | REAL | UINT [, 32] This command specifies the data format of the data transmitted from and to the instrument.
  • Page 175 FORMat Subsystem :FORMat:DEXPort:DSEParator POINt|COMMa This command determines the decimal separator (decimal point or comma)for the output of the measurement data in ASCII format. Thus, evaluation programms (i.e. MS-Exel) of different language versions are supported. Example: ":FORM:DEXP:DSEP POIN Features: *RST value: POINt SCPI: device specific...
  • Page 176 HCOPy Subsystem HCOPy Subsystem The HCOPy subsystem controls the output of display information for documentation purposes on output devices or files. COMMAND PARAMETERS UNIT COMMENT HCOPy :ABORt no query :DESTination<1|2> ‘SYST:COMM:PRIN’| no query, FSE with Windows NT ’SYST:COMM:CLIP’| controller ’MMEM’ no query, FSE without controller :DESTination<1|2>...
  • Page 177 HCOPy Subsystem :HCOPy:ABORt This command aborts a running hardcopy output. Example: ":HCOP:ABOR" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS This command is an event which is why it is not assigned an *RST value and no query. :HCOPy:DESTination<1|2>...
  • Page 178 HCOPy Subsystem :HCOPy:DEVice:COLor ON | OFF This command selects between color and monochrome hardcopy of the screen. Example: ":HCOP:DEV:COL ON" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS :HCOPy:DEVice:LANGuage<1|2> WMF| EWMF | GDI | BMP (FSE with NT controller) :HCOPy:DEVice:LANGuage<1|2>...
  • Page 179 HCOPy Subsystem :HCOPy:DEVice:PRESet<1|2> ON | OFF This command resets the hardcopy unit (1 or 2) prior to generating the hardcopy (FSE without controller or with DOS controller only) Example: ":HCOP:DEV:PRES2 ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :HCOPy:DEVice:RESolution<1|2>...
  • Page 180 HCOPy Subsystem :HCOPy:ITEM:FFEed<1|2>:STATe ON | OFF The command adds a form feed command to the hardcopy output of the screen. Example: ":HCOP:ITEM:FFE2:STAT ON" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS :HCOPy:ITEM:LABel:TEXT <string> This command defines the title of the screen with a maximum of 60 characters. Example: ":HCOP:ITEM:LAB:TEXT ’My Title’"...
  • Page 181 HCOPy Subsystem :HCOPy:ITEM:WINDow<1|2>:TRACe:STATe ON | OFF This command selects the output of the currently displayed trace (ON). Example: ":HCOP:ITEM:WIND:TRACe:STAT ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS The command :HCOPy:ITEM:WINDow<1|2>:TRACe:STATe OFF same as command :HCOPy:ITEM:ALL enables the output of the whole screen. :HCOPy:ITEM:WINDow<1|2>:TRACe:CAINcrement ON | OFF The command automatically changes the colour of the currently displayed trace after printout (ON).
  • Page 182 INITiate Subsystem INITiate Subsystem The INITiate subsystem checks the initialization of the trigger subsystem. In the split-screen representation, a distinction is made between INITiate1 (screen A) and INITiate2 (screen B) COMMAND PARAMETERS UNIT COMMENT INITiate<1|2> :CONTinuous <boolean> :CONMeas no query [:IMMediate] no query :DISPlay...
  • Page 183 INITiate Subsystem :INITiate<1|2>:DISPlay ON | OFF This command switches the display on or off during a single sweep. Example: ":INIT:DISP OFF" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS 1065.6016.12 6.126 E-16...
  • Page 184 INPut Subsystem INPut Subsystem The INPut subsystem checks the input features of the instrument. In the split-screen representation, a distinction is made between INPut1 (screen A) and INPut2 (screen B). COMMAND PARAMETERS UNIT COMMENT INPut<1|2> :ATTenuation <numeric_value> :AUTO <Boolean> :MODE NORMal | LNOise|LDIStortion :STEPsize 1 | 10...
  • Page 185 INPut Subsystem :INPut<1|2>:ATTenuation:STEPsize 1dB | 10dB This command defines the attenuator stepsize. Example: ":INP:ATT:STEP 1dB" Features: *RST value: 10dB SCPI: device-specific Mode: A, VA, BTS, MS This command is only available in conjunction with option FSE-B13, 1-dB attenuator. :INPut<1|2>:UPORt<1|2>[:VALue]? This command queries the control lines of the user ports. Example: ":INP:UPOR2?"...
  • Page 186 INPut Subsystem :INPut<1|2>:IMPedance:CORRection RAM | RAZ This command selects the matching element for 75 Ω input impedance. Example: ":INP:IMP:CORR RAM" - (INPut:IMPedance = 50 Ω) Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :INPut<1|2>:MIXer -10 to -100 dBm This command defines the nominal mixer level of the instrument.
  • Page 187 INSTrument Subsystem INSTrument Subsystem The INSTrument subsystem selects the operating mode of the unit either via text parameters or fixed numbers. In the split-screen representation, a distinction is made between INSTrument1 (screen A) and INSTrument2 (screen B). COMMAND PARAMETERS UNIT COMMENT INSTrument<1|2>...
  • Page 188 INSTrument Subsystem :INSTrument<1|2>:COUPle NONE | MODE | X | Y | CONTrol | XY | XCONtrol | YCONtrol | ALL This command defines the coupling between the two measurement windows screen A and B. Example: ":INST:COUP NONE" Features: *RST value: SCPI: device specific Modes:...
  • Page 189 MMEMory Subsystem MMEMory Subsystem The MMEMory (mass memory) subsystem provides commands which allow for access to the storage media of the instrument and for storing and loading various instrument settings. The NAME command stores the HCOPy outputs in a file. The various drives can be addressed via the mass storage unit specifier <msus>...
  • Page 190 MMEMory Subsystem COMMAND PARAMETERS UNIT COMMENT MMEMory :SELect [:ITEM] <Boolean> :GSETup <Boolean> :HWSettings <Boolean> :TRACE<1 to 4> :LINes <Boolean> [:ACTive] <Boolean> :ALL <Boolean> :CSETup <Boolean> :HCOPy <Boolean> :MACRos <Boolean> Option Tracking Generator :SCData :TRANsducer <Boolean> [:ACTive] <Boolean> :ALL :CVL <Boolean> [:ACTive] <Boolean>...
  • Page 191 MMEMory Subsystem :MMEMory:CDIRectory <directory_name> This command changes the current directory. Parameter: <directory_name>::= DOS path name Example: ":MMEM:CDIR ’C:\USER\DATA’" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS In addition to the path name, the indication of the directory may contain the drive name. The path name complies with the DOS conventions.
  • Page 192 MMEMory Subsystem :MMEMory:DELete <file_name> This command deletes the files indicated. Parameter: <file_name> ::= DOS file name Example: ":MMEM:DEL ’TEST01.HCP’" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS The indication of the file name contains the path and, optionally, the drive. Indication of the path corresponds to the DOS conventions.
  • Page 193 MMEMory Subsystem :MMEMory:LOAD:AUTO 1,<file_name> This command defines which device setting is automatically loaded after the instrument is switched Parameter: <file_name> ::= DOS file name without extension; FACTORY denotes the data set previously in the instrument Example: ":MMEM:LOAD:AUTO 1,’C:\USER\DATA\TEST’" Features: *RST value: SCPI: device-specific Modes:...
  • Page 194 MMEMory Subsystem :MMEMory:MSIS ’A:’ | ’C:’ This command changes to the drive indicated. Example: ":MMEM:MSIS ’A:’" Features: *RST value: "C:’ SCPI: conforming Modes: A, VA, BTS, MS The drive may be the internal hard disk C: or the floppy-disk drive A:. The drive is indicated according to the DOS conventions.
  • Page 195 MMEMory Subsystem :MMEMory:STORe:TRACe 1 to 4,<file_name> This command stores the selected trace (1 to 4) in ASCII format in a file. Parameter: 1 to 4 := selected trace 1 to 4 <file_name> := DOS file name Example: ":MMEM:STOR:TRAC 3,’A:\TEST.ASC’" Features: *RST value: SCPI: device-specific...
  • Page 196 MMEMory Subsystem :MMEMory:SELect[:ITEM]:HWSettings ON | OFF This command includes the hardware settings in the list of data subsets of a device setting to be stored/loaded. Example: ":MMEM:SEL:HWS ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS Level and frequency lines are stored with this command as well. :MMEMory:SELect[:ITEM]:TRACe<1 to 4>...
  • Page 197 MMEMory Subsystem :MMEMory:SELect[:ITEM]:CSETup ON | OFF This command includes the current color setting in the list of partial datasets of a device setting to be stored/loaded. Example: ":MMEM:SEL:CSET ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS :MMEMory:SELect[:ITEM]:HCOPy ON | OFF This command includes the hardcopy settings in the list of data subsets of a device setting to be stored/loaded.
  • Page 198 MMEMory Subsystem :MMEMory:SELect[:ITEM]:TRANsducer:ALL ON | OFF This command includes all transducer factors and sets in the list of data subsets of a device setting to be stored/loaded. Example: ":MMEM:SEL:TRAN:ALL ON" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS This command is an event and therefore has no *RST value assigned.
  • Page 199 MMEMory Subsystem :MMEMory:SELect[:ITEM]:NONE This command deletes all data subsets in the list of data subsets of a device setting to be stored/loaded. Example: ":MMEM:SEL:NONE" Features: *RST value: SCPI: device-specific Modes: A, VA, BTS, MS This command is an event and therefore has no *RST value assigned. :MMEMory:SELect[:ITEM]:DEFault This command sets the default list of the data subsets of a device setting to be stored/loaded.
  • Page 200 OUTPut Subsystem OUTPut Subsystem The OUTPut subsystem checks the output features of the instrument. In conjunction with option tracking generator, in the split screen mode, a distinction is made between OUTPut1 (screen A) and OUTPut2 (screen B). COMMAND PARAMETERS UNIT COMMENT OUTPut<1|2>...
  • Page 201 OUTPut Subsystem :OUTPut<1|2>AF:SENSitivity <numeric_value> This command changes the sensitivity of the AF-output. Parameter: <numeric_value> ::= 0.1 PCT to 100 PCTfor AM 0.1 KHZ to 100 KHZfor FM 0.0 1RAD to 10 RADfor PM Example: ":OUTP:AF:SENS 20PCT" Features: *RST value: 100 % for AM 100 kHz for FM 10 rad for PM SCPI:...
  • Page 202 READ-Subsystem READ Subsystem The READ-subsystem contains commands for starting complex measurement tasks such as those provided by options GSM BTS Analyzer (FSE-K11) or GSM MS Analyzer (FSE-K10), and for querying the results subsequently. The READ-subsystem is closely linked to the functions of the CONFigure- and FETCh-subsystems, where the measurement sequences are configured or the results are queried without restarting a new measurement.
  • Page 203 READ-Subsystem COMMAND PARAMETERS UNIT COMMENT READ :BURSt :MACCuracy :OSUPpress :STATus? query only :AVERage? query only :MAXimum? query only :PERCentile :STATus? query only :AVERage? query only :MAXimum? query only :FREQuency :STATus? query only :AVERage? query only :MAXimum? query only :READ:BURSt:PERRor:RMS:STATus? This command starts the measurement of the phase and frequency error of the base station or mobile and reads out the status of the RMS-measurement of the phase error taken over the selected number of bursts.
  • Page 204 READ-Subsystem :READ:BURSt:PERRor:RMS:MAXimum? This command starts the measurement of the phase and frequency error of the base station or mobile and reads out the maximum of the RMS-measurement of the phase error for the selected number of bursts. Example: ":READ:BURS:PERR:RMS:MAX?" Features: *RST value: SCPI: device-specific...
  • Page 205 READ-Subsystem :READ:BURSt:PERRor:PEAK:MAXimum? This command starts the measurement of the phase and frequency error of the base station or mobile and reads out the maximum of the peak measurement of the phase error for the selected number of bursts. Example: ":READ:BURS:PERR:PEAK:MAX?" Features: *RST value: SCPI:...
  • Page 206 READ-Subsystem :READ:BURSt:FERRor:MAXimum? This command starts the measurement of the phase and frequency error of the base station or mobile and reads out the maximum of the frequency error for the selected number of bursts. Example: ":READ:BURS:FERR:MAX?" Features: *RST value: SCPI: device-specific Modes: BTS, MS...
  • Page 207 READ-Subsystem Carrier Power Individual Messung: (:CONFigure:MS:POWer:SINGle:STATe ON) This command starts the measurement of the maximum output power of the base station or mobile and reads out the result. The power control level is preset ( command :CONFigure<1|2>[:MS]: POWer:LEVel <num_value>) Parameter: The result is read out as an ASCII string in the following format: single measurements are retrieved: <Static Power Ctrl>,<Dyn Power Ctrl>,<Rat-Level>,<Act-...
  • Page 208 READ-Subsystem :READ:BURSt:POWer:STATic? This command increases the static power control level for the measurement by one step, measures the output power of the base station and reads out the result. If the command READ:BURSt:POWer:STATic? is repeated after the maximum static power control level is reached, the measurement sequence is terminated and the result of the maximum static power control level is read out again.
  • Page 209 READ-Subsystem :READ:BURSt:POWer:DYNamic? This command increases the dynamic power control level for the measurement by one step, measures the output power of the base station and reads out the result. Once the maximum dynamic power control level is reached the command is accepted only after the static power control level is increased by one step.
  • Page 210 READ-Subsystem :READ:BURSt:POWer:LEVel? This command increases the power control level for the measurement by one step, measures the output power of the mobile and reads out the result. Note that the command is no longer accepted after the measurement sequence is terminated which implies that the power control level was read out again with READ:BURSt:POWer:LEVel? after the maximum value was reached and marked with the ’FINISHED’...
  • Page 211 READ-Subsystem :READ:BURSt:MACCuracy:RMS:STATus? This command starts the measurement of the modulation accuracy of the base station or mobile and reads out the status of the RMS-measurement taken over the selected number of bursts. 0: failed, 1: passed Example: ":READ:BURS:MACC:RMS:STAT?" Features: *RST value: SCPI: device-specific Modes:...
  • Page 212 READ-Subsystem :READ:BURSt:MACCuracy:PEAK:STATus? This command starts the measurement of the modulation accuracy of the base station or mobile and reads out the status of the PEAK-measurement taken over the selected number of bursts. 0: failed, 1: passed Example: ":READ:BURS:MACC:PEAK:STAT?" Features: *RST value: SCPI: device-specific Modes:...
  • Page 213 READ-Subsystem :READ:BURSt:MACCuracy:OSUPpress:STATus? This command starts the measurement of the modulation accuracy of the base station or mobile and reads out the status of the original offset suppression measurement taken over the selected number of bursts. 0: failed, 1: passed Example: ":READ:BURS:MACC:OSUP:STAT?"...
  • Page 214 READ-Subsystem :READ:BURSt:MACCuracy:PERCentile:STATus? This command starts the measurement of the modulation accuracy of the base station or mobile and reads out the status of the 95% percentile measurement taken over the selected number of bursts. 0: failed, 1: passed Example: ":READ:BURS:MACC:PERC:STAT?" Features: *RST value: SCPI:...
  • Page 215 READ-Subsystem :READ:BURSt:MACCuracy:FREQuency:STATus? This command starts the measurement of the modulation accuracy of the base station or mobile and reads out the status of the frequency error measurement taken over the selected number of bursts. 0: failed, 1: passed Example: ":READ:BURS:MACC:FREQ:STAT?" Features: *RST value: SCPI:...
  • Page 216 READ-Subsystem READ:SPECtrum Subsystem This subsystem provides the commands for starting measurements in the GSM BTS (option FSE-K11) and GSM MS (option FSE-K10) Analyzer mode, which are used to measure the power of the spectral components due to modulation and switching (modulation spectrum, transient spectrum), and for reading out the results subsequently.
  • Page 217 READ-Subsystem Example: ":READ:SPEC:MOD?" Result: 0,890E6,915E6,-87.4,-108.0,ABS,FAILED, 1,893.2E6,893.2E6,-83.2,-108.0,ABS,FAILED, 2,895.7E6,895.7E6,-87.4,-108.0,ABS,FAILED Features: *RST value: SCPI: device-specific Modes: BTS, MS The command ABORt aborts an ongoing measurement. This command is only a query and therefore has no *RST value assigned. It is available only if measurement of the modulation spectrum is selected.
  • Page 218 READ-Subsystem READ:SPURious Subsystem This subsystem provides the commands for starting measurements in the GSM BTS (option FSE-K11) and GSM MS (option FSE-K10) Analyzer mode, which are used to measure the power of spurious emissions, and for reading out the results subsequently. COMMAND PARAMETERS UNIT...
  • Page 219 READ-Subsystem Features: *RST value: SCPI: device-specific Modes: BTS, MS The command ABORt aborts an ongoing measurement. This command is only a query and therefore has no *RST value assigned. It is available only if measurement of the spurious emissions is selected. (see :CONFigure:SPURious). :READ:SPURious:STEP? This command starts the next single step for measuring the spurious emissions in the STEP mode and reads out the results.

  • Page 220: Sense Subsystem

    SENSe Subsystem SENSe Subsystem The SENSe subsystem is itself divided up into several subsystems. The commands of these subsystems directly control device-specific settings, they do not refer to the signal characteristics of the measurement signal. The SENSe subsystem controls the essential parameters of the analyzer and vector analyzer. In accordance with the SCPI standard, it is for this reason optional, which means that it is not necessary to include the SENSe node in command sequences.
  • Page 221 SENSe Subsystem :[SENSe<1|2>:]ADEMod:SQUelch:LEVel 30 to -150 dBm This command defines the switching threshold for the squelch referred to the measured signal. Example: ":ADEM:SQU -10DBM" Features: *RST value: -40dBm SCPI: device-specific Mode: VA-A :[SENSe<1|2>:]ADEMod:SBANd NORMal | INVerse This command selects the side band for the demodulation. Example: ":ADEM:SBAN INV"...

  • Page 222: Sense:average Subsystem

    SENSe Subsystem SENSe:AVERage Subsystem The SENSe:AVERage subsystem calculates the average of the data acquired. A new test result is obtained from various successive measurements. The amount of test points and the axis reference of the new result correspond to those of the original measurements. COMMAND PARAMETERS UNIT...
  • Page 223 SENSe Subsystem :[SENSe<1|2>:]AVERage:TYPE MAXimum | MINimum | SCALar The command selects the type of average function. Example: ":AVER:TYPE SCAL" Features: *RST value: SCALar SCPI: conforming Modes: A, VA, BTS, MS The following average functions have been defined: AVG(n) = MAX(X 1 to .X n ) MAXimum (MAX HOLD): AVG(n) = Min(X 1 to .X n ) MINimum (MIN HOLD):...

  • Page 224: Sense:bandwidth Subsystem

    SENSe Subsystem SENSe:BANDwidth Subsystem This subsystem controls the setting of the instrument’s filter bandwidths. Both groups of commands (BANDwidth and BWIDth) perform the same functions. COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :BANDwidth | :BWIDth [:RESolution] <numeric_value> :AUTO <Boolean> :MODE ANALog|DIGital :FFT <Boolean>...
  • Page 225 SENSe Subsystem :[SENSe<1|2>:]BANDwidth|BWIDth[:RESolution]:AUTO ON | OFF This command either automatically couples the resolution bandwidth of the instrument to the span or cancels the coupling. Example: ":BAND:AUTO OFF" Features: *RST value: SCPI: conforming Modes: A, VA The automatic coupling matches the resolution bandwidth to the currently set span according to the relationship between span and resolution bandwidth.
  • Page 226 SENSe Subsystem :[SENSe<1|2>:]BANDwidth|BWIDth:VIDeo 1Hz to 10MHz This command defines the instrument’s video bandwidth. Example: ":BAND:VID 10kHz" Features: *RST value: - (AUTO is set to ON) SCPI: conforming Mode: The values for the video bandwidth are rounded in 1 | 2 | 3 | 5 steps. :[SENSe<1|2>:]BANDwidth|BWIDth:VIDeo:AUTO ON | OFF This command either automatically couples the instrument’s video bandwidth to the resolution bandwidth or cancels the coupling.
  • Page 227 SENSe Subsystem :[SENSe<1|2>:]BANDwidth|BWIDth:PLL AUTO | HIGH | MEDium | LOW This command defines the bandwidth of the main PLL of the instrument synthesizer. Example: ":BAND:PLL HIGH" Features: *RST value: AUTO SCPI: device-specific Mode: 1065.6016.12 6.170 E-16...

  • Page 228: Sense:correction-Subsystem

    SENSe Subsystem SENSe:CORRection-Subsystem The SENSe:CORRection-subsystem controls the correction of measured results by means of frequency-dependent correction factors (e. g. for antenna or cable attenuation). It also controls calibration and normalization during operation with the option Tracking Generator . COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>]...
  • Page 229 SENSe Subsystem :[SENSe<1|2>:]CORRection[:STATe] ON | OFF This command activates/deactivates normalization of the measurement results. Example: ":CORR ON " Features: *RST value: SCPI: conforming Mode: This command is only valid in conjunction with option Tracking Generator. :[SENSe<1|2>:]CORRection:METHod TRANsmission | REFLexion This command selects the kind of measurement with active tracking generator (transmission/reflexion).
  • Page 230 SENSe Subsystem :[SENSe<1|2>:]CORRection:TRANsducer:CATalog? This command reads out the names of all transducer factors stored on the harddisk. Syntax of output format: <Sum of file lengths of all subsequent files>,<free memory on hard disk>, <1st file name>,,<1st file length>,<2nd file name>,,<2nd file length>,..,<nth file name>, <nth file length>...
  • Page 231 SENSe Subsystem :[SENSe<1|2>:]CORRection:TRANsducer:SCALing LINear | LOGarithmic This command defines whether the frequency scaling of the transducer factor is linear or logarithmic. Example: ":CORR:TRAN:SCAL LOG" Features: *RST value: LINear SCPI: device-specific Mode: Prior to this command, the command SENS:CORR:TRAN:SEL must be sent. :[SENSe<1|2>:]CORRection:TRANsducer:COMMent <string>...
  • Page 232 SENSe Subsystem :[SENSe<1|2>:]CORRection:TRANsducer:DELete This command deletes the selected transducer factor. Example: ":CORR:TRAN:DEL" Features: *RST value: SCPI: device-specific Mode: This command is an event and therefore has no *RST value. Prior to this command, the command SENS:CORR:TRAN:SEL must be sent. :[SENSe<1|2>:]CORRection:TSET:CATalog? This command polls the names of all transducer factors stored on the harddisk.
  • Page 233 SENSe Subsystem :[SENSe<1|2>:]CORRection:TSET:UNIT ’DB’ | ’DBM’ | ’DBUV’ | ’DBUV/M’ | ’DBUA’ ’DBUA/M’’ DBPW’ | ’DBPT’ This command defines the unit of the selected transducer sets. When assigning transducer factors to the set, only factors which are compatible to the selected unit, i. e. factors with the same unit or the unit dB, are allowed.
  • Page 234 SENSe Subsystem :[SENSe<1|2>:]CORRection:TSET[:STATe] ON | OFF This command switches the selected transducer set on or off. Example: ":CORR:TSET ON" Features: *RST value: SCPI: device-specific Mode: Prior to this command, the command SENS:CORR:TSET:SEL must be sent. :[SENSe<1|2>:]CORRection:TSET:DELete This command deletes the selected transducer set. Example: ":CORR:TSET:DEL"...
  • Page 235 SENSe Subsystem :[SENSe<1|2>:]CORRection:CVL:CATalog? This command polls the names of all conversion-loss tables stored on the harddisk. Syntax of output format: <Sum of file lengths of all subsequent files>,<free memory on hard disk>, <1st file name>,,<1st file length>,<2nd file name>,,<2nd file length>,..,<nth file name>, <nth file length>...
  • Page 236 SENSe Subsystem :[SENSe<1|2>:]CORRection:CVL:SNUMber <string> This command defines the serial number of the mixer in the Conversion Loss Table. Parameter: <string>::= Serial number of mixer with a maximum of 16 characters Example: ":CORR:CVL:SNUM ’123.4567’" Features: *RST value: SCPI: device-specific Mode: Command SENS:CORR:CVL:SEL must be sent prior to this command. This command is only valid in conjunction with option External Mixer Output, FSE-B21.
  • Page 237 SENSe Subsystem :[SENSe<1|2>:]CORRection:CVL:BIAS <numeric_value> This command defines the bias current in the Conversion Loss Table. Example: ":CORR:CVL:BIAS 7mA" Features: *RST value: SCPI: device-specific Mode: Command SENS:CORR:CVL:SEL must be sent prior to this command. This command is only valid in conjunction with option External Mixer Output, FSE-B21. :[SENSe<1|2>:]CORRection:CVL:COMMent <string>...

  • Page 238: Sense:detector Subsystem

    SENSe Subsystem SENSe:DETector Subsystem The SENSe:DETector subsystem controls the recording of measurement values via the type of detector selected for each trace. The suffix in SENSe<1|2> is not significant in this subsystem. COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :DETector<1to4> APEak | NEGative| POSitive | SAMPle| RMS [:FUNCtion] | AVERage :AUTO...

  • Page 239: Sense:ddemod Subsystem

    SENSe Subsystem SENSe:DDEMod Subsystem This subsystem controls the parameters for digital demodulation. It is only active in conjunction with operating mode Vector Signal Analysis (option FSE-B7). COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :DDEMod Vector Signal Analysis :FORMat QPSK | PSK | MSK | QAM | FSK :SBANd NORMal | INVerse :QPSK...
  • Page 240 SENSe Subsystem :[SENSe<1|2>:]DDEMod:FORMat QPSK | PSK | MSK | QAM | FSK This command selects the digital demodulation type. Example: ":DDEM:FORM QPSK" Features: *RST value: SCPI: device-specific Mode: VA-D :[SENSe<1|2>:]DDEMod:SBANd NORMal | INVerse This command selects the sideband for the demodulation. Example: ":DDEM:SBAN INV"...
  • Page 241 SENSe Subsystem :[SENSe<1|2>:]DDEMod:MSK:FORMat TYPE1 | TYPE2 | NORMal | DIFFerential This command determines the specific demodulation type for MSK. Example: ":DDEM:MSK:FORM TYPE2" Features: *RST value: TYPE2 | DIFFerential SCPI: device-specific Mode: VA-D TYPE1 | NORMal corresponds to MSK demodulation, TYPE2 | DIFFerential corresponds to DMSK demodulation.
  • Page 242 SENSe Subsystem :[SENSe<1|2>:]DDEMod:PRATe 1 | 2 | 4 | 8 | 16 This command determines the number of points per symbol. Example: ":DDEM:PRAT 8" Features: *RST value: SCPI: device-specific Mode: VA-D :[SENSe<1|2>:]DDEMod:FILTer:MEASurement OFF | RCOSine | RRCosine | GAUSsian| B22 | B25 | B44 | QFM | FM95 | QFR | FR95 | QRM | RM95 | QRR | RR95 | A25Fm | EMES | EREF This command selects the input filter for the test signal.
  • Page 243 SENSe Subsystem :[SENSe<1|2>:]DDEMod:NORMalize ON | OFF This command switches normalizing of the unit circle on or off using IQ offset. Example: ":DDEM:NORM OFF" Features: *RST value: SCPI: device-specific Mode: VA-D :[SENSe<1|2>:]DDEMod:SEARch:PULSe:STATe ON | OFF This command switches the signal burst search on or off. Example: ":DDEM:SEAR:PULS:STAT OFF"...
  • Page 244 SENSe Subsystem :[SENSe<1|2>:]DDEMod:SEARch:SYNC:PATTern <string> This command defines the synchronization sequence.A file that has been set previously by the command DDEM:SEARch:SYNC:SELect becomes invalid. Example: ":DDEM:SEAR:SYNC:PATT "1101001" Features: *RST value: "" SCPI: device-specific Mode: VA-D :[SENSe<1|2>:]DDEMod:SEARch:SYNC:STATe ON | OFF This command switches the search for a synchronization sequence on or off. Example: ":DDEM:SEARch:SYNC:STAT ON"...
  • Page 245 SENSe Subsystem :[SENSe<1|2>:]DDEMod:SEARch:SYNC:DELete <string> This command deletes a synchronization pattern on the hard disk. This sync file must be previously selected by the command DDEM:SEARch:SYNC:NAME. Example: ":DDEM:SEAR:SYNC:DEL Features: *RST-value: "" SCPI: device-specific Mode: VA-D :[SENSe<1|2>:]DDEMod:SEARch:SYNC:MONLy ON | OFF For setting ON, this command sets the analyzer so that the measured values are displayed and taken into account in the error analysis only if the set sync pattern is found .
  • Page 246 SENSe Subsystem :[SENSe<1|2>:]DDEMod:PRESet GSM | EDGe | TETRa | DCS1800 | PCS1900 |PHS | PDCup | PDCDown | APCO25CQPSK | APCO25C4FM | CDPD | DECT | CT2 | ERMes | MODacom | PWT | TFTS | F16 | F322 | F324 | F64| FQCDma | F95Cdma | RQCDma | R95Cdma | FNADc | RNADc This command selects an automatic setting of all modulation parameters according to a standard transmission method.

  • Page 247: Sense:filter Subsystem

    SENSe Subsystem SENSe:FILTer Subsystem The SENSe:FILTer subsystem selects the filters in the video signal path.This subsystem is active only in the Vector Signal Analysis mode (option FSE-B7). COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :FILTer Vector Signal Analyzer :HPASs [:STATe] <Boolean> :FREQuency <numeric_value>...
  • Page 248 SENSe Subsystem :[SENSe<1|2>:]FILTer:LPASs:FREQuency <numeric_value> This command defines the frequency limit of the low-pass filter in the NF-branch for analog demodulation. Parameter: <numeric_value> ::= 3 kHz | 15 kHz for REAL TIME ON 5 PCT | 10 PCT | 25 PCT for REAL TIME OFF Example: ":FILT:LPAS:FREQ 3KHZ"...
  • Page 249 SENSe Subsystem :[SENSe<1|2>:]FILTer:DEMPhasis:TCONstant 50US | 75US | 750US This command sets the time constant of the de-emphasis for analog demodulation. Example: ":FILT:DEMP:TCON 75US" Features: *RST value: 50us SCPI: conforming Mode: VA-A :[SENSe<1|2>:]FILTer:DEMPhasis:LINK DISPlay | AUDio For analog demodulation, this command selects whether the de-emphasis set is to be active in the audio branch only or in addition for the display of measured values.

  • Page 250: Sense:frequency Subsystem

    SENSe Subsystem SENSe:FREQuency Subsystem The SENSe:FREQuency subsystem defines the frequency axis of the active display. The frequency axis can either be defined via the start/stop frequency or via the center frequency and span. COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :FREQuency :CENTer <numeric_value>...
  • Page 251 SENSe Subsystem :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK SPAN | RBW | OFF This command couples the step width of the center frequency to span (span >0) or to the resolution bandwidth (span = 0) or cancels the couplings. Example: ":FREQ:CENT:STEP:LINK SPAN" Features: *RST value: SPAN SCPI: device-specific...
  • Page 252 SENSe Subsystem :[SENSe<1|2>:]FREQuency:STARt 0 GHz to f This command defines the start frequency of the analyzer. Example: ":FREQ:STAR 20MHz" Features: *RST value: SCPI: conforming Mode: The automatic coupling of the parameters is set to STOP FIXED. :[SENSe<1|2>:]FREQuency:STARt:LINK CENTer | STOP | SPAN This command defines the coupling for start-frequency changes.
  • Page 253 SENSe Subsystem :[SENSe<1|2>:]FREQuency:MODE CW | FIXed | SWEep This command switches between frequency (SWEep) and time (CW | FIXed) domain in the analyzer mode. Example: ":FREQ:MODE SWE" Features: *RST value: SCPI: conforming Mode: For CW and FIXed, the frequency setting is via command FREQuency:CENTer . In the SWEep mode, the setting is via commands FREQuency:STARt , STOP , CENTer and SPAN .

  • Page 254: Sense:mixer - Subsystem

    SENSe Subsystem SENSe:MIXer - Subsystem The SENSe:MIXer subsystem controls the settings of the external mixer. It is only active in Analyzer mode (INSTrument SANalyzer). This subsystem is available only if the instrument is equipped with the external mixer output (option FSE-B21) The suffix in SENSe<1|2>...
  • Page 255 SENSe Subsystem :[SENSe<1|2>:]MIXer:PORTs 2 | 3 This command activates the 2- or 3-port mixer. In the BAND LOCK ON mode, the command refers to the active band selected with SENSe:MIXer:HARMonic:BAND . Example: ":MIX:PORT 3" Features: *RST value: SCPI: device-specific Mode: This command is available only if the external mixer (option FSE-B21) is switched on.
  • Page 256 SENSe Subsystem :[SENSe<1|2>:]MIXer:HARMonic:TYPE ODD | EVEN | EODD With BAND LOCK ON, this command sets the type of harmonic. Example: ":MIX:HARM:TYPE EODD" Features: *RST value: EVEN SCPI: device-specific Mode: The command is available only if the external mixer (option FSE-B21) is switched on. :[SENSe<1|2>:]MIXer:HARMonic:BAND A|Q|U|V|E|W|F|D|G|Y|J With BAND LOCK ON, this command sets the active band.
  • Page 257 SENSe Subsystem :[SENSe<1|2>:]MIXer:LOSS:TABLe <file_name> This command sets a conversion loss table. Parameter: <file_name> := DOS file name Example: ":MIX:LOSS:table ’mix_1’" Features: *RST value: no table set SCPI: device-specific Mode: The command is available only if the external mixer (option FSE-B21) is switched on. :[SENSe<1|2>:]MIXer:BIAS <numeric_value>...

  • Page 258: Sense:msummary Subsystem

    SENSe Subsystem SENSe:MSUMmary Subsystem This subsystem controls the modulation summary setting for analog demodulation. It is active only in conjunction with option Vector Analysis, FSE-B7. COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :MSUMmary Vector Signal Analysis :AHOLd [:STATe] <Boolean> :MODE ABSolute | RELative :RUNit PCT | DB :REFerence...
  • Page 259 SENSe Subsystem :[SENSe<1|2>:]MSUMmary:REFerence <numeric_value> This command selects the reference modulation. Parameter: <numeric_value> := 0.001PCT to 1000PCT for AM 0.1HZ to 10MHZ for FM 0.0001RAD to 1000RAD for PM Example: ":MSUM:REF 50PCT" Features: *RST value: 100PCTfor AM 100KHZfor FM 10RAD for PM SCPI: device-specific Mode:...

  • Page 260: Sense:power Subsystem

    SENSe Subsystem SENSe:POWer Subsystem This subsystem controls the setting of the instrument’s power measurements. COMMAND PARAMETER UNIT COMMENT [SENSe<1|2>] :POWer :ACHannel :SPACing [:UPPer] <numeric_value> :ACHannel <numeric_value> :ALTernate<1|2> <numeric_value> :ACPairs 1 | 2 | 3 :BANDwidth [:CHANnel] <numeric_value> :ACHannel <numeric_value> :ALTernate<1|2> <numeric_value>...
  • Page 261 SENSe Subsystem :[SENSe<1|2>:]POWer:ACHannel:ACPairs 1 | 2 | 3 This command sets the number of adjacent channels (upper and lower channel in pairs). Example: ":POW:ACH:ACP 3" Features: *RST value: SCPI: device-specific Mode: :[SENSe<1|2>:]POWer:ACHannel:BANDwidth|BWIDth[:CHANnel] 0 Hz to 1000 MHz This command sets the channel bandwidth of the radio communication system. Example: ":POW:ACH:BWID 30kHz"...
  • Page 262 SENSe Subsystem :[SENSe<1|2>:]POWer:ACHannel:MODE ABSolute | RELative This command toggles between absolute and relative measurement. Example: ":POW:ACH:MODE REL" Features: *RST value: ABSolute SCPI: device-specific Mode: For the relative measurement the reference value is set to the currently measured channel power by command POW:ACH:REF:AUTO ONCE.

  • Page 263: Sense:roscillator Subsystem

    SENSe Subsystem SENSe:ROSCillator Subsystem This subsystem controls the reference oscillator. The suffix in SENSe<1|2> is not significant in this subsystem. COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :ROSCillator :SOURce INTernal | EXTernal :EXTernal :FREQuency <numeric_value> [:INTernal] :TUNe <numeric_value> :SAVe no query :[SENSe<1|2>:]ROSCillator:SOURce INTernal | EXTernal This command controls selection of the reference oscillator.

  • Page 264: Sense:sweep Subsystem

    SENSe Subsystem SENSe:SWEep Subsystem This subsystem controls the sweep parameters. COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] :SWEep :TIME <numeric_value> :AUTO <Boolean> :COUNt <numeric_value> :EGATe <Boolean> :LEVel <numeric_value> :TYPE LEVel | EDGE :POLarity POSitive|NEGative :HOLDoff <numeric_value> :LENGth <numeric_value> :SOURce EXTernal | RFPower :GAP <Boolean>...
  • Page 265 SENSe Subsystem :[SENSe<1|2>:]SWEep:COUNt 0 to 32767 This command defines the number of sweeps started with single sweep. Example: ":SWE:COUN 64" Features: *RST value: SCPI: conforming Modes: A, VA-D This parameter defines the number of sweeps or the number of averaging procedures. In the average mode, the value 0 defines a running averaging of measurement data over 10 sweeps.
  • Page 266 SENSe Subsystem :[SENSe<1|2>:]SWEep:EGATe:HOLDoff 0 to 100s This command defines the delay time between the external gate signal and the continuation of the sweep. Example: ":SWE:EGAT:HOLD 100us" Features: *RST value: SCPI: device-specific Mode: The values for the delay time can be set in steps 1, 2, 3 and 5. :[SENSe<1|2>:]SWEep:EGATe:LENGth 0 to 100s In case of edge triggering, this command determines the time interval in which the instrument sweeps.
  • Page 267 SENSe Subsystem :[SENSe<1|2>:]SWEep:GAP:TRGTogap 0 to 100s This command defines the time between the pretrigger time and the beginning of the gap (trigger-to- gap time) (resolution: 50 ns). Example: ":SWE:GAP:TRGT 50us" Features: *RST value: SCPI: device-specific Mode: :[SENSe<1|2>:]SWEep:GAP:LENGth 0 to 100s This command defines the gap length.

  • Page 268: Sense:tv Subsystem

    SENSe Subsystem SENSe:TV Subsystem This subsystem controls the optional TV-demodulator (only in conjunction with option TV-Demodulator, FSE-B3). COMMAND PARAMETERS UNIT COMMENT [SENSe<1|2>] Option TV-Demodulator :STATe] <Boolean> :PSOFfset <numeric_value> :[SENSe<1|2>:]TV[:STATe] ON | OFF This command switches the optional TV-demodulator on or off. Example: ":TV ON"...

  • Page 269: Source Subsystem

    SOURce Subsystem SOURce Subsystem The SOURce subsystem controls the output signals of the analyzer when the option Tracking Generator is installed (FSE-B8 to FSE-B11). In the split screen mode, a distinction is made between SOURce1 (screen A) and SOURce2 (screen B). COMMAND PARAMETERS UNIT...
  • Page 270 SOURce Subsystem :SOURce<1|2>:FM:STATe ON | OFF This command switches on or off the external frequency modulation of the tracking generator. Example: ":SOUR:FM:STAT ON " Features: *RST-value: SCPI: conforming Modes: A, VA External AM, external I/Q-modulation and frequency offset are switched off, if active. This command is only valid in conjunction with option Tracking Generator.

  • Page 271: Status Subsystem

    STATus Subsystem STATus Subsystem The STATus subsystem contains the commands for the status reporting system (see Chapter 5, Section "Status Reporting System"). *RST does not influence the status registers. The commands and events causing the status reporting system to be reset are comprised in a table at the end of chapter 5. COMMAND PARAMETERS UNIT...
  • Page 272 STATus Subsystem COMMAND PARAMETERS UNIT COMMENT STATus :QUEStionable :FREQuency [:EVENt]? 0 to 65535 :CONDition? 0 to 65535 :ENABle 0 to 65535 :PTRansition :NTRansition :TRANsducer [:EVENt]? :CONDition? :ENABle 0 to 65535 :PTRansition 0 to 65535 :NTRansition 0 to 65535 :QUEue? [:NEXT]? :STATus:OPERation[:EVENt]? This command queries the contents of the EVENt section of the :STATus:OPERation register.
  • Page 273 STATus Subsystem :STATus:OPERation:ENABle 0 to 65535 This command sets the bits of the ENABle section of the :STATus:QUEStionable register. Example: ":STAT:OPER:ENAB 65535" Features: *RST value: – SCPI: conforming Modes: A, VA, BTS, MS The ENABle register selectively enables the individual events of the associated EVENt section for the sum bit in the status byte.
  • Page 274 STATus Subsystem :STATus:QUEStionable[:EVENt]? This command queries the contents of the EVENt section of the :STATus:QUEStionable register. Example: ":STAT:QUES?" Features: *RST value: – SCPI: conforming Modes: A, VA, BTS, MS Readout deletes the contents of the EVENt section. :STATus:QUEStionable:CONDition? This command queries the CONDition section of the :STATus:QUEStionable register. Example: ":STAT:QUES:COND?"...
  • Page 275 STATus Subsystem :STATus:QUEStionable:POWer[:EVENt]? This command queries the contents of the EVENt section of the :STATus:QUEStionable:POWer register. Example: ":STAT:QUES?" Features: *RST value: – SCPI: conforming Modes: A, VA, BTS, MS Readout deletes the contents of the EVENt section. :STATus:QUEStionable:POWer:CONDition? This command queries the content of the CONDition section of the :STATus:QUEStionable:POWer register.
  • Page 276 STATus Subsystem :STATus:QUEStionable:LIMit[:EVENt]? This command queries the contents of the EVENt section of the :STATus:QUEStionable:LIMit register. Example: ":STAT:QUES?" Features: *RST value: – SCPI: device-specific Modes: A, VA, BTS, MS Readout deletes the contents of the EVENt section. :STATus:QUEStionable:LIMit:CONDition? This command queries the contents of the CONDition section of the :STATus:QUEStionable:LIMit register.
  • Page 277 STATus Subsystem :STATus:QUEStionable:LMARgin[:EVENt]? This command queries the contents of the EVENt section of the :STATus:QUEStionable:LMARgin register. Example: ":STAT:QUES?" Features: *RST value: – SCPI: device-specific Modes: A, VA, BTS, MS Readout deletes the contents of the EVENt section. :STATus:QUEStionable:LMARgin:CONDition? This command queries the contents of the CONDition section of the :STATus:QUEStionable:LMARgin register.
  • Page 278 STATus Subsystem :STATus:QUEStionable:SYNC[:EVENt]? This command queries the contents of the EVENt section of the :STATus:QUEStionable:SYNC register. Example: ":STAT:QUES?" Features: *RST value: – SCPI: device-specific Modes: A, VA, BTS, MS Readout deletes the contents of the EVENt section. :STATus:QUEStionable:SYNC:CONDition? This command queries the contents of the CONDition section of the :STATus:QUEStionable:SYNC register.
  • Page 279 STATus Subsystem :STATus:QUEStionable:ACPLimit[:EVENt]? This command queries the contents of the EVENt section of the :STATus:QUEStionable:ACPLimit register. Example: ":STAT:QUES:ACPL?" Features: *RST value: – SCPI: device-specific Modes: A, VA, BTS, MS Readout deletes the contents of the EVENt section. :STATus:QUEStionable:ACPLimit:CONDition? This command queries the contents of the CONDition section of the :STATus:QUEStionable:ACPLimit register.
  • Page 280 STATus Subsystem :STATus:QUEStionable:FREQuency[:EVENt]? This command queries the contents of the EVENt section of the :STATus:QUEStionableFREQuency register. Example: ":STAT:QUES:FREQ?" Features: *RST value: – SCPI: device-specific Modes: A, VA, BTS, MS Readout deletes the contents of the EVENt section. :STATus:QUEStionable:FREQuency:CONDition? This command queries the contents of the CONDition section of the :STATus:QUEStionable:FREQuency register.
  • Page 281 STATus Subsystem :STATus:QUEStionable:FREQuency:NTRansition 0 to 65535 This command sets the edge detectors of all bits of the :STATus:QUEStionable:FREQuency register from 1 to 0 for the transitions of the CONDition bit. Example: ":STAT:QUES:FREQ:NTR 65535" Features: *RST value: – SCPI: device-specific Modes: A, VA, BTS, MS :STATus:QUEStionable:TRANsducer[:EVENt]? This command queries the contents of the EVENt section of the...
  • Page 282 STATus Subsystem :STATus:QUEStionable:TRANsducer:PTRansition 0 to 65535 This command sets the edge detectors of all bits of the :STATus:QUEStionable:TRANsducer register from 0 to 1 for the transitions of the CONDition bit. Example: ":STAT:QUES:TRAN:PTR 65535" Features: *RST value: – SCPI: device-specific Modes: A, VA, BTS, MS :STATus:QUEStionable:TRANsducer:NTRansition 0 to 65535 This command sets the edge detectors of all bits of the :STATus:QUEStionable:TRANsducer...

  • Page 283: System Subsystem

    SYSTem Subsystem SYSTem Subsystem This subsystem comprises a series of commands for general functions. COMMAND PARAMETERS UNIT COMMENT SYSTem :COMMunicate :GPIB [:SELF] :ADDRess 0 to 30 :RTERminator LFEoi | EOI :RDEVice<1|2> :ADDRess 0 to 30 :SERial<1|2> :CONTrol :DTR IBFull | OFF :RTS IBFull | OFF [:RECeive]...
  • Page 284 SYSTem Subsystem :SYSTem:COMMunicate:GPIB[:SELF]:RTERminator LFEOI | EOI This command changes the delimiter. Example: ":SYST:COMM:GPIB:RTER EOI" Features: *RST value: LFEOI SCPI: device-specific Modes: A, VA, BTS, MS The instrument contains a DMA-channel for communication via IEC-bus. This ensures maximum speed for the transfer of commands and data. The parser for command decoding integrated in the instrument is, however, only activated by the delimiter when the command is completely transferred.
  • Page 285 SYSTem Subsystem :SYSTem:COMMunicate:SERial<1|2>[:RECeive]:BITS 7 | 8 This command defines the number of data bits per data word for the given serial interface. Example: ":SYST:COMM:SER2:BITS 7" Features: *RST value: SCPI: conforming Modes: A, VA, BTS, MS SERial1 and SERial 2 correspond to device interface COM1 and COM2, respectively. :SYSTem:COMMunicate:SERial<1|2>[:RECeive]:PARity[:TYPE] EVEN | ODD | NONE This command defines the parity check for the given serial interface.
  • Page 286 SYSTem Subsystem :SYSTem:COMMunicate:PRINter<1|2>:ENUMerate:FIRSt? This command queries the name of the first printer (in the list of printers) under Windows NT. The names of other installed printers can be queried with command :SYSTem:COMMunicate: PRINter:ENUMerate:NEXT?. The numeric suffix in PRINter<1|2> is not significant. If no printer is configured an empty string is output.
  • Page 287 SYSTem Subsystem :SYSTem:DISPlay:UPDate ON | OFF This command switches on or off the update of all display elements. Example: " SYST:DISP:UPD ON Features: *RST value: SCPI: device specific Modes: A, VA, BTS, MS :SYSTem:ERRor? This command queries the earliest entry to the error queue, thus deleting it. . Example: ":SYST:ERR?"...
  • Page 288 SYSTem Subsystem :SYSTem:SET <block> The query :SYSTem:SET? causes the data of the current instrument setting to be transmitted to the controller in binary form (SAVE function). The data can be read back into the instrument (RECALL function) by means of command :SYSTem:SET <block>. If the data records are stored on the instrument harddisk with SAVE/RECALL (:MMEMory:STORe bzw.
  • Page 289 SYSTem Subsystem :SYSTem:VERSion? This command queries the number of the SCPI version, which is relevant for the instrument. Example: ":SYST:VERS?" Features: *RST value: – SCPI: conforming Modes: A, VA, BTS, MS This command is a query which is why it is not assigned an *RST value. :SYSTem:BINFo? This command queries all present modules with model index, modification index and HW code.

  • Page 290: Trace Subsystem

    TRACe Subsystem TRACe Subsystem The TRACe subsystem controls access to the instrument’s internal trace memory. COMMAND PARAMETERS UNIT COMMENT TRACe @TRACE1|TRACE2|TRACE3|TRACE4,@<block>|<numeric_value>... [:DATA] :COPY @TRACE1|TRACE2|TRACE3|TRACE4, TRACE1|TRACE2|TRACE3|TRACE4 :TRACe[:DATA] TRACE1| TRACE2| TRACE3| TRACE4, <block> | <numeric_value> This command transfers trace data from the controller to the instrument, the query reads trace data out of the instrument.
  • Page 291 TRACe Subsystem Vector analyzer mode, digital demodulation The number of data transferred (except for the symbol table) is determined by the following formula number of results = result length * points per symbol Max. 6400 results can be transferred (for example result length 1600, points per symbol 4). In all cartesian diagrams (MAGNITUDE CAP BUFFER, MAGNITUDE, PHASE, FREQUENCY, REAL/IMAG, EYE[I], EYE[Q], ERROR VECT MAGNITUDE) test data are transferred in the unit selected for display.

  • Page 292: Trigger Subsystem

    TRIGger Subsystem TRIGger Subsystem The TRIGger subsystem is used to synchronize instrument actions with events. This makes it possible to control and synchronize the start of a sweep. An external trigger signal can be fed to the connector at the rear panel of the instrument. In split screen mode, a distinction is made between TRIGger1 (screen A) and TRIGger2 (screen B).
  • Page 293 TRIGger Subsystem :TRIGger<1|2>[:SEQuence]:LEVel[:EXTernal] –5.0 to +5.0V This command sets the level of the external trigger source. Example: ":TRIG:LEV 2V" Features: *RST value: –5.0V SCPI: conforming Modes: A, VA, BTS, MS :TRIGger<1|2>[:SEQuence]:LEVel:VIDeo 0 to 100PCT This command sets the level of the video trigger source. Example: ":TRIG:LEV:VID 50PCT"...
  • Page 294 TRIGger Subsystem :TRIGger<1|2>[:SEQuence]:SLOPe POSitive | NEGative This command selects the slope of the trigger signal. Example: ":TRIG:SLOP NEG" Features: *RST value: POSitive SCPI: conforming Modes: A, VA, BTS, MS The selected trigger slope applies to all trigger signal sources. :TRIGger<1|2>[:SEQuence]:VIDeo::FORMat:LPFRame 525 | 625 This command defines the number of lines per frame to be used (525 or 625 lines) Example:...
  • Page 295 TRIGger Subsystem :TRIGger<1|2>[:SEQuence]:VIDeo:SSIGnal:POLarity NEGative | POSitive This command defines the polarity of the video synchronizing signal. Example: ":TRIG:VID:SSIG:POL NEG " Features: *RST value: SCPI: conforming Mode: This command is valid only if option FSE-B3, TV Demodulator, is fitted. :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:FRAMe -100µs to 100s This command defines the correction value for the time offset between the frame trigger and the midamble of the slot selected.
  • Page 296 TRIGger Subsystem :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:SLOT -100µs to 100s This command defines the correction value for the time offset between the frame trigger and the midamble of the slot selected, without influencing the correction values of the other slots. This correction value is necessary in order to conserve the exact time relation between the trigger event and the midamble of the slot in question in cases where there is no midamble triggering.

  • Page 297: Unit Subsystem

    UNIT Subsystem UNIT Subsystem The UNIT subsystem is used to switch the basic unit of setting parameters. In split screen mode, a distinction is made between UNIT1 (screen A) and UNIT2 (screen B). COMMAND PARAMETERS UNIT COMMENT UNIT<1|2> DBM | DBPW | WATT | :POWer DBUV | DBMV | VOLT | DBUA | AMPere...

  • Page 298: Alphabetical List Of Commands

    Alphabetical List of Commands Alphabetical List of Commands In the following, all remote-control commands are listed with their parameters and page numbers. Generally, they are arranged alphabetically according to the keywords of the command. Command Parameter Page :ABORt :CALCulate<1|2>:CTHReshold MIN to MAX 6.16 (depending on current unit) :CALCulate<1|2>:CTHReshold:STATe...
  • Page 299 Alphabetical List of Commands Command Parameter Page :CALCulate<1|2>:FORMat MAGNitude | PHASe | UPHase | 6.19 RIMag | FREQuency | IEYE | QEYE | TEYE | FEYE | COMP | CONS :CALCulate<1|2>:FSK:DEViation:REFerence <numeric_value> 6.19 :CALCulate<1|2>:LIMit<1 to 8>:ACPower:ACHannel 0 to 100 dB, 0 to 100 dB 6.33 :CALCulate<1|2>:LIMit<1 to 8>:ACPower:ACHannel:RESult? 6.34...
  • Page 300 Alphabetical List of Commands Command Parameter Page :CALCulate<1|2>:LIMit<1 to 8>:SPURious? ARFCn | TXBand | RXBand | 6.32 IDLeband :CALCulate<1|2>:LIMit<1 to 8>:STATe ON | OFF 6.22 :CALCulate<1|2>:LIMit<1 to 8>:TRACe 1 to 4 6.21 :CALCulate<1|2>:LIMit<1 to 8>:UNIT DBM | DBPW | DBPT | WATT | 6.22 DBUV | DBMV | VOLT | DBUA | AMPere | DB | DBUV_MHZ |...
  • Page 301 Alphabetical List of Commands Command Parameter Page :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:POWer:PRESet NADC | TETRA | PDC | PHS | 6.52 CDPD | FWCDMA | RWCDMA | FW3Gppcdma | RW3Gppcdma | M2CDma | D2CDma | F8CDma | R8CDma | F19Cdma | R19Cdma | NONE | FO8Cdma | RO8Cdma | FO19CDMA | RO19CDMA | TCDMa...
  • Page 302 Alphabetical List of Commands Command Parameter Page :CALCulate<1|2>:MARKer<1 to 4>:FUNCtion:ZOOM <numeric_value> 6.45 :CALCulate<1|2>:MARKer<1 to 4>:LOEXclude ON | OFF 6.40 :CALCulate<1|2>:MARKer<1 to 4>:MAXimum:APEak 6.41 :CALCulate<1|2>:MARKer<1 to 4>:MAXimum:LEFT 6.42 :CALCulate<1|2>:MARKer<1 to 4>:MAXimum:NEXT 6.41 :CALCulate<1|2>:MARKer<1 to 4>:MAXimum:RIGHt 6.41 :CALCulate<1|2>:MARKer<1 to 4>:MAXimum[:PEAK] 6.41 :CALCulate<1|2>:MARKer<1 to 4>:MINimum:LEFT 6.42 :CALCulate<1|2>:MARKer<1 to 4>:MINimum:NEXT 6.42...
  • Page 303 Alphabetical List of Commands Command Parameter Page :CONFigure:BURSt:MACCuracy:COUNt 1 to 1000 6.74 :CONFigure:BURSt:MACCuracy[:IMMediate] 6.74 :CONFigure:BURSt:PFERror:CONDition NORMal | EXTReme 6.74 :CONFigure:BURSt:PFERror:COUNt 1 to 1000 6.73 :CONFigure:BURSt:PFERror[:IMMediate] 6.73 :CONFigure:BURSt:POWer:CONDition NORMal | EXTReme 6.75 :CONFigure:BURSt:POWer:COUNt 1 to 1000 6.75 :CONFigure:BURSt:POWer[:IMMediate] 6.75 :CONFigure:BURSt:PTEMplate:COUNt 1 to 1000 6.75 :CONFigure:BURSt:PTEMplate:SELect FULL | TOP | RISing | FALLing...
  • Page 304 Alphabetical List of Commands Command Parameter Page :CONFigure[:BTS]:LIMit:STANdard ON | OFF 6.68 :CONFigure[:BTS]:MEASurement? 6.66 :CONFigure[:BTS]:MTYPe GMSK | EDGE 6.72 :CONFigure[:BTS]:NETWork:PHASe 1 | 2 [,PLUS] 6.71 :CONFigure[:BTS]:NETWork[:TYPE] PGSM |PGSM900 | EGSM 6.71 |EGSM900 | DCS |GSM1800 | PCS | GSM1900 | RGSM | RGSM900 |GSM850 :CONFigure[:BTS]:POWer:CLASs 1 to 8 | 1 to 4 | M1 | M2 | M3 | P1...
  • Page 305 Alphabetical List of Commands Command Parameter Page :CONFigure[:MS]:POWer:SMALl ON | OFF 6.82 :CONFigure[:MS]:PRESet 6.83 :CONFigure[:MS]:SWEeptime STANdard | AUTO 6.84 :CONFigure[:MS]:TXSupp ON | OFF 6.83 :DIAGnostic:INFO:CCOunt:ATTenuation<1 | 2 | 3>? 6.90 :DIAGnostic:SERVice:FUNCtion <num_value>,<num_value>... 6.89 :DIAGnostic:SERVice:INPut[:SELect] CALibration | RF 6.89 :DIAGnostic:SERVice:NSOurce ON | OFF 6.89 :DISPlay:ANNotation:FREQuency ON | OFF...
  • Page 306 Alphabetical List of Commands Command Parameter Page :FETCh:BURSt:FERRor:MAXimum? 6.104 :FETCh:BURSt:FERRor:STATus? 6.104 :FETCh:BURSt:MACCuracy:FREQuency:AVERage? 6.110 :FETCh:BURSt:MACCuracy:FREQuency:MAXimum? 6.110 :FETCh:BURSt:MACCuracy:FREQuency:STATus? 6.110 :FETCh:BURSt:MACCuracy:OSUPpress:AVERage? 6.108 :FETCh:BURSt:MACCuracy:OSUPpress:MAXimum? 6.109 :FETCh:BURSt:MACCuracy:OSUPpress:STATus? 6.108 :FETCh:BURSt:MACCuracy:PEAK:AVERage? 6.108 :FETCh:BURSt:MACCuracy:PEAK:MAXimum? 6.108 :FETCh:BURSt:MACCuracy:PEAK:STATus? 6.107 :FETCh:BURSt:MACCuracy:PERCentile:AVERage? 6.109 :FETCh:BURSt:MACCuracy:PERCentile:MAXimum? 6.109 :FETCh:BURSt:MACCuracy:PERCentile:STATus? 6.109 :FETCh:BURSt:MACCuracy:RMS:AVERage? 6.107 :FETCh:BURSt:MACCuracy:RMS:MAXimum? 6.107 :FETCh:BURSt:MACCuracy:RMS:STATus? 6.107 :FETCh:BURSt:PERRor:PEAK:AVERage? 6.103...
  • Page 307 Alphabetical List of Commands Command Parameter Page :HCOPy:DEVice:LANGuage<1|2> HPGL | PCL4 | PCL5 | POSTscript | 6.121 ESCP | WMF | PCX | HP7470... :HCOPy:DEVice:PRESet<1|2> ON | OFF 6.122 :HCOPy:DEVice:RESolution<1|2> 150 | 300 6.122 :HCOPy:ITEM:ALL 6.122 :HCOPy:ITEM:FFEed<1|2>:STATe ON | OFF 6.123 :HCOPy:ITEM:LABel:TEXT <string>...
  • Page 308 Alphabetical List of Commands Command Parameter Page :MMEMory:MSIS ’A:’ | ’C:’ 6.137 :MMEMory:NAME path, file name 6.137 :MMEMory:RDIRectory directory name 6.137 :MMEMory:SELect[:ITEM]:ALL 6.141 :MMEMory:SELect[:ITEM]:CSETup ON | OFF 6.140 :MMEMory:SELect[:ITEM]:CVL[:ACTive] ON | OFF 6.141 :MMEMory:SELect[:ITEM]:CVL:ALL ON | OFF 6.141 :MMEMory:SELect[:ITEM]:DEFault 6.142 :MMEMory:SELect[:ITEM]:GSETup ON | OFF 6.138...
  • Page 309 Alphabetical List of Commands Command Parameter Page :READ:BURSt:PERRor:PEAK:STATus? 6.147 :READ:BURSt:PERRor:RMS:AVERage? 6.146 :READ:BURSt:PERRor:RMS:MAXimum? 6.147 :READ:BURSt:PERRor:RMS:STATus? 6.146 :READ:BURSt:POWer:DYNamic? 6.152 :READ:BURSt:POWer:POWer:LEVel? 6.153 :READ:BURSt:POWer:STATic? 6.151 :READ:BURSt:POWer? 6.149 :READ:BURSt:REFerence[:IMMediate]? 6.153 :READ:SPECtrum:MODulation[:ALL]? 6.159 :READ:SPECtrum:SWITching[:ALL]? 6.160 :READ:SPURious[:ALL]? 6.161 :READ:SPURious:STEP? 6.162 :[SENSe<1|2>:]ADEMod:AF:COUPling AC | DC 6.163 :[SENSe<1|2>:]ADEMod:RTIMe ON | OFF 6.164 :[SENSe<1|2>:]ADEMod:SBANd NORMal | INVerse...
  • Page 310 Alphabetical List of Commands Command Parameter Page :[SENSe<1|2>:]CORRection:LOSS:INPut[:MAGNitude] <value of ext. attenuation in dB> 6.177 :[SENSe<1|2>:]CORRection:METHod TRANsmission | REFLexion 6.172 :[SENSe<1|2>:]CORRection:RECall 6.172 :[SENSe<1|2>:]CORRection:RXGain:INPut[:MAGNitude] <value of the amplification in dB> 6.177 :[SENSe<1|2>:]CORRection:TRANsducer:ACTive? 6.173 :[SENSe<1|2>:]CORRection:TRANsducer:CATalog? 6.173 :[SENSe<1|2>:]CORRection:TRANsducer:COMMent <string> 6.174 :[SENSe<1|2>:]CORRection:TRANsducer:DATA <freq>,<level>.. 6.174 :[SENSe<1|2>:]CORRection:TRANsducer:DELete 6.175 :[SENSe<1|2>:]CORRection:TRANsducer:SCALing...
  • Page 311 Alphabetical List of Commands Command Parameter Page :[SENSe<1|2>:]DDEMod:QPSK:FORMat NORMal | DIFFerential | OFFSet | 6.183 DPI4 :[SENSe<1|2>:]DDEMod:SBANd NORMal | INVerse 6.183 :[SENSe<1|2>:]DDEMod:SEARch:PULSe:STATe ON | OFF 6.186 :[SENSe<1|2>:]DDEMod:SEARch:SYNC:CATalog? 6.186 :[SENSe<1|2>:]DDEMod:SEARch:SYNC:COMMent <string> 6.187 :[SENSe<1|2>:]DDEMod:SEARch:SYNC:DATA <string> 6.187 :[SENSe<1|2>:]DDEMod:SEARch:SYNC:DELete <string> 6.188 :[SENSe<1|2>:]DDEMod:SEARch:SYNC:MONLy ON | OFF 6.188 :[SENSe<1|2>:]DDEMod:SEARch:SYNC:NAME <string>...
  • Page 312 Alphabetical List of Commands Command Parameter Page :[SENSe<1|2>:]MIXer:HARMonic:BAND A | Q | U | V | E | W | F | D | G | Y |J 6.199 :[SENSe<1|2>:]MIXer:HARMonic:TYPE ODD | EVEN | EODD 6.199 :[SENSe<1|2>:]MIXer:LOSS:HIGH <numeric_value> 6.199 :[SENSe<1|2>:]MIXer:LOSS:TABLE <file_name>...
  • Page 313 Alphabetical List of Commands Command Parameter Page :[SENSe<1|2>:]TV:PSOFfset 0 to 6.5 MHz 6.211 :[SENSe<1|2>:]TV[:STATe] ON | OFF 6.211 :SOURce:AM:STATe ON | OFF 6.212 :SOURce:DM:STATe ON | OFF 6.212 :SOURce:FREQuency:OFFSet -200 MHz to 200 MHz 6.213 :SOURce:POWer:ALC:SOURce INTernal | EXTernal 6.213 :SOURce:POWer[:LEVel][:IMMediate]:OFFSet -200 dB to +200 dB 6.213...
  • Page 314 Alphabetical List of Commands Command Parameter Page :STATus:QUEStionable:SYNC[:EVENt]? 6.221 :STATus:QUEStionable:SYNC:NTRansition 0 to 65535 6.221 :STATus:QUEStionable:SYNC:PTRansition 0 to 65535 6.221 :STATus:QUEStionable:TRANsducer:CONDition? 6.224 :STATus:QUEStionable:TRANsducer:ENABle 0 to 65535 6.224 :STATus:QUEStionable:TRANsducer[:EVENt]? 6.224 :STATus:QUEStionable:TRANsducer:NTRansition 0 to 65535 6.225 :STATus:QUEStionable:TRANsducer:PTRansition 0 to 65535 6.225 :STATus:QUEue[:NEXT]? 6.225 :SYSTem:BINFo? 6.232 :SYSTem:COMMunicate:GPIB:RDEVice<1|2>:ADDRess...
  • Page 315 Alphabetical List of Commands Command Parameter Page †Ã‡‚à Æ :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:SLOT -100 6.239 :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:SLOT:AUTO ONCE 6.239 :TRIGger<1|2>[:SEQuence]:SYNChronize:SOURce FRAMe | TSC 6.239 :TRIGger<1|2>[:SEQuence]:VIDeo::FORMat:LPFRame 525 | 625 6.237 :TRIGger<1|2>[:SEQuence]:VIDeo:FIELd:SELect ALL | ODD | EVEN 6.237 :TRIGger<1|2>[:SEQuence]:VIDeo:LINE:NUMBer <numeric value> 6.237 :TRIGger<1|2>[:SEQuence]:VIDeo:SSIGnal:POLarity NEGative | POSitive 6.238 :UNIT<1|2>:POWer DBM | DBPW | WATT | DBUV |...

  • Page 316: Table Of Softkeys With Iec/Ieee-Bus Command Assignment

    Command Assignment - Signal Analysis Table of Softkeys with IEC/IEEE-Bus Command Assignment Basic Instrument - Signal Analysis Mode FREQUENCY Key Group START :[SENSe<1|2>:]FREQuency:STARt <num_value> START MANUAL :[SENSe<1|2>:]FREQuency:STARt:LINK CENTer CENTER FIXED :[SENSe<1|2>:]FREQuency:STARt:LINK SPAN SPAN FIXED :[SENSe<1|2>:]FREQuency:STARt:LINK STOP STOP FIXED :[SENSe<1|2>:]SWEep:SPACing LIN | LOG FREQ AXIS STOP :[SENSe<1|2>:]FREQuency:STOP <num_value>...
  • Page 317 Command Assignment - Signal Analysis STEP :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK SPAN; AUTO 0.1 * SPAN :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK:FACTor 10PCT :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK RBW; AUTO :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK:FACTor 10PCT 0.1 * RBW :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK SPAN; AUTO :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK:FACTor 50PCT 0.5 * SPAN :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK RBW; AUTO :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK:FACTor 50PCT 0.5 * RBW :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK SPAN; AUTO X * SPAN :[SENSe<1|2>:]FREQuency:CENTer:STEP:LINK:FACTor <num_value>...

  • Page 318: Level Key Group

    Command Assignment - Signal Analysis LEVEL Key Group :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe]:RLEVel <num_value> LEVEL :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe]:RLEVel:OFFSet <num_value> REF LEVEL OFFSET :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe]:MODE ABSolute|RELative GRID ABS/REL UNIT :CALCulate<1|2>:UNIT:POWer :CALCulate<1|2>:UNIT:POWer DBMV dBmV :CALCulate<1|2>:UNIT:POWer DBUV dBµV :CALCulate<1|2>:UNIT:POWer DBUA dBµA :CALCulate<1|2>:UNIT:POWer DBPW dBpW :CALCulate<1|2>:UNIT:POWer DBUV_MHZ dB*/MHz :CALCulate<1|2>:UNIT:POWer DBUA_MHZ :CALCulate<1|2>:UNIT:POWer DBMV_MHZ :CALCulate<1|2>:UNIT:POWer VOLT VOLT...

  • Page 319: Input Key

    Command Assignment - Signal Analysis RANGE :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y:SPACing LOGarithmic; LOG ... :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe] <num_value> :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y:SPACing PERCent LINEAR/% :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y:SPACing LINear LINEAR/dB :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y:SPACing LOGarithmic; LOG MANUAL :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe] <num_value> :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe]:MODE ABSolute|RELative GRID ABS/REL INPUT Key INPUT :INPut<1|2>:ATTenuation <num_value> RF ATTEN MANUAL :INPut<1|2>:ATTenuation:AUTO:MODE NORMal; ATTEN AUTO :INPut<1|2>:ATTenuation:AUTO ON NORMAL :INPut<1|2>:ATTenuation:AUTO:MODE LNOise;...

  • Page 320: Marker Key Group

    Command Assignment - Signal Analysis MARKER Key Group NORMAL :CALCulate<1|2>:MARKer<1...4>[:STATe] ON | OFF; MARKER :CALCulate<1|2>:MARKer<1...4>:X <num_value>; 1..4 :CALCulate<1|2>:MARKer<1...4>:Y? :CALCulate<1|2>:MARKer<1...4>:COUNt ON | OFF; SIGNAL COUNT :CALCulate<1|2>:MARKer<1...4>:COUNt:FREQuency? MARKER DEMOD :CALCulate<1|2>:MARKer<1...4>:FUNCtion:DEModulation[:STATe] ON | OFF MKR DEMOD ON/OFF :CALCulate<1|2>:MARKer<1...4>:FUNCtion:DEModulation:SELect :CALCulate<1|2>:MARKer<1...4>:FUNCtion:DEModulation:SELect :CALCulate<1|2>:MARKer<1..4>:FUNCtion:DEModulation:HOLDoff <num_value> MKR STOP TIME :SYSTem:SPEaker<1|2>:VOLume <num_value>...
  • Page 321 Command Assignment - Signal Analysis :[SENSe<1|2>:]POWer:BANDwidth|BWIDth <num_value> % POWER BANDWIDTH :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer:SELect CPOWer; CHANNEL :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer:RESult? CPOWer; POWER :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer[:STATe] OFF :[SENSe<1|2>:]POWer:ACHannel:MODE ABSolute|RELative CP/ACP ABS/REL :[SENSe<1|2>:]POWer:ACHannel:REFerence:AUTO ONCE SET CP REFERENCE :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer:SELect CN; :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer:RESult? CN; :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer[:STATe] OFF :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer:SELect CN0; C/No :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer:RESult? CN0; :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer[:STATe] OFF :CALCulate<1|2>:MARKer<1...4>:FUNCtion:POWer:SELect ACPower;...
  • Page 322 Command Assignment - Signal Analysis DELTA :CALCulate<1|2>:DELTamarker<1...4>[:STATe] ON | OFF DELTA 1...4 :CALCulate<1|2>:DELTamarker<1...4>:X <num_value> :CALCulate<1|2>:DELTamarker<1...4>:X:RELative? :CALCulate<1|2>:DELTamarker<1...4>:Y? :CALCulate<1|2>:DELTamarker<1...4>:FUNCtion:PNOise[:STATe] ON | OFF PHASE NOISE :CALCulate<1|2>:DELTamarker<1...4>:FUNCtion:PNOise:RESult? REFERENCE POINT :CALCulate<1|2>:DELTamarker<1..4>:FUNCtion:FIXed:RPOint:Y <num_value> REF POINT LEVEL :CALCulate<1|2>:DELTamarker<1..4>:FUNCtion:FIXed:RPOint:Y:OFFSet REF POINT <num_value> LVL OFFSET :CALCulate<1|2>:DELTamarker<1..4>:FUNCtion:FIXed:RPOint:X <num_value> REF POINT FREQUENCY :CALCulate<1|2>:DELTamarker<1..4>:FUNCtion:FIXed:RPOint:X <num_value>...
  • Page 323 Command Assignment - Signal Analysis :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:RMS[:STATe] ON | OFF :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:RMS:RESult? :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:RMS:AVERage:RESult? :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:RMS:PHOLd:RESult? :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:MEAN[:STATe] ON | OFF MEAN :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:MEAN:RESult? :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:MEAN:AVERage:RESult? :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:MEAN:PHOLd:RESult? :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:PHOLd ON | OFF PEAK HOLD ON/OFF :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:AVERage ON | OFF AVERAGE ON/OFF :[SENSe<1|2>:]SWEep:COUNt <num_value> SWEEP COUNT :CALCulate<1|2>:MARKer<1...4>:FUNCtion:SUMMary:AOFF ALL SUM MKR :CALCulate<1|2>:MARKer<1...4>:X:SLIMits[:STATe] ON | OFF SEARCH LIM ON/OFF...

  • Page 324: Lines Key Group

    Command Assignment - Signal Analysis MKR-> :CALCulate<1|2>:MARKer<1...4>:MAXimum[:PEAK] PEAK :CALCulate<1|2>:DELTamarker<1...4>:MAXimum[:PEAK] :CALCulate<1|2>:MARKer<1...4>:FUNCtion:CENTer MKR-> CENTER :CALCulate<1|2>:MARKer<1...4>:FUNCtion:REFerence MKR-> REF LEVEL :CALCulate<1|2>:MARKer<1...4>:FUNCtion:CSTep MKR-> CF STEPSIZE :CALCulate<1|2>:MARKer<1...4>:FUNCtion:STARt MKR-> START :CALCulate<1|2>:MARKer<1...4>:FUNCtion:STOP MKR-> STOP :CALCulate<1|2>:MARKer<1...4>:TRACe <num_value> MKR-> :CALCulate<1|2>:DELTamarker<1...4>:TRACe <num_value> TRACE LINES Key Group D LINES :CALCulate<1|2>:DLINe<1|2>:STATe ON | OFF; DISPLAY :CALCulate<1|2>:DLINe<1|2>...
  • Page 325 Command Assignment - Signal Analysis no corresponding IEC/IEEE-bus command INSERT VALUE no corresponding IEC/IEEE-bus command DELETE VALUE :CALCulate<1|2>:LIMit<1...8>:CONTrol:SHIFt <num_value> SHIFT X LIMIT LINE :CALCulate<1|2>:LIMit<1...8>:UPPer:SHIFt <num_value> SHIFT Y :CALCulate<1|2>:LIMit<1...8>:LOWer:SHIFt <num_value> LIMIT LINE automatically executed during IEC/IEEE-bus operationh SAVE LIMIT LINE :CALCulate<1|2>:LIMit<1...8>:UNIT DB| DBM| PCT |DBUV| DBMW | DBUA | EDIT LIMIT DBPW| DBPT | WATT| VOLT | AMPere | DBUV_MHZ | DBMV_MHZ| DBUA_MHZ | LINE...

  • Page 326: Trace Key Group

    Command Assignment - Signal Analysis TRACE Key Group TRACE 1 :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE WRITe CLEAR/ WRITE :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE VIEW VIEW :DISPlay[:WINDow<1|2>]:TRACe<1...4>[:STATe] OFF BLANK AVERage or :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE AVERAGE :[SENSe<1|2>:]AVERage:MODE SCALe :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE MAXHold or MAX HOLD :[SENSe<1|2>:]AVERage:MODE MAX :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE MINHold or MIN HOLD :[SENSe<1|2>:]AVERage:MODE MIN :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE:HCONtinuous ON | OFF HOLD CONT ON/OFF...
  • Page 327 Command Assignment - Signal Analysis no corresponding IEC/IEEE-bus command ADJUST TO TRACE :CALCulate<1|2>:MATH<1...4>:STATe OFF TRACE MATH :MMEMory:STORe:TRACe 1...4,<path with file name> ASCII EXPORT ASCII CONFIG the path is included in command MMEMory:STORe:TRACe EDIT PATH FORMat:DEXPort:DSEParator POINt|COMMA DECIM SEP FORMat:DEXPort:APPend[:STATe] ON | OFF APPEND FORMat:DEXPort:HEADer[:STATe] ON | OFF HEADER...

  • Page 328: Sweep Key Group

    Command Assignment - Signal Analysis SWEEP Key Group COUPLING :[SENSe<1|2>:]BANDwidth|BWIDth[:RESolution] <num_value> RES BW MANUAL :[SENSe<1|2>:]BANDwidth|BWIDth[:RESolution]:AUTO ON | OFF RES BW AUTO :[SENSe<1|2>:]BANDwidth|BWIDth:VIDeo <num_value> VIDEO BW MANUAL :[SENSe<1|2>:]BANDwidth|BWIDth:VIDeo:AUTO ON | OFF VIDEO BW AUTO :[SENSe<1|2>:]SWEep:TIME <num_value> SWEEP TIME MANUAL :[SENSe<1|2>:]SWEep:TIME:AUTO ON | OFF SWEEP TIME AUTO :[SENSe<1|2>:]BANDwidth|BWIDth[:RESolution]:AUTO ON;...
  • Page 329 Command Assignment - Signal Analysis :TRIGger<1|2>[:SEQuence]:SOURce LINE LINE :TRIGger<1|2>[:SEQuence]:SOURce EXTernal EXTERN :TRIGger<1|2>[:SEQuence]:LEVel[:EXTernal] -5.0...+5.0V :TRIGger<1|2>[:SEQuence]:SOURce RFPower RF POWER :TRIGger<1|2>[:SEQuence]:HOLDoff <num_value> TRIGGER DELAY :TRIGger<1|2>[:SEQuence]:SLOPe POSitive|NEGative SLOPE POS/NEG SWEEP :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS SWEEP :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE SWEEP :[SENSe<1|2>:]SWEep:TIME:AUTO ON | OFF SWEEP TIME AUTO :[SENSe<1|2>:]SWEep:TIME <num_value>...
  • Page 330 Command Assignment - Signal Analysis :[SENSe<1|2>:]SWEep:EGATe:LENGth <num_value> GATE LENGTH :[SENSe<1|2>:]SWEep:EGATe:SOURce EXTernal GATE EXTERN :[SENSe<1|2>:]SWEep:EGATe:SOURce RFPower GATE RF POWER GATE ADJUST :[SENSe<1|2>:]SWEep:EGATe:LEVel <num_value> GATE LEVEL :[SENSe<1|2>:]SWEep:EGATe:TYPE LEVel | EDGE GATE MODE LEVEL/EDGE :[SENSe<1|2>:]SWEep:EGATe:POLarity POSitive | NEGative GATE POL POS/NEG :[SENSe<1|2>:]SWEep:EGATe:HOLDoff <num_value> GATE DELAY :[SENSe<1|2>:]SWEep:EGATe:LENGth <num_value>...
  • Page 331 Command Assignment - General Device Settings Basic Instrument - General Device Settings DATA VARIATION Key Group HOLD no corresponding IEC/IEEE-bus command UNLOCK no corresponding IEC/IEEE-bus command LOCK DATA no corresponding IEC/IEEE-bus command LOCK ALL if needed, the step width is entered in the subsystem of the corresponding parameter. STEP STEPSIZE AUTO...
  • Page 332 Command Assignment - General Device Settings CONFIG DISPLAY SELECT OBJECT DISPlay:CMAP:HSL <hue>,<sat>,<lum> BRIGHTNESS DISPlay:CMAP<1...13>:HSL <hue>,<sat>,<lum> TINT DISPlay:CMAP<1...13>:HSL <hue>,<sat>,<lum> SATURATION DISPlay:CMAP<1...13>:DEFault DEFAULT COLORS DISPlay:CMAP<1...13>:PDEFined BLACk | BLUE | BROWn | GREen | CYAN | RED PREDEFINED COLORS | MAGenta | YELLow | WHITe | DGRAy | LGRAy | LBLUe | LGREen | LCYan | LRED | LMAGenta DISPlay:LOGO ON | OFF LOGO...
  • Page 333 Command Assignment - General Device Settings CALibration:LDETector? CALibration:LOSuppression? LO SUPP CALibration:IQ? CALibration:STATe ON | OFF CAL CORR ON/OFF no corresponding IEC/IEEE-bus command RESULTS CALibration:PPEak? PRESEL PEAK INFO *IDN? FIRMWARE VERSION *OPT? HARDWARE+ :SYSTem:BINFo? OPTIONS *TST? SELFTEST *TST? EXECUTE TEST :SYSTem:ERRor? SYSTEM MESSAGES :SYSTem:ERRor?

  • Page 334: Configuration Key Group

    Command Assignment - General Device Settings CONFIGURATION Key Group The submenus are described at the corresponing operating mode. MODE :INSTrument<1|2>[:SELect] SANalyzer ANALYZER :INSTrument<1|2>:NSELect OUTPut[:STATe] ON | OFF TRACKING GENERATOR :INSTrument<1|2>[:SELect] ADEMod | DDEMod VECTOR :INSTrument<1|2>:NSELect 2 | 3 ANALYZER :[SENSe<1|2>:]TV[:STATe] ON | OFF TV DEMOD :INSTrument<1|2>[:SELect] MGSM...
  • Page 335 Command Assignment - General Device Settings :[SENSe<1|2>:]CORRection:TSET:RANGe<1...10> <freq>,<freql>,<name>.. TRANSD SET RANGES no corresponding IEC/IEEE-bus command INSERT LINE no corresponding IEC/IEEE-bus command DELETE LINE automatically executed during IEC/IEEE-bus operationh SAVE TRD see EDIT TRD FACTOR or EDIT TRD SET FACT/SET :[SENSe<1|2>:]CORRection:TRANsducer:DELete DELETE FACTOR/SET :[SENSe<1|2>:]CORRection:TSET:DELete...

  • Page 336: Status Key Group

    Command Assignment - General Device Settings :SYSTem:COMMunicate:SERial<1|2>:CONTrol:DTR IBFull | OFF COM PORT :SYSTem:COMMunicate:SERial<1|2>:CONTrol:RTS IBFull | OFF :SYSTem:COMMunicate:SERial<1|2>[:RECeive]:BAUD <num_value> :SYSTem:COMMunicate:SERial<1|2>[:RECeive]:BITS 7 | 8 :SYSTem:COMMunicate:SERial<1|2>[:RECeive]:PARity[:TYPE] EVEN|ODD|NONE :SYSTem:COMMunicate:SERial<1|2>[:RECeive]:SBITs :SYSTem:COMMunicate:SERial<1|2>[:RECeive]:PACE XON | NONE :SYSTem:TIME 0...23, 0...59, 0...59 TIME :SYSTem:DATE <num>,<num>,<num> DATE no corresponding IEC/IEEE-bus command (not FSE with Windows NT) MOUSE no corresponding IEC/IEEE-bus command (not FSE with Windows NT) EXTERNAL...

  • Page 337: Hardcopy Key Group

    Command Assignment - General Device Settings HARDCOPY Key Group :HCOPy[:IMMediate<1|2>] START SETTINGS :HCOPy:ITEM:ALL COPY SCREEN :HCOPy:ITEM:WINDow<1|2>:TRACe:STATe ON | OFF COPY TRACE :HCOPy:ITEM:WINDow<1|2>:TABLe:STATe ON | OFF COPY TABLE SELECT QUADRANT :HCOPy:PAGE:DIMensions:QUADrant 1 UPPER LEFT :HCOPy:PAGE:DIMensions:QUADrant 2 LOWER LEFT :HCOPy:PAGE:DIMensions:QUADrant 3 UPPER RIGHT :HCOPy:PAGE:DIMensions:QUADrant 4 LOWER...

  • Page 338: Memory Key Group

    Command Assignment - General Device Settings MEMORY Key Group CONFIG :MMEMory:MSIS <device> EDIT :MMEMory:CDIRectory <directory_name> PATH :MMEMory:DELete <file_name> DELETE :MMEMory:RDIRectory <directory_name> :MMEMory:INITialize <msus> FORMAT DISK :MMEMory:MDIRectory <directory_name> MAKE DIRECTORY :MMEMory:MOVE <file_source>,<file_destination> RENAME no corresponding IEC/IEEE-bus command SORT MODE :MMEMory:COPY <file_source>,<file_destination> COPY SAVE :MMEMory:STORe:STATe 1,<file_name>...
  • Page 339 Command Assignment - General Device Settings :MMEMory:CLEar:STATe 1,<file_name> DATA SET CLEAR :MMEMory:CLEar:ALL DATA SET CLEAR ALL RECALL :MMEMory:LOAD:STATe 1,<file_name> EDIT NAME the path is included in the file name. EDIT PATH :MMEMory:LOAD:AUTO 1,<file_name> AUTO RECALL SELECT ITEMS TO RECALL :MMEMory:SELect[:ITEM]:GSETup ON | OFF SELECT :MMEMory:SELect[:ITEM]:HWSettings ON | OFF ITEMS...

  • Page 340: User Key

    Command Assignment - General Device Settings USER Key USER no corresponding IEC/IEEE-bus command MACRO 1...7 no corresponding IEC/IEEE-bus command DEFINE MACRO no corresponding IEC/IEEE-bus command RECORD ON/OFF no corresponding IEC/IEEE-bus command DEFINE PAUSE no corresponding IEC/IEEE-bus command DELETE MACRO no corresponding IEC/IEEE-bus command MACRO TITLE no corresponding IEC/IEEE-bus command...

  • Page 341: Operating Mode Vector-Signal Analyzer (Option Fse-B7)

    Command Assignment - Vector Signal Analysis Operating Mode Vector-Signal Analyzer (Option FSE-B7) CONFIGURATION Key Group - Digital Demodulation MODE VECTOR ANALYZER DIGITAL STANDARD :[SENSe<1|2>:]DDEMod:PRESet PWT WCPE :[SENSe<1|2>:]DDEMod:PRESet F95Cdma | FQCDma IS-95 CDMA FWD CH :[SENSe<1|2>:]DDEMod:PRESet R95Cdma | RQCDma IS-95 CDMA REV CH :[SENSe<1|2>:]DDEMod:PRESet APCO25C4FM APCO25...
  • Page 342 Command Assignment - Vector Signal Analysis :[SENSe<1|2>:]DDEMod:PRESet MODacom MODACOM :[SENSe<1|2>:]DDEMod:PRESet F16 FLEX16_2 :[SENSe<1|2>:]DDEMod:PRESet F322 FLEX32_2 :[SENSe<1|2>:]DDEMod:PRESet F324 FLEX32_4 :[SENSe<1|2>:]DDEMod:PRESet F64 FLEX64_4 ::INSTrument[:SELect] DDEMod DIGITAL :[SENSe<1|2>:]DDEMod:FORMat QPSK | PSK | MSK |QAM | FSK DEMOD :[SENSe<1|2>:]DDEMod:QPSK:FORMat NORMal | DIFFerential | OFFSet | DPI4 :[SENSe<1|2>:]DDEMod:PSK:NSTate 2 | 8 :[SENSe<1|2>:]DDEMod:PSK:FORMat...
  • Page 343 Command Assignment - Vector Signal Analysis :CALCulate<1|2>:FORMat PHASe PHASE :CALCulate<1|2>:FORMat FREQuency FREQUENCY :CALCulate<1|2>:FORMat RIMag REAL/IMAG PART :CALCulate<1|2>:FORMat FEYE EYE DIAG [FREQ] :CALCulate<1|2>:FORMat IEYE EYE DIAG :CALCulate<1|2>:FORMat QEYE EYE DIAG :CALCulate<1|2>:FORMat TEYE EYE DIAG TRELLIS :CALCulate<1|2>:FORMat COMP POLAR [IQ] VECTOR :CALCulate<1|2>:FORMat CONS POLAR [IQ] CONSTELL :DISPlay[:WINDow<1|2>]:TRACe<1...4>:SYMBol DOTS | BARS |OFF...
  • Page 344 Command Assignment - Vector Signal Analysis :DISPlay[:WINDow<1|2>]:TRACe<1...4>:SYMBol DOTS | BARS |OFF SYMBOL DISPLAY :CALCulate<1|2>:FORMat PHASe | UPHase PHASE WRAP ON/OFF :DISPlay[:WINDow<1|2>]:TRACe<1...4>:EYE:COUNt <num_value> LENGTH :CALCulate<1|2>:FEED ‘XTIM:DDEM:ERR:MPH’ ERROR SIGNAL (Querying the results) :CALCulate<1|2>:MARKer<1|2>:FUNCtion:DDEMod:RESult? MERM| MEPK| MEPS| PERM| PEPK| PEPS| EVRM| EVPK| EVPS| IQOF| IQIM| ADR| FERR| DEV| FSRM| FSPK| FSPS| RHO| FEPK The following commands select the display mode: :CALCulate<1|2>:FORMat MAGNitude...

  • Page 345: Configuration Key Group - Analog Demodulation

    Command Assignment - Vector Signal Analysis CONFIGURATION Key Group - Analog Demodulation MODE VECTOR ANALYZER ::INSTrument<1|2>[:SELect] ADEMod ANALOG DEMOD MODULATION PARAMETER SENSe<1|2>:FILTer:HPASs[:STATe] ON | OFF HIGH PASS SENSe<1|2>:FILTer:HPASs:FREQuency <num_value> AF FILTER SENSe<1|2>:FILTer[:LPASs][:STATe] ON | OFF LOW PASS SENSe<1|2>:FILTer[:LPASs]:FREQuency <num_value> AF FILTER SENSe<1|2>:FILTer:CCITt[:STATe] ON | OFF WEIGHTING AF FILTER...
  • Page 346 Command Assignment - Vector Signal Analysis SENSe<1|2>:MSUMmary:AHOLd[:STATe] ON | OFF AVERAGE HOLD ON SENSe<1|2>:SWEep:COUNt <num_value> SWEEP COUNT SENSe<1|2>:MSUMmary:RUNit PCT | DB RELUNIT DB % SENSe<1|2>:MSUMmary:MODE ABSolute | RELative INDICATION ABS REL SENSe<1|2>:MSUMmary:REFerence <num_value> REFERENCE SENSe<1|2>:MSUMmary:REFerence:AUTO ONCe MEAS-> :CALCulate<1|2>:MARKer<1...4>:FUNCtion:ADEMod:SINad[:STATe] SINAD 1kHz :CALCulate<1|2>:MARKer<1...4>:FUNCtion:ADEMod:SINad:RESult? ON OFF SENSe<1|2>:MSUMmary:MTIMe <num_value>...

  • Page 347: Level Key Group

    Command Assignment - Vector Signal Analysis LEVEL Key Group :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe]:RLEVel <num_value> LEVEL :DISPlay[:WINDow<1|2>]:TRACe<1...4>:Y[:SCALe]:RLEVel:OFFSet <num_value> REF LEVEL OFFSET :INPut<1|2>:ATTenuation <num_value> RF ATTEN MANUAL :INPut<1|2>:ATTenuation:AUTO:MODE NORMal; ATTEN AUTO NORMAL :INPut<1|2>:ATTenuation:AUTO ON :INPut<1|2>:ATTenuation:AUTO:MODE LNOise; ATTEN AUTO :INPut<1|2>:ATTenuation:AUTO ON LOW NOISE :INPut<1|2>:ATTenuation:AUTO:MODE LDIStortion; ATTEN AUTO :INPut<1|2>:ATTenuation:AUTO ON LOW DIST :INPut<1|2>:MIXer <num_value>...

  • Page 348: Input Key

    Command Assignment - Vector Signal Analysis INPUT Key INPUT :INPut<1|2>:ATTenuation <num_value> RF ATTEN MANUAL :INPut<1|2>:ATTenuation:AUTO:MODE NORMal; ATTEN AUTO :INPut<1|2>:ATTenuation:AUTO ON NORMAL :INPut<1|2>:ATTenuation:AUTO:MODE LNOise; ATTEN AUTO :INPut<1|2>:ATTenuation:AUTO ON LOW NOISE :INPut<1|2>:ATTenuation:AUTO:MODE LDIStortion; ATTEN AUTO :INPut<1|2>:ATTenuation:AUTO ON LOW DIST :INPut<1|2>:MIXer <num_value> MIXER LEVEL :INPut<1|2>:ATTenuation:STEPsize 1dB | 10dB (with option FSE-B13 only) ATTEN STEP...
  • Page 349 Command Assignment - Vector Signal Analysis DELTA :CALCulate<1|2>:DELTamarker<1|2>[:STATe] ON | OFF DELTA :CALCulate<1|2>:DELTamarker<1|2>:X <num_value> :CALCulate<1|2>:DELTamarker<1|2>:Y? :CALCulate<1|2>:DELTamarker<1|2>:MODE ABSolute | RELative DELTA MKR ABS / REL :CALCulate<1|2>:DELTamarker<1|2>:AOFF ALL DELTA MARKER SEARCH :CALCulate<1|2>:MARKer<1|2>:MAXimum[:PEAK] PEAK :CALCulate<1|2>:DELTamarker<1|2>:MAXimum[:PEAK] ACTIVE MKR / DELTA :CALCulate<1|2>:MARKer<1|2>:MINimum[:PEAK] :CALCulate<1|2>:DELTamarker<1|2>:MINimum[:PEAK] :CALCulate<1|2>:MARKer<1|2>:MAXimum:APEak MAX |PEAK| :CALCulate<1|2>:DELTamarker<1|2>:MAXimum:APEak :CALCulate<1|2>:MARKer<1|2>:FUNCtion:SUMMary[:STATe] ON | OFF SUMMARY...

  • Page 350: Lines Key Group

    Command Assignment - Vector Signal Analysis :[SENSe<1|2>:]SWEep:COUNt <num_value> SWEEP COUNT :CALCulate<1|2>:MARKer<1|2>:FUNCtion:SUMMary:AOFF ALL SUM MKR :CALCulate<1|2>:MARKer<1|2>:X:SLIMits[:STATe] ON | OFF SEARCH LIMIT ON/OFF SELECT MARKER MKR -> :CALCulate<1|2>:MARKer<1|2>:MAXimum[:PEAK] PEAK :CALCulate<1|2>:DELTamarker<1|2>:MAXimum[:PEAK] :CALCulate<1|2>:MARKer<1|2>:TRACe <num_value> MKR → TRACE SELECT MARKER no corresponding IEC/IEEE-bus command ACTIVE MKR / DELTA LINES Key Group D LINES...

  • Page 351: Trace Key Group

    Command Assignment - Vector Signal Analysis :CALCulate<1|2>:LIMit<1...8>:CONTrol:SHIFt <num_value> SHIFT X LIMIT LINE :CALCulate<1|2>:LIMit<1...8>:UPPer:SHIFt <num_value> SHIFT Y :CALCulate<1|2>:LIMit<1...8>:LOWer:SHIFt <num_value> LIMIT LINE automatically executed during IEC/IEEE-bus operation SAVE LIMIT LINE :CALCulate<1|2>:LIMit<1...8>:UNIT DB| DBM | RAD | DEG | PCT | HZ | S | EDIT LIMIT VOLT | WATT | UNITless LINE...

  • Page 352: Sweep Key Group

    Command Assignment - Vector Signal Analysis :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE MAXHold or MAX HOLD :[SENSe<1|2>:]AVERage:MODE MAX :DISPlay[:WINDow<1|2>]:TRACe<1...4>:MODE MINHold or MIN HOLD :[SENSe<1|2>:]AVERage:MODE MIN :[SENSe<1|2>:]SWEep:COUNt <num_value> SWEEP COUNT SWEEP Key Group COUPLING :[SENSe<1|2>:]BANDwidth|BWIDth[:RESolution]:AUTO ON | OFF IF BW AUTO :[SENSe<1|2>:]BANDwidth|BWIDth[:RESolution] <num_value> IF BW MANUAL :[SENSe<1|2>:]BANDwidth|BWIDth:PLL AUTO|HIGH|MEDium|LOW MAIN PLL BANDWIDTH...

  • Page 353: Trigger Key Group - Analog Demodulation

    Command Assignment - Vector Signal Analysis :TRIGger<1|2>[:SEQuence]:SLOPe POSitive|NEGative SLOPE :[SENSe<1|2>:]DDEMod:SEARch:SYNC:MONLy ON | OFF MEAS ONLY IF SYNC’D :[SENSe<1|2>:]DDEMod:SEARch:PULSe:STATe ON | OFF FIND BURST :[SENSe<1|2>:]DDEMod:SEARch:SYNC:STATe ON | OFF FIND SYNC :[SENSe<1|2>:]DDEMod:SEARch:SYNC:OFFSet <num_value> SYNC OFFSET SYNC PATTERN :[SENSe<1|2>:]DDEMod:SEARch:SYNC:SELect <pattern_name> SELECT PATTERN :[SENSe<1|2>:]DDEMod:SEARch:SYNC:PATTern <string> NEW SYNC PATTERN :[SENSe<1|2>:]DDEMod:SEARch:SYNC:NAME <pattern_name>...

  • Page 354: Operating Mode Tracking Generator (Option Fse-B8 To B11)

    Command Assignment – Tracking Generator Operating Mode Tracking Generator (Option FSE-B8 to B11) CONFIGURATION Key Group MODE TRACKING :OUTPut<1|2>[:STATe] ON | OFF SOURCE ON/OFF SOURce:POWer[:LEVel][:IMMediate][:AMPLitude] <num_value> SOURCE POWER SOURce:POWer[:LEVel][:IMMediate]:OFFSet <num_value> POWER OFFSET SOURCE :[SENSe<1|2>:]CORRection:METHod TRANsmission CAL TRANS :[SENSe<1|2>:]CORRection:COLLect[:ACQuire] THRough :[SENSe<1|2>:]CORRection:METHod REFLexion CAL REFL SHORT :[SENSe<1|2>:]CORRection:COLLect[:ACQuire] THRough...

  • Page 355: Operating Mode Tv Demodulation (Option Fse-B3)

    Command Assignment – TV Demodulator Operating Mode TV Demodulation (Option FSE-B3) CONFIGURATION Key Group MODE :[SENSe<1|2>:]TV[:STATe] ON | OFF TV DEMOD :TRIGger<1|2>[:SEQuence]:VIDeo:SSIGnal:POLarity NEGative VIDEO POL NEGATIVE :TRIGger<1|2>[:SEQuence]:VIDeo:SSIGnal:POLarity POSitive VIDEO POL POSITIVE :TRIGger<1|2>[:SEQuence]:VIDeo:FORMat:LPFRame 625 LINE SYSTEM :TRIGger<1|2>[:SEQuence]:VIDeo:FORMat:LPFRame 525 LINE SYSTEM :[SENSe<1|2>:]TV:PSOFfset <num_value> PICT/SOUND OFFSET :[SENSe<1|2>:]TV[:STATe] ON | OFF...

  • Page 356: Operating Mode Gsm Bts Analyzer (Option Fse-K11)

    Command Assignment – GSM BTS Analyzer Operating Mode GSM BTS Analyzer (Option FSE-K11) CONFIGURATION Key Group MODE ::INSTrument<1|2>[:SELect] BGSM GSM BTS ANALYZER SETTINGS :[SENSe<1|2>:]CORRection:LOSS:INPut[:MAGNitude] <num_value> EXTERNAL ATTEN ARFCN / FREQUENCY CONFigure[:BTS]:ARFCn <num_value> ARFCN CONFigure[:BTS]:ARFCn:AUTO ONCE ARFCN AUTOSELECT SENSe<1|2>:FREQuency:CENTer <num_value> FREQUENCY POWER SETTINGS SENSe<1|2>:CORRection:LOSS:INPut[:MAGNitude] <num_value>...
  • Page 357 Command Assignment – GSM BTS Analyzer CONFigure[:BTS]:CHANnel:SLOT:AUTO ONCE SLOT NO. AUTOSELECT CONFigure[:BTS]:CHANnel:TSC 0...7 MIDAMBLE CONFigure[:BTS]:CHANnel:TSC:AUTO ON | OFF TRIGGER :TRIGger<1|2>[:SEQuence]:SOURce IMMediate FREE RUN :TRIGger<1|2>[:SEQuence]:SOURce EXTernal EXTERN :TRIGger<1|2>[:SEQuence]:LEVel[:EXTernal] -5.0...+5.0V :TRIGger<1|2>[:SEQuence]:SLOPe POSitive|NEGative SLOPE TRIGGER ADJUST :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:FRAMe <num_value> FRAME COARSE :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:FRAMe <num_value> FRAME FINE :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:FRAMe:AUTO ONCE AUTO FRAME...
  • Page 358 Command Assignment – GSM BTS Analyzer CONFigure:BURSt:PFERror[:IMMediate] PHASE/FREQ ERROR :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE :READ:BURSt:PERRor:RMS:STATus? :READ:BURSt:PERRor:RMS:AVERage? :READ:BURSt:PERRor:RMS:MAXimum? :READ:BURSt:PERRor:PEAK:STATus? :READ:BURSt:PERRor:PEAK:AVERage? :READ:BURSt:PERRor:PEAK:MAXimum? :READ:BURSt:FERRor:STATus? :READ:BURSt:FERRor:AVERage? :READ:BURSt:FERRor:MAXimum? :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS :FETCh:BURSt:PERRor:RMS:STATus? :FETCh:BURSt:PERRor:RMS:AVERage? :FETCh:BURSt:PERRor:RMS:MAXimum? :FETCh:BURSt:PERRor:PEAK:STATus? :FETCh:BURSt:PERRor:PEAK:AVERage? :FETCh:BURSt:PERRor:PEAK:MAXimum? :FETCh:BURSt:FERRor:STATus? :FETCh:BURSt:FERRor:AVERage? :FETCh:BURSt:FERRor:MAXimum? NO. OF BURSTS :CONFigure<1|2>:BURSt:PFERror:COUNt <num_value> MANUAL SET TO STANDARD...
  • Page 359 Command Assignment – GSM BTS Analyzer :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE :READ:BURSt:MACCuracy:RMS:STATus :READ:BURSt:MACCuracy:RMS:AVERage :READ:BURSt:MACCuracy:RMS:MAXimum :READ:BURSt:MACCuracy:PEAK:STATus :READ:BURSt:MACCuracy:PEAK:AVERage :READ:BURSt:MACCuracy:PEAK:MAXimum :READ:BURSt:MACCuracy:OSUPpress:STATus :READ:BURSt:MACCuracy:OSUPpress:AVERage :READ:BURSt:MACCuracy:OSUPpress:MAXimum :READ:BURSt:MACCuracy:PERCentile:STATus :READ:BURSt:MACCuracy:PERCentile:AVERage :READ:BURSt:MACCuracy:PERCentile:MAXimum :READ:BURSt:MACCuracy:FREQuency:STATus :READ:BURSt:MACCuracy:FREQuency:AVERage :READ:BURSt:MACCuracy:FREQuency:MAXimum :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS :FETCh:BURSt:MACCuracy:RMS:STATus :FETCh:BURSt:MACCuracy:RMS:AVERage :FETCh:BURSt:MACCuracy:RMS:MAXimum :FETCh:BURSt:MACCuracy:PEAK:STATus :FETCh:BURSt:MACCuracy:PEAK:AVERage :FETCh:BURSt:MACCuracy:PEAK:MAXimum :FETCh:BURSt:MACCuracy:OSUPpress:STATus :FETCh:BURSt:MACCuracy:OSUPpress:AVERage :FETCh:BURSt:MACCuracy:OSUPpress:MAXimum :FETCh:BURSt:MACCuracy:PERCentile:STATus :FETCh:BURSt:MACCuracy:PERCentile:AVERage :FETCh:BURSt:MACCuracy:PERCentile:MAXimum :FETCh:BURSt:MACCuracy:FREQuency:STATus :FETCh:BURSt:MACCuracy:FREQuency:AVERage...
  • Page 360 Command Assignment – GSM BTS Analyzer :CONFigure<1|2>[:BTS]:LIMit:FREQuency <num_value> FREQUENCY :CONFigure<1|2>[:BTS]:LIMit:STANdard ON | OFF USER LIMIT :CONFigure<1|2>:BURSt:POWer[:IMMediate] CARRIER :CALCulate<1|2>:LIMit:BURSt:POWer? POWER :READ:BURSt:POWer? MEAS MAX OUTPUT PWR :READ:BURSt:POWer:STATic? INC STATIC PWR CTRL :READ:BURSt:POWer:DYNamic? INC DYNAM PWR CTRL NO. OF BURSTS :CONFigure<1|2>:BURSt:POWer:COUNt <num_value> MANUAL SET TO STANDARD :CONFigure<1|2>[:BTS]:POWer:SINGle[:STATe] ON | OFF...
  • Page 361 Command Assignment – GSM BTS Analyzer :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS :CONFigure<1|2>:BURSt:PTEMplate:SELect TOP BURST HIGH RESOLUTION NO. OF BURSTS :CONFigure<1|2>:BURSt:PTEMplate:COUNt <num_value> MANUAL SET TO STANDARD :CONFigure<1|2>:BURSt:PTEMplate:SELect FULL FULL BURST :CONFigure<1|2>:BURSt:PTEMplate:SELect RISing RISING EDGE :CONFigure<1|2>:BURSt:PTEMplate:SELect FALLing FALLING EDGE :READ:BURSt:REFerence[:IMMediate]? START REF MEAS :CONFigure<1|2>:BURSt:REFerence:AUTO ON | OFF REF MEAS AUTO...
  • Page 362 Command Assignment – GSM BTS Analyzer PAGE DOWN :CONFigure<1|2>:SPECtrum:MODulation[:IMMediate] MODULATION :CALCulate<1|2>:LIMit:SPECtrum:MODulation? ARFCn|TXBand|RXBand|COMBined SPECTRUM :CALCulate<1|2>:LIMit:SPECtrum:MODulation:FAILs? ARFCn|TXBand|RXBand|COMBined :CALCulate<1|2>:LIMit:SPECtrum:MODulation:EXCeptions? ARFCn|TXBand|RXBand|COMBined :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE FREQ SWEEP :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS FREQ SWEEP :READ:SPECtrum:MODulation[:ALL]? START LIST NO. OF BURSTS :CONFigure<1|2>:SPECtrum:MODulation:COUNt <num_value> MANUAL SET TO STANDARD :CONFigure<1|2>:SPECtrum:MODulation:RANGe ARFCn...
  • Page 363 Command Assignment – GSM BTS Analyzer :CONFigure<1|2>[:BTS]:LIMit:STANdard ON | OFF USER LIMIT PAGE UP PAGE DOWN :CONFigure<1|2>:SPECtrum:SWITching[:IMMediate] TRANSIENT SPECTRUM :CALCulate<1|2>:LIMit:SPECtrum:SWITching? :CALCulate<1|2>:LIMit:SPECtrum:SWITching:FAILs? :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE FREQ SWEEP :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS FREQ SWEEP :READ:SPECtrum:SWITching[:ALL]? START LIST NO. OF BURSTS :CONFigure<1|2>:SPECtrum:SWITching:COUNt <num_value> MANUAL SET TO STANDARD...
  • Page 364 Command Assignment – GSM BTS Analyzer :CONFigure<1|2>:SPURious[:IMMediate] SPURIOUS :CALCulate<1|2>:LIMit:SPURious? TXBand | OTXBand | RXBand :CALCulate<1|2>:LIMit:SPURious:FAILs? TXBand | OTXBand | RXBand ABORT;:READ:SPURious:STEP? START LIST SGL STEP :READ:SPURious:STEP? CONT LIST SGL STEP :READ:SPURious [:ALL]? START LIST SWEEP COUNT :CONFigure<1|2>:SPURious:COUNt <num_value> SWP COUNT TX / <>...
  • Page 365 Command Assignment – GSM BTS Analyzer see basic instrument NEW LIMIT LINE see basic instrument (Einheiten DB | DBM) EDIT LIMIT LINE see basic instrument COPY LIMIT LINE see basic instrument DELETE LIMIT LINE :CONFigure<1|2>[:BTS]:LIMit:STANdard ON | OFF USER LIMIT PAGE UP PAGE DOWN 1065.6016.12...

  • Page 366: Operating Mode Gsm Ms Analyzer (Option Fse-K10)

    Command Assignment – GSM MS Analyzer Operating Mode GSM MS Analyzer (Option FSE-K10) CONFIGURATION Key Group MODE ::INSTrument<1|2>[:SELect] MGSM GSM MS ANALYZER SETTINGS :[SENSe<1|2>:]CORRection:LOSS:INPut[:MAGNitude] <num_value> EXTERNAL ATTEN ARFCN / FREQUENCY :CONFigure<1|2>[:MS]:ARFCn <num_value> ARFCN :CONFigure<1|2>[:MS]:ARFCn:AUTO ONCE ARFCN AUTOSELECT :[SENSe<1|2>:]FREQuency:CENTer <num_value> FREQUENCY POWER SETTINGS :[SENSe<1|2>:]CORRection:LOSS:INPut[:MAGNitude] <num_value>...
  • Page 367 Command Assignment – GSM MS Analyzer TRIGGER :TRIGger<1|2>[:SEQuence]:SOURce IMMediate FREE RUN :TRIGger<1|2>[:SEQuence]:SOURce VIDeo VIDEO :TRIGger<1|2>[:SEQuence]:SOURce EXTernal EXTERN :TRIGger<1|2>[:SEQuence]:LEVel[:EXTernal] -5.0...+5.0V :TRIGger<1|2>[:SEQuence]:SOURce RFPower RF POWER :TRIGger<1|2>[:SEQuence]:SLOPe POSitive|NEGative SLOPE TRIGGER ADJUST :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:SLOT <num_value> COARSE ADJUST :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:SLOT <num_value> FINE ADJUST :TRIGger<1|2>[:SEQuence]:SYNChronize:ADJust:SLOT:AUTO ONCE AUTO ADJUST :TRIGger<1|2>[:SEQuence]:LEVel[:EXTernal] <num_value>...
  • Page 368 Command Assignment – GSM MS Analyzer :CONFigure<1|2>[:MS]:MTYPe GMSK | EDGE MODULATION GMSK EDGE with option FSE-K20 only :CONFigure<1|2>:BURSt:PFERror[:IMMediate] PHASE/FREQ ERROR :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS NO. OF BURSTS :CONFigure<1|2>:BURSt:PFERror:COUNt <num_value> MANUAL SET TO STANDARD see submenu SETTINGS ARFCN / FREQUENCY see submenu SETTINGS...
  • Page 369 Command Assignment – GSM MS Analyzer :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE :READ:BURSt:MACCuracy:RMS:STATus :READ:BURSt:MACCuracy:RMS:AVERage :READ:BURSt:MACCuracy:RMS:MAXimum :READ:BURSt:MACCuracy:PEAK:STATus :READ:BURSt:MACCuracy:PEAK:AVERage :READ:BURSt:MACCuracy:PEAK:MAXimum :READ:BURSt:MACCuracy:OSUPpress:STATus :READ:BURSt:MACCuracy:OSUPpress:AVERage :READ:BURSt:MACCuracy:OSUPpress:MAXimum :READ:BURSt:MACCuracy:PERCentile:STATus :READ:BURSt:MACCuracy:PERCentile:AVERage :READ:BURSt:MACCuracy:PERCentile:MAXimum :READ:BURSt:MACCuracy:FREQuency:STATus :READ:BURSt:MACCuracy:FREQuency:AVERage :READ:BURSt:MACCuracy:FREQuency:MAXimum :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS :FETCh:BURSt:MACCuracy:RMS:STATus :FETCh:BURSt:MACCuracy:RMS:AVERage :FETCh:BURSt:MACCuracy:RMS:MAXimum :FETCh:BURSt:MACCuracy:PEAK:STATus :FETCh:BURSt:MACCuracy:PEAK:AVERage :FETCh:BURSt:MACCuracy:PEAK:MAXimum :FETCh:BURSt:MACCuracy:OSUPpress:STATus :FETCh:BURSt:MACCuracy:OSUPpress:AVERage :FETCh:BURSt:MACCuracy:OSUPpress:MAXimum :FETCh:BURSt:MACCuracy:PERCentile:STATus :FETCh:BURSt:MACCuracy:PERCentile:AVERage :FETCh:BURSt:MACCuracy:PERCentile:MAXimum :FETCh:BURSt:MACCuracy:FREQuency:STATus :FETCh:BURSt:MACCuracy:FREQuency:AVERage...
  • Page 370 Command Assignment – GSM MS Analyzer :CONFigure<1|2>[:MS]:LIMit:FREQuency <num_value> FREQUENCY :CONFigure<1|2>[:MS]:LIMit:STANdard ON | OFF USER LIMIT :CONFigure<1|2>:BURSt:POWer[:IMMediate] CARRIER :CALCulate<1|2>:LIMit:BURSt:POWer? POWER :READ:BURSt:POWer? MEAS MAX OUTPUT PWR :READ:BURSt:POWer:LEVel? INC PWR CTRL LEVEL NO. OF BURSTS :CONFigure<1|2>:BURSt:POWer:COUNt <num_value> MANUAL SET TO STANDARD :CONFigure<1|2>[:MS]:POWer:SINGle[:STATe] ON | OFF SGL MEAS :READ:BURSt:POWer? MEAS SGL...
  • Page 371 Command Assignment – GSM MS Analyzer :CONFigure<1|2>:BURSt:PTEMplate:SELect TOP BURST HIGH RESOLUTION NO. OF BURSTS :CONFigure<1|2>:BURSt:PTEMplate:COUNt <num_value> MANUAL SET TO STANDARD :CONFigure<1|2>:BURSt:PTEMplate:SELect FULL FULL BURST :CONFigure<1|2>:BURSt:PTEMplate:SELect RISing RISING EDGE :CONFigure<1|2>:BURSt:PTEMplate:SELect FALLing FALLING EDGE :READ:BURst:REFerence[:IMMediate]? START MEAS :CONFigure<1|2>:BURst:REFerence:AUTO ON | OFF REF MEAS AUTO USER see submenu SETTINGS...
  • Page 372 Command Assignment – GSM MS Analyzer :CONFigure<1|2>:SPECtrum:MODulation[:IMMediate] MODULATION :CALCulate<1|2>:LIMit:SPECtrum:MODulation? SPECTRUM ARFCn|TXBand|RXBand|COMBined|DCSRx1800 :CALCulate<1|2>:LIMit:SPECtrum:MODulation:FAILs? ARFCn|TXBand|RXBand|COMBined|DCSRx1800 :CALCulate<1|2>:LIMit:SPECtrum:MODulation:EXCeptions? ARFCn|TXBand|RXBand|COMBined|DCSRx1800 :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE FREQ SWEEP :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS FREQ SWEEP :READ:SPECtrum:MODulation[:ALL]? START LIST NO. OF BURSTS :CONFigure<1|2>:SPECtrum:MODulation:COUNt <num_value> MANUAL SET TO STANDARD :CONFigure<1|2>:SPECtrum:MODulation:RANGe ARFCn ARFCN ±...
  • Page 373 Command Assignment – GSM MS Analyzer LIMIT LINE FILTER see basic instrument EDIT LIMIT LINE :CONFigure<1|2>[:MS]:LIMIt:STANdard ON | OFF USER LIMIT PAGE UP PAGE DOWN :CONFigure<1|2>:SPECtrum:SWITching[:IMMediate] TRANSIENT :CALCulate<1|2>:LIMit:SPECtrum:SWITching? SPECTRUM :CALCulate<1|2>:LIMit:SPECtrum:SWITching:FAILs? :INITiate<1|2>:CONTinuous OFF; :INITiate<1|2>[:IMMediate] SINGLE FREQ SWEEP :INITiate<1|2>:CONTinuous ON; :INITiate<1|2>[:IMMediate] CONTINUOUS FREQ SWEEP :READ:SPECtrum:SWITching[:ALL]? START...
  • Page 374 Command Assignment – GSM MS Analyzer PAGE DOWN :CONFigure<1|2>:SPURious[:IMMediate] SPURIOUS :CALCulate<1|2>:LIMit:SPURious? TXBand | OTXBand | IDLeband :CALCulate<1|2>:LIMit:SPURious:FAILs? TXBand | OTXBand | IDLeband ABORT;:READ:SPURious:STEP? START LIST SGL STEP :READ:SPURious:STEP? CONT LIST SGL STEP :READ:SPURious [:ALL]? START LIST SWEEP COUNT :CONFigure<1|2>:SPURious:COUNt <num_value> SWP COUNT TX / <>TX :CONFigure<1|2>:SPURious:RANGe...
  • Page 375 Command Assignment – GSM MS Analyzer see basic instrument EDIT LIMIT LINE :CONFigure<1|2>[:MS]:LIMIt:STANdard ON | OFF USER LIMIT PAGE UP PAGE DOWN 1065.6016.12 6.318 E-16...

  • Page 376: External Mixer Output (Option Fse-B21)

    Command Assignment – External Mixer Output External Mixer Output (Option FSE-B21) INPUT Key Group INPUT :[SENSe<1|2>:]MIXer[:STATe] OFF MIXER INTERNAL :[SENSe<1|2>:]MIXer[:STATe] ON MIXER EXTERNAL :[SENSe<1|2>:]MIXer:BLOCk ON | OFF BAND LOCK ON OFF SELECT BAND :[SENSe<1|2>:]MIXer:HARMonic:BAND A|Q|U|V|E|W|F|D|G|Y|J BAND :[SENSe<1|2>:]MIXer:HARMonic:TYPE ODD|EVEN|EODD EVEN HARMONICS :[SENSe<1|2>:]MIXer:HARMonic:TYPE ODD|EVEN|EODD HARMONICS :[SENSe<1|2>:]MIXer:PORT 2|3...
  • Page 377 Command Assignment – External Mixer Output DELETE LINE COPY TABLE Each change of value is saved automatically SAVE TABLE PAGE PAGE DOWN See softkey EDIT TABLE TABLE LOAD TABLE :[SENSe<1|2>:]CORRection:CVL:CLEar DELETE TABLE PAGE PAGE DOWN DEFAULT SETTINGS :[SENSe<1|2>:]MIXer:HARMonic <value> HARMONIC# :[SENSe<1|2>:]MIXer:PORT 2|3 PORTS :[SENSe<1|2>:]MIXer:LOSS[:LOW] <num_value>...
  • Page 378 Contents - Programming Examples Contents - Chapter 7 "Remote Control - Programming Examples" 7 Programming Examples ..................7.1 Programming via IEC/IEEE Bus...................... 7.1 Including IEC-Bus Library for QuickBasic................7.1 Initialization and Default Status ....................7.1 Initiate Controller ......................7.1 Initiate Instrument......................7.1 Transmission of Instrument Setting Commands ..............
  • Page 379 Contents - Programming Examples 1065.6016.12 I-7.2...

  • Page 380: Programming Examples

    Programming Examples 7 Programming Examples The examples explain the programming of the instrument and can serve as a basis to solve more complex programming tasks. QuickBASIC has been used as programming language. However, the programs can be translated into other languages. Programming via IEC/IEEE Bus Including IEC-Bus Library for QuickBasic REM ----------- Include IEC-bus library for quickbasic ----------------...

  • Page 381: Transmission Of Instrument Setting Commands

    Programming Examples Transmission of Instrument Setting Commands Center frequency, span, and reference level of the instrument are set in this example. REM -------- Instrument setting commands ------------- CALL IBWRT(analyzer%, "FREQUENCY:CENTER 120MHz") ’Center frequency 120 MHz CALL IBWRT(analyzer%, "FREQUENCY:SPAN 10MHZ") ’Span 10 MHz CALL IBWRT(analyzer%, "DISPLAY:TRACE:Y:RLEVEL -10dBm") ’Reference level -10dBm REM ***********************************************************************...

  • Page 382: Command Synchronization

    Programming Examples Command synchronization The possibilities for synchronization implemented in the following example are described in Chapter 5, Section "Command Order and Command Synchronization". REM -------- Examples of command synchronization --------- REM The command INITiate[:IMMediate] starts a single sweep if the command REM INIT:CONT OFF was previously sent.

  • Page 383: Service Request

    Programming Examples Service Request The service request routine requires an extended initialization of the instrument in which the respective bits of the transition and enable registers are set. In order to use the service request function in conjugation with National Instruments GPIB driver, the setting "Disable Auto Serial Poll"...
  • Page 384 Programming Examples Reading out the status event registers, the output buffer and the error/event queue is effected in subroutines. REM -------- Subroutines for the individual STB bits ------ Outputqueue: ’Reading the output buffer Message$ = SPACE$(100) ’Make space for response CALL IBRD(analyzer%, Message$) PRINT "Message in output buffer :";...

  • Page 385: Programming Via The Rsib Interface

    Programming Examples Programming via the RSIB Interface The following hints apply to both the 16-bit and the 32-bit DLL versions (RSIB.DLL and RSIB32.DLL) unless an explicit distinction is made. The 32-bit DLL version is only available for instruments with Windows NT controller option. The RSIB interface supports links to max. 16 measuring instruments at the same time.
  • Page 386 Programming Examples Example: Dim ibsta As Integer ’ Status variable Dim iberr As Integer ’ Error variable Dim ibcntl As Long ’ Count variable Dim ud As Integer ’ Handle for measuring instrument Dim Result As String ’ Buffer for simple results Dim Digits As Byte ’...
  • Page 387 Programming Examples • In this example, a Save/Recall of the instrument setups is performed. Dim ibsta As Integer ’ Status variable Dim iberr As Integer ’ Error variable Dim ibcntl As Long ’ Count variable Dim ud As Integer ’ Handle for measuring instrument Dim Cmd As String ’...

  • Page 388: Visual Basic For Applications (Winword And Excel)

    Programming Examples Visual Basic for Applications (Winword and Excel) Programming hints: The programming language Visual Basic for Applications (VBA) is supported as a macro language by various manufacturers. The programs Winword and Excel use this language for the versions Winword 97 or Excel 5.0 and higher.

  • Page 389: C / C

    Programming Examples C / C++ Programming Hint: • Access to the functions of the RSIB.DLL or RSIB32.DLL (Windows platforms) The functions of the RSIB.DLL or RSIB32.DLL are declared in the header file RSIB.H. The DLL functions can be linked to a C/C++ program in different ways. 1.
  • Page 390 Programming Examples Programming example: In the following C program, a single sweep is started on the instrument with the IP address 89.10.38.97 and a marker is set to the maximum level. Before the maximum level can be determined, the sweep must be terminated. Synchronization to the end of the sweep is made by triggering a service request at the end of the sweep with command "*OPC"...
  • Page 392 Contents - Maintenance and Instrument Interfaces Contents - Chapter 8 "Maintenance and Instrument Interfaces" 8 Maintenance and Instrument Interfaces ............8.1 Maintenance ............................. 8.1 Mechanical Maintenance ......................8.1 Electrical Maintenance......................8.1 Testing the Level Measuring Accuracy ................. 8.1 Testing the Frequency Accuracy................... 8.1 Instrument Interfaces ........................
  • Page 393 Contents - Maintenance and Instrument Interfaces 1065.6016.12 I-8.2 E-15...

  • Page 394: Maintenance And Instrument Interfaces

    Maintenance 8 Maintenance and Instrument Interfaces The following chapter contains information on the maintenance of the FSE and on the instrument interfaces. The address of our support center and a list of all Rohde & Schwarz service centers can be found at the beginning of this manual.

  • Page 395: Instrument Interfaces

    Contents - Maintenance and Instrument Interfaces Instrument Interfaces IEC Bus Interface The standard instrument is equipped with an IEC/IEEE Bus connector. An IEEE 488 interface connector is located on the rear panel of the FSE. An external controller for remote control of the instrument can be connected via the IEEE 488 interface connector using a shielded cable.

  • Page 396: Bus Lines

    Instrument Interfaces Bus Lines 1. Data bus with 8 lines DIO 1 to DIO 8. The transmission is bit-parallel and byte-serial in the ASCII/ISO code. DIO1 is the least significant, DIO8 the most significant bit. 2. Control bus with 5 lines. IFC (Interface Clear), active low resets the interfaces of the devices connected to the default setting.

  • Page 397: Interface Functions

    Contents - Maintenance and Instrument Interfaces Interface Functions Instruments which can be remote controlled via the IEC bus can be equipped with different interface functions. Table 8-1 lists the interface functions appropriate for the instrument. Table 8-1 Interface functions Control character Interface function Handshake source function (source handshake), full capability Handshake sink function (acceptor handshake), full capability...

  • Page 398: Instrument Messages

    Instrument Interfaces Universal Commands The universal commands are encoded 10 - 1F hex. They affect all instruments connected to the bus without addressing. Table 8-2 Universal Commands Command QuickBASIC command Effect on the instrument (Device Clear) IBCMD (controller%, CHR$(20)) Aborts the processing of the commands just received and sets the command processing software to a defined initial state.

  • Page 399: Rs-232-C Interface

    Contents - Maintenance and Instrument Interfaces RS-232-C Interface The standard FSE is equipped with two serial interfaces (RS-232-C). The RS-232-C interfaces are two independent, remote-control channels, both of which may be active at the same time. The programming and interrogation commands affect the same instrument hardware. The interfaces can be set up manually in the SETUP-GENERAL SETUP menu in the COM PORT1/2 table.

  • Page 400: Interface Functions

    Instrument Interfaces DSR (Data Set Ready), Input, active LOW, Indicates that the remote station is ready to receive data. RTS (Request To Send), Output, active LOW. Indicates that the local terminal wants to transmit data. CTS (Clear To Send), Input, active LOW. Used to tell the local terminal that the remote station is ready to receive data.

  • Page 401: Handshake

    Contents - Maintenance and Instrument Interfaces Handshake Software handshake In the software handshake mode of operation, the data transfer is controlled using the two control characters XON / XOFF. The instrument uses the control character XON to indicate that it is ready to receive data. If the receive buffer is full, it sends the XOFF character via the interface to the controller.
  • Page 402 Instrument Interfaces Hardware handshake For hardware handshake, the instrument indicates that it is ready to receive data via the lines DTR and RTS. A logic ’0’ on both lines means ’ready’ and a logic ’1’ means ’not ready’. The RTS line is always active (logic ’0’) as long as the serial interface is switched on.

  • Page 403: Rsib Interface

    Contents - Maintenance and Instrument Interfaces RSIB Interface The RSIB interface is only available if the FSE is equipped with a controller option, FSE-B15. It allows the control of FSE by Visual C++ and VisualBasic programs but also by using the Windows applications WinWord and Excel.

  • Page 404: Unix Environment

    Instrument Interfaces Instruments with MS DOS controller: Visual Basic: ’RSIB.BAS’ (D:/runtime/RSIB) ’RSIBC.H’ (D:/runtime/RSIB) Winword: ’RSIBWB.BAS’(D:/runtime/RSIB) Thus, the RSIB directory features a program ‘RSIBCNTR.EXE’ with SCPI commands which can be sent to the instrument by the RSIB interface. This program can be used as a test for the function of the interface.

  • Page 405: Rsib Interface Functions

    Contents - Maintenance and Instrument Interfaces RSIB Interface Functions This following sections describe all functions of libraries ’RSIB.DLL’, ’RSIB32.DLL’ "librsib.so" by means of which control applications can be written. Variables ibsta, iberr, ibcntl Same as with the National Instrument interface, successful execution of a command can be checked by means of the variables ibsta, iberr and ibcntl.

  • Page 406: List Of Interface Functions

    Instrument Interfaces List of Interface Functions The DLL functions are matched to the interface functions for IEC/IEEE-bus programming from National Instruments. Functions supported by the DLLs are listed in the following table. Function Description RSDLLibfind() Provides a handle for accessing a device. RSDLLibwrt() Sends a string terminated with a null to a device.

  • Page 407: Description Of Interface Functions

    Contents - Maintenance and Instrument Interfaces Description of Interface Functions Note: The description of the UNIX format is only relevant to instruments with Windows NT controller. RSDLLibfind() The function provides a handle for access to the device with the name udName. VB format: Function RSDLLibfind (ByVal udName$, ibsta%, iberr%, ibcntl&) As Integer...
  • Page 408 Instrument Interfaces RSDLLilwrt The function sends Cnt bytes to the instrument with the handle ud. VB format: Function RSDLLilwrt (ByVal ud%, ByVal Wrt$, ByVal Cnt&, ibsta%, iberr%, ibcntl&) As Integer C format: short FAR PASCAL RSDLLilwrt( short ud, char far *Wrt, unsigned long Cnt, short far *ibsta, short far *iberr, unsigned long far *ibcntl) C format (Unix): short RSDLLilwrt( short ud, char *Wrt, unsigned long Cnt,...
  • Page 409 Contents - Maintenance and Instrument Interfaces RSDLLibrd() The function reads data from the instrument into the string Rd with the handle ud. VB format: Function RSDLLibrd (ByVal ud%, ByVal Rd$, ibsta%, iberr%, ibcntl&) As Integer C format: short FAR PASCAL RSDLLibrd( short ud, char far *Rd, short far *ibsta, short far *iberr, unsigned long far *ibcntl ) C format (Unix): short RSDLLibrd( short ud, char *Rd, short *ibsta, short *iberr, unsigned long *ibcntl )
  • Page 410 Instrument Interfaces RSDLLibtmo The function defines the timeout for an instrument. The default value for the timeout is 5 seconds. VB format: Function RSDLLibtmo (ByVal ud%, ByVal tmo%, ibsta%, iberr%, ibcntl&) As Integer C format: void FAR PASCAL RSDLLibtmo( short ud, short tmo, short far *ibsta, short far *iberr, unsigned long far *ibcntl ) C format (Unix): short RSDLLibtmo( short ud, short tmo, short *ibsta, short *iberr, unsigned long *ibcntl )
  • Page 411 Contents - Maintenance and Instrument Interfaces RSDLLibloc The function switches the instrument temporarily to LOCAL mode. VB format: Function RSDLLibloc (ByVal ud%, ibsta%, iberr%, ibcntl&) As Integer C format: void FAR PASCAL RSDLLibloc( short ud, short far *ibsta, short far *iberr, unsigned long far *ibcntl) C format (Unix): short RSDLLibloc( short ud, short *ibsta, short *iberr, unsigned long *ibcntl) Parameter:...
  • Page 412 Instrument Interfaces RSDLLibonl The function switches the instrument to the 'online' or 'offline' state. When switching to ‘offline’ the interface is enabled and the device handle made invalid. The next call of RSDLLibfind sets up the communication again (only with Windows NT controller). VB format: Function RSDLLibonl (ByVal ud%, ByVal v%, ibsta%, iberr%, ibcntl&) As Integer...
  • Page 413 Contents - Maintenance and Instrument Interfaces RSDLLWaitSrq The function waits until the instrument triggers an SRQ with the handle ud. VB format: Function RSDLLWaitSrq (ByVal ud%, Result%, ibsta%, iberr%, ibcntl&) As Integer C format: void FAR PASCAL RSDLLWaitSrq( short ud, short far *result, short far *ibsta, short far *iberr, unsigned long far *ibcntl) C format (Unix): short RSDLLWaitSrq( short ud, short *result, short *ibsta, short *iberr, unsigned long *ibcntl)

  • Page 414: User Interface (User)

    Instrument Interfaces User Interface (USER) The user interface, located on the rear panel of the FSE, is a 25 pin Cannon connector which provides access to the two user ports (Port A and Port B). Each port is 8 bits wide (A0 - A7 and B0 -B7) and can be configured either as output or as input.

  • Page 415: Printer Interface (Lpt)

    Contents - Maintenance and Instrument Interfaces Printer Interface (LPT) The 25-pin LPT connector on the rear panel of the FSE is provided for the connection of a printer.. The LPT interface is compatible with the CENTRONICS printer interface. STROBE SELECT BUSY INIT AUTOFEED...

  • Page 416: Measurement Converters (Probe Code)

    Instrument Interfaces Measurement Converters (PROBE CODE) The PROBE CODE connector is used for supplying power to measurement converters and the providing the correct conversion factor coding to the FSE. Using it, the conversion factors for high-impedance probes, current converters and antennas can be encoded in 10dB steps. In addition, the quantity to be measured (field strength, current and voltage) is also passed to the FSE.

  • Page 417: Af-Output (Af Output)

    Contents - Maintenance and Instrument Interfaces AF-Output (AF OUTPUT) A miniature telephone jack can be used at the AF OUTPUT connector to connect an external loudspeaker, a headphone set or, e.g., a LF voltmeter. The internal resistance is 10 ohms and the output voltage can be controlled in the MARKER DEMOD menu.

  • Page 418: External Keyboard (Keyboard)

    Instrument Interfaces External Keyboard (KEYBOARD) A 5-pin DIN connector is provided to allow connecting an external keyboard. Because of its low interference radiation, the PSA-Z1 keyboard is recommended (Order No. 1009.5001.31). However, any other multi-function keyboard may also be used. Signal Keyboard Clock Data...
  • Page 420 Contents - Error Messages Contents - Chapter 9 "Error Messages" 9 List of Error Messages SCPI-Specific Error Messages......................9.1 Command Error - Faulty command; sets bit 5 in the ESR register......... 9.1 Execution Error - Error on execution of a command; sets bit 4 in the ESR register....9.4 Device Specific Error;...
  • Page 421 Contents - Error Messages 1065.6016.12 I-9.2...

  • Page 422: List Of Error Messages

    List of Error Messages 9 List of Error Messages The following list contains the error messages for errors occurring in the instrument. The meaning of negative error codes is defined in SCPI, positive error codes mark errors specific of the instrument. Error messages are entered in the error/event queue of the status reporting system in the remote control mode and can be queried with the command SYSTem:ERRor?.
  • Page 423 List of Error Messages Continuation: Command Error Error code Error text in the case of queue poll Error explanation Data type error -104 The command contains an invalid value indication. Example: ON is indicated instead of a numeric value for frequency setting. GET not allowed -105 A Group Execute Trigger (GET) is within a command line.
  • Page 424 List of Error Messages Continuation: Command Error Error text in the case of queue poll Error code Error explanation Suffix not allowed -138 A suffix is not allowed for this command or at this position of the command. Example: The command *RCL does not permit a suffix to be indicated. Character data error -140 The command contains a faulty text parameter...

  • Page 425: Execution Error - Error On Execution Of A Command; Sets Bit 4 In The Esr Register

    List of Error Messages Execution Error - Error on execution of a command; sets bit 4 in the ESR register Error code Error text in the case of queue poll Error explanation Execution error -200 Error on execution of the command. Invalid while in local -201 The command is not executable while the device is in local due to a hard local control.
  • Page 426 List of Error Messages Continuation: Execution Error Error code Error text in the case of queue poll Error explanation Data corrupt or stale -230 The data are incomplete or invalid. Example: The instrument has aborted a measurement. Data questionable -231 The measurement accuracy is suspect.
  • Page 427 List of Error Messages Continuation: Execution Error Error code Error text in the case of queue poll Error explanation Macro error -270 Error on the execution of a macro. Macro syntax error -271 The macro definition contains a syntax error. Macro execution error -272 The macro definition contains an error.

  • Page 428: Device Specific Error; Sets Bit 3 In The Esr Register

    List of Error Messages Device Specific Error; sets bit 3 in the ESR register Error code Error test in the case of queue poll Error explanation Device-specific error -300 FSE-specific error not defined in greater detail. System error -310 This error message suggests an error within the instrument. Please inform the R&S Service. Memory error -311 Error in the instrument memory.
  • Page 430 Index 10 Index Note: The softkeys are listed alphabetically under the keyword "Softkey". For each softkey, the page in chapter 6 containing the description of the corresponding remote command is quoted in addition. The assignment between IEEE-bus commands and softkeys is described in Chapter 6, Section "Table of Softkeys with IEC/IEEE-Bus Command Assignment".
  • Page 431 Index Enhancement labels............3.6 Entry D Lines ............... 4.144 abortion..............3.16 Data set alphanumeric parameters........3.17 creation ..............4.75 mouse control ............3.22 partial ..............4.73 numeric parameter ..........3.16 recall ..............4.75 table................3.18 save ............... 4.70 termination ..............3.16 Date................4.45 window..............3.15 dB*/MHz ............... 4.97 Error messages...............9.1 dBµA/MHz ..............
  • Page 432 Index output device ............4.60 LOCAL ..............4.49 position..............4.56 MENU ..............3.12 printer ..............4.58 MKR..............4.141 settings..............4.54 MODE ..............4.18 start ..............4.50, 4.52 NORMAL ..............4.105 Hardware numeric keypad............3.13 configuration............4.14 PRESET ............4.2, 6.231 indication of settings..........3.5 RANGE ..............4.98 installed options............4.14 RECALL..............4.75 Header................
