Page 19: Table Of Contents
R&S FSQ Contents Contents 1 Front and Rear Panel ......1.1 1.1 Front View ........1.2 1.2 Function Keys on the Front Panel .
Page 20 R&S FSQ Contents 2.4 Setup ..........2.21 2.4.1 Selecting the Frequency Reference .
Page 21 R&S FSQ Contents 3 Firmware Update and Installation of Firmware Options ........3.1 3.1 Firmware Update .
Page 22 R&S FSQ Contents 5.5 Measurements in the Time Domain ....5.21 5.5.1 Measuring the Power Characteristic ....5.21 5.5.1.1 Example –...
Page 23 R&S FSQ Contents 6.6.6 Reactivating the Automatic Login Mechanism ..6.15 6.6.7 Using Network Drives ......6.16 6.6.8 Installing a Network Printer .
Page 24 R&S FSQ Contents 7.2.2 Using Markers and Delta Markers ....7.15 7.2.2.1 Marker Search Functions, Restricting the Search Range ......... .7.15 7.2.2.2 Frequency Counting .
Page 25 R&S FSQ Documentation Overview The documentation of the R&S FSQ consists of base unit manuals and option manuals. All manuals are provided in PDF format on the CD-ROM delivered with the instrument. Each software option available for the instrument is described in a separate software manual. The base unit documentation comprises the following manuals and documents: •...
Page 26 R&S FSQ Operating Manual This manual is a supplement to the Quick Start Guide and is available in PDF format on the CD-ROM delivered with the instrument. To retain the familiar structure that applies to all Operating Manuals of Rohde&Schwarz Test & Measurement instruments, the chapters 1 and 3 exist, but only in form of references to the corresponding Quick Start Guide chapters.
Page 27 R&S FSQ Internet Site The Internet site at: http://www.rohde-schwarz.com/product/fsq.html provides the most up to date information on the R&S FSQ. The current operating manual at a time is available as printable PDF file in the download area. Also provided for download are firmware updates including the associated release notes, instrument drivers, current data sheets and application notes.
Page 28 R&S FSQ Quick Start Guide 1313.9652.62 - 02...
Page 29: Front And Rear Panel
R&S FSQ Front and Rear Panel 1 Front and Rear Panel 1.1 Front View ........... 1.2 1.2 Function Keys on the Front Panel .
Page 30: Front View
R&S FSQ Front and Rear Panel Front View 1.1 Front View Fig. 1-1 Front view Number Description Fig. 1-1 PRESET key (see “ Function Keys on the Front Panel”) Calibration key (see “ Function Keys on the Front Panel”) SETUP key (see “...
Page 31 R&S FSQ Front and Rear Panel Front View Number Description Fig. 1-1 noise source supply voltage, 28 V (see page I/Q input, option R&S FSQ-B71 (see page CF Card, option R&S FSU-B18 (see page USB interfaces (see page RF input (see page external mixer (LO output, IF input), option R&S FSU-B21 (see page...
Page 32: Function Keys On The Front Panel
R&S FSQ Front and Rear Panel Function Keys on the Front Panel 1.2 Function Keys on the Front Panel A detailed description of the corresponding menus and the other function keys is provided in the Operating Manual on CD-ROM. Function key Assigned functions ON/STANDBY Switches the instrument on and off.
Page 33 R&S FSQ Front and Rear Panel Function Keys on the Front Panel Function key Assigned functions MEAS Used to perform complex measurement functions: • Measurement of time domain power (TIME DOM POWER) • Measurement of channel and adjacent channel power (CHAN PWR ACP) •...
Page 34: Front Panel Connections
R&S FSQ Front and Rear Panel Front Panel Connections 1.3 Front Panel Connections This section describes the front connectors and interfaces of the R&S FSQ. Optional connectors and interfaces are indicated by the option name in brackets. RF INPUT The RF input is to be connected to the DUT via a cable equipped with an appropriate connector.
Page 35 R&S FSQ Front and Rear Panel Front Panel Connections AF OUTPUT Headphones equipped with a miniature jack plug can be connected at the AF OUTPUT female connector. The internal impedance is 10 Ω. The output voltage can be set by using the volume control to the left of the female connector.
Page 36 R&S FSQ Front and Rear Panel Front Panel Connections Signal -12.6 V; max. 150 mA +15 V; max. 150 mA Fig. 1-3 Pin assignments of right-hand PROBE POWER connector USB Interfaces The R&S FSQ provides a USB female connector at the front panel for connecting two USB devices (USB 2.0).
Page 37 R&S FSQ Front and Rear Panel Front Panel Connections Noise Source Control (NOISE SOURCE) The NOISE SOURCE female connector is used to switch an external noise source on and off in order, for example, to measure the noise figure of DUTs. Conventional noise sources require a voltage of +28 V in order to be switched on.
Page 38: Rear View
R&S FSQ Front and Rear Panel Rear View 1.4 Rear View Fig. 1-4 Rear view Number in Description Fig. 1-4 second GPIB interface for external generator control, option R&S FSP-B10 (see page LAN interface (see page IQ Data In/Out (see page I/Q input for tracking generator, option R&S FSU-B9 (see page...
Page 39 R&S FSQ Front and Rear Panel Rear View Number in Description Fig. 1-4 external generator control, option R&S FSP-B10 (see page voltage output (see page trigger/gate interface (see page double USB interface (see page mouse interface (see page VGA interface for external monitor (see page RS232-C interface (see page...
Page 40: Rear Panel Connections
R&S FSQ Front and Rear Panel Rear Panel Connections 1.5 Rear Panel Connections This section describes the rear connectors and interfaces of the R&S FSQ. Optional connectors and interfaces are indicated by the option name in brackets. AC Power Supply Connection and Main Power Switch An AC power supply connector and main power switch are located in a unit on the rear panel of the instrument.
Page 41 R&S FSQ Front and Rear Panel Rear Panel Connections R&S Monitor Connection (MONITOR) The 15-pin VGA monitor connection is used to display the screen contents on an external screen. The procedure for putting the external monitor into operation is described in the section “...
Page 42 R&S FSQ Front and Rear Panel Rear Panel Connections Input for External Trigger (EXT TRIG/GATE IN) The EXT TRIG/GATE IN female connector is used to control the measurement by means of an external signal. The voltage levels are adjustable (0.5 V to 3.5 V). The typical input impedance is 10 kΩ. USB Interface The R&S FSQ provides a USB female connector at the rear panel for connecting two USB devices (upper connector USB 1.1, lower connector USB 2.0).
Page 43 R&S FSQ Front and Rear Panel Rear Panel Connections +5 V +12 V Pin 21 Signal Range of values 1 to 11 not used ground +5 V supply voltage 5.2 V ± 0.5 V, max. 30 mA 14 to 20 reserved HIGH: ≥...
Page 44 R&S FSQ Front and Rear Panel Rear Panel Connections 20.4 MHz IF Output (IF OUT 20.4 MHz) The 20.4 MHz IF signal of the R&S FSQ is provided at the 20.4 MHz OUT female BNC connector. For resolution bandwidths between 100 kHz and 10 MHz, the bandwidth corresponds to the selected bandwidth.
Page 45 R&S FSQ Front and Rear Panel Rear Panel Connections RBW 20 MHz and 50 MHz Output voltage at signal level / dBm - RF_Attenuation / dB = 0:1.8 V Slope:14 mV / dB Exception: Ref_Level / dBm - RF_Attenuation / dB > 0 Output voltage at signal level / dBm - RF_Attenuation / dB = 0 1.8 V - (Ref_Level / dBm - RF_Attenuation / dB) * 14 mV TG I / AM IN;...
Page 46 R&S FSQ Front and Rear Panel Rear Panel Connections AUX CONTROL (Option R&S FSP-B10) If option R&S FSP-B10 (external generator control) is built in, the R&S FSQ provides a female connector that allows measurement data acquisition to be synchronized with the output signal of a Rohde &...
Page 47 R&S FSQ Front and Rear Panel Rear Panel Connections Signal Level Description reserved for future use Ground, shielded pair 1-14, for future use SDAT0_P LVDS Serial data channel 0 positive pin; carries the bits VALID, ENABLE, MARKER_1, Reserve_1, RE_0, RE_1 SDAT1_P LVDS Serial data channel 1 positive pin;...
Page 48 R&S FSQ Front and Rear Panel Rear Panel Connections The table above shows the multiplexed data at the output of the LVDS transmitter. (DS90CR483 is used as transmitter; for further information on multiplexing/demultiplexing scheme, refer to http://www.national.com/ds.cgi/DS/DS90CR483.pdf) The table below shows the demultiplexed data at LVDS receiver output. (recommended receiver: DS90CR486 or DS90CR484;...
Page 49 R&S FSQ Front and Rear Panel Rear Panel Connections The cable configuration (twisted pairs, shielding) must match the pin assignment. The LVDS transmission lines must be twisted pairs with a characteristic impedance of 100 ± 10 Ohm, each pair individually shielded. Conductor size of the additional wires: AWG28.
Page 50 R&S FSQ Front and Rear Panel Rear Panel Connections 1.22 Quick Start Guide 1313.9652.62 - 02...
Page 51: Preparing For Use
R&S FSQ Preparing for Use 2 Preparing for Use 2.1 Preparing for Operation ......2.4 2.1.1 Unpacking the Instrument .
Page 52 R&S FSQ Preparing for Use 2.3.6.4 Using an External Generator as a Tracking Generator ........2.20 2.4 Setup .
Page 53 R&S FSQ Preparing for Use 2.7.1.2 Opening the Windows XP Start Menu ... 2.44 2.7.1.3 Windows XP Software Approved for the Instrument ........2.44 Quick Start Guide 1313.9652.62 - 02...
Page 54: Preparing For Operation
R&S FSQ Preparing for Use Preparing for Operation 2.1 Preparing for Operation This section describes how to put the instrument into operation. Before putting the instrument into operation, make sure that the following requirements have been met: • The air vents are not blocked. •...
Page 55: Setting Up The Instrument
R&S FSQ Preparing for Use Preparing for Operation 2.1.2 Setting Up the Instrument The instrument is intended for indoor use. Note the following in this regard: • The ambient temperature must comply with the range specified in the data sheet. •...
Page 56: Installation In A 19" Rack
R&S FSQ Preparing for Use Preparing for Operation 2.1.3 Installation in a 19" Rack The instrument can be installed in a 19" rack by using a rack adapter (see data sheet for order number). The installation instructions are included with the adapter. When the instrument is installed in a rack, make sure that the vents for air inflow on the side panel and the air outlets on the rear panel are not obstructed.
Page 57: Functional Test
R&S FSQ Preparing for Use Preparing for Operation 2.1.6 Functional Test The functional test should only be performed when the operating temperature is reached (approx. 15 minutes after the instrument is switched on). Call self alignment with the CAL key, CAL TOTAL softkey. Once the system correction values have been calculated successfully, the message Calibration Passed will appear.
Page 58: Switching Off The R&S Fsq
R&S FSQ Preparing for Use Preparing for Operation 2.1.7 Switching Off the R&S FSQ Press the ON/STANDBY key on the front panel. The R&S FSQ will store the current settings on the hard disk and then shut down the software. Once the operation has been completed, the power supply unit will be switched to STANDBY and the yellow LED will come on.
Page 59: Instrument Drive Usage
R&S FSQ Preparing for Use Instrument Drive Usage 2.2 Instrument Drive Usage The harddisk space is divided in 3 logical drives. Contains the operating system Windows XP, printer driver, network driver,… Other user programs, applications, driver should be stored/installed on drive C:. Contains instrument's firmware and related data sets (limit lines, transducers,...) D:\user\config is the default location for customized instrument settings D:\R_S\instr\temp is the default directory for hardcopy files.
Page 60: Connecting External Devices
R&S FSQ Preparing for Use Connecting External Devices 2.3 Connecting External Devices 2.3.1 Connecting an External Keyboard Do not connect the keyboard unless the instrument is switched off (STANDBY). Otherwise, proper functioning cannot be ensured due to interactions with the firmware. An external PC keyboard can be connected to the USB interface on the front or the rear panel of the R&S FSQ.
Page 61 R&S FSQ Preparing for Use Connecting External Devices 4. Now open the windows start menu by pressing the windows key or <CTRL> <ESC>. 5. Select Settings - Control Panel - Regional and Language Options - Languages. 6. Select Details Quick Start Guide 1313.9652.62 - 02 2.11...
Page 62: Connecting A Mouse
R&S FSQ Preparing for Use Connecting External Devices 7. Select Add and choose one of the available languages. Confirm your selection with OK. 8. Change the Default input language as you like in the Default Input Language pane and close all open dialogs with OK. 9.
Page 63: Connecting An External Monitor
R&S FSQ Preparing for Use Connecting External Devices 2.3.3 Connecting an External Monitor Do not connect a monitor unless the instrument is switched off (STANDBY). Otherwise, you run the risk of damaging the monitor. You can connect an external monitor at the MONITOR connector on the instrument's rear panel.
Page 64: Connecting A Printer
R&S FSQ Preparing for Use Connecting External Devices 2.3.4 Connecting a Printer A printer can be connected during operation. The R&S FSQ allows you to create two different printer configurations for printing out a hardcopy of the screen and you can toggle between them by pressing a button. The DEVICES table in the HCOPY menu lists the available installed printers.
Page 65: Connecting Usb Devices (E.g. A Power Meter)
R&S FSQ Preparing for Use Connecting External Devices 2.3.5 Connecting USB Devices (e.g. a Power Meter) The USB interface on the front and the rear panel of the R&S FSQ allows you to connect up to 4 USB devices directly to the R&S FSQ. This number can be increased as necessary by inserting USB hubs.
Page 66 R&S FSQ Preparing for Use Connecting External Devices The memory stick is made available as a new drive and is displayed in the Windows Explorer: The memory stick can be used like a normal drive to load or store data. 3.
Page 67: Connecting External Generators
R&S FSQ Preparing for Use Connecting External Devices 2.3.6 Connecting External Generators The External Generator Control option (R&S FSP-B10) allows you to operate a number of commercially available generators as a tracking generator on the R&S FSQ. When suitable generators are used, the R&S FSQ thus allows scalar network analysis to be performed also outside the frequency range of the internal tracking generator.
Page 68: Connecting The R&S Fsq To The Generator
R&S FSQ Preparing for Use Connecting External Devices 2.3.6.1 Connecting the R&S FSQ to the Generator To couple the frequency setting and level setting of the generator to the R&S FSQ, set up the following connections: 1. Connect the GPIB interface of the generator to the IEC2 connector on the rear panel of the R&S FSQ.
Page 69: Setting The Output Level
R&S FSQ Preparing for Use Connecting External Devices Press the ENTER key. The list of available generators will open. Using the rotary knob, select the desired generator and activate ENTER by pressing the rotary knob. The generator list will close, and the selected generator will then appear in the SELECT GENERATOR table.
Page 70: Using An External Generator As A Tracking
R&S FSQ Preparing for Use Connecting External Devices If you want to use the SRC 2 generator configuration, move the selection bar to the lower line of the table by using the d key. Then activate the generator configuration by pressing the ENTER key and set the checkmark in line 2 under the STATE column.
Page 71: Setup
R&S FSQ Preparing for Use Setup 2.4 Setup 2.4.1 Selecting the Frequency Reference You can switch the reference signal for frequency processing of the R&S FSQ between the internal reference and an external reference signal at 10 MHz as follows: Press the SETUP key.
Page 72: Setting The Date And Time
R&S FSQ Preparing for Use Setup 2.4.2 Setting the Date and Time Press the SETUP key. The SETUP menu will open. Press the GENERAL SETUP softkey. The submenu with general settings will open. The TIME+DATE softkey activates the TIME AND DATE table for entering the time and date for the internal real-time clock.
Page 73: Setting The Gpib Interface
R&S FSQ Preparing for Use Setup 2.4.3 Setting the GPIB Interface Press the SETUP key. The SETUP menu will open. Press the GENERAL SETUP softkey. The submenu with general settings will open. Press the GPIB softkey. The submenu for setting the parameters of the remote control interface will open. 2.4.3.1 GPIB Address Press the GPIB ADDRESS softkey.
Page 74 R&S FSQ Preparing for Use Setup When the selection is changed, the following settings are changed: SCPI: • The instrument will perform a preset. 71100C, 71200C, 71209A, 856xA/B, 856xE, 8591E, 8594E: • The instrument will perform a preset. The following instrument settings will then be changed: Model # of Trace Start Freq.
Page 75: Id Response String
R&S FSQ Preparing for Use Setup 2.4.3.3 ID Response String The ID STRING FACTORY softkey selects the default response to the command *IDN?. IEC bus command: -- The ID STRING USER softkey opens the editor for entering a user-defined response to the command *IDN?.
Page 76: Setting The Screen Colors
R&S FSQ Preparing for Use Setup 2.4.4 Setting the Screen Colors Press the DISP key. The DISPLAY menu will open. Press the CONFIG DISPLAY softkey. The submenu for configuring the screen will open. The DEFAULT COLORS 1 and 2 softkeys set the default setting for brightness, tint and color saturation of all screen objects.
Page 77: Automatically Switching Off The Internal Screen
R&S FSQ Preparing for Use Setup The TINT softkey activates entry of the tint for the selected graphics element. The percent value that is entered refers to a continuous color spectrum that ranges from red (0%) to blue (100%). IEC bus command: DISP:CMAP5:HSL <hue>,<sat>,<lum> The SATURATION softkey activates entry of the color saturation of the selected element.
Page 78: File And Path Selection Using The Front Panel Keys
R&S FSQ Preparing for Use Setup 2.4.6 File and Path Selection Using the Front Panel Keys As of firmware version 4.3x the base system firmware supports new dialog boxes to select a folder and/or a file, e.g. for trace export. The following section describes the usage of the instrument's front panel keys using TRACE EXPORT as an example.
Page 79 R&S FSQ Preparing for Use Setup Drive usage is checked according to the following rules: • first, the R&S FSQ checks for a connected memory stick • if a memory stick is not recognized, then the R&S FSQ uses the internal hard disk. Note that the path and file name are reset to their default values after an instrument PRESET.
Page 80: Selecting And Configuring Printers
R&S FSQ Preparing for Use Setup 2.4.7 Selecting and Configuring Printers Press the HCOPY key. The HARDCOPY menu will open. Press the DEVICE SETUP softkey. The dialog box for selecting the file format and printer will open: You can select a connected printer (including a pre-configured network printer) by positioning the selection bar on the Printer entry by turning the rotary knob and then confirming the selection by pressing the rotary knob or the ENTER key.
Page 81: Selecting Alternative Printer Configurations
R&S FSQ Preparing for Use Setup You can also redirect the output to a file rather than to a printer. To do this, select the field Print to File by using the rotary knob and then mark the appropriate selection box or cancel the marking by pressing either the rotary knob or the ENTER key: You can select orientation for paper printout by using the Orientation field.
Page 82 R&S FSQ Preparing for Use Setup IEC bus command: HCOP:CMAP:DEF1 The OPTIMIZED COLORS softkey selects an optimized color setting for the printout in order to improve color clarity on the printout. With this selection, trace 1 will be printed out in blue, trace 2 in black, trace 3 in green and the markers in turquoise.
Page 83: Installing Plug&Play Printers
R&S FSQ Preparing for Use Setup 2.4.8 Installing Plug&Play Printers Plug&play printers can be easily installed under Windows XP: After you connect and switch on a printer, Windows XP automatically detects the printer and installs the associated driver, provided that the driver is contained in the Windows XP installation.
Page 84: Configuring The Lan Interface
R&S FSQ Preparing for Use Configuring the LAN Interface 2.5 Configuring the LAN Interface The instrument can be connected to an Ethernet LAN (local area network) using the LAN interface connector on the rear panel. This makes it possible to transfer data over the network and to use network printers.
Page 85: Configuring The Network Card
R&S FSQ Preparing for Use Configuring the LAN Interface 2.5.2 Configuring the Network Card 2.5.2.1 Driver Installation Under Windows XP, network card drivers do not need to be installed separately. All you need to do is connect the network cable to the LAN-Interface connector on the instrument rear panel.
Page 86: Configuring Existing Network Protocols
R&S FSQ Preparing for Use Configuring the LAN Interface 2.5.2.3 Configuring Existing Network Protocols (TCP/IP Protocol) Before starting, check whether your network a DHCP server. If necessary, ask your network administrator. • If your network has a DHCP server, the IP address is to be requested from a DHCP server automatically.
Page 87 R&S FSQ Preparing for Use Configuring the LAN Interface Windows XP automatically appends numbers to the name Local Area Connection Status (e.g. Local Area Connection Status 8) if the configuration is set up using the New Connection wizard. These numbers are not important in the following configuration steps and are therefore omitted.
Page 88 R&S FSQ Preparing for Use Configuring the LAN Interface Select IP address and enter the IP address. Select Subnet mask and enter the required mask. Click OK. Windows XP will check the entered settings for correctness and then store the configuration.
Page 89: Services
R&S FSQ Preparing for Use Configuring the LAN Interface Click Yes. Windows XP will restart the system. 2.5.2.4 Installing Additional Network Protocols and Services The procedure for installing additional network protocols and services is provided in the chapter “ Installing Additional Network Protocols & Services” on page 6.3.
Page 90: Lxi Configuration
R&S FSQ Preparing for Use LXI Configuration 2.6 LXI Configuration LAN eXtensions for Instrumentation (LXI) is an instrumentation platform for measuring instruments and test systems that is based on standard Ethernet technology. LXI is intended to be the LAN-based successor to GPIB, combining the advantages of Ethernet with the simplicity and familiarity of GPIB.
Page 91: Lxi Configuration Dialog
R&S FSQ Preparing for Use LXI Configuration 2.6.1 LXI Configuration Dialog This dialog provides basic LXI information for the R&S FSQ. Press the INFO softkey in the General Setup menu to open the LXI Configuration dialog box. Default State of the Network Settings According to the LXI standard, LAN reset must place the following parameters to a default state.
Page 92: Lan Configuration Website
R&S FSQ Preparing for Use LXI Configuration 2.6.3 LAN Configuration website The LAN Configuration web page displays all mandatory LAN parameters and allows their modification. The TCP/IP Mode configuration field controls how the IP address for the instrument gets assigned (see also <Link to IP Address Settings>). For the manual configuration mode, the static IP address, subnet mask, and default gateway are used to configure the LAN.
Page 93: Operating System Properties
R&S FSQ Preparing for Use Operating System Properties 2.7 Operating System Properties 2.7.1 Properties Specific to Windows XP The instrument contains the Windows XP operating system. To ensure that the instrument software functions properly, certain rules must be adhered to when using the operating system.
Page 94: Opening The Windows Xp Start Menu
R&S FSQ Preparing for Use Operating System Properties 2.7.1.2 Opening the Windows XP Start Menu You can open the Windows XP Start menu by pressing the Windows key ( ) or the key combination CTRL+ESC. From the start menu, you can navigate to the submenus by using the mouse or the arrow keys.
Page 95: Firmware Update And Installation Of Firmware
R&S FSQ Firmware Update and Installation of Firmware Options 3 Firmware Update and Installation of Firmware Options 3.1 Firmware Update ........3.2 3.2 Activating Firmware Options .
Page 96: Firmware Update
R&S FSQ Firmware Update and Installation of Firmware Options Firmware Update 3.1 Firmware Update For the latest firmware version refer to the Rohde & Schwarz internet site and download the most up-to-date firmware. A detailed description about performing the firmware update in the intrument is given in the release note, provided on this CD.
Page 97: Activating Firmware Options
R&S FSQ Firmware Update and Installation of Firmware Options Activating Firmware Options 3.2 Activating Firmware Options Firmware options are enabled by entering license keys via the following operating sequence: Press the SETUP key. The SETUP menu will open. Press the GENERAL SETUP softkey. Press the OPTIONS softkey.
Page 98 R&S FSQ Firmware Update and Installation of Firmware Options Activating Firmware Options Quick Start Guide 1313.9652.62 - 02...
Page 99: Basic Operation
R&S FSQ Basic Operation 4 Basic Operation 4.1 Diagram Layout ........4.2 4.1.1 Displays in the Diagram Area .
Page 100: Diagram Layout
R&S FSQ Basic Operation Diagram Layout 4.1 Diagram Layout Hardware Marker/Delta Marker/Delta Logo settings marker marker title/date Status Dirty flag information Enhancement labels Trace information Level axis labelling Frequency axis labelling Fig. 4-1 Screen layout of the R&S FSQ during analyzer operation Quick Start Guide 1313.9652.62 - 02...
Page 101: Displays In The Diagram Area
R&S FSQ Basic Operation Diagram Layout 4.1.1 Displays in the Diagram Area Hardware settings Display of the reference level. Offset Display of the reference level offset. Display of the RF attenuation that has been set. EATT Display of the set RF attenuation when an electronic attenuator is used (only with option Electronic Attenuator, R&S FSU-B25).
Page 102 R&S FSQ Basic Operation Diagram Layout Status displays The status displays on the left side of the diagram indicate any irregularities (e.g. UNCAL). UNCAL Indicates that one of the following conditions is present: • Correction data has been switched off (CAL menu, CAL CORR OFF). –...
Page 103 R&S FSQ Basic Operation Diagram Layout Trace information Trace # Trace number Detector Detector Trace Selected detector: auto / number manual • AP: AUTOPEAK detector 1 PK * • PK: MAX PEAK detector CLRWR • MI: MIN PEAK detector • SA: SAMPLE detector Trace mode Trace mathematics...
Page 104 R&S FSQ Basic Operation Diagram Layout Enhancement labels: The enhancement labels on the right-hand side of the measurement diagram indicate that the user chose instrument settings that affect the measurement results even though this is not immediately apparent from the display of the measured values. * (star) The current instrument setting does not match the one during which the displayed traces were recorded.
Page 105: Setting Parameters
R&S FSQ Basic Operation Setting Parameters 4.2 Setting Parameters 4.2.1 The Keypad The keypad is used to enter numeric parameters. It contains the following keys: • Numeric keys 0...9 • Decimal point Inserts a decimal point "." at the cursor position. •...
Page 106: The Rotary Knob And Arrow Keys
R&S FSQ Basic Operation Setting Parameters • ENTER key – Concludes dimensionless entries. The new value is accepted. With frequency entries, the ENTER key corresponds to the Hz key. With time data, it corresponds to the µs (kHz) key. 4.2.2 The Rotary Knob and Arrow Keys The rotary knob and arrow keys are located next to the keypad.
Page 107: Editing Alphanumeric Parameters
R&S FSQ Basic Operation Setting Parameters 4.2.4 Editing Alphanumeric Parameters If an external keyboard is not available, the character selection field is automatically opened for entering alphanumeric parameters. Two models of the alphanumeric editor are available. 4.2.4.1 Alphanumeric Editor Type 1: Entry (editing) line Message line Character selection line...
Page 108: Alphanumeric Editor Type 2
R&S FSQ Basic Operation Setting Parameters 4.2.4.2 Alphanumeric Editor Type 2: The entry area consists of two parts: • The editing line • The character selection field u or arrow keys switch between the editing line and the character selection field. Entering the text Select a parameter.
Page 109 R&S FSQ Basic Operation Setting Parameters Completing the entry (alternative 1) Using the rotary knob, select the EXIT field and then press the rotary knob. The data entry field will close, and the new entry will be accepted by the instrument. Completing the entry (alternative 2) Using the u arrow key, place the cursor by the editing line.
Page 110 R&S FSQ Basic Operation Setting Parameters 4.12 Quick Start Guide 1313.9652.62 - 02...
Page 111: Basic Measurement Examples
R&S FSQ Basic Measurement Examples 5 Basic Measurement Examples 5.1 Measuring a Sinusoidal Signal ..... . 5.3 5.1.1 Measuring the Level and Frequency with Markers ..5.3 5.1.1.1 Procedure .
Page 112 R&S FSQ Basic Measurement Examples 5.5.1 Measuring the Power Characteristic ....5.21 5.5.1.1 Example – Measuring the Power of a GSM Burst During the Activation Phase......5.21 5.5.2 Measuring the Power Characteristic of Burst Signals .
Page 113: Measuring A Sinusoidal Signal
R&S FSQ Basic Measurement Examples Measuring a Sinusoidal Signal 5.1 Measuring a Sinusoidal Signal One of the most common measurement tasks is determining the level and frequency of a signal. When measuring an unknown signal, you can usually start with the preset setting. If levels higher than +30 dBm (=1 W) are expected or are possible, a power attenuator must be inserted before the RF input of the R&S FSQ.
Page 114: Increasing The Frequency Resolution
R&S FSQ Basic Measurement Examples Measuring a Sinusoidal Signal 4. Reduce the frequency span (SPAN) to 1 MHz. Press the SPAN key. Using the numeric keypad in the input field, enter 1 and confirm the entry with the MHz key. When the frequency span is defined, the resolution bandwidth (RES BW), the video bandwidth (VIDEO BW) and the sweep time (SWEEP TIME) are automatically reset, because these functions are linked in...
Page 115: Setting The Reference Level
R&S FSQ Basic Measurement Examples Measuring a Sinusoidal Signal Reduce the frequency span (SPAN) to 10 kHz Press the SPAN key. Using the numeric keypad, enter 10 in the entry field and confirm the entry with the kHz key. The generator signal is measured using a span of 10 kHz. The measurement point resolution of the trace is now approx.
Page 116: Counter
R&S FSQ Basic Measurement Examples Measuring a Sinusoidal Signal 5.1.2 Measuring the Signal Frequency using the Frequency Counter The built-in frequency counter makes it possible to measure the frequency more precisely than measuring it with the marker. The frequency sweep is stopped at the marker, and the R&S FSQ measures the frequency of the signal at the marker position.
Page 117 R&S FSQ Basic Measurement Examples Measuring a Sinusoidal Signal Fig. 5-1 Measurement of the frequency with the frequency counter Obtaining a correct result when measuring the frequency with the internal frequency counter requires that an RF sinusoidal signal or a spectral line be present.
Page 118: Measuring Harmonics Of Sinusoidal Signals
R&S FSQ Basic Measurement Examples Measuring Harmonics of Sinusoidal Signals 5.2 Measuring Harmonics of Sinusoidal Signals Measuring the harmonics of a signal is a very common task that can be optimally performed by using an analyzer. In the following example, the generator signal with 128 MHz and -30 dBm is used again. 5.2.1 Measuring the Suppression of the First and Second Harmonic of an Input Signal 1.
Page 119 R&S FSQ Basic Measurement Examples Measuring Harmonics of Sinusoidal Signals Press the MARKER 3 softkey in the marker menu. Marker 3 is activated as the delta marker (Delta 3 [T1]). It automatically appears on the next largest harmonic of the signal. The frequency offset and level offset from marker 1 on the fundamental are displayed in the marker field at the top edge of the screen.
Page 120: Reducing Noise
R&S FSQ Basic Measurement Examples Measuring Harmonics of Sinusoidal Signals 5.2.2 Reducing Noise The R&S FSQ offers three means of effectively differentiating the harmonics of a signal from the noise: • Reducing the video bandwidth • Averaging the trace • Reducing the resolution bandwidth Reducing the video bandwidth and averaging the traces cause the noise from the R&S FSQ or the DUT to be reduced, depending on which component is larger.
Page 121 R&S FSQ Basic Measurement Examples Measuring Harmonics of Sinusoidal Signals 2. Recouple the video bandwidth to the resolution bandwidth. Press the VIDEO BW AUTO softkey. 3. Reduce the noise by averaging the curve. Press the TRACE key. Press the AVERAGE softkey. The noise component of the trace will be smoothed by averaging 10 successive traces.
Page 122: Measuring Harmonics With Frequency Sweeps
R&S FSQ Basic Measurement Examples Measuring Harmonics with Frequency Sweeps 5.3 Measuring Harmonics with Frequency Sweeps There are advantages in performing harmonic measurements with a single frequency sweep, provided that the harmonic distance is in a way that a resolution bandwidth can be selected which is wide enough to give an acceptably short sweep time.
Page 123 R&S FSQ Basic Measurement Examples Measuring Harmonics with Frequency Sweeps 5. Set the measured signal frequency and the measured level as reference values. Press the REFERENCE FIXED softkey. The position of the marker becomes the reference point. The reference point level is indicated by a horizontal line, the reference point frequency with a vertical line.
Page 124 R&S FSQ Basic Measurement Examples Measuring Harmonics with Frequency Sweeps 8. Place the delta marker on the 2 harmonic. Press the MKR-> key. Press the PEAK softkey. The delta marker jumps to the maximum of the 2 harmonic. The displayed level result is relative to the reference point level (= fundamental wave level).
Page 125: Measuring Signal Spectra With Multiple Signals
R&S FSQ Basic Measurement Examples Measuring Signal Spectra with Multiple Signals 5.4 Measuring Signal Spectra with Multiple Signals 5.4.1 Separating Signals by Selecting the Resolution Bandwidth A basic feature of an analyzer is being able to separate the spectral components of a mixture of signals.
Page 126 R&S FSQ Basic Measurement Examples Measuring Signal Spectra with Multiple Signals Operating steps on the R&S FSQ: 1. Reset the instrument. Press the PRESET key. The R&S FSQ is now in the default state. 2. Set the center frequency to 100.015 MHz and the frequency span (SPAN) to 300 kHz. Press the FREQ key and enter 100.015 MHz.
Page 127 R&S FSQ Basic Measurement Examples Measuring Signal Spectra with Multiple Signals The level drop is located exactly in the center of the screen only if the generator frequencies exactly match the frequency display of the R&S FSQ. To achieve exact matching, the frequencies of the generators and the R&S FSQ must be synchronized.
Page 128 R&S FSQ Basic Measurement Examples Measuring Signal Spectra with Multiple Signals Fig. 5-8 Measurement of two RF equally-sized sinusoidal signals with a resolution bandwidth (1 kHz) which is clearly smaller than their frequency spacing. 6. Activate the FFT bandwidths. Using the FILTER TYPE softkey in the selection list, set the filter type to FFT. IF filtering is now performed using the FFT algorithm.
Page 129: Measuring The Modulation Depth Of An Am-Modulated Carrier In The Frequency Domain
R&S FSQ Basic Measurement Examples Measuring Signal Spectra with Multiple Signals 5.4.1.2 Measuring the Modulation Depth of an AM-Modulated Carrier in the Frequency Domain In the frequency range (scan) display, the AM side bands can be resolved with a narrow bandwidth and measured separately.
Page 130 R&S FSQ Basic Measurement Examples Measuring Signal Spectra with Multiple Signals 3. Activate the marker function for measuring the AM modulation depth. Press the MEAS key. Press the MODULATION DEPTH softkey. The R&S FSQ automatically sets a marker to the carrier signal in the center of the diagram and one delta marker each to the upper and lower AM sidebands.
Page 131: Measurements In The Time Domain
R&S FSQ Basic Measurement Examples Measurements in the Time Domain 5.5 Measurements in the Time Domain In the case of radio transmission systems that use the TDMA method (e.g. GSM or IS136), transmission quality is determined not only by spectral characteristics but also by characteristics in the time domain.
Page 132 R&S FSQ Basic Measurement Examples Measurements in the Time Domain 4. Set the sweep time to 1 ms. Press the SWEEP key and enter 1 ms. The R&S FSQ will show the GSM burst continuously across the display. 5. By using the video trigger, elicit triggering on the rising edge of the burst. Press the TRIG key.
Page 133: Measuring The Power Characteristic Of Burst Signals
R&S FSQ Basic Measurement Examples Measurements in the Time Domain 5.5.2 Measuring the Power Characteristic of Burst Signals Because of the high time resolution of the R&S FSQ at the 0 Hz display range, the edges of TDMA bursts can be measured precisely. The edges can be shifted to the screen area by using the trigger offset.
Page 134 R&S FSQ Basic Measurement Examples Measurements in the Time Domain By turning the rotary knob counterclockwise, move the trigger offset until the burst edge can be seen in the center of the screen, or enter -50 µs. The R&S FSQ will show the rising edge of the GSM burst. Fig.
Page 135: Measuring The Signal-To-Noise Ratio Of Burst Signals
R&S FSQ Basic Measurement Examples Measurements in the Time Domain 5.5.3 Measuring the Signal-to-Noise Ratio of Burst Signals When TDMA transmission methods are used, the signal-to-noise ratio or the deactivation dynamic range can be measured by comparing the power values during the activation phase and the deactivation phase of the transmission burst.
Page 136 R&S FSQ Basic Measurement Examples Measurements in the Time Domain 5. By using the video trigger, elicit triggering on the rising edge of the burst and shift the start of burst to the center of the screen. Press the TRIG key. Press the VIDEO softkey and enter 70%.
Page 137 R&S FSQ Basic Measurement Examples Measurements in the Time Domain 7. Set the measured power as the reference and activate relative power measurement. Press the NEXT key. The side menu for setting the power measurement will open. Set the POWER ABS/REL softkey to REL. The power relative to the power during the activation phase of the burst is displayed.
Page 138: Measurement Of Am-Modulated Signals
R&S FSQ Basic Measurement Examples Measurements in the Time Domain 5.5.4 Measurement of AM-Modulated Signals The R&S FSQ rectifies the RF input signal and displays it as a magnitude spectrum. The rectification also demodulates AM-modulated signals. The AF voltage can be displayed in the time domain if the modulation sidebands fall within the resolution bandwidth.
Page 139 R&S FSQ Basic Measurement Examples Measurements in the Time Domain Fig. 5-16 Measurement of the AF signal of a carrier that is AM-modulated with 1 kHz The AF can be listened to by using the built-in loudspeaker. 5. Activate the internal AM demodulator. Press the MKR FCTN key.
Page 140: Measurement Of Fm-Modulated Signals
R&S FSQ Basic Measurement Examples Measurements in the Time Domain 5.5.5 Measurement of FM-Modulated Signals Since analyzers can display only the magnitude of the measurement signal by using the envelope detector, the modulation of FM-modulated signals cannot be measured directly as in the case of AM-modulated signals.
Page 141 R&S FSQ Basic Measurement Examples Measurements in the Time Domain 3. Set the resolution bandwidth to 300 kHz. Press the BW key. Press the RES BW MANUAL softkey and enter 300 kHz. 4. Set the display range to 20 dB and shift the filter trace to the center of the screen. Press the AMPT key.
Page 142 R&S FSQ Basic Measurement Examples Measurements in the Time Domain 7. Establish a stable display by using video triggering. Press the TRIG key. Press the VIDEO softkey. A static image for the FM AF signal is produced. Result: (-10 ± 5) dB; this yields a deviation of 100 kHz when the steepness of the demodulator characteristic is 5 dB/100 kHz.
Page 143: Storing And Loading Instrument Settings
R&S FSQ Basic Measurement Examples Storing and Loading Instrument Settings 5.6 Storing and Loading Instrument Settings The R&S FSQ can store complete instrument settings together with instrument configurations and measurement data internally as a data record. The data is stored on the internal harddisk or –...
Page 144: Storing Traces
R&S FSQ Basic Measurement Examples Storing and Loading Instrument Settings The name of a data record may contain letters and digits. If necessary, the desired directory can be placed in front of the name of the data record (the directory will then automatically be used for any further save and recall operations).
Page 145: Loading An Instrument Configuration
R&S FSQ Basic Measurement Examples Storing and Loading Instrument Settings 5.6.2 Loading an Instrument Configuration An instrument configuration can be loaded in either of the following two ways: 1. By directly entering the data record name: Press the FILE key and then the RECALL softkey. Enter the name of the data record to be loaded (which is a digit from 0 to 9 in the simplest case) and press ENTER.
Page 146: Booting
R&S FSQ Basic Measurement Examples Storing and Loading Instrument Settings 5.6.2.1 Automatic Loading of a Data Record during Booting If the R&S FSQ is switched on in the factory default state, it loads the instrument settings that it had when switched off (provided that it was switched off using the STANDBY switch on the front panel;...
Page 147: Printing Out The Measurement Results
R&S FSQ Basic Measurement Examples Printing Out the Measurement Results 5.7 Printing Out the Measurement Results Press the HCOPY key. The menu for starting and configuring the printout will appear. Start the print operation by pressing the PRINT SCREEN, PRINT TRACE or PRINT TABLE softkey.
Page 148: Additional Measurement Examples
R&S FSQ Basic Measurement Examples Additional Measurement Examples 5.8 Additional Measurement Examples The measurement examples provided in this section are intended as an introduction to operating the R&S FSQ. For enhanced applications, refer to the Operating Manual, chapter 2, which provides a series of additional examples. Measurement examples for the instrument's options are provided in the Operating Manuals for the individual options.
Page 149: Lan Interface
R&S FSQ LAN Interface 6 LAN Interface 6.1 Installing Additional Network Protocols & Services ..6.3 6.2 Configuration Examples ......6.6 6.3 Subsequent Changes to the Network Configuration .
Page 150 R&S FSQ LAN Interface 6.7.4 Connection Setup with the R&S FSQ ....6.31 6.7.5 Interrupting and Restoring the Remote Desktop Connection with the R&S FSQ ......6.34 6.7.6 Deactivating the R&S FSQ from the Controller .
Page 151: Installing Additional Network Protocols & Services
R&S FSQ LAN Interface Installing Additional Network Protocols & Services 6.1 Installing Additional Network Protocols & Services Your network administrator knows which protocols are necessary. In the case of the RSIB protocol and VXI11 support, TCP/IP must always be installed. In the following example, the support for Novell Network will also be installed..
Page 152 R&S FSQ LAN Interface Installing Additional Network Protocols & Services Click the Properties button. The dialog box containing the available network protocols will open. Click the Install button. The list of available network components will open. Quick Start Guide 1313.9652.62 - 02...
Page 153 R&S FSQ LAN Interface Installing Additional Network Protocols & Services Select Client. Click the Add... button. The list of available network protocols will open. Select Client Service for NetWare. Click the OK button. The network driver for Novell Netware will be installed. •...
Page 154: Configuration Examples
R&S FSQ LAN Interface Configuration Examples 6.2 Configuration Examples Network Protocols Services Comments NOVELL Netware NWLink IPX/SPX Client service for The frame type used in the network must compatible NetWare be set under Protocols - Properties. transport IP Networks TCP/IP Simple TCP/IP An IP address that is unique in the (FTP, TELNET,...
Page 155 R&S FSQ LAN Interface Subsequent Changes to the Network Configuration Select the Computer Name. You can change the other settings after you select the other tabs. Before doing so, however, be sure to check with your network administrator. Click the Change button. The dialog box for changing the computer name, domain and workgroup will open.
Page 156: Configuring The Windows Xp Firewall
R&S FSQ LAN Interface Configuring the Windows XP Firewall 6.4 Configuring the Windows XP Firewall The Windows XP Firewall blocks all network communication which is not initialized by the controller itself or which is defined as unwanted. It protects the controller from an attack of hostile users and programs.
Page 157: Operating The Instrument Without A Network
R&S FSQ LAN Interface Operating the Instrument without a Network 6.5 Operating the Instrument without a Network If you want to operate the instrument either temporarily or permanently without a network connection, no special measures are necessary in contrast to Windows NT. Windows XP automatically detects the interruption of the network connection and does not set up the connection when the instrument is switched on.
Page 158: Operating The Instrument In A Network
R&S FSQ LAN Interface Operating the Instrument in a Network 6.6 Operating the Instrument in a Network After network support has been installed, data can be exchanged between the instrument and other computers, and network printers can be used. Network operation is possible only if you are authorized to use network resources. Typical resources are file directories of other computers or even central printers.
Page 159 R&S FSQ LAN Interface Operating the Instrument in a Network Select Create a new account. The dialog box for entering a new computer name will open. Enter the name of the new user in the text field and confirm with Next ->. The Pick an account type dialog box for defining the user's rights will open.
Page 160: Changing The User Password
R&S FSQ LAN Interface Operating the Instrument in a Network 6.6.2 Changing the User Password After the new user has been created on the instrument, the password must be adapted to the network password. This is also done by using the User Account wizard. Using the Windows key or the key combination CTRL+ESC, call the Windows XP Start menu.
Page 161 R&S FSQ LAN Interface Operating the Instrument in a Network Click Create a password. The dialog box for entering a new password will open. Enter the new password in the upper text line and repeat it in the following line. Scroll the screen contents down.
Page 162: Novell Network Only: Configure Novell Client
R&S FSQ LAN Interface Operating the Instrument in a Network 6.6.3 NOVELL Network only: Configure NOVELL Client Using the Windows key or the key combination CTRL+ESC, call the Windows XP Start menu. Click Settings and then Control Panel and CSNW. Bindery Login (NOVELL 3.x) Click Default Tree and Context.
Page 163: Logging On To The Network
R&S FSQ LAN Interface Operating the Instrument in a Network 6.6.4 Logging On to the Network Network login occurs at the same time you log on to the operating system. For this to be possible, the user name and the password must be identical under Windows XP and on the network.
Page 164: Using Network Drives
R&S FSQ LAN Interface Operating the Instrument in a Network 6.6.7 Using Network Drives Using the Windows key or the key combination CTRL+ESC, call the Windows XP Start menu. Click Programs, and then Accessories and Windows Explorer. Under Desktop, click My Network Places and Entire Network All available network drives will be displayed.
Page 165 R&S FSQ LAN Interface Operating the Instrument in a Network Using Browse, open the list of network paths available in the network. Mark the desired network path. Activate Reconnect at Logon: if you want the connection to be set up automatically each time the instrument is started.
Page 166: Installing A Network Printer
R&S FSQ LAN Interface Operating the Instrument in a Network 6.6.8 Installing a Network Printer A new printer is installed using the INSTALL PRINTER softkey in the HCOPY menu. Click the HCOPY key. The HCOPY menu will open. Click the NEXT key to go to the side menu. Using INSTALL PRINTER, open the Printers and Faxes dialog box Using the rotary knob, go to Add Printer in the selection list.
Page 167 R&S FSQ LAN Interface Operating the Instrument in a Network Select Next with the rotary knob and then press the rotary knob to confirm. The Local or Network Printer selection will appear. In this example, an HP Laserjet 5 printer is installed as a network printer. To select a network printer, activate A network printer or a printer attached to another computer.
Page 168 R&S FSQ LAN Interface Operating the Instrument in a Network Click Browse for a printer and then Next. The selection of enabled printers will appear. Mark a printer and confirm with OK. When you are prompted to confirm the installation of a suitable printer driver, click OK. The selection of printer drivers will appear.
Page 169 R&S FSQ LAN Interface Operating the Instrument in a Network If the printer you need does not appear in the list, the driver has not yet been installed on the instrument. In this case, click the Have Disk button. You will then be prompted to connect a data storage device containing the required driver.
Page 170: Sharing Directories (Only With Microsoft Networks)
R&S FSQ LAN Interface Operating the Instrument in a Network 6.6.9 Sharing Directories (only with Microsoft Networks) Sharing directories makes data on the device available for use on other computers. This is possible only in Microsoft networks. Sharing is a property of a file or directory. The procedure for applying sharing is as follows: Open the Windows Start menu with the Windows key or CTRL+ESC.
Page 171 R&S FSQ LAN Interface Operating the Instrument in a Network Click Sharing and Security. The dialog for sharing the directory will open. Click Share this folder. You can change the following settings as necessary: Share name: Name under which the directory appears in Explorer Comment: Comments regarding the shared directory User Limit:...
Page 172: Manual Operation Of The R&S Fsq With Xp Remote
R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop 6.7 Manual Operation of the R&S FSQ with XP Remote Desktop 6.7.1 Introduction In production test and measurement, a common requirement is central monitoring of the T&M instruments for remote maintenance and remote diagnostics.
Page 173: Configuring The R&S Fsq For Use Of Xp Remote Desktop
R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop 6.7.2 Configuring the R&S FSQ for Use of XP Remote Desktop To enable an external computer to access the Remote Desktop software of the R&S FSQ, proceed as follows: 1.
Page 174 R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop 2. Create a fixed IP address for the TCP/IP protocol as described in the section “ Configuring Existing Network Protocols (TCP/IP Protocol)” on page 2.36 To avoid problems, use a fixed IP address. When a DHCP server is used, a new IP address is assigned each time the instrument is restarted.
Page 175 R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop If necessary, click Select Remote Users... and select users created on the R&S FSQ who are to be given access to the R&S FSQ also via Remote Desktop. The user account under which configuration is carried out is automatically enabled for Remote Desktop.
Page 176: Configuring The Controller
R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop 6.7.3 Configuring the Controller Before Remote Desktop can be operated, the TCP/IP protocol must be created on the controller and Remote Desktop Client must be installed. With Windows XP, Remote Desktop Client is part of the operating system and can be accessed via Start - Programs - Accessories - Communications - Remote Desktop Connection.
Page 177 R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop Click the selection list under Choose your connection speed to optimize performance. The list of available configurations will appear. Select the appropriate connection (for example: LAN (10 Mbps or higher)). Depending on your selection, various checkboxes will be activated in the list located below (also depends on how powerful the connection is).
Page 178 R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop Click the Display tab. The options for configuring the R&S FSQ screen display will appear. You can set the size of the R&S FSQ window on the desktop of the controller by positioning the pointer in the Remote desktop size panel.
Page 179: Connection Setup With The R&S Fsq
R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop 6.7.4 Connection Setup with the R&S FSQ After you configure the Remote Desktop Client, you need to set up the connection to the R&S FSQ. Click the General tab. You can now enter the connection information. Enter the IP address of the R&S FSQ in the Computer field.
Page 180 R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop After a few moments, the screen of the R&S FSQ will appear on the controller's screen with the prompt for you to log on. To enable remote control of the R&S FSQ, do the following: Enter “instrument”...
Page 181 R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop In this case, do the following: Press ALT+F4. The R&S FSQ firmware will be shut down, which may take a few seconds. Double-click R&S Analyzer Interface. The firmware will restart and then automatically open the Soft Front Panel, i.e.
Page 182: Interrupting And Restoring The Remote Desktop Connection With The R&S Fsq
R&S FSQ LAN Interface Manual Operation of the R&S FSQ with XP Remote Desktop 6.7.5 Interrupting and Restoring the Remote Desktop Connection with the R&S FSQ The connection to the R&S FSQ can be interrupted at any time by closing the Remote Desktop window on the controller.
Page 183: Brief Introduction To Remote Control
R&S FSQ Brief Introduction to Remote Control 7 Brief Introduction to Remote Control 7.1 Basic Steps in Programming using the VISA Interface . . . 7.3 7.1.1 Linking the VISA Library for Visual Basic ... . 7.3 7.1.1.1 Programming notes: .
Page 184 R&S FSQ Brief Introduction to Remote Control 7.2.2 Using Markers and Delta Markers ....7.15 7.2.2.1 Marker Search Functions, Restricting the Search Range ......... 7.15 7.2.2.2 Frequency Counting .
Page 185: Basic Steps In Programming Using The Visa Interface
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1 Basic Steps in Programming using the VISA Interface The following examples explain how to program the instrument and can be used as a basis for solving enhanced programming tasks.
Page 186 R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface Creating a response buffer Since the DLL returns zero-terminated strings in responses, a string of sufficient length must be created before the viRead() function is called, because Visual Basic inserts a length specification in front of the strings and this specification is not updated by the DLL.
Page 187: Initialization And Default State
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1.2 Initialization and Default State At the beginning of each program, the VISA resource manager has to be initialized. It opens a connection to the VISA driver itself, which controls the interaction with all instruments. 7.1.2.1 Creating Global Variables In Visual Basic, global variables are stored in modules (data extension .BAS).
Page 188: Switching The Screen Display On And Off
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1.2.4 Switching the Screen Display On and Off In the default setting, all remote control commands are carried out with the screen display switched off in order to attain optimum measurement speed. During the development phase of remote control programs, however, the screen display is required in order to visually check both the programming of the settings and the measurement results.
Page 189: Sending Simple Instrument Setting Commands
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1.3 Sending Simple Instrument Setting Commands This example shows how the center frequency, span and reference level of the instrument are set. REM -------- Instrument setting commands ---------------------------------- PUBLIC SUB SimpleSettings() Dim status As ViStatus Dim retCnt As Long...
Page 190: Reading Out Instrument Settings
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1.4 Reading Out Instrument Settings The settings made above can now be read out. To do so, the abbreviated commands are used. REM --------- Reading out instrument settings ----------------------------- PUBLIC SUB ReadSettings() Dim status As ViStatus Dim retCnt As Long...
Page 191: Marker Positioning And Readout
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1.5 Marker Positioning and Readout REM -------- Example of marker function ----------------------------------- PUBLIC SUB ReadMarker() status = viWrite(analyzer, "CALC:MARKER ON;MARKER:MAX", 25, retCnt) 'Activate marker 1 and search for peak MKmark$ = Space$(30) 'Provide text variable (30 characters) status = viWrite(analyzer, "CALC:MARK:X?;Y?", 15, retCnt)
Page 192: Command Synchronization
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1.6 Command Synchronization The synchronization methods used in the following example are described in the Operating Manual, chapter 5, section "Command Sequence and Command Synchronization". Service requests are only supported by GPIB and VXI instruments.
Page 193: Reading Output Buffers
R&S FSQ Brief Introduction to Remote Control Basic Steps in Programming using the VISA Interface 7.1.6.1 Reading Output Buffers REM -------- Subroutine for the individual STB bits ----------------------- Public SUB Outputqueue() 'Reading the output queue Dim status As ViStatus Dim retCnt As Long result$ = Space$(100) 'Create space for response status = viRead(analyzer, result$, 100, retCnt)
Page 194: Detailed Programming Examples
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 7.2 Detailed Programming Examples 7.2.1 Default Settings of the R&S FSQ The following settings provide typical examples of how to change the default settings of the R&S FSQ. Note that only some of the settings are necessary depending on the application example. In many cases, it is not necessary to set resolution bandwidth, video bandwidth and sweep time since these parameters are automatically calculated in the default setting when the span is changed.
Page 195: Default Settings For Measurements
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 7.2.1.2 Default Settings for Measurements REM ************************************************************************ Public Sub SetupInstrument() Dim status As ViStatus Dim retCnt As Long REM ------ Default setting of the R&S FSQ ---------------------------------- Call SetupStatusReg 'Configure status registers status = viWrite(analyzer, "*RST", 4, retCnt) 'Reset instrument status = viWrite(analyzer, "SYST:DISP:UPD ON", 16, retCnt)
Page 196 R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples status = viWrite(analyzer, "CALC:MATH:STAT OFF", 18, retCnt) 'Trace difference off status = viWrite(analyzer, "DETECTOR1 RMS", 13, retCnt) 'Detector Trace1 status = viWrite(analyzer, "DET2:AUTO ON", 12, retCnt) 'Detector Trace2 status = viWrite(analyzer, "DET3:AUTO ON", 12, retCnt) 'Detector Trace3 REM ------ Bandwidths and sweep time --------------------------------------- status = viWrite(analyzer, "BAND:RES 100KHz", 15, retCnt) 'Resolution bandwidth (*)
Page 197: Using Markers And Delta Markers
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 7.2.2 Using Markers and Delta Markers 7.2.2.1 Marker Search Functions, Restricting the Search Range The following example is based on an AM-modulated signal at 100 MHz that has the following characteristics: •...
Page 198: Frequency Counting
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 'Read delta marker 3 frequency and level; both must have a value of 0 status = viRead(analyzer, result$, 100, retCnt) Print "Delta 3: "; result$ REM ------ Peak search with search range limit in y direction -------------- status = viWrite(analyzer, "CALC:THR:STAT ON", 16, retCnt) status = viWrite(analyzer, "CALC:THR -35DBM", 15, retCnt) 'Activate threshold and set it above the AF...
Page 199: Working With A Fixed Reference Point
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples status = viWrite(analyzer, "CALC:MARK:COUNT ON", 18, retCnt) 'Activate frequency counter status = viWrite(analyzer, "INIT;*WAI", 9, retCnt) 'Perform sweep with sync status = viWrite(analyzer, "CALC:MARK:COUNT:FREQ?", 21, retCnt) 'Query and read measured frequency status = viRead(analyzer, result$, 100, retCnt) Print "Marker Count Freq: ";...
Page 200: Measuring Noise And Phase Noise
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples REM -- Setting frequency, level and bandwidth for measuring harmonics ----- status = viWrite(analyzer, "FREQ:CENT 400MHz;Span 1MHz", 26, retCnt) 'Set freq of 3rd harmonic status = viWrite(analyzer, "BAND:RES 1kHz", 13, retCnt) 'Set suitable RBW status = viWrite(analyzer, "SWEEP:TIME:AUTO ON", 18, retCnt) 'Couple sweep time...
Page 201 R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 'Reference level status = viWrite(analyzer, "INIT;*WAI", 9, retCnt) 'Perform sweep with sync REM ------ Setting the reference point ------------------------------------- status = viWrite(analyzer, "CALC:MARK:PEXC 6DB", 18, retCnt) 'Define peak excursion status = viWrite(analyzer, "CALC:MARK:STAT ON", 17, retCnt) 'Activate marker 1 status = viWrite(analyzer, "CALC:MARK:TRAC 1", 16, retCnt) 'Set marker 1 to trace 1...
Page 202: Reading Out Trace Data
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 7.2.3 Reading Out Trace Data In the following example, the trace data obtained with the default setting is read from the instrument and displayed in a list on screen. Readout occurs first in binary format and then in ASCII format, once with the span >...
Page 203 R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 'Buffer for start frequency span$ = Space$(100) 'Buffer for span REM ------ Default setting of the R&S FSQ --------------------------------- Call SetupInstrument 'Default setting status = viWrite(analyzer, "INIT:CONT OFF", 13, retCnt) 'Switch to single sweep status = viWrite(analyzer, "INIT;*WAI", 9, retCnt) 'Perform sweep with sync...
Page 204 R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 'Perform sweep with sync REM ------ Reading out in ASCII format ------------------------------------- status = viWrite(analyzer, "FORMAT ASCII", 12, retCnt) 'Set ASCII format status = viWrite(analyzer, "TRAC1? TRACE1", 13, retCnt) 'Read and output status = viRead(analyzer, asciiResult$, 25000, retCnt) Print "Contents of Trace1: ", asciiResult$ 'trace 1 END SUB...
Page 205: Storing And Loading Instrument Settings
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 7.2.4 Storing and Loading Instrument Settings 7.2.4.1 Storing Instrument Settings In the following example, the settings/measured data to be stored are initially defined, in which case only the hardware settings are stored. However, the selection commands for the other settings are specified with the state "OFF"...
Page 206: Loading Instrument Settings
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 7.2.4.2 Loading Instrument Settings In the following example, the TEST1 data record stored under D:\USER\DATA is reloaded into the instrument: REM ************************************************************************ Public Sub LoadSettings() Dim status As ViStatus Dim retCnt As Long 'This subroutine loads the TEST1 data record in the directory D:\USER\DATA.
Page 207: Configuring And Starting A Printout
R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples 7.2.5 Configuring and Starting a Printout The following example shows how to configure the output format and output device for printing out a measurement screen. The procedure is as follows: 1.
Page 208 R&S FSQ Brief Introduction to Remote Control Detailed Programming Examples For i = 1 To 99 status = viWrite(analyzer, "SYST:COMM:PRIN:ENUM:NEXT?", 24, retCnt) 'Read out next printer name status = viRead(analyzer, Devices$(i), 100, retCnt) If Left$(Devices$(i), 2) = "''" Then GoTo SelectDevice 'Stop at end of list Print "Printer"...
Page 209: Appendix
R&S FSQ Appendix Appendix Quick Start Guide 1313.9652.62 - 02...
Page 210 R&S FSQ Appendix Quick Start Guide 1313.9652.62 - 02...
Page 211: Appendix A: Printer Interface
R&S FSQ Appendix Appendix A: Printer Interface This appendix describes the installation procedure for local printers. You can either use a plug&play printer (e.g. via USB) or a non-plug&play printer (e.g. via the LPT port). To install printer drivers that are not preinstalled on the instrument, you can use one of the following external devices: LAN, USB device (e.g.
Page 212: Installing Usb Printers
R&S FSQ Appendix Installing USB Printers A.1 Installing USB Printers If you use a USB device for driver installation, install the USB device on the instrument and connect it to the instrument before starting the installation. If you use a LAN connection for driver installation, the corresponding network drives must be mounted before starting the installation.
Page 213 R&S FSQ Appendix Installing USB Printers Select the Install the software automatically option. The installation process runs automatically and a dialog box is displayed after the installation is completed. Proceed with step 15. If the driver software cannot be found, an error message is displayed. Deactivate the Don't prompt me again to install this software option.
Page 214 R&S FSQ Appendix Installing USB Printers Connect the USB device containing the driver to the R&S FSQ (e.g. the CD-ROM drive or a memory stick) Activate the Include this location in the search option. Click the Browse button. The dialog box to browse for a folder is displayed. On the USB device, select the folder containing the printer drivers.
Page 215: Installing Non-Plug&Play Printers
R&S FSQ Appendix Installing Non-Plug&Play Printers A.2 Installing Non-Plug&Play Printers The following dialog boxes can be operated either from the front panel or via a mouse and keyboard (see sections “ Connecting a Mouse” “ Connecting an External Keyboard” on page 2.10).
Page 216 R&S FSQ Appendix Installing Non-Plug&Play Printers Using the rotary knob, select NEXT and confirm by pressing the rotary knob. To install a local printer, select Local printer attached to this computer with the rotary knob, confirm by pressing the rotary knob and continue to the next step. To install a network printer, select A network printer or a printer attached to another computer, confirm by pressing the rotary knob and continue to the next step.
Page 217 R&S FSQ Appendix Installing Non-Plug&Play Printers Using the rotary knob, move the focus to the Next button and confirm by pressing the rotary knob. The Install Printer Software dialog panel will open. Using the arrow up/down keys, select the required manufacturer (Star) from the Manufacturers table.
Page 218 R&S FSQ Appendix Installing Non-Plug&Play Printers You can change the printer name in the Printer Name field to any name you want (max. 60 characters). However, this requires using a PC keyboard. Using the rotary knob, select Default Printer yes / no. Using the arrow up/down keys, select the desired status.
Page 219: Network Printer
R&S FSQ Appendix Installing Non-Plug&Play Printers Select the path D:\I386 by turning the rotary knob and then pressing it. If the background of the selection bar is not blue, the selection must be marked with the arrow up/down keys before the entry can be selected by pressing the rotary knob. Using the rotary knob, select a driver file and confirm by pressing the rotary knob.
Page 220 R&S FSQ Appendix Installing Non-Plug&Play Printers A.10 Quick Start Guide 1313.9652.62 - 02...
Page 221: Appendix B: External Generator Control
R&S FSQ Appendix List of Generator Types Supported by the R&S FSQ Appendix B: External Generator Control B.1 List of Generator Types Supported by the R&S FSQ Generator Interface Type Generator Generator Generator Generator Min. Freq. Max. Freq. Min. Power Max.
Page 222 R&S FSQ Appendix List of Generator Types Supported by the R&S FSQ Generator Interface Type Generator Generator Generator Generator Min. Freq. Max. Freq. Min. Power Max. Power 10 MHz 60 GHz -130 SMT02 GPIB 5.0 kHz 1.5 GHz -144 SMT03 GPIB 5.0 kHz 3.0 GHz...
Page 223 R&S FSQ Index Index Symbols cleaning the outside ........2.8 CLRWR (trace mode)......4.5 * (enhancement label) ......4.6 color printout .........2.31 color saturation (screen) .......2.27 Numerics colors (screen) ........2.27 COM............1.12 75 Ohm (enhancement label) ....4.6 configuration different networks ......6.6 instrument ......5.33, 5.35, 5.36 network ..........6.6 A/B (enhancement label) ......
Page 224 R&S FSQ Index date FILE key ..........1.5 entering..........2.22 firmware directory sharing ........6.22 installed options ........ 3.3 DISP key .......1.5, 2.26, 2.27 installing options........ 3.3 documentation overview ......0.1 uninstalling options......3.3 Operating Manual ......0.2 update ..........3.2 Quick Start Guide ......0.1 FM-modulated signals Service Manual ........0.2 measuring ........
Page 225 R&S FSQ Index high-speed data transmission....1.18 unit keys..........4.7 hotkey keys............1.4 NETWORK........2.18 LAN ............1.17 I/Q INPUT ..........1.9 LAN interface ..........6.1 ID response string ........ 2.25 configuring ........2.34 IF OUT 20.4 MHz ......... 1.16 LIMIT CHECK (hardware setting) ...4.3 IF OUT 404.4 MHz .......
Page 226 R&S FSQ Index MKR key ..........1.4 option MKR-> key ..........1.4 installed ..........3.3 modulation depth of AM-modulated carrier installing ..........3.3 measuring ........5.19 uninstalling ........3.3 MONITOR ........1.13, 2.13 OVEN (status display) ......4.4 monitor OVLD (status display)......4.4 connecting ........2.13 MOUSE........1.13, 2.12 mouse connecting ........2.12...
Page 227 R&S FSQ Index TCP/IP..........2.36 PS (enhancement label) ......4.6 SA (detector) ...........4.5 screen automatically switching off ....2.27 brightness ........2.26 QP (detector) .......... 4.5 color saturation ........2.27 colors ..........2.27 displays..........4.3 layout during analyzer operation..4.2 RBW (hardware setting) ......4.3 tint ............2.27 rear panel ..........
Page 228 R&S FSQ Index REFERENCE INT/EXT....2.21 AP ............. 4.5 REMOVE OPTION ......3.3 AV ............. 4.5 RESTORE FIRMWARE.....3.2 AVG........... 4.5 SATURATION .........2.27 CLRWR ..........4.5 SCREEN COLORS ......2.31 MAXH ..........4.5 SELECT OBJECT ......2.26 MI ............4.5 TIME+DATE ........2.22 MINH ..........4.5 TINT..........2.27 PK .............
Page 229 R&S FSQ Index Windows XP ......... 2.43 XP Remote Desktop......6.24 administrator ID...... 2.39, 2.43 connection ........6.34 approved software......2.44 connection setup......6.31 Firewall..........6.8 controller configuration ....6.28 login..........2.39 instrument configuration ....6.25 password......... 2.39 instrument deactivation....6.34 service pack ........2.43 Start menu........2.44 Quick Start Guide 1313.9652.62 - 02...

This manual is also suitable for:

Fsq3 Fsq8 Fsq26 Fsq31 Fsq40

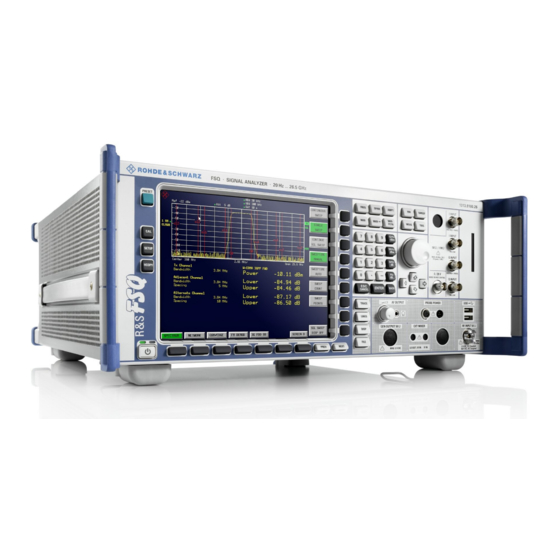

Rohde & Schwarz FSQ series Quick Start Manual

1 Front and Rear Panel

2 Preparing for Use

3 Firmware Update and Installation of Firmware

Options

4 Basic Operation

5 Basic Measurement Examples

6 LAN Interface

7 Brief Introduction to Remote Control

Appendix

Appendix A: Printer Interface

Appendix B: External Generator Control

Quick Links

Related Manuals for Rohde & Schwarz FSQ series

Summary of Contents for Rohde & Schwarz FSQ series

This manual is also suitable for:

Table of Contents
