- Page 1 BlueDriver-F3 ™ Wireless Audio Interface User Guide JK Audio...
-
Page 2: Thank You
Audio Interface. Please read this workmanship and materials. To obtain guide for instructions on setting service, contact JK Audio by phone up and using your new product. or email for return authorization. Once authorized, you will carefully... -
Page 3: Table Of Contents
Contents Overview Getting to know your BlueDriver-F3 Wireless Technology Bluetooth ® 4 Pairing, Idle and Connected Mode 5 Bluetooth Status LED 6 Pairing to a Cell Phone 7 Pairing to a Headset 8 Disconnecting, Connection History, Reconnecting Audio for Video... - Page 4 Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice. 7 kHz BlueDriver-F3 Wireless Audio Interface...
-
Page 5: Overview
BlueDriver-F3 can connect as either a Master or Slave and provides a 2-way, full duplex voice band audio path when connected to a device using the Hands-Free profile. -
Page 6: Getting To Know Your Bluedriver-F3

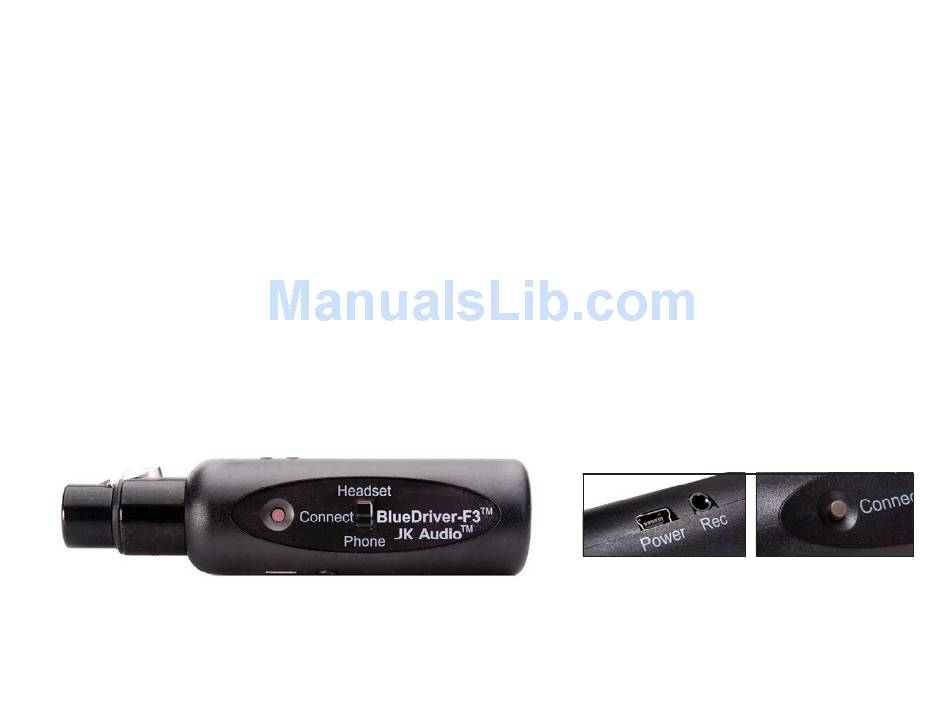

Getting to know your BlueDriver-F3 Headset BlueDriver-F3 ™ Connect Power Rec JK Audio ™ Phone 1. Connect Button Select <Headset> if you will be using your BlueDriver with a The <Connect> button is used to Bluetooth enabled headset or any turn on the BlueDriver and initialize device that emulates a headset. - Page 7 Getting to know your BlueDriver-F3 blue LED will stay lit. If the unit is 3. Power in use, the blue LED will indicate BlueDriver should be fully charged the current connect mode. Feel before its first use. While this free to use your BlueDriver while it battery will normally charge in is charging.
-
Page 8: Bluetooth Wireless Technology
*See page 8 for instructions on how to turn the unique device ID is stored in off BlueDriver-F3. Connection History. Subsequent connections can be made from Idle Mode. For instructions on how to pair to a cell phone or headset, see pages 6-7. BlueDriver-F3 Wireless Audio Interface... -
Page 9: Bluetooth Status Led
Bluetooth Wireless Technology Bluetooth Status LED The blue LED on the front of the unit flashes in different sequences to indicate the current connection status. Pairing 100ms off, 100ms on Idle 2s off, 200ms on Connected 2s off, 1s on HD Connected 2s off, 4s on Bluetooth Wireless Technology... -
Page 10: Pairing To A Cell Phone
2 seconds off, 1 second on. (2 s off, 4 s on for HD Voice). Subsequent connections can be made more quickly from Idle Mode by holding the <Connect> button for only 2 seconds before releasing. BlueDriver-F3 Wireless Audio Interface... -
Page 11: Pairing To A Headset
<Connect> button on the BlueDriver for at least 6 seconds. After you release it, the blue LED should flash rapidly if the BlueDriver is in Pairing Mode. * See page 8 for instructions on how to turn off BlueDriver-F3. Bluetooth Wireless Technology... - Page 12 Role Select Switch in the b) held more than 10 seconds. correct position. BlueDriver-F3 will c) pressed after BlueDriver-F3 was left automatically connect to a paired unused and powered off automatically. device that is Bluetooth-enabled, powered-on and within range.
-
Page 13: Audio For Video
Simply plug BlueDriver-F3 into the BlueDriver-F3 as if it were a headset. bottom of a dynamic microphone, Disable the Bluetooth-Mic input if then pair to a cell phone. Your built-in... -
Page 14: Wireless Applications
Simply Power Rec plug BlueDriver-F3 into the mic-level master audio output of your mixer or CODEC. Pair to your cell phone which is dialed into the station. This setup allows voice band audio, through your cell phone, back to the station. - Page 15 Record Phone Interviews Record high quality phone interviews using your favorite mic and headphones. Simply plug BlueDriver-F3 into the bottom of a dynamic microphone, then pair to a cell phone and place a call as usual. This setup allows voice band, bi-directional audio to and from your cell phone.
- Page 16 Wireless Applications Transmit A2DP Audio The “Headset” mode of BlueDriver-F3 connects to Bluetooth headphones or wireless speakers, and provides full bandwidth A2DP audio. Simply plug BlueDriver-F3 into the mic-level master audio output of your mixer or playback system, then pair to your headphones or speaker.
- Page 17 Broadcast High Quality Audio JK Audio ™ Phone Through Our Wireless Link Our BlueDriver-F3 (<Headset> mode) and BlueDriver-M3 (<Phone> mode) can be paired together to create a full A2DP music bandwidth wireless link. Range is limited to 66 feet, but this may be just enough for your application.
-
Page 18: Faq's
Bluetooth wireless technology enabled in Idle Mode instead of Pairing Mode device. The maximum range of this and your BlueDriver-F3 is not being product is achieved when a clear recognized. line of sight is maintained between... - Page 19 How long will the charge on the battery last? This is not a user replaceable battery. Please contact JK Audio or a factory Based on tests with BlueDriver-F3 authorized service center for battery about 1 meter from a Bluetooth device, replacement.
-
Page 20: Technical Information
90 days. The Lithium-Ion battery in this device is not user replaceable. Please contact JK Audio or a factory authorized service center for battery replacement. BlueDriver-F3 Wireless Audio Interface... - Page 21 Technical Information Input Bluetooth Wireless Technology Connection: 3 pin female XLR Standard: Bluetooth 3.0 Impedance: 1k ohms Range: 66 feet (20 meters) Level: -34 dBu nom. Hands-Free (Full Duplex): 300 Hz–3.4 kHz Output Hands-Free (Full Duplex HD): Frequency 50 Hz–7 kHz Connection: 1/8"...
-
Page 22: Declaration Of Conformity
Conforms to the following Product Specifications: ESD: EN 55024:1998; EN 61000-3-2; EN 61000-3-3 Emissions: EN 55022:2006 AS/NZS CISPR 22 (2002) FCC Part 15, Subpart B ICES-003 Bluetooth Radio: EN 300.328 FCC Part 15.247 FCC ID QOQWT32AE IC 5132A-BGTWT32AE BlueDriver-F3 Wireless Audio Interface... - Page 23 Changes or modifications not interference when the equipment is operated expressly approved by JK Audio can void the in a commercial environment. This equipment user's authority to operate the equipment. generates, uses, and can radiate radio...
- Page 24 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2018 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
