  • Page 1 BlueDriver-M3 ™ Wireless Audio Interface User Guide JK Audio...

  • Page 2: Limited Warranty

    Welcome Thank You Limited Warranty Thank you for purchasing the JK Audio BlueDriver is covered by a 2 year BlueDriver-M3 Wireless Audio warranty to be free from defective Interface. Please read this guide for workmanship and materials. To obtain instructions on setting up and using service, contact JK Audio by phone or your new product.

  • Page 3: Table Of Contents

    Contents Overview Getting to know your BlueDriver-M3 Starting Up Bluetooth Wireless Technology 4 Status LED 5 Pairing to a Cell Phone 6 Pairing to a Headset 7 Disconnecting, Connection History, Reconnecting Wireless Applications FAQ's Technical Information 17 Battery Information, Bluetooth Profiles...
  • Page 4 Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice. 7 kHz BlueDriver-M3 Wireless Audio Interface...

  • Page 5: Overview

    Overview Introducing the BlueDriver-M3. The BlueDriver-M3 wireless audio interface uses Bluetooth® Wireless Technology to add wireless possibilities to your audio mixing console. Model M3 provides 2-way, full duplex voice band audio path when connected to a device using the Hands Free profile.

  • Page 6: Getting To Know Your Bluedriver-M3

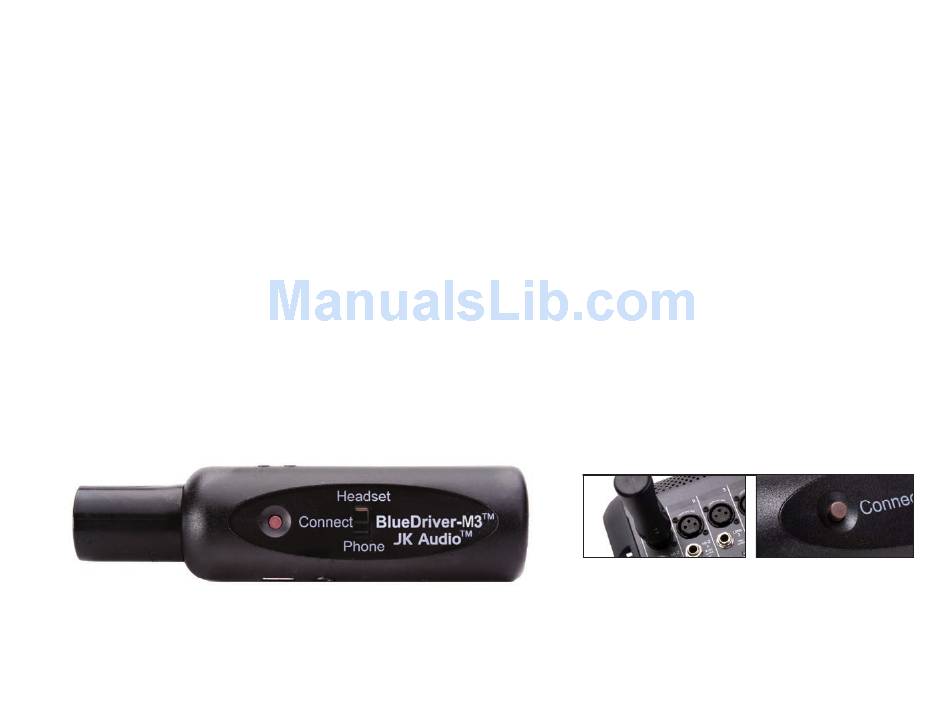

    Getting To Know your BlueDriver-M3 Mode Switch Send Input In the Bluetooth world, a Master A 3.5 mm stereo line level input jack device, such as a wireless phone, enables you to add audio from another computer, or music player, is source to this device.

  • Page 7: Starting Up

    Connect Button the battery is charging, once charging is complete, the LED will turn off. If the battery becomes completely Headset BlueDriver-M3 ™ Connect discharged for an extended period of JK Audio ™ Phone time, the red LED will not flash until it can begin its charge cycle.

  • Page 8: Bluetooth Wireless Technology

    Bluetooth Wireless Technology Bluetooth Status LED The blue LED on the side of the unit flashes in different sequences to indicate the current connection status. Pairing Mode Idle Mode In Pairing Mode, any Bluetooth To connect from Idle Mode, hold the <Connect Button>...

  • Page 9: Pairing To A Cell Phone

    (2 secs BlueDriver for at least 6 seconds. off, 4 secs on for HD Voice). Once Upon release, the blue LED should BlueDriver-M3 has been added flash rapidly as the BlueDriver to your cell phone, subsequent enters Pairing Mode.

  • Page 10: Pairing To A Headset

    Pairing Mode. Note: Connecting via Bluetooth Note: If left unused in Idle or Pairing wireless technology varies with different Mode, the BlueDriver will automatically cell phones. disconnect the Bluetooth connection in two minutes and power off. BlueDriver-M3 Wireless Audio Interface...
  • Page 11 Bluetooth Wireless Technology When Should I Release the MFB Button? Bluetooth LED Idle Mode Pairing Mode Role Change Clear seconds Disconnecting from a Device least 20 seconds. After resetting, the BlueDriver will return to Pairing Mode. To disconnect from any Bluetooth wireless technology enabled device Reconnecting to Paired and turn the power off, simply hold the...

  • Page 12: Wireless Applications

    Wireless Applications Take Calls During a Live Event Caller Audio or Remote Broadcast Simply plug BlueDriver-M3 into Mix-Minus-Caller Audio Back To Caller ’ ” any mic level input of your mixer AL T or console. Pair to your cell phone...
  • Page 13 Cell Phone, Music Player, or Laptop into your PA Headset BlueDriver-M3 ™ Connect Simply plug the BlueDriver-M3 JK Audio ™ XLR into any mic level input of Phone your PA system. Pair the BlueDriver in <Phone> mode to your cell phone, music player, or laptop computer and ’...
  • Page 14 The mini cable provided with your BlueDriver allows you to connect an aux output of your mixer to the <Send> jack on the BlueDriver-M3. This signal goes back to the headset, so make sure you don’t send your voice back to yourself. See page 13 for a “Mix-Minus”...
  • Page 15 Bluetooth A2DP audio. Simply connect the supplied cord between the <Send> mini jack on your BlueDriver-M3 and the line level or headphone output jack of your audio source, then pair to your Bluetooth headphones or speakers.
  • Page 16 JK Audio ™ Phone Through Our Wireless Link Our BlueDriver-F3 (<Headset> mode) and BlueDriver-M3 (<Phone> mode) can be paired together to create a full A2DP music bandwidth wireless link. Range is limited to 40 feet, but this may be just enough for your application.
  • Page 17 INSERT INSERT LINE IN 4 LINE IN 6 LINE IN 8 ST RETURN FX SEND MAIN OUT PHONES Send input on the BlueDriver-M3™. INSERT INSERT LINE IN 4 LINE IN 6 LINE IN 8 ST RETURN FX SEND MAIN OUT...

  • Page 18: Faq's

    Idle Mode instead of Pairing Mode Bluetooth wireless technology enabled device. The maximum range of this and your BlueDriver-M3 is not being recognized. To reach Pairing Mode, product is achieved when a clear line of sight is maintained between hold the <Connect button>...
  • Page 19 These batteries do not have This is not a user replaceable battery. a “charging memory” and they can Please contact JK Audio or a factory be recharged at any time without authorized service center for battery changing their life expectancy.

  • Page 20: Technical Information

    113ºF) to prolong battery life. A2DP = 30Hz - 17 kHz End-to-End Latency = 150 ms While BlueDriver was designed to be very rugged and durable, it is not waterproof and care should be taken to keep the unit dry. BlueDriver-M3 Wireless Audio Interface...
  • Page 21 90 days. The Lithium-Ion battery streaming. in this device is not user replaceable. Headset: Facilitates mono, full-duplex Please contact JK Audio or a factory audio between two paired devices. authorized service center for battery Hands-Free: Similar to Headset replacement.

  • Page 22: Declaration Of Conformity

    Nemko-CCL File Number NA201010004 ESD: EN 55024:1998; EN 61000-3-2; EN 61000-3-3 Emissions: EN 55022:2006 AS/NZS CISPR 22 (2002) FCC Part 15, Subpart B ICES-003 Bluetooth Radio: EN 300.328 FCC Part 15.247 FCC ID QOQWT32AE IC 5132A-BGTWT32AE BlueDriver-M3 Wireless Audio Interface...
  • Page 23 CE marking accordingly: LVD 2006/95/EC (Safety) EMC 04/108/EEC (EMC) RoHS Directive 2002/95/EC The Technical File containing supporting documentation is maintained at: JK Audio, Inc (Corporate Headquarters) Compliance Manager 1311 E 6th Street Sandwich, Illinois 60548 USA +1-815-786-2929 phone...
  • Page 24 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2014 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
