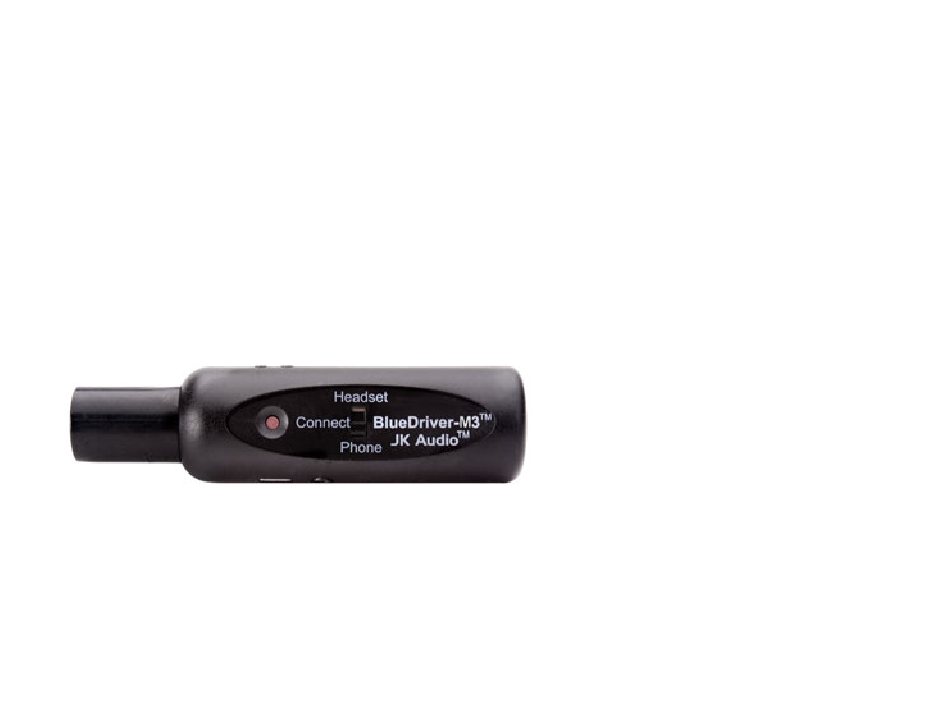

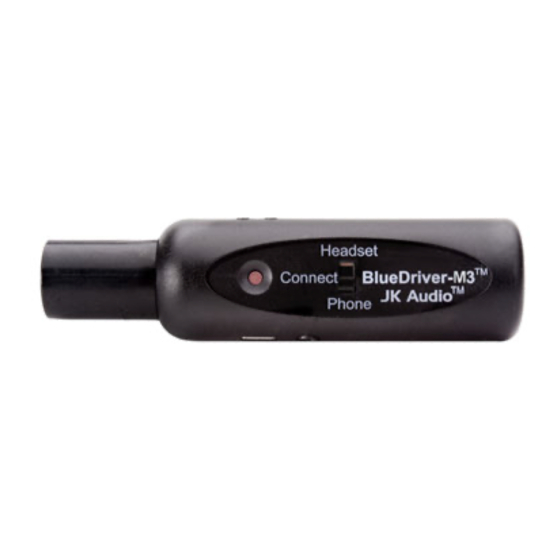

BlueDriver-M3
™
Wireless Audio Interface
User Guide
JK Audio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueDriver-M3 and is the answer not in the manual?

Questions and answers

Related Manuals for JK Audio BlueDriver-M3

Summary of Contents for JK Audio BlueDriver-M3

  • Page 1 BlueDriver-M3 ™ Wireless Audio Interface User Guide JK Audio...
  • Page 2 Welcome Thank You Limited Warranty Thank you for purchasing the BlueDriver-M3 is covered by a 2 year JK Audio BlueDriver-M3 Wireless warranty to be free from defective Audio Interface. Please read this workmanship and materials. To obtain guide for instructions on setting service, contact JK Audio by phone up and using your new product.

  • Page 3: Table Of Contents

    Contents Overview Getting to know your BlueDriver-M3 ® Bluetooth Wireless Technology 4 Pairing, Idle and Connected Mode 5 Bluetooth Status LED 6 Pairing to a Cell Phone 7 Pairing to a Headset 8 Disconnecting, Connection History, Reconnecting Wireless Applications FAQ's...
  • Page 4 Features HD Voice* 3 Pin Male XLR Output Mini USB Power Jack 1/8" (3.5 mm) Line Level Input >6 Hours on Internal Li-Ion Battery In the Box USB Charger Cable (CN108) 1m Stereo 3.5mm Cable (CN104) BlueDriver-M3 Wireless Audio Interface...

  • Page 5: Overview

    Overview Introducing the BlueDriver-M3. ® The BlueDriver-M3 wireless audio interface uses Bluetooth wireless technology to add wireless possibilities to your audio mixing console. Model M3 provides 2-way, full duplex voice band audio path when connected to a device using the Hands Free profile.

  • Page 6: Getting To Know Your Bluedriver-M3

    Getting to know your BlueDriver-M3 Headset BlueDriver-M3 ™ Connect JK Audio ™ Power Send Phone 1. Connect Button Select <Headset> if you will be using your BlueDriver with a The <Connect> button is used to Bluetooth enabled headset or any turn on the BlueDriver and initialize device that emulates a headset.
  • Page 7 Getting to know your BlueDriver-M3 Connect the USB cable to the mini 4. Send Input USB connector on your BlueDriver A 3.5 mm stereo line level input and a USB power source to charge jack enables you to add audio from the battery.

  • Page 8: Bluetooth Wireless Technology

    *See page 8 for instructions on how to turn the unique device ID is stored in off BlueDriver-M3. Connection History. Subsequent connections can be made from Idle Mode. For instructions on how to pair to a cell phone or headset, see pages 6-7. BlueDriver-M3 Wireless Audio Interface...

  • Page 9: Bluetooth Status Led

    Bluetooth Wireless Technology Bluetooth Status LED The blue LED on the front of the unit flashes in different sequences to indicate the current connection status. Pairing 100ms off, 100ms on Idle 2s off, 200ms on Connected 2s off, 1s on HD Connected 2s off, 4s on Bluetooth Wireless Technology...

  • Page 10: Pairing To A Cell Phone

    2 seconds off, 1 second on. (2 s off, 4 s on for HD Voice). Subsequent connections can be made more quickly from Idle Mode by holding the <Connect> button for only 2 seconds before releasing. BlueDriver-M3 Wireless Audio Interface...

  • Page 11: Pairing To A Headset

    <Connect> button on the BlueDriver for at least 6 seconds. After you release it, the blue LED should flash rapidly if the BlueDriver is in Pairing Mode. * See page 8 for instructions on how to turn off BlueDriver-M3. Bluetooth Wireless Technology...
  • Page 12 10 seconds. automatically connect to a paired c) pressed after BlueDriver-F3 was left device that is Bluetooth-enabled, unused and powered off automatically. powered-on and within range. Note: Connecting via Bluetooth wireless technology varies with different cell phones. BlueDriver-M3 Wireless Audio Interface...

  • Page 13: Wireless Applications

    The mini cable provided with your BlueDriver allows you to connect an aux output of your mixer to the <Send> jack on the BlueDriver-M3. This signal goes back to the caller, so make sure you don’t send the Caller’s voice back to the caller. See page 13 for a "Mix-Minus"...
  • Page 14 Wireless Applications Headset Receive A2DP Audio from your Bluetooth Device Simply plug the BlueDriver-M3 XLR Phone into any mic level input of your mixer or PA system. Pair the BlueDriver in <Phone> mode to your device and enjoy full bandwidth, Bluetooth A2DP audio.
  • Page 15 The mini cable provided with your BlueDriver allows you to connect an aux output of your mixer to the <Send> jack on the BlueDriver-M3. This signal goes back to the headset, so make sure you don’t send your voice back to yourself. See page 13 for a “Mix-Minus”...
  • Page 16 Broadcast High Quality Audio BlueDriver-F3 Through Our Wireless Link Headset Our BlueDriver-F3 (<Headset> mode) and BlueDriver-M3 (<Phone> mode) can be paired together to create a Phone full A2DP music bandwidth wireless link. Range is limited to 66 feet, but this may be just enough for your application.
  • Page 17 STEREO GRAPHIC EQ INSERT INSERT LINE IN 4 LINE IN 6 LINE IN 8 ST RETURN FX SEND MAIN OUT PHONES Send input on the BlueDriver-M3. The STEREO GRAPHIC EQ PHANTOM GAIN GAIN GAIN GAIN GAIN POWER LOW CUT LOW CUT...

  • Page 18: Faq's

    Bluetooth wireless technology enabled in Idle Mode instead of Pairing Mode device. The maximum range of this and your BlueDriver-M3 is not being product is achieved when a clear recognized. line of sight is maintained between...
  • Page 19 How long will the charge on the battery last? This is not a user replaceable battery. Please contact JK Audio or a factory Based on tests with BlueDriver-M3 authorized service center for battery about 1 meter from a Bluetooth device, replacement.

  • Page 20: Technical Information

    Temp. ▼ ▼ ▼ every 90 days. The Lithium-Ion battery 0ºC (32ºF) -10ºC (14ºF) -20ºC (-4ºF) in this device is not user replaceable. Please contact JK Audio or a factory authorized service center for battery replacement. BlueDriver-M3 Wireless Audio Interface...
  • Page 21 Technical Information Dimensions Input Connection: 1/8" (3.5 mm) stereo Size: 1.1” x 4.4” (2.8 cm x 11.2 cm) Impedance: 20k ohms Weight: 2.1 oz (60 g) Level: -10 dBu nom. Bluetooth Wireless Technology Output Standard: Bluetooth 3.0 Connection: 3 pin male XLR Range: 66 feet (20 meters) Impedance: 1k ohms...
  • Page 22 Conforms to the following Product Specifications: ESD: EN 55024:1998; EN 61000-3-2; EN 61000-3-3 Emissions: EN 55022:2006 AS/NZS CISPR 22 (2002) FCC Part 15, Subpart B ICES-003 Bluetooth Radio: EN 300.328 FCC Part 15.247 FCC ID QOQWT32AE IC 5132A-BGTWT32AE BlueDriver-M3 Wireless Audio Interface...
  • Page 23 Changes or modifications not interference when the equipment is operated expressly approved by JK Audio can void the in a commercial environment. This equipment user's authority to operate the equipment. generates, uses, and can radiate radio...
  • Page 24 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2018 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
