- Page 1 BlueDriver-F3 ™ Wireless Audio Interface User Guide JK Audio...
-
Page 2: Limited Warranty
Welcome Thank You Limited Warranty Thank you for purchasing the JK Audio BlueDriver is covered by a 2 year BlueDriver-F3 Wireless Audio Interface. warranty to be free from defective Please read this guide for instructions workmanship and materials. To obtain... -
Page 3: Table Of Contents
Contents Overview Getting to know your BlueDriver-F3 Starting Up Bluetooth Wireless Technology 4 Status LED 5 Pairing to a Cell Phone 6 Pairing to a Headset 7 Disconnecting, Connection History, Reconnecting Wireless Applications FAQ's Technical Information Contents... - Page 4 Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice. 7 kHz BlueDriver-F3 Wireless Audio Interface...
-
Page 5: Overview
Overview Introducing the BlueDriver-F3. The BlueDriver-F3 wireless audio interface uses Bluetooth® Wireless Technology to add wireless possibilities to your microphone or the mic level output of your audio mixing console. Model F3 provides a 2-way, full duplex voice band audio path when connected to a device using the Hands Free profile. -
Page 6: Getting To Know Your Bluedriver-F3

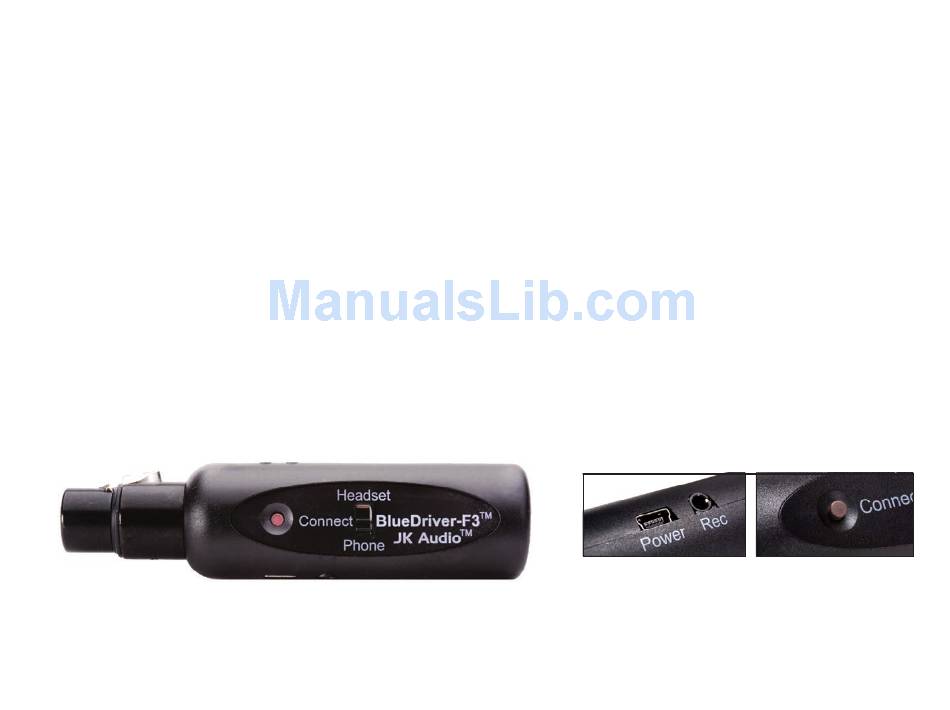

Getting To Know your BlueDriver-F3 Mode Switch Mic Trim In the Bluetooth world, a Master A small flat blade screwdriver can be used to adjust the <Mic Trim> pot device, such as a wireless phone, computer, or music player, is on the back of the unit. -
Page 7: Starting Up
Connect Button will normally charge in about 2 1/2 hours, please allow 4-5 hours for this first charge. Connect the power supply Headset BlueDriver-F3 ™ Connect cable to the mini USB connector on JK Audio ™ Phone your BlueDriver to charge the battery. -
Page 8: Bluetooth Wireless Technology
Bluetooth Wireless Technology Bluetooth Status LED The blue LED on the side of the unit flashes in different sequences to indicate the current connection status. Pairing Mode Idle Mode In Pairing Mode, any Bluetooth To connect from Idle Mode, hold the <Connect Button>... -
Page 9: Pairing To A Cell Phone
1 second on (2 secs BlueDriver for at least 6 seconds. off, 4 secs on for HD Voice). Once Upon release, the blue LED should BlueDriver-F3 has been added flash rapidly as the BlueDriver to your cell phone, subsequent enters Pairing Mode. -
Page 10: Pairing To A Headset
Pairing Mode. Note: Connecting via Bluetooth Note: If left unused in Idle or Pairing wireless technology varies with different Mode, the BlueDriver will automatically cell phones. disconnect the Bluetooth connection in two minutes and power off. BlueDriver-F3 Wireless Audio Interface... - Page 11 Bluetooth Wireless Technology When Should I Release the MFB Button? Bluetooth LED Idle Mode Pairing Mode Role Change Clear seconds Disconnecting from a Device BlueDriver will return to Pairing Mode. To disconnect from any Bluetooth Reconnecting to Paired wireless technology enabled device Devices and turn the power off, simply hold the <Connect Button>...
-
Page 12: Wireless Applications
Wireless Applications Live Man-On-The-Street Interviews Simply plug BlueDriver-F3 into the bottom of a dynamic microphone, then pair to a cell phone and dial into the station as usual for live remote broadcast back to the station. This ” ’ AL T... - Page 13 Remote Broadcasts You may have the finest IP CODEC available, but if the internet goes down, there goes the remote. Simply Power Rec plug BlueDriver-F3 into the mic-level ” ’ AL T master audio output of your mixer or CODEC. Pair to your cell phone which is dialed into the station.
- Page 14 Wireless Applications Record Phone Interviews Record high quality phone interviews using your favorite mic and headphones. Simply plug BlueDriver-F3 into the bottom of a dynamic microphone, then pair to a cell phone and place a call as ’ ” AL T usual.
- Page 15 Wireless Applications Transmit Bluetooth A2DP Audio The “Headset” mode of BlueDriver-F3 connects to Bluetooth headphones or wireless speakers, and provides full bandwidth Bluetooth A2DP audio. Simply plug BlueDriver-F3 into the mic-level master audio output of your mixer or playback system, then pair to your headphones or speaker.
- Page 16 Broadcast High Quality Audio JK Audio ™ Phone Through Our Wireless Link Our BlueDriver-F3 (<Headset> mode) and BlueDriver-M3 (<Phone> mode) can be paired together to create a full A2DP music bandwidth wireless link. Range is limited to 40 feet, but this may be just enough for your application.
- Page 17 Wireless Applications Master(Phone) or What is the Difference Headset Mode between Profiles? The Master device controls the connection, and also has the A2DP (Advanced Audio ability to stream stereo A2DP Distribution Profile): audio to the Headset device. Used for stereo music streaming. A2DP music streaming is a one- way path from Master(Phone) Headset:...
-
Page 18: Faq's
Idle Mode instead of Pairing Mode Bluetooth wireless technology enabled device. The maximum range of this and your BlueDriver-F3 is not being recognized. To reach Pairing Mode, product is achieved when a clear line of sight is maintained between hold the <Connect button>... -
Page 19: This Unit
I move the switch from Headset This is not a user replaceable battery. to Phone? Please contact JK Audio or a factory authorized service center for battery If you change this switch while the replacement. unit is on, you will need to power the... -
Page 20: Technical Information
50 feet ( 15 meters ) HF = full duplex voice 300 Hz - 3.4 kHz Frequency HF (HD) = full duplex HD Voice Response: 50 Hz -7 kHz A2DP = 30Hz - 17 kHz End-to-End Latency = 150 ms BlueDriver-F3 Wireless Audio Interface... -
Page 21: Battery Information
If this unit is not in use, the to keep the unit dry. battery should be recharged at least every 90 days. The Lithium-Ion battery in this device is not user replaceable. Please contact JK Audio or a factory authorized service center for battery replacement. Technical Information... -
Page 22: Declaration Of Conformity
Nemko-CCL File Number NA201010004 ESD: EN 55024:1998; EN 61000-3-2; EN 61000-3-3 Emissions: EN 55022:2006 AS/NZS CISPR 22 (2002) FCC Part 15, Subpart B ICES-003 Bluetooth Radio: EN 300.328 FCC Part 15.247 FCC ID QOQWT32AE IC 5132A-BGTWT32AE BlueDriver-F3 Wireless Audio Interface... - Page 23 CE marking accordingly: LVD 2006/95/EC (Safety) EMC 04/108/EEC (EMC) RoHS Directive 2002/95/EC The Technical File containing supporting documentation is maintained at: JK Audio, Inc (Corporate Headquarters) Compliance Manager 1311 E 6th Street Sandwich, Illinois 60548 USA +1-815-786-2929 phone...
- Page 24 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2014 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
