Appendix 2: System specifications
WaveGuide radar
Mechanical
Weight
Casing material
Electrical
Radar frequency
Modulation
Emission
Power requirements
Processor
Connectivity
Memory
Environmental conditions
Ambient temperature
Relative humidity
Ingress protection
18.5 [kg] (per sensor incl. antenna 2.8 [kg])
Chromatized aluminium
9.319 – 9.831 [GHz]
Triangular FMCW
The emitted microwave energy is far below acceptable limits for exposure
of the human body. Depending on the type of antenna, a maximum
radiation of 0.1 [mW] is generated.
24-65 [VDC] and 8 [Watt] or 65-240 [VAC] and 8 [Watt]
TM
ARM Cortex A9 792MHz
Ethernet
On board backup memory
-40 to 65 [ C]
o
0 – 100 %
IP67

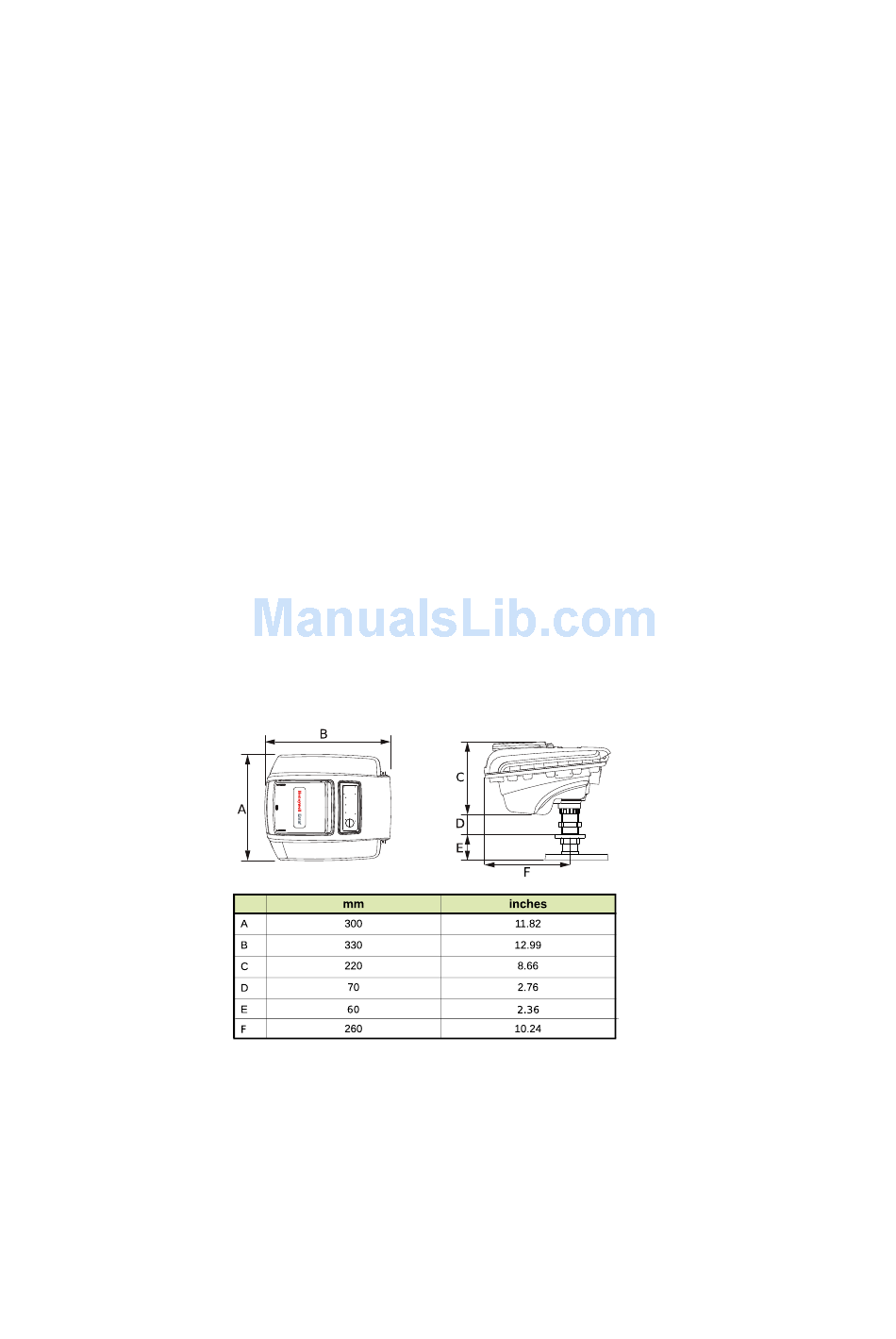

Figure 1: WaveGuide Explosion Proof dimentions.
38
