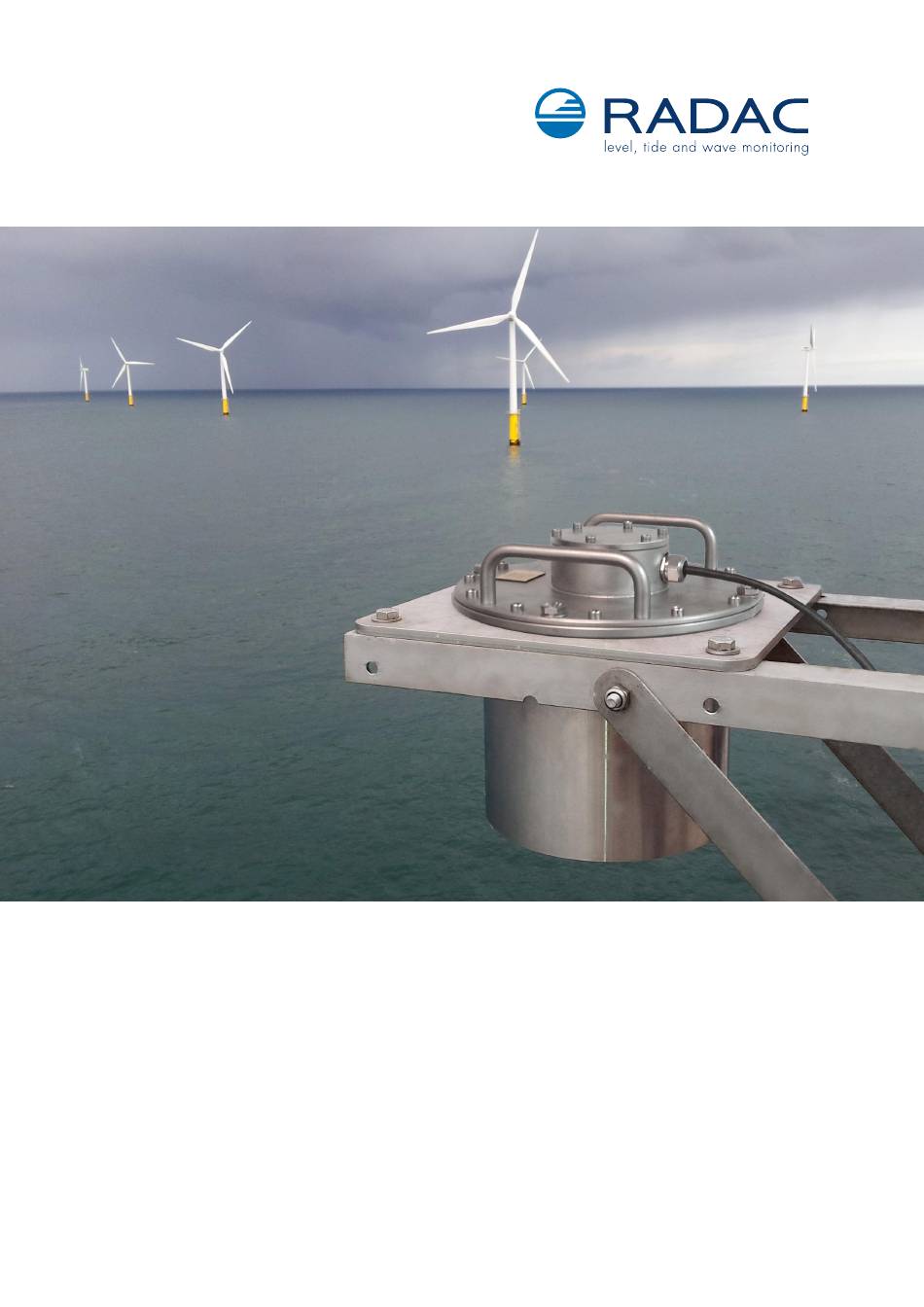

  • Page 1 WaveGuide Height & Tide User Manual...
  • Page 3 WaveGuide Height & Tide User Manual Version 5.2-1-1 of Nov. 2020 Applicable for product number: WG5-HT-CP Related to software versions: wht 5.2-1 Radac B.V. Elektronicaweg 16b 2628 XG Delft The Netherlands tel: +31(0)15 890 3203 e-mail: info@radac.nl website: www.radac.nl...
  • Page 5 Preface This user manual and technical documentation is intended for engineers and technicians involved in the software and hardware setup of the WaveGuide 5 Height and Tide System, Compact version (WG5-HT-CP). Note All connections to the instrument must be made with shielded cables with exception of the mains.

  • Page 7: Table Of Contents

    Contents Preface Introduction 1 Radar positioning and installation 1.1 Safety notes ........1.2 Positioning .

  • Page 9: Introduction

    This manual describes the Compact version of the WaveGuide Height & Tide. Please refer to the radac website for all other manual versions. Warning Do not use the instrument for anything else than its intended purpose.

  • Page 11: Radar Positioning And Installation

    Caution Modification to the instrument may only be carried out by trained personnel that are authorized by Radac BV. Failure to adhere to this will invalidate the warranty and the approval certificate. Warning In hazardous areas it is compulsory to: •...

  • Page 12: Positioning

    Positioning For obtaining the best results from a WaveGuide Height & Tide the following radar positioning criteria must be taken into ac- count: • It is advised to choose a mounting position such that the WaveGuide radar beam is free of large reflecting obstacles (the beam of the F08 antenna can be approximated to a conical shape having a 5 [deg] half top angle as shown...

  • Page 13: Installation

    (M10 thread) for mounting the WaveGuide radar to the mounting plate. Upon request, Radac can supply an optional frame (Part no. WG-MH-SS) that allows for mounting the WaveGuide radar and mounting plate at angles 0, 5, 10, 15 and 20 [deg] away from vertical (see Fig.1.5).

  • Page 14: Wiring

    Waveguide Hight & Tide system. • The cable must be shielded and can have a maximum length of 80 [m]. Upon request, Radac can supply an optional cable that com- plies with the WaveGuide system requirements for power and data transmission.
  • Page 15 The cable shielding must be connected to ground at both ends of the cable. Label RJ45 Profinet Color Yellow Orange White Blue Table 2.1: Ethernet wiring instruction. Note Connecting the Reset poles for for 0.5 to 2 seconds during operation will cause the sensor to temporarily use the default IPV4 address 192.168.111.71 until the system is rebooted.

  • Page 16: Waveguide System Commissioning

    Chapter 3 WaveGuide system commissioning With all the wiring in place as described in the previous chapter, the system can be con- figured using the following steps (explained in the current chapter): 1. Connect the WaveGuide system to a computer. 2.
  • Page 17 By default, during startup the WaveGuide system tries to obtain an IPV4 address by searching the Local-Area-Network for a DHCP server. If a DHCP server is available and the WaveGuide sensor completes the startup process, its IPV4 address can be found using a Zeroconf browser such as Avahi or Bonjour. If a DHCP server is not available, a temporary fixed IPV4 address can be set by connecting the two reset poles in the sensors terminal compartment for 0.5 to 2 seconds.

  • Page 18: Step 2. Become An Authorised User

    In that case, the authorization data will be submitted automatically by the browser without a pop-up dialog. The default login password is “radac”. After a successful authorization, the user can view and change settings. After submitting any new settings a reboot dialog will appear.

  • Page 19: Step 3. Configuration

    Step 3. Configuration The configuration page contains five sections as listed in Table 3.2. Link Description Date&Time For viewing and setting the system time. Network For viewing and changing the network settings. Sensor For viewing and changing the sensor specific settings and for view- ing reflection diagrams.

  • Page 20: Step 3.2: Adjust Network Settings

    Step 3.2: Adjust network settings Figure 3.4: Adjusting the network settings. The network settings can be modified via the web-interface (Fig. 3.4). It is advised to use the default setting, to automatically obtain the network settings from a DHCP server, and assure from the side of the DHCP server that the system will receive the same IP-address at all times.
  • Page 21 Figure 3.5: Setting sensor parameters (changes only take effect after the system is rebooted). The mounting height is defined as the height of a radar above the reference water level in [m]. The reference point for measuring the height of each radar is the lower-side of the radar mounting flange (as shown in Fig.
  • Page 22 adjusted by an expert user. Reflection diagram The reflection diagram gives a snapshot of raw radar data in the frequency domain. The reflection diagram provides a useful insight in the quality of the reflection signal that is obtained by the radar. After changing the sensor parameters for the radar, rebooting the system is required for the changes to take effect.

  • Page 23: Step 4: Perform System Check

    Step 4. Perform system check This section explains how to inspect the quality of measurements after configuring and rebooting the WaveGuide system (the start-up process can take up to 5 minutes). Step 4.1: Check system information page The system information table can be reached through the status menu item on the top-right of the web interface.

  • Page 24: Step 4.2: Check Reflection Diagrams

    Step 4.2: Check reflection diagrams The reflection diagram for each sensor can be accessed via the sensor configuration page by clicking on the corresponding "reflection" button (Fig. 3.7). A reflection diagram is a graphic representation of a 25 [ms] scan, where the signal strength [dB] is plotted against the measurement distance [m].

  • Page 25: Step 5: Configure Distribution Of Data

    Default message format The Default format starts a new line for each parameter in the subscription. The time used in the Radac format is Unix Epoch time in milliseconds (UTC time in milliseconds since 00:00:00 on the 1 of January 1970). Each line in the Default format ends with a Line-Feed character (char10).
  • Page 26 For a regular message the status character is a space. If an error occurs the status character becomes a letter A. An example of the output strings in the RWS format is, +0001 - 0004 A+9999 Format02 message format Modifications can be made upon request. For example, the Format02 the Korean Meteoro- logical Administration (KMA format) preferred a readable time format in the Korean time zone.

  • Page 27: Technical Assistance

    Please note that it can take up to 3 minutes to generate and download the diagnostics file and that it can contain up to 100 [kB] of data. It is recommended to share the diagnostics file with Radac B.V. because it can help with providing future technical support.

  • Page 28: Using The System

    Dutch government for wave height analysis. It also meets the standards set by the International Association of Oil & Gas Producers (OGP). A detailed description of the SWAP package is available on the Radac website (http://www.radac.nl).

  • Page 29: Data Logging

    IP address". The Login name and password for FTP access are the same as the user-name and password for modifying settings (by default both user-name and password are ’radac’) Figure 4.1: Data logger page. In the logging directory, sub-directories are created for each parameter. Within the each parameter folder data text files (one file per day per parameter) are stored.

  • Page 30: Appendix 1: System Parameters

    Appendix 1: System parameters Default parameters A selection of the raw and processed parameters is by default available for plotting, storing and export (Table 1). Name Description Unit heave Instantaneous water level Ngd_zP Percentage of data points that do not contain error code before pre-processing Significant wave height from M0 Tm02 Average period from M0 and M2 in the range f=[30-500] mHz...
  • Page 31 It is strongly recommended that the user requests the changes when the WaveGuide Height & Tide system is ordered such that all necessary tests can be performed at Radac. Post-delivery adjustments to the available parameters are possible upon request, but not recommended.
  • Page 32 Name Description Unit H1/3 Average height of the highest 1/3 of the waves TH1/3 Average period of the highest 1/3 of the waves H1/10 Average height of the highest 1/10 of the waves H1/50 Average height of the highest 1/50 of the waves T1/3 Average period of the longest 1/3 of the periods Average height of all waves...

  • Page 33: Appendix 2: System Specifications

    Appendix 2: System specifications WaveGuide radar Mechanical Dimensions 265 x 245 [mm] (diameter, height) Weight ≈ 12 [kg] Casing material Stainless Steel Electrical Radar frequency 9.319 – 9.831 [GHz] Modulation Triangular FMCW Emission The emitted microwave energy is far below acceptable limits for exposure of the human body.

  • Page 34: Appendix 3: Led Blinking Modes

    Appendix 3: LED blinking modes The WaveGuide sensor is equipped with a blue indicator LED inside the top lid. The purpose of this LED is is twofold: • The LED functions as a status indicator when in standard operating mode. This is the status mode of the LED.
  • Page 35 Indicator pattern Definition Remark Off No power connected. Solid on Power is connected and the system is Wait for 2 minutes, after which the in- starting. dicator should change its behavior. Blink 1 time The system is up and running, but no Check the network cable connections.
