Unpacking

Remove the High Pressure Cleaner and its accessories from the packing material. For
transport and packing reasons some accessories may be supplied disassembled.
Make sure all components are present:
• High-pressure machine itself
• Handle bar (partly attached)
• Wing nuts for the handle bar
• Electrical cord (attached)
• High pressure hose with Spray-gun trigger
• Double barrel lance (disassembled)
• Water inlet male hose coupling

Machine Installation / Setup

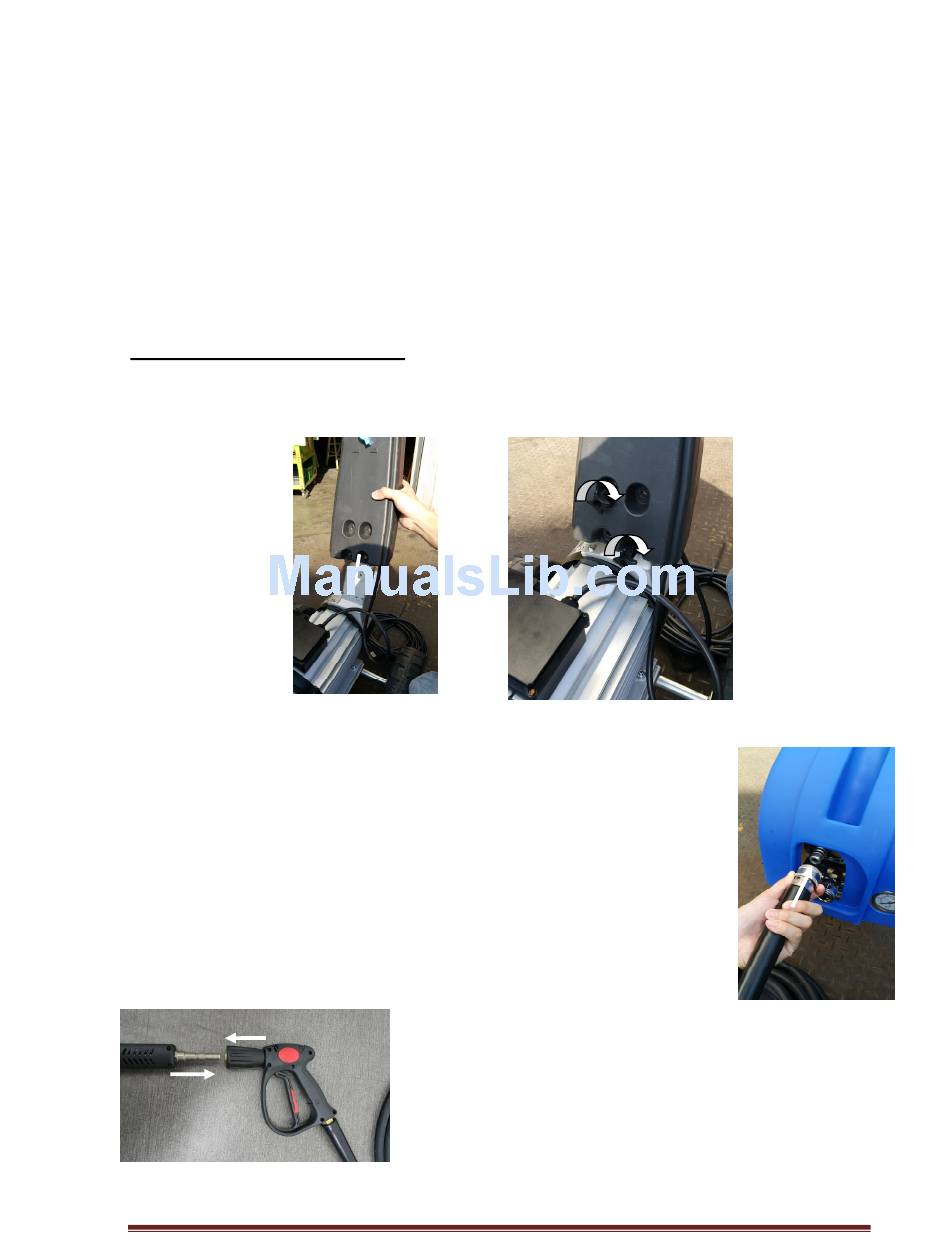

Attach the handle bar to the machine using the wing nuts and bolts supplied and align the
handle bar according to the cabinet moulding.
Mount the high-pressure hose on to the High Pressure Cleaner by pulling
back the retainer on the high-pressure hose coupling, while sliding it onto
the male outlet of the unloader till a click sound could be heard.
(A)
(B)
C-110-170-200E
Assemble the double barrel spray-lance. To mount the
assembled spray-lance on to the Spray-gun trigger, pull
forward the front of the Spray-gun trigger (A) while sliding
in the male swivel coupling part of the spray-lance. (B)
