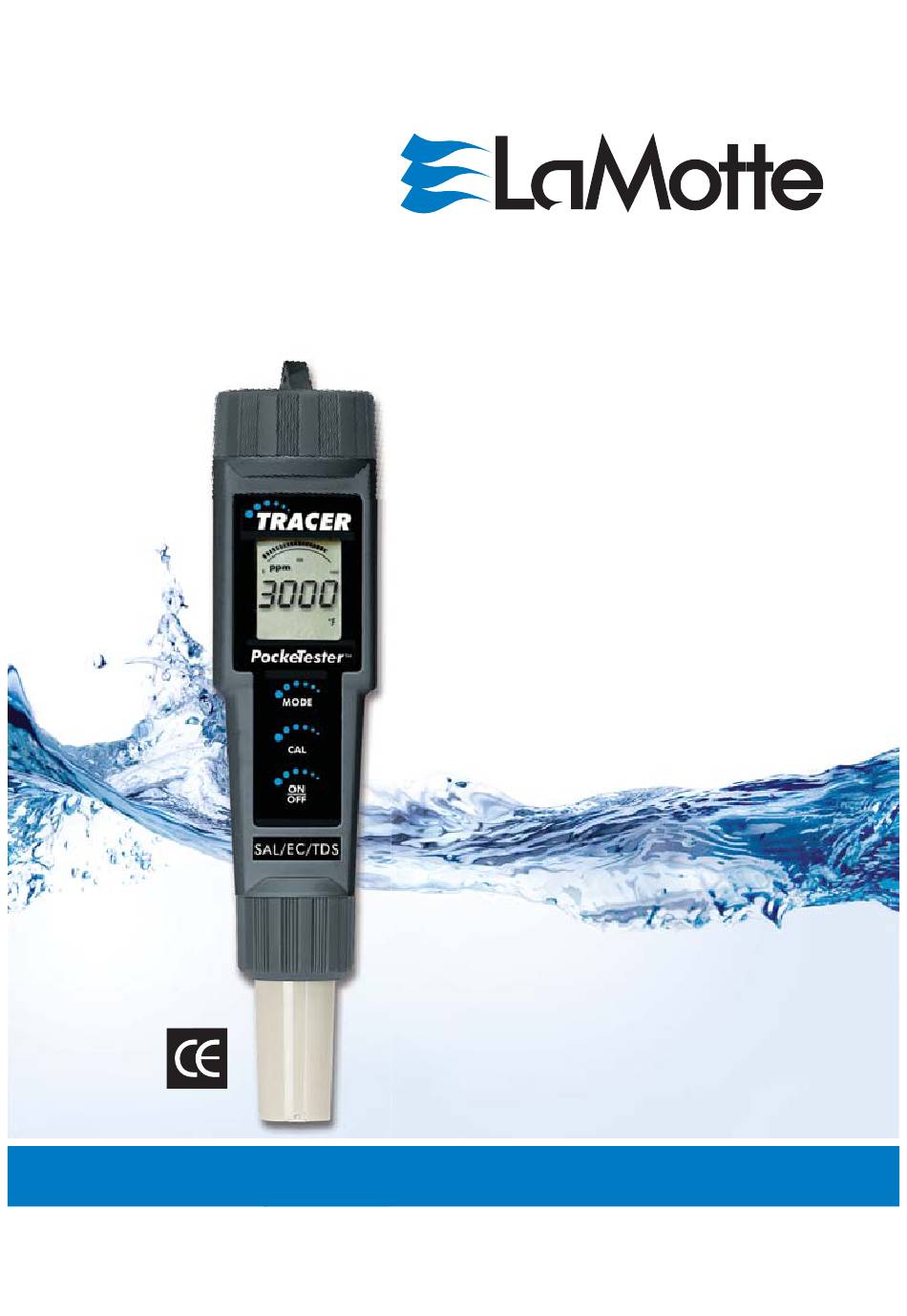

- Page 1 Tracer Salt/TDS/Temp PockeTester Code 1749-KIT-01 Pool Professional's Meter!
- Page 2 Warning! This set contains chemicals that may be harmful if misused. Read cautions on individual containers carefully. Not to be used by children except under adult supervision.
-
Page 3: Table Of Contents
TRACER SALT/TDS/TEMP POCKETESTER • CODE 1749-KIT-01 Introduction ..................4 Specifi cations ..................4 Contents ..................5 Parts & Accessories ................5 Meter Description Front Panel Description ............... 6 TRACER Display ................6 Basic Operation Powering the TRACER ..............7 Automatic Calibration ..............7 TDS Conversion Ratio ..............7 To Change the TDS Conversion Ratio ........ -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the Total Dissolved Solids/Salinity TRACER PockeTester. The TRACER is a revolutionary, fi rst of its kind measurement device that offers direct reading of salinity and TDS with one electrode. Careful use and maintenance will provide years of reliable service. SPECIFICATIONS Display 2000 count LCD with Bar Graph... -
Page 5: Contents
CONTENTS SALT/TDS/TEMP TRACER PockeTester Kit Code 1749-KIT-01 Includes: SALT/TDS/TEMP TRACER PocketTester Code 1749 Calibration Standard, 3,000 ppm Code 6005-J Sample Cup w/cap Code 1745-1 PARTS & ACCESSORIES SAL/EC/TDS Replacement Electrode Code 1765 Weighted Stand w/Sample Cups (5) Code 1746 Sample Cups w/caps (24) Code 1745-1 Calibration Standard, 3,000 ppm, 120mL Code 6005-J... -
Page 6: Meter Description Front Panel Description
METER DESCRIPTION Front Panel Description Battery compartment cap LCD Display MODE/HOLD button - change mode, hold data, store data CAL/RECALL button - calibration, change temperature units, recall data ON/OFF button Electrode Collar Electrode (Note: The Electrode cap is not shown) TRACER Display Bar graph reading Measurement reading... -
Page 7: Basic Operation Powering The Tracer
BASIC OPERATION Powering the TRACER The Tracer uses four CR2032 Lithium Ion batteries. If the batteries are weak, indicator will appear on the display. Press the ON/OFF key to turn the TRACER on or off. The auto power off feature will shut the TRACER off automatically after 10 minutes after the last button push. -
Page 8: Changing The Display Temperature Units
Changing the Displayed Temperature Units To change the displayed temperature units between °F or °C: With the TRACER off, press and hold the CAL/RECALL button. With the CAL/RECALL button pressed, momentarily press the ON/OFF SELF CAL button. When appears in the display, release the CAL/RECALL button. -
Page 9: Testing Getting Started
TESTING Getting Started Remove the cap from the bottom of the TRACER to expose the electrode. Before the fi rst use, rinse the electrode in deionized water and dry. Changing the Measurement Function The meter can be set to measure Conductivity, TDS (ppm), TDS (mg/L) or Salinity (ppm). -
Page 10: Measurement
Measurement Fill a sample cup to the 20 mL line with the test sample. Sample depth must be greater than or equal to 1.5 inches. Immerse the TRACER electrode in the sample. Make sure the electrode is completely submersed. Press the ON/OFF button. (8888 and then SELF CAL will appear in the display during the initial diagnos- tics). -
Page 11: Recalling Stored Readings
Recalling Stored Readings NOTE: First ensure that the HOLD symbol is not displayed. If it is, exit the HOLD function by pressing the MODE/HOLD button. Press the CAL/RECALL button and then press the MODE/HOLD button; the location number (1 through 25) will briefl y appear and then the value stored in that location will appear. -
Page 12: Calibration
CALIBRATION (SALT/TDS) For the most accurate results, allow suffi cient time for the temperature of the probe to reach the temperature of the sample before calibrating. This will be indicated by a stable temperature reading on the display Meter accuracy verifi cation should be performed on a periodic/monthly basis as needed. -
Page 13: Operational Matrix
OPERATIONAL MATRIX Function/ Resulting Action Power Mode Key Press Sequence On/Off On or Momentary press of ON/OFF button Calibration Press & hold CAL/ RECALL button for 2 seconds until CAL is displayed Store Reading Momentary press of MODE/HOLD button Hold Release Hold Momentary press of MODE/HOLD button... - Page 14 Function/ Resulting Action Power Mode Key Press Sequence Enter CON/TDS Press and release Ratio (ppm or the CAL/RECALL mg/L) button twice in quick succession. Change CON/TDS Press and release Ratio (ppm or the CAL/RECALL mg/L) button twice in quick succession. Momentary press of MODE/HOLD button.
-
Page 15: Maintenance Care/Storage Of Electrode
MAINTENANCE Care/Storage of Electrode Always rinse the electrode in distilled, tap or deionized water between measurements to avoid cross contamination. Double rinsing is recommended when high accuracy is required. Store the electrode dry with the cap on. Do not touch the electrodes. Touching the surface of the platinized electrodes may damage and reduce the life of the electrodes. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Check Action Reading is frozen HOLD mode Press MODE/HOLD button to exit HOLD mode “BAT” message Batteries low Replace batteries Meter will not Trapped air Tap probe or stir sample to calibrate bubbles release air bubbles Dirty probe Clean probe Damaged Replace probe... -
Page 17: Warranty
WARRANTY LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 1 year from the date of shipment and the probe to be free of defects in parts and workmanship for 6 months from the date of shipment. If it... - Page 18 blank...
- Page 19 blank...
- Page 20 LaMOTTE COMPANY Helping People Solve Analytical Challenges PO Box 329 • Chestertown • Maryland • 21620 • USA 800-344-3100 • 410-778-3100 (Outside USA) • Fax 410-778-6394 Visit us on the web at www.lamotte.com 1749-KIT-01MN 7/15...
