VM7814 / VM8814
4-Port 4K HDMI Input Board / Output Board Quick Start Guide

Package Contents

1 VM7814 HDMI Input Board or VM8814 HDMI Output Board
4 Terminal Blocks
4 HDMI LockPro
1 User Instructions

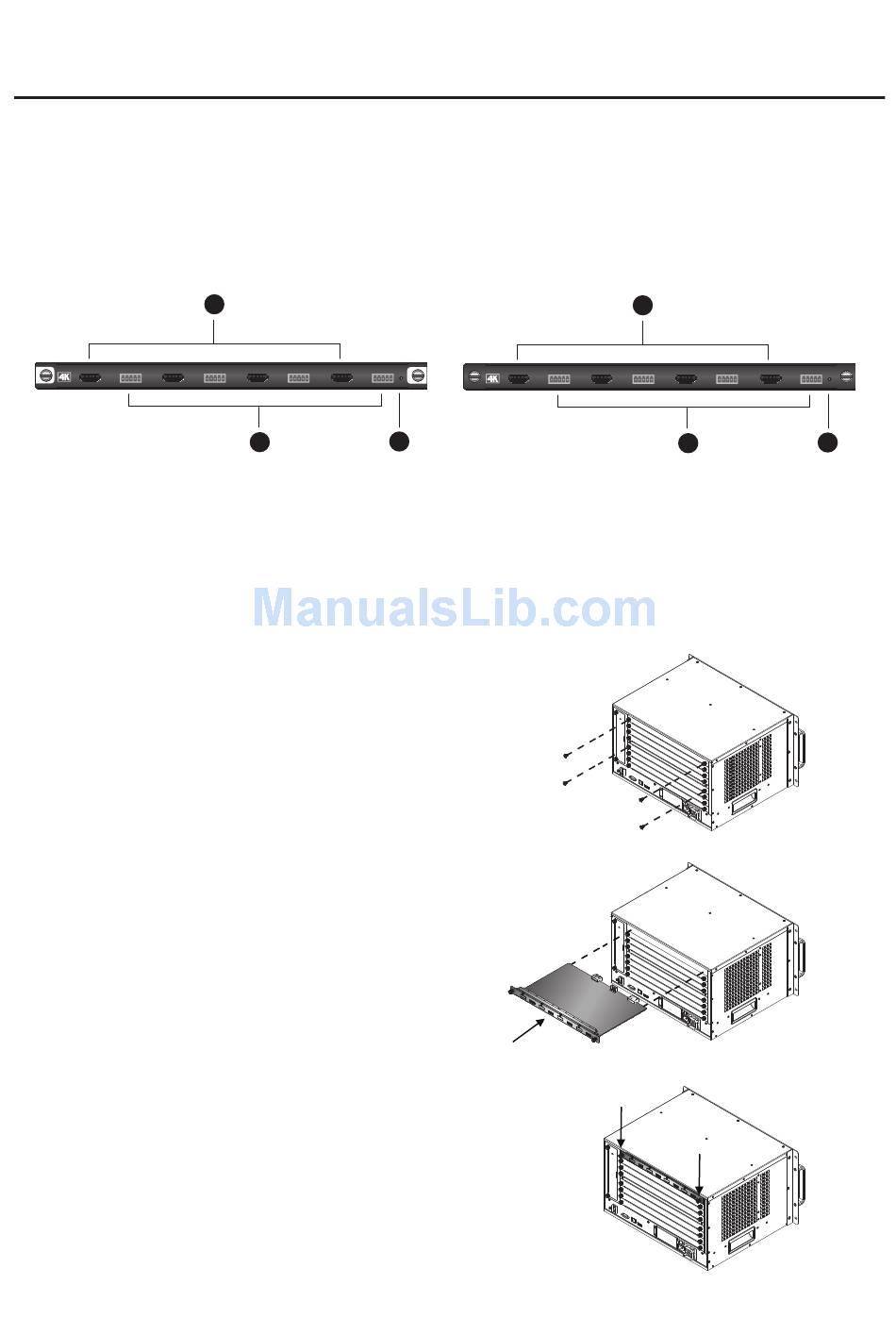

VM7814 Front View

Hardware Review

VM7814 Front View
1. HDMI Input Ports
2. Audio Input Ports
3. Status LED

Hardware Setup

I/O Board Installation
An ATEN 16 x 16 Modular Matrix Switch is used as an example in the
instructions below. For a list of compatible Modular Matrix Switches,
please visit our official website.
1. Power off the Modular Matrix Switch.
Note: The VM7814 and VM8814 are hot-swappable.
2. On the rear of the Modular Matrix Switch, unscrew the two Phillips
head screws and remove a back panel cover.
3. Slide the VM7814 into any of the Input Board Slots (4 upper slots),
and the VM8814 into any of the Output Board Slots (4 lower slots),
until they secure in place.
4. Tighten the screws on the I/O boards to fasten them to the Modular
Matrix Switch.
5. To install more I/O boards, repeat steps 2 to 4.
6. Proceed to the next section to install a source and a display device.
1
2
VM8814 Front View
3
VM8814 Front View
1. HDMI Output Ports
2. Audio Output Ports
3. Status LED
1
2
3
