ATEN VM7104 Quick Start Manual

VM7104
4-Port VGA Input Board Quick Start Guide

Package Contents

1 VM7104 4-Port VGA Input Board
4 Terminal Block Connectors
1 User Instructions

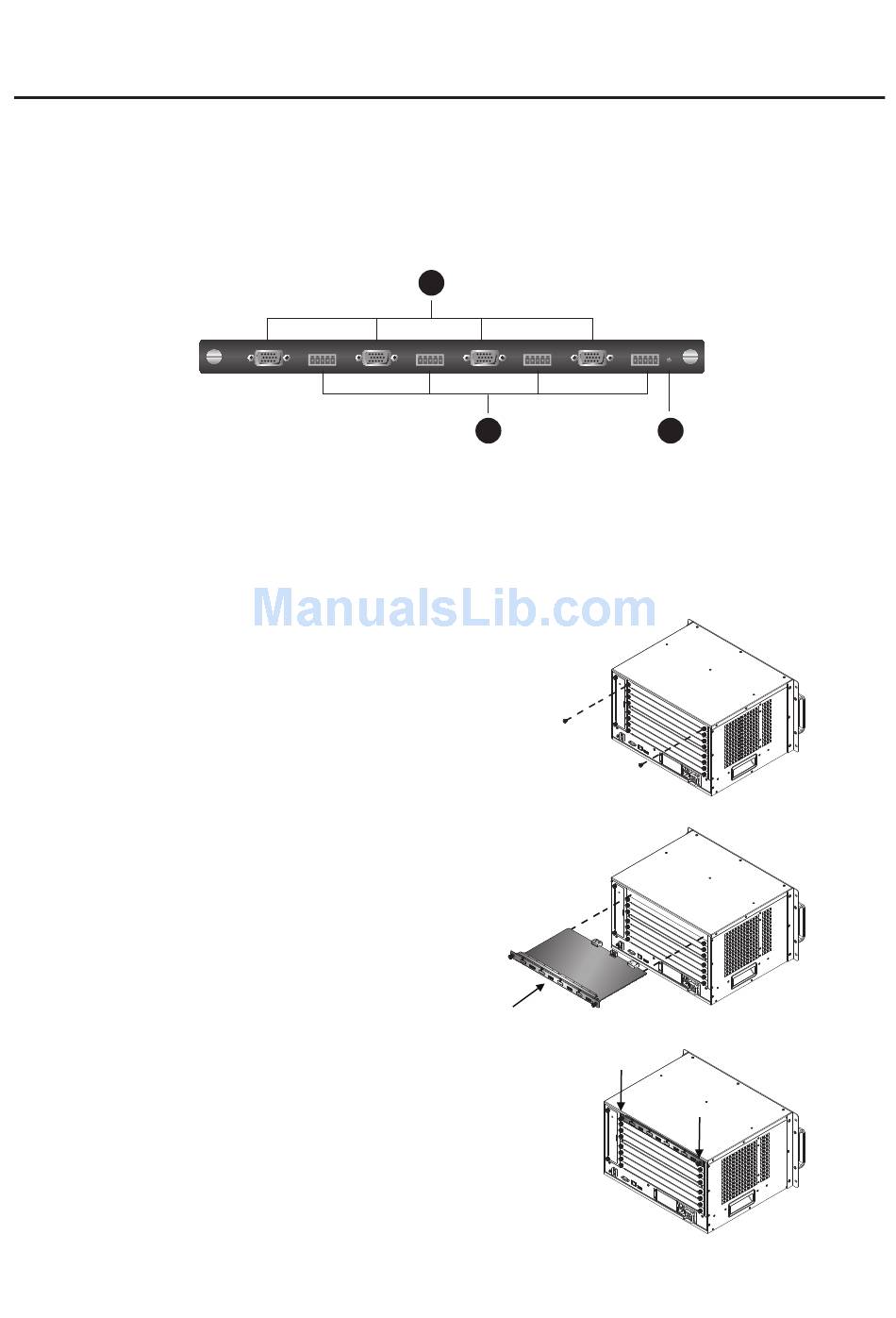

VM7104 Front View

Hardware Review
VM7104 Front View
1. VGA Input Ports
2. Audio Input Ports
3. Status LED

Hardware Setup

VM7104 Board Installation

1. (Optional) Power off the Modular Matrix switch.
Note: The VM1600 I/O boards are hot swappable.
2. On the rear of the VM1600, unscrew the two Phillips head screws and
remove the back panel cover.
Note: The four upper slots are for input boards; the four lower slots
are for output boards.
3. Slide the VM7104 board into the open slot on the VM1600 until it
secures in place.
4. Tighten the two screws on the VM7104 board to fasten it to the
Modular Matrix Switch, until it's secured to the unit
5. Repeat the steps above if you are installing additional I/O boards.
6. (Optional) Power on the Modular Matrix Switch.
1
2 3
