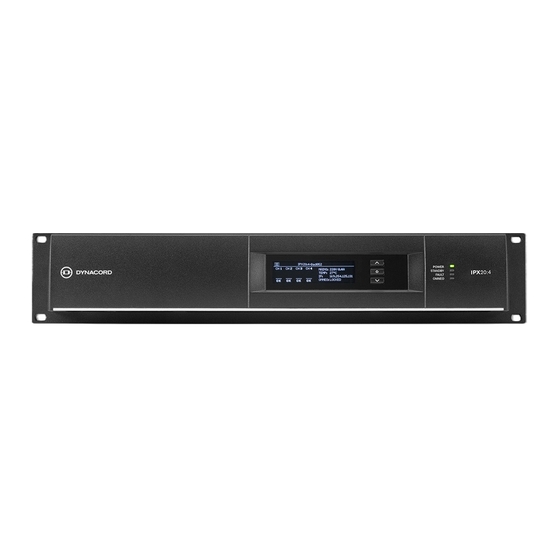

Summary of Contents for Dynacord IPX5:4

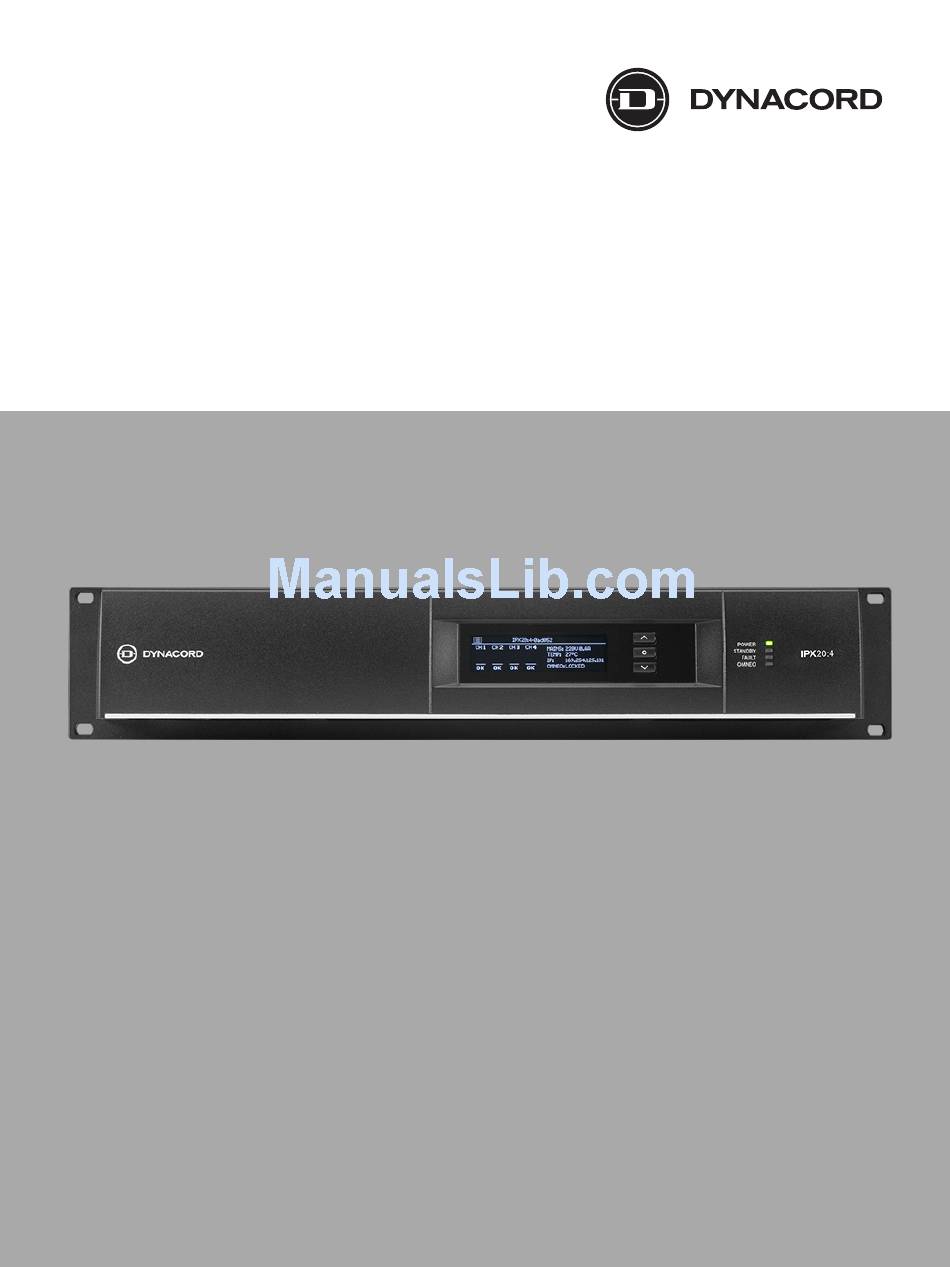

- Page 1 IPX Series DSP Multichannel Networking Power Amplifier IPX5:4 | IPX10:4 | IPX10:8 | IPX20:4 Installation manual...
-
Page 3: Table Of Contents
Standby and Eco Rail mode Remote control via software Technical data IPX5:4 IPX10:4 IPX10:8 IPX20:4 IPX5:4, IPX10:4, IPX10:8, and IPX20:4 Mains operation & resulting temperature Block diagram Dimensions Accessories Bosch Security Systems, Inc. Installation manual 2018.04 | 01 | F.01U.330.705... -
Page 4: Safety
IPX Series DSP Multichannel Networking Power en | Safety Amplifier Safety Safety messages explained Four types of signs can be used in this manual. The type is closely related to the effect that may be caused if it is not observed. These signs - from least severe effect to most severe effect - are: Notice! Containing additional information. - Page 5 IPX Series DSP Multichannel Networking Power Safety | en Amplifier Use only a dry cloth to clean the unit. Do not cover any ventilation slots. Always refer to the manufacturer's instructions when installing the device. Do not install the device close to heaters, ovens, or other heat sources. Note: The device must only be operated via the mains power supply with a safety ground connector.
-
Page 6: Safety Precautions
IPX Series DSP Multichannel Networking Power en | Safety Amplifier The minimum distance between voltage-carrying parts and metal parts that can be touched (such as the metal housing) or between mains poles is 3 mm, and must be observed at all times. The minimum distance between voltage-carrying parts and circuit parts that are not connected to the mains (secondary) is 6 mm, and must be observed at all times. -
Page 7: Notices
For information on getting permission for reprints and excerpts, contact Dynacord. All content including specifications, data, and illustrations in this manual are subject to change without prior notice. -
Page 8: About This Manual
Digital document This manual is available as a digital document in the Adobe Portable Document Format (PDF). You can find information about Dynacord products on the product related information at www.dynacord.com. 2018.04 | 01 | F.01U.330.705 Installation manual Bosch Security Systems, Inc. -
Page 9: System Overview
Features IPX5:4 features – 4 x 1250 W multichannel installation DSP amplifier with digitally controlled PFC supply –... -
Page 10: Scope Of Delivery
When shipping the power amp, make sure to always use its original box and packaging materials. Packing the power amplifier like it was packed by the manufacturer guarantees optimum protection from transport damage. Scope of delivery IPX5:4, IPX10:4, and IPX20:4 components: Quantity Component IPX series DSP power amplifier... -
Page 11: Planning Information
– Sufficient free space and access at the rear of the 19" units for connectors and wiring. To find current user documentation, firmware, or software visit our product related information at www.dynacord.com. Bosch Security Systems, Inc. Installation manual 2018.04 | 01 | F.01U.330.705... -
Page 12: Installation
Reactivating the amplifier from Standby will take only a few seconds. Ventilation As with all Dynacord fan cooled power amps, the airflow direction is front-to-rear. When installing the power amp in a case or rack system, attention should be paid to provide sufficient ventilation. - Page 13 IPX Series DSP Multichannel Networking Power Installation | en Amplifier Figure 5.1: Power amplifier ventilation Caution! Blocking/closing the power amp's ventilation louvers is not permissible. Without sufficient cooling/ventilation, the power amplifier may enter protect mode. Keep ventilation louvers free from dust to ensure unhindered airflow. Notice! Do not use the power amplifier in direct sunlight or near heat sources, like heater blowers, stoves, or any other heat radiating devices.
-
Page 14: Controls, Indicators, And Connections
IPX Series DSP Multichannel Networking Power en | Controls, indicators, and connections Amplifier Controls, indicators, and connections Front panel Figure 6.1: IPX front panel OLED display for amplifier status and level information. Menu navigation buttons, up, down, and enter for display changes and editing. Amplifier status indications: POWER LED indicates power on status. -
Page 15: Power Outputs
Figure 6.3: Control port Power outputs The output connectors on IPX series are in Euroblock type for 4 channels (IPX5:4, IPX10:4, IPX20:4) respectively 8 channels (IPX10:8). This allows an easy pre-wiring of the cables outside the rack and a fast - one connection for multiple channels at once, without the danger of wiring errors. -
Page 16: Audio Inputs
Figure 6.5: Output wiring for different operation modes on IPX amplifiers combining 2 or 4 channels. Audio inputs Audio input connectors on IPX series are Euroblock type for 4 channels (IPX5:4, IPX10:4, IPX20:4) respectively 8 channels (IPX10:8). This allows an easy pre-wiring of the cables outside the rack and a fast single connector for connecting multiple channels at once, without the danger of wiring errors. -
Page 17: Power Amplifier Menu Navigation
Figure 7.2: Channel menu The actual menu content is subject to change with firmware updates. For more information, see the product's support section on our website: www.dynacord.com. Standby and Eco Rail mode IPX amplifiers will automatically operate in Eco Rail mode when no or small audio signal (e.g. -
Page 18: Remote Control Via Software
Remote control via software IPX amplifiers can be completely remote controlled and supervised via the IRIS-Net software. For further instructions refer to the IRIS-Net manual available in the download section of our website: www.dynacord.com. 2018.04 | 01 | F.01U.330.705 Installation manual... -
Page 19: Technical Data
IPX Series DSP Multichannel Networking Power Technical data | en Amplifier Technical data IPX5:4 OUTPUT POWER Low-Z mode: Load Impedance 2 Ω 2.7 Ω 4 Ω 8 Ω Maximum Output Power Normal Mode, all channels driven 1300 W 1500 W... - Page 20 IPX Series DSP Multichannel Networking Power en | Technical data Amplifier Signal to Noise Ratio Amplifier A-weighted, analog input 112 dB A-weighted, digital input 115 dB Output Noise A-weighted, analog input < -70 dBu A-weighted, digital input < -73 dBu CONNECTIVITY Analog Audio Input/Thru Type...
-
Page 21: Ipx10:4
IPX Series DSP Multichannel Networking Power Technical data | en Amplifier IPX10:4 OUTPUT POWER Low-Z mode: Load Impedance 2 Ω 2.7 Ω 4 Ω 8 Ω Maximum Output Power Normal Mode, all channels driven 2600 W 3000 W 2500 W 1250 W Bridge 5200 W... - Page 22 IPX Series DSP Multichannel Networking Power en | Technical data Amplifier A-weighted, analog input 112 dB A-weighted, digital input 115 dB Output Noise A-weighted, analog input < -70 dBu A-weighted, digital input < -73 dBu CONNECTIVITY Analog Audio Input/Thru Type 2 x 6-pin Euroblock, male Maximum Input Level +21 dBu...
-
Page 23: Ipx10:8
IPX Series DSP Multichannel Networking Power Technical data | en Amplifier IPX10:8 OUTPUT POWER Low-Z mode: Load Impedance 2 Ω 2.7 Ω 4 Ω 8 Ω Maximum Output Power Normal Mode, all channels driven 1300 W 1500 W 1250 W 1250 W Bridge 2600 W... - Page 24 IPX Series DSP Multichannel Networking Power en | Technical data Amplifier A-weighted, analog input 112 dB A-weighted, digital input 115 dB Output Noise A-weighted, analog input < -70 dBu A-weighted, digital input < -73 dBu CONNECTIVITY Analog Audio Input/Thru Type 4 x 6-pin Euroblock, male Maximum Input Level +21 dBu...
-
Page 25: Ipx20:4
IPX Series DSP Multichannel Networking Power Technical data | en Amplifier IPX20:4 OUTPUT POWER Low-Z mode: Load Impedance 2 Ω 2.7 Ω 4 Ω 8 Ω Maximum Output Power Normal Mode, all channels driven 5200 W 6000 W 5000 W 2500 W Bridge Parallel... - Page 26 IPX Series DSP Multichannel Networking Power en | Technical data Amplifier A-weighted, analog input 115 dB A-weighted, digital input 118 dB Output Noise A-weighted, analog input < -70 dBu A-weighted, digital input < -73 dBu CONNECTIVITY Analog Audio Input/Thru Type 2 x 6-pin Euroblock, male Maximum Input Level +21 dBu...
-
Page 27: Ipx5:4, Ipx10:4, Ipx10:8, And Ipx20:4
IPX Series DSP Multichannel Networking Power Technical data | en Amplifier IPX5:4, IPX10:4, IPX10:8, and IPX20:4 DIGITAL SIGNAL PROCESSING Sampling rate 48 kHz/96 kHz, OMNEO/Dante synchronized Signal delay/latency 0.70 ms/0.53 ms Analog In to Speaker Out, 48 kHz/96 Dante Network Latency typ. -
Page 28: Mains Operation & Resulting Temperature
IPX Series DSP Multichannel Networking Power en | Technical data Amplifier GPIO Control Port Type 1 x 8-pin Euroblock, male Ports and Operating Modes 3 x GPIO, switchable Analog In/Digital In/Digital Out Analog Input Range 0 V to +13 V, 40 kΩ input resistance Digital Input Limits ON: <... -
Page 29: Block Diagram
IPX Series DSP Multichannel Networking Power Technical data | en Amplifier Block diagram Figure 8.1: Block diagram: IPX Bosch Security Systems, Inc. Installation manual 2018.04 | 01 | F.01U.330.705... -
Page 30: Dimensions
IPX Series DSP Multichannel Networking Power en | Technical data Amplifier Dimensions Figure 8.2: Dimensions: IPX 2018.04 | 01 | F.01U.330.705 Installation manual Bosch Security Systems, Inc. -
Page 31: Accessories
IPX Series DSP Multichannel Networking Power Accessories | en Amplifier Accessories The following accessories are available for the IPX amplifiers: Description PD32-EU Power distro 3x32A, 230V, CEE 32A PD30-US Power distro 3x30A, 208V, NEMA L21-30 PCO32A30-US Power cord, powerCon32/NEMA L6-30 PCO32A16-EU Power cord, powerCon32/CEE7/7 PCO32A16-UK... - Page 32 Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 www.dynacord.com © Bosch Security Systems, Inc., 2018...
