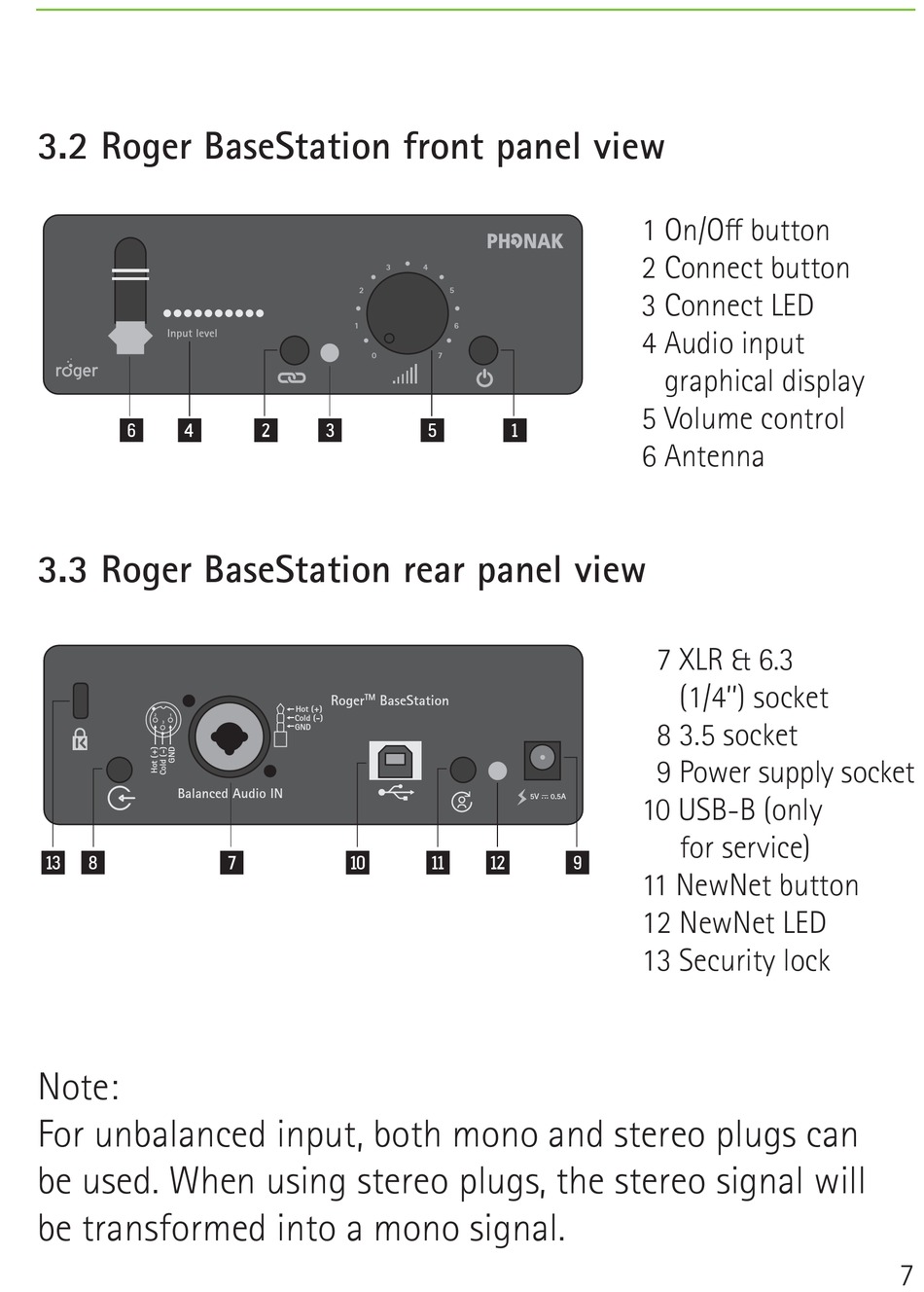

3.2 Roger BaseStation front panel view

Input level
6 4

3.3 Roger BaseStation rear panel view

Balanced Audio IN
r 8
Note:
For unbalanced input, both mono and stereo plugs can
be used. When using stereo plugs, the stereo signal will
be transformed into a mono signal.
3
2
1
0
2 3
Roger BaseStation
TM
Hot (+)
Cold (-)
GND
7 q
4
5
6
7
5 1
5V 0.5A
w e 9
1 On/Off button
2 Connect button
3 Connect LED
4 Audio input
graphical display
5 Volume control
6 Antenna
7 XLR & 6.3
(1/4'') socket
8 3.5 socket
9 Power supply socket
10 USB-B (only
for service)
11 NewNet button
12 NewNet LED
13 Security lock
