Quick start guide
1 Roger system, the key points
The Phonak Roger system is a particularly efficient covert digital wireless earpiece system that operates in the 2.4
Ghz frequency band.
The main characteristics are as follows:
ƒ No interference with other systems working in 2.4GHz band
ƒ Excellent sound quality with an audio bandwidth of 100 Hz - 7200 Hz
ƒ Distortion < 0.8% to 1 kHz
ƒ No background noise, signal-to-noise ratio of 55 dB
ƒ No more frequency programming
ƒ Fast pairing with the earpiece
ƒ Unlimited number of earpieces on a transmitter
ƒ Low latency

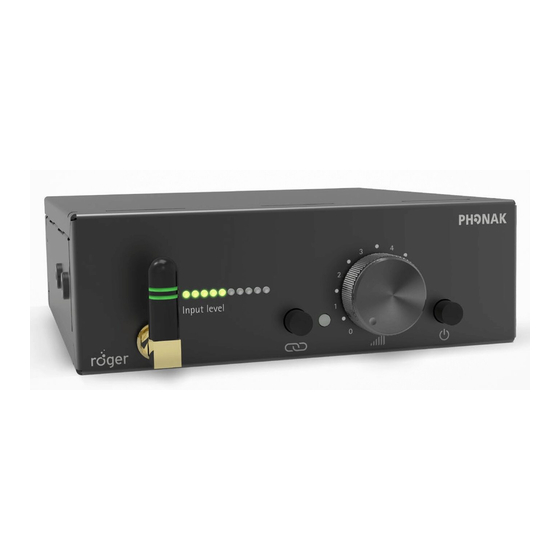

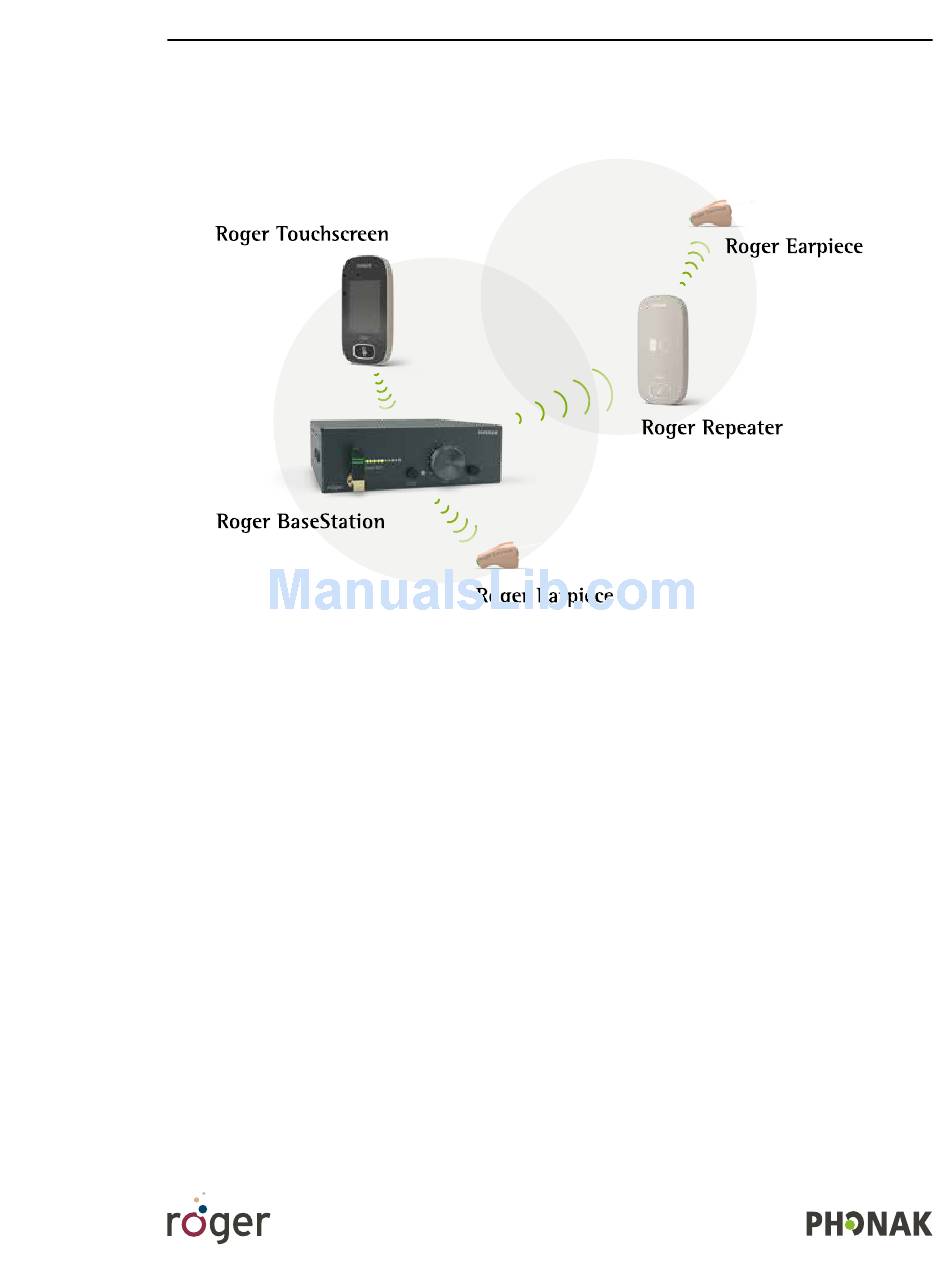

The system consists of four elements: the Roger Earpiece, the Roger BaseStation (stationary transmitter), the Roger
Touchscreen Mic (mobile transmitter and remote control) and the Roger Repeater.
Digital Wireless Earpiece
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phonak Roger Earpiece
Summary of Contents for Phonak Roger Earpiece
- Page 1 Digital Wireless Earpiece Quick start guide 1 Roger system, the key points The Phonak Roger system is a particularly efficient covert digital wireless earpiece system that operates in the 2.4 Ghz frequency band. The main characteristics are as follows: ƒ No interference with other systems working in 2.4GHz band ƒ...
- Page 2 Digital Wireless Earpiece Quick start guide 2.19 Front 2 Roger BaseStation Input level 2.19 Front 2.20 XLR pinout Roger BaseStation Hot (+) Hot (+) Cold (-) Cold (-) 2.17 Roger base station Input level Balanced Audio IN 0.5A Hot (+) 2.18 Rear Cold (-) Roger...
-
Page 3: Installation Advice
Digital Wireless Earpiece Quick start guide 2.2 Installation 2.2.1 Installation advice The given theoretical range of the transmitter is from 15 to 40 m. Ideally, it should be positioned at the centre of the area to be covered. In view of the transmission frequency (2.4 Ghz), absorption by the human body is substantial and the transmitter needs to be positioned high up to ensure a better range. -
Page 4: Wall Mounting
2.27 Chablon wall mount 2.25 Screws M5 + rondelle Rack kit Refer to studio_tx_chablon_20151022.pdf 20151022.pdf Digital Wireless Earpiece Quick start guide 20151022.pdf 20151022.pdf 2.24 Tool imbus 2.29 Foot standalone 2.28 Screws + tampon wall mount 2.26 Screws M6+ rondelle Rack kit Wall mounting The transmitter must be positioned vertically, with the antenna connector at the top and the antenna remaining 2.23 rack kit... - Page 5 Earpiece 2.2 Detection paired device beep 2.3 Out of range ƒ Place a Roger Earpiece less than 10 cm from the antenna; ƒ Push the Connect button; ƒ The LED should light up in green for 2 seconds. 0-10 cm...
-
Page 6: Roger Earpiece
2 Removal handle 3 Wax guard - Anti-cerumen filter 3.2 Battery – Important note The Roger Earpiece uses a zinc-air battery that offers the Once the door of the battery compartment has been C&C Spray best performance in a reduced size. This battery uses the... - Page 7 Digital Wireless Earpiece Quick start guide .30 How to mount single rack kit 3.3 Meaning of the beeps Start-up Detection of paired transmitter / Exiting Sleep mode Connect Denegation 0 How to mount single rack kit Low battery 2.29 Foot standalone Input level …...
- Page 8 Digital Wireless Earpiece Quick start guide 3.5 Special functions 3.5.1 Input signal detection If the BaseStation detects no incoming audio signal for more than 5 seconds, the earpiece volume will be reduced by 6 dB. It will return to the previous volume as soon as the audio signal is detected again. 3.5.2 Leaving the coverage area If the earpiece falls out of range, it will emit a soft beep repeatedly.
- Page 9 List devices Checking the parameters of an earpiece Check Screen 2 Setting the parameters of a Phonak Soundfield loudspeaker SoundField Disconnect an earpiece from the Roger Touchscreen Mic’s network Disconnect Creating a new Roger Touchscreen Mic network (do not use in normal usage).
-
Page 10: Main Function
ƒ Push the Check icon ƒ The following information is available: type of earpiece, name, serial number 4.3.3 Setting the listening volume of a Roger Earpiece ƒ Place the earpiece less than 10 cm from the Touchscreen; ƒ Go the Settings menu then Roger receiver settings;... - Page 11 Digital Wireless Earpiece Quick start guide 5 Roger Repeater 5.1 Description The Roger Repeater makes it possible to extend the coverage of the Roger BaseStation transmitter. Several repeaters can either be linked up or mounted in a star configuration in relation to the BaseStation. Due to better reception, the range between the BaseStation and a repeater or between two repeaters will be from 50 m to 70 m.
- Page 12 Too near Too far away Out of range 5.5 Connect a Roger Earpiece The earpiece is normally connected by the button on the BaseStation. It is also possible to connect it directly on the repeater by pushing the “Connect” button, with the earpiece at a maximum distance of 10 cm.
- Page 13 Quick start guide Different examples of configuration that can be used are shown below. Addition of one or two repeaters Coverage of a wide area Primary transmitter Secondary transmitter Roger Repeater Roger Earpiece 5.6 Rebooting To reboot the repeater: > 8s...
