R
FOR OFFICE FURNITURE, STORAGE CABINETS, LOCKERS, SAFES, VAULTS, SECURED ENCLOSURES
Installation

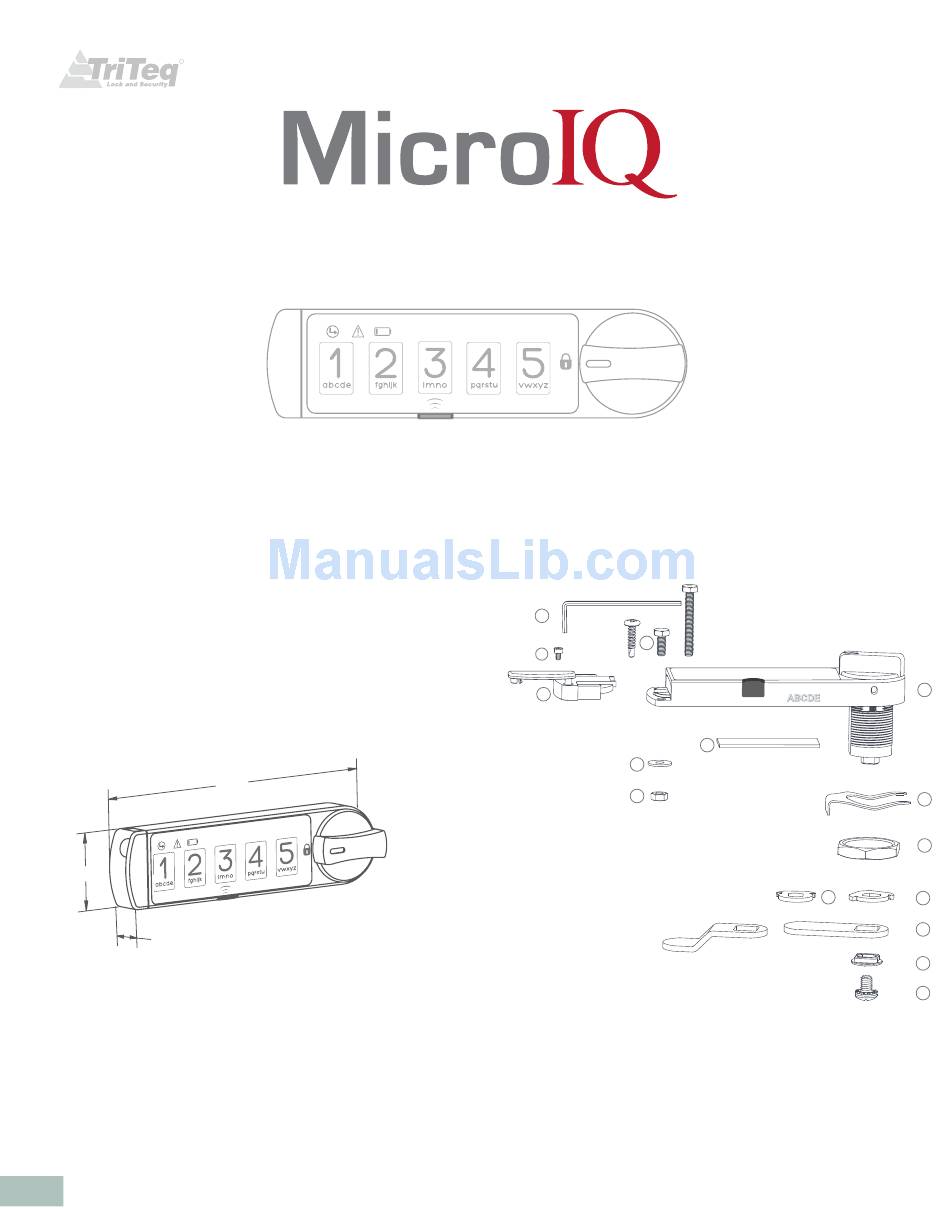

See Figure 1 for available mounting hardware for the MicroIQ. When mounting
the
MicroIQ
to a cabinet door or drawer, a separately mounted handle should be
used to operate, open and close the door or drawer.
When installing the lock to the cabinet/drawer, you have the option to fasten the
lock body with a nut or a retaining clip. A 'wonder' washer (#3) is provided for
installation in a drilled hole through either wood or metal panels.
Additional mounting fasteners (10) and/or double sided tape are provided and
must be added through the battery extremity of the housing. Select the fasteners
that best fit your panel material and thickness. If drilling is needed for thick
panels, drilling template provided on page 13.
1.00
.39
The installation template at the end of this manual can be used to drill a mounting
hole for the MicroIQ. Wood screw or self-tapping metal screw options are provided.
In addition, double stick tape can be used solely or in conjunction with the mounting
screw to further secure the lock. Allow tape to cure for 72 hours.
Prior to installation and insertion of the battery, the knob of the lock mechanism will
MicroIQ
be free moving. The
hardware contains a cam stop (#6) for both 90 and for
180 degrees. Select and install the desired cam stop and cam(#7). Position the cam
stop so the knob rotation is clockwise or counter-clockwise as desired.
1
1
UTILITY LOCK - MODELS: UT UM UA
Installation Manual
3.86
Fig. 2
TM
Contents
M 3
#4
14
M 3
10
15
13
11
12
1
Lock Housing with keypad and infrared receiver
2
3M - VHB 4952 Foam tape (optional)
3
Clip spring
4
Cam nut
(not provided with 3/8" shell)
5
180° Cam stop
6
90° Cam stop
7
Locking cam
(per request)
8
Adapter (
USE ADAPTER P/N 13346 FOR 9mm CAM HOLE EUROLOCK
9
Cam screw
10
Mounting screws (only 1 needed)
11
Mounting washer
12
Mounting nut
13
Cap with cover
14
Hex tool (1.5mm)
15
Temper proof battery holder screw
2
5
)
Fig. 1
1
3
4
6
7
8
9
