TriTeq MicroIQ UT Installation Instructions

R
CORE REPLACEMENT LOCK
MODELS: UT CT ST
Installation Instructions
Haworth
FOR OFFICE FURNITURE, STORAGE CABINETS, LOCKERS, SAFES, VAULTS, SECURED ENCLOSURES

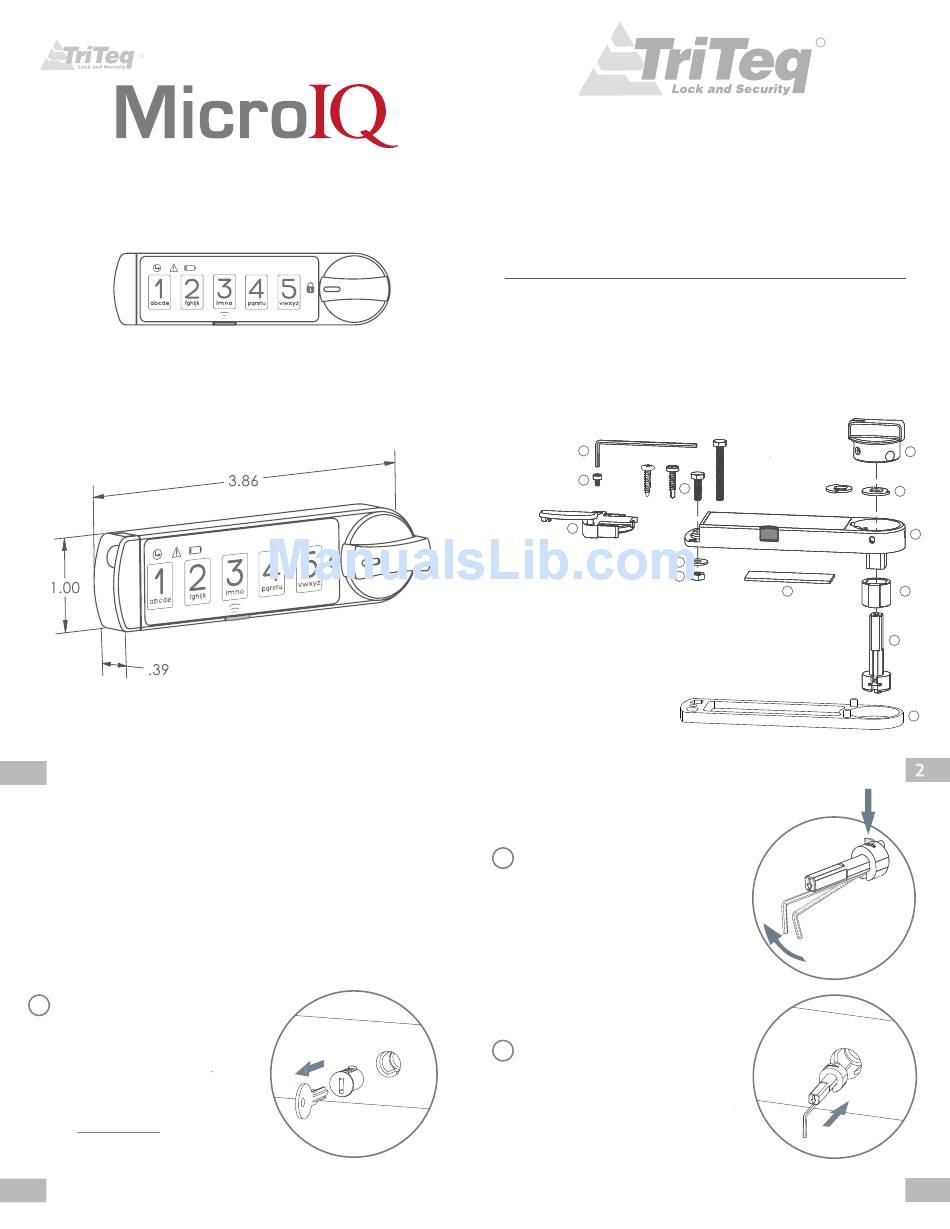

General dimensions
1 1
Installation
See Figure 1 for available mounting hardware for the
cabinet door or drawer, the existing handle or a separately mounted handle should be used to
operate, open and close the door or drawer.
Additional mounting fasteners (item 10) are provided and must be added through the battery
extremity of the housing. Select the fastener that best fits your panel material and thickness.
If drilling is required, use the drilling template provided at the end of this manual.
Double sided tape is also provided.
1
Using your change key, remove the
existing lock core.
Note the position of the retaining
tumbler on the lock core removed
i.e.: 12 o`clock, 3, 6 or 9 o`clock position.
You can purchase the change key online
at: www.easykeys.com
3
TM
MicroIQ . When mounting the MicroIQ to a
Example:
12 o`clock position
www.microiqlock.com
TriTeq Lock and Security
701 Gullo Ave
Elk Grove Village, IL 60007
061515 - Rev. 5 © Copyright 2014 TriTeq Lock and Security. All rights reserved
7
#4 #4
M2
8
9
1 Knob
2
Cam stop
3 Lock Housing with keypad
and infrared receiver
4
3M - VHB 4952 Foam tape (optional)
5
Spindle spacer
6
Spindle
7
Hex tool (1.5 mm)
8
Temper proof battery holder screw
9
CR2032 - 3 Volt Lithium Battery and battery holder
10
Mounting screws ( select one )
11
Mounting washer
12
Mounting nut
13 0.1" or 0.187" Lock spacers ( optional )
2
Insert the provided hex tool into the spindle
as shown.
Move the hex tool towards the arrow
indicated on the spindle until the retaining
tumbler is retracted.
3
Insert the spindle with the retaining tumbler
in the same orientation as the original lock
core retaining tumbler.
Push the spindle into the lock shell until fully
seated.
R
Phone: (847) 640-7002
Toll Free: (888) 603-5625
Email: marketing@triteqlock.com
Fig. 1
M3
M3
10
11
12
4
1
2
3
5
6
13
4
