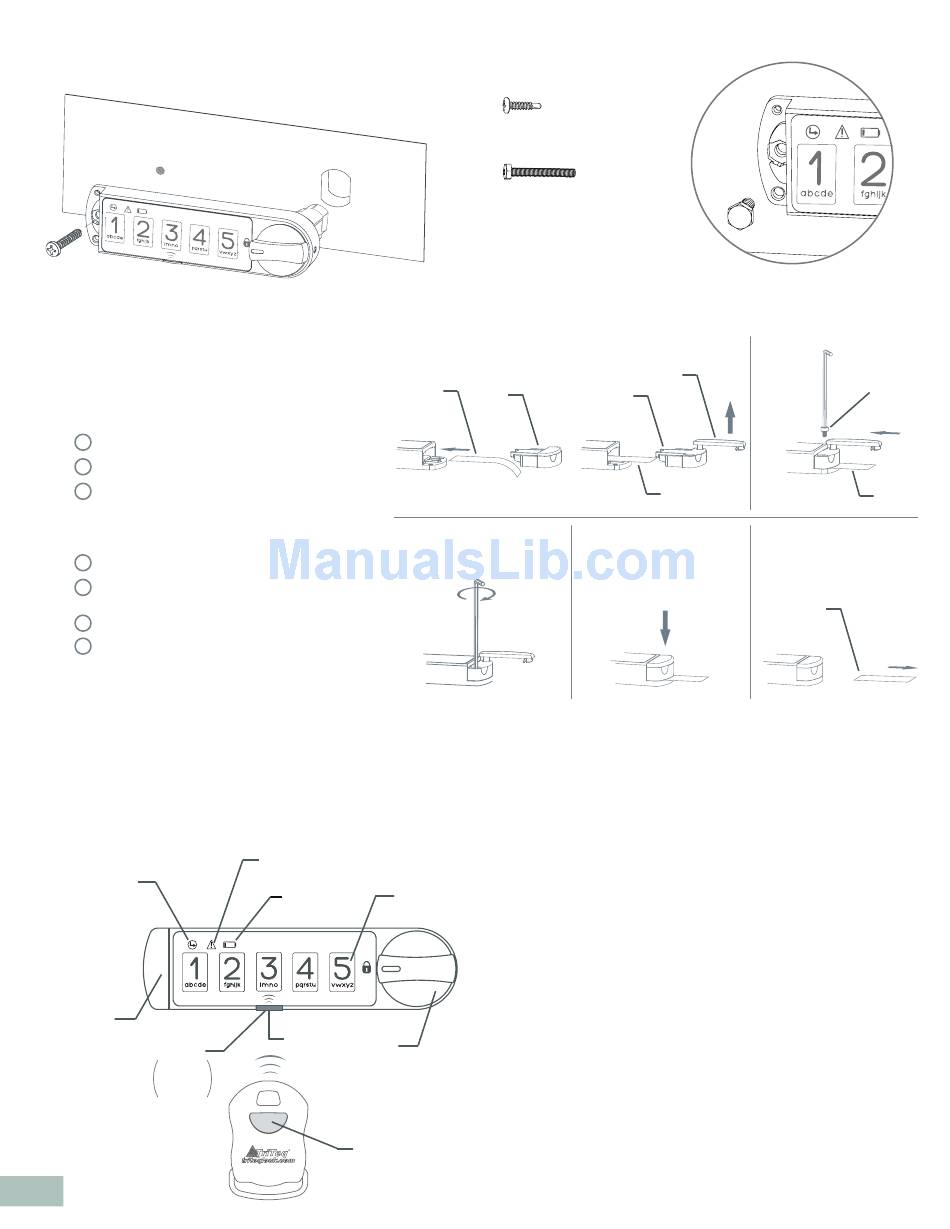

TriTeq MicroIQ UT Installation Manual page 2

The mounting screw for the Lock Housing must be installed before
MicroIQ
installing the battery.
Battery
NOTE: If the assembled lock is going to be transported or
shipped, it is required that the battery assembly includes the
battery strip. If the lock is being set up for use, the battery
strip is not needed (skip step 1 and 6).
1 Rotate the knob to the unlocked position
2 Insert the battery strip into the housing.
Insert the battery holder assembly (battery, holder, and
3
cover) into the lock housing making sure the cover is
open. If the assembly is not fully seated, make sure the
battery holder screw is flush with the bottom of the
assembly and that it is not interfering with the fit.
4 Insert the provided M2 screw in the battery holder.
5 Use the hex tool to attach the battery assembly to the
lock housing.
6 Swing the battery cover closed and snap in place.
7
If transporting/shipping the lock assembly, the battery
strip must be removed prior to use. Remove by pulling
the strip out of the housing.
Operation
1-2-3-4-5 keypad buttons: For entering and programming lock codes.
Program button: Initiate the lock programming mode by pressing the front thin edge of the black button inward toward the mounting surface the
Green
Proceed
LED
Battery
holder
with cover
Program
button
Push thin
front edge
inward
Fig. 5
2
1
Fig. 3
1
Battery
Strip
(optional)
4
Red
Error
LED
Yellow
Keypad
Low battery
LED
Location to
Knob
point the
in locked
key-fob
position
Press
Here
R
Select appropriate mounting screw. If a lock
spacer is required, a mounting screw must be
If mounted on sheet metal :
#4 Sx.375 sheet-metal screw
If mounted to wood panel with
threaded insert:
M3 x25mm (1") screw
In addition, the double stick tape can
be used solely or in conjunction with
the mounting screw to further secure
the lock. Allow tape to cure for 72 hours.
2
Battery
Battery
Battery
Holder
Holder
5
Infrared Receiver:
The Infrared Receiver will receive a signal from an electronic TriTeq key-fob when
it is pointed at the receiver located behind the Program button. The Program
button is slightly opaque so the key-fob signal will penetrate the button.
Knob:
To move the lock mechanism 90 or 180 degrees clockwise or counterclockwise from
the locked and unlocked states.
The Green and Red LED's will flash and illuminate to indicate operating conditions
per the descriptions below.
The Yellow LED will flash 5 times after the lock is operated to signify the
battery level is low and should be replaced.
3
Cover
LIFT
UPWARD
Battery
Strip
(optional)
6
Battery
Strip
SWING OVER
(optional)
AND SNAP THE
COVER DOWN
MicroIQ
is mounted to.
Hex
Tool
Screw
Battery
Strip
(optional)
PULL SRTIP
BEFORE USING
