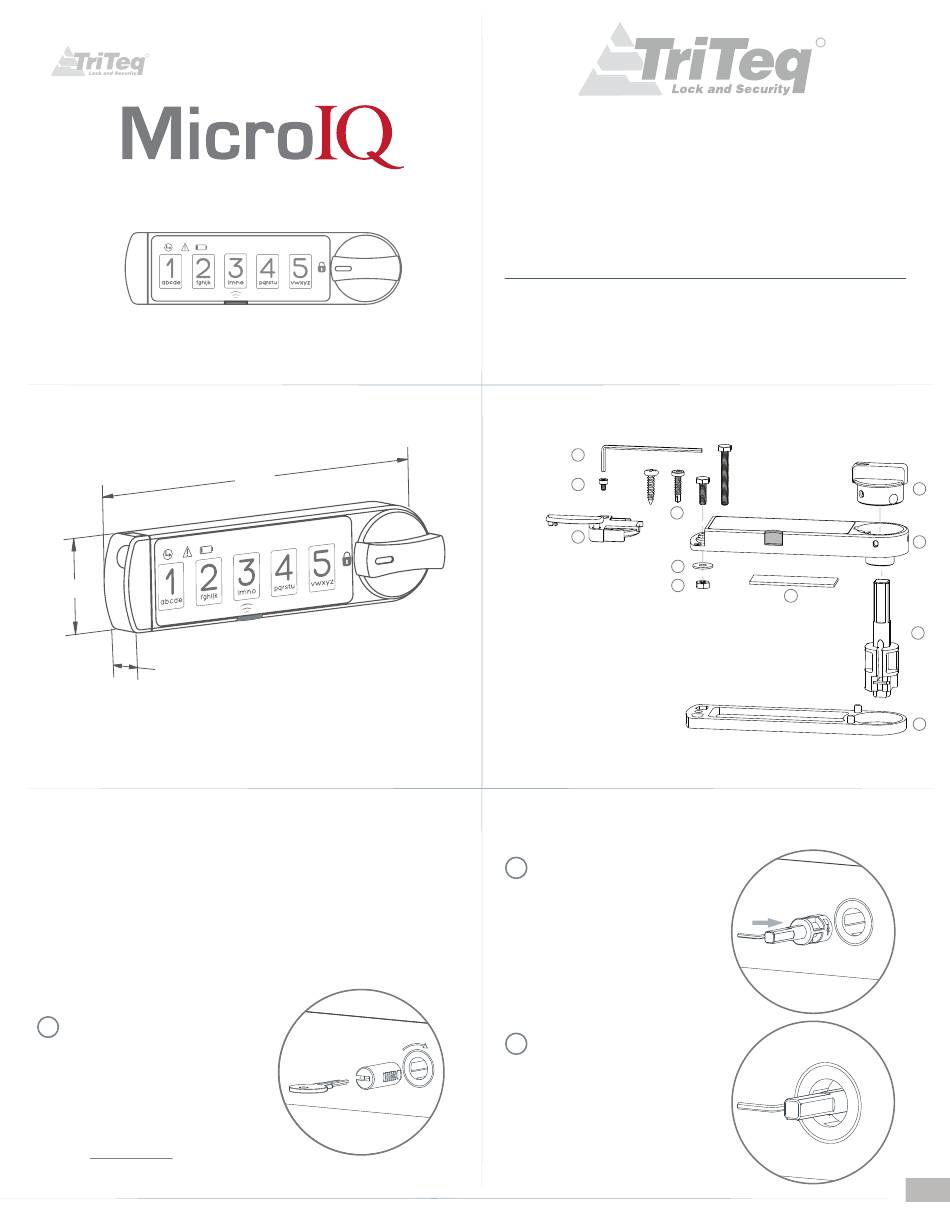

TriTeq MicroIQ Installation Instructions

R
CORE REPLACEMENT LOCK
Installation Instructions
Steelcase
FOR OFFICE FURNITURE, STORAGE CABINETS, LOCKERS, SAFES, VAULTS, SECURED ENCLOSURES
General dimensions
1.00
.39
Installation
See Figure 1 for available mounting hardware for the
cabinet door or drawer, the existing handle should be used to operate, open and close the door
or drawer.
Additional mounting fasteners ( item 10 ) are provided and must be added through the battery
extremity of the housing. Select the fasteners that best fit your panel material and thickness.
If drilling is required for thick panels use the drilling template provided at the end of this
manual. Double sided tape is also provided.
1
Using your change key, turn the lock to
the extreme CW position and remove the
lock core.
Note the position of the retaining
tumbler on the lock core removed
i.e.: 12 o`clock, 3, 6 or 9 o`clock position.
You can purchase the change key online
at:
www.easykeys.com
TM
3.86
MicroIQ . When mounting the MicroIQ
Rotate CW
Example:
3 o`clock position
www.microiqlock.com
TriTeq Lock and Security
701 Gullo Ave
Elk Grove Village, IL 60007
062415 - Rev. 6
5
M2
6
7
1
Knob
2
Lock Housing with keypad
and infrared receiver
3
Spindle
4
3M - VHB 4952 Foam tape ( optional )
5
Hex tool (1.5 mm)
6
Temper proof battery holder screw
7 CR2032 - 3 Volt Lithium Battery and battery holder
8
Mounting screws ( select one )
9
Mounting washer
10 Mounting nut
11 0.1" or 0.187" Spacers ( optional )
2 Push the hex tool into the spindle
to a
slot and move the tool toward the
spindle shaft until the upper edge
of the retaining tumbler is retracted.
Insert the spindle with the retaining
tumbler at the same orientation as
the lock core that was removed,
such as 3 o'clock in this example.
3 While holding the spindle in,
remove the hex tool.
Confirm that the spindle is
engaged into the lock shell.
R
Phone: (847) 640-7002
Toll Free: (888) 603-5625
Email: marketing@triteqlock.com
© Copyright 2014 TriTeq Lock and Security. All rights reserved
M3
#4 #4
M3
8
9
10
4
Fig. 1
1
2
3
11
