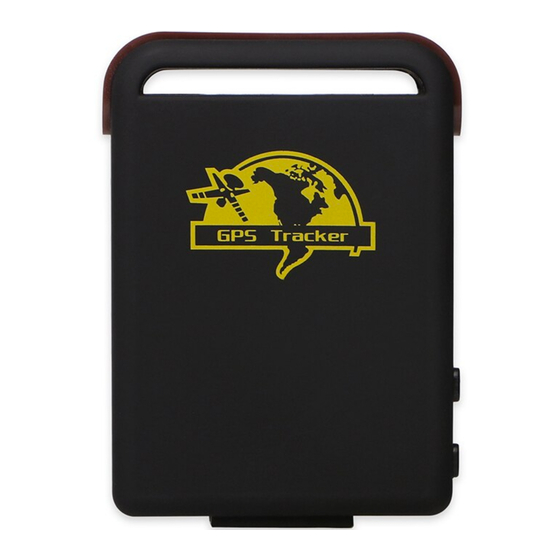

Xexun TK102-2 Quick Start Manual

Hide thumbs Also See for TK102-2:
Table of Contents

Advertisement

Quick Links

See also: User Manual
TK102-2
Quick start guide
Start here

Advertisement

Table of Contents
loading

Related Manuals for Xexun TK102-2

Summary of Contents for Xexun TK102-2

  • Page 1 TK102-2 Quick start guide Start here...
  • Page 2 Thanks for choose our product. This Quick Start guide tells you how to set up your GPS Tracker. Please charge 12hours at first use.  Insert SIM card in right way. Please put the unit  outside and make sure the trademark side facing Unit will turn on automatically when put the bat ...
  • Page 3 Now you can operate the function .Begin! How to put in SIM card.  TF card*. Support 2GB TF card, over-the-air update, resume from break point cannot work without TF card. Over the air update. Update can be finished by SMS ,and also the software on our website will be update occasionally.
  • Page 4 again when have GPRS signal. Password. We suggest change the password and keep it in mind. Please contact with franchiser if you forgot it Unit only work with correct one. Authorization. SMS will be send to Authorized number. Authorized number can send the command without password. Traffic Mode When moved ,the device will send GPS data to monitor platform or mobile phone automatically;...
  • Page 5 Internet monitor. Set APN. APN stands for Access Point Name. For examplepicture 1, China mobile “CMNET”, send “123456apn cmnet” to the unit； if APN have user name and password, For example picture 2,Microcell， APN is internet, user name：fido , password：fido.
  • Page 6 IP and port. When APN setting succeed, send SMS “123456adminip 119.147.23.100 2337” ，it will reply “ADMINIP ok!”.“2337”is port number. Data transmission. Send SMS:“123456t010s***n”to the unit, will reply”t010s***n ok”. Data will be transmissionto the platform every 10 seconds.
  • Page 7 Internet platform. Please contact franchiser. They will supply you platform website, User name, Password and help you to add your unit into platform. You can check more information about platform in CD-ROM.
  • Page 8 Password. Send SMS “123456password 000000” to unit， will reply “password 000000 ok!”.Notice：123456=old password,000000=new password.
  • Page 9 One time. Using your mobile phone call the inside number  of unit .it will hang up and reply to a real time positioning messages. Contents include: latitude, longitude, speed, date, battery, signal, IMEI number. Send SMS "123456smslinkone" to the unit, will ...
  • Page 10 Successive positioning. Send SMS “123456t030s002n” to the unit, Will reply “t030s002n ok!” It will report the real time SMS at 30s interval for 2 times. Notice: s=second, minute, h=hour. The shortest interval time is 005s, the longest interval time is 255h; Reply the most times is 999n, Unlimited times is***n.
  • Page 11 Authorization. Call the unit for 10 times and successful  positioning. This number will be the default for authorized number. Send SMS "123456admin 159200XXXXX" to the  unit,it will be authorized of this number.Only 5 numbers able to be authorization.if need cancel, send”123456admin”.
  • Page 12 Monitor. Send "123456monitor”to the unit, will reply “monitor ok!”，then call the unit to enter into the monitor mode .Send “123456tracker”to the unit when need to cancel , it will reply “tracker ok!”back into the positioning mode again.

  • Page 13: Traffic Mode

    Traffic mode. Send SMS "123456traffic 5" to the unit, will reply "traffic 5 ok!". 5 stands for the sensibility level, setting from 0 to 10. 0 means closing the function. When moving, the unit will send GPS data to monitor platform or mobile phone automatically every 30 seconds;...

  • Page 14: Sensor Alarm

    Sensor alarm. Send SMS "123456shake 5" to the unit,it will reply "shake 5 ok". The unit will send alarm message to phone when shake. Send SMS“123456shake 0” when needs to cancel the function.Number 5 stands for the sensibility level, setting from 0 to 10. 0 means closing the function.Notice: This function cannot work when in traffic mode.

  • Page 15: Overspeed Alarm

    Overspeed alarm. SendSMS“123456speed 050”to the unit,it will reply “speed ok!”. When the unit moves exceeding 50 km/h, the unit will send SMS alarm. When the speed is no more than 50km/h, it will send alarm as well. Send “123456speed 0”when needs to cancel. Notice: Speed alarm is set at least 50km/h.

  • Page 16: Movement Alarm

    Movement alarm. When the unit stays immobile in a place for more than 3 minutes, send SMS“123456move 200”to the unit, it will reply“move 200 ok!". It will send alarm SMS when moves out of 200 meters.Send SMS“123456move 0”when needs to cancel.

  • Page 17: Geo-Fence

    Geo fence. Set Geo fence for the unit to restrict it movement within a district. The unit will send SMS to the authorized numbers when it breaches the district. If needs Send SMS"123456fence 22589155N,113.827732E;22.559000N,113.897111E”.
  • Page 18 Total mileage calculation. If you want to calculate the mileage, according to the following steps: Send SMS“123456gprsdata 1”to the unit. Send SMS “123456t010s***n”to the unit. Send SMS “123456km0”to the unit. Send SMS “123456km？”,it will reply the mileage dates.
  • Page 19 SOS. Press the SOS for 3 secondwhen dangerous. It will send“ help me ” to all the authorized numbers.
  • Page 20 Map link. There are two formats: date format, map link format. Send SMS“123456smslink 1”to the unit, it will reply “smslink 1 ok” ，then call the unit again,it will reply map link, access to this website may view location map. Send SMS“123456smslink 0”to the unit will restore to date format.
  • Page 21 Time. Default is Beijing time, if you want to change time, send SMS“123456time zone -6.5”.Notice:“+”no need to write;“-”must write； 6.5=6：30.
  • Page 22 UDP/TCP. Default is TCP，if you want to change into UDP，Send “123456gprsmode 1” to unit， if you want change back to TCP , send SMS“123456gprsmode 0”.
  • Page 23 Overtheairupdate*. We will update software, if you need update tracker, please install memory card (TF), and send SMS “123456ldu,server=http://www.cnjeo.com/down/vpj. bin,en=72”. After you receive 3pcs of related message, it means updated successfully. Notice： Need about 5 min to do updating.
  • Page 24 Status. Send “123456status” to unit ， it will reply SMS. Include: IMEI、speed、battery、position state、time、IP、APN、 Port etc.
  • Page 25 Version. Send SMS “123456version” to unit ， it will reply version information.
  • Page 26 Reset. Send SMS“123456begin”to unit, it will reply“begin ok!”, then unit will back to default settings.

  • Page 27: Product Parameter

    Product parameter Network: GSM/GPRS  GSM/GPRS module: SIMCOM SIM900  Band: 850/900/1800/1900Mhz  Communication protocol: TCP/UDP  CPU: ARM7  GPS chip: SIRF3  GPS sensitivity: -159dBm  GPS accuracy: 5-20m  Time To first fix Cold status 45s Hot status 1s ...
