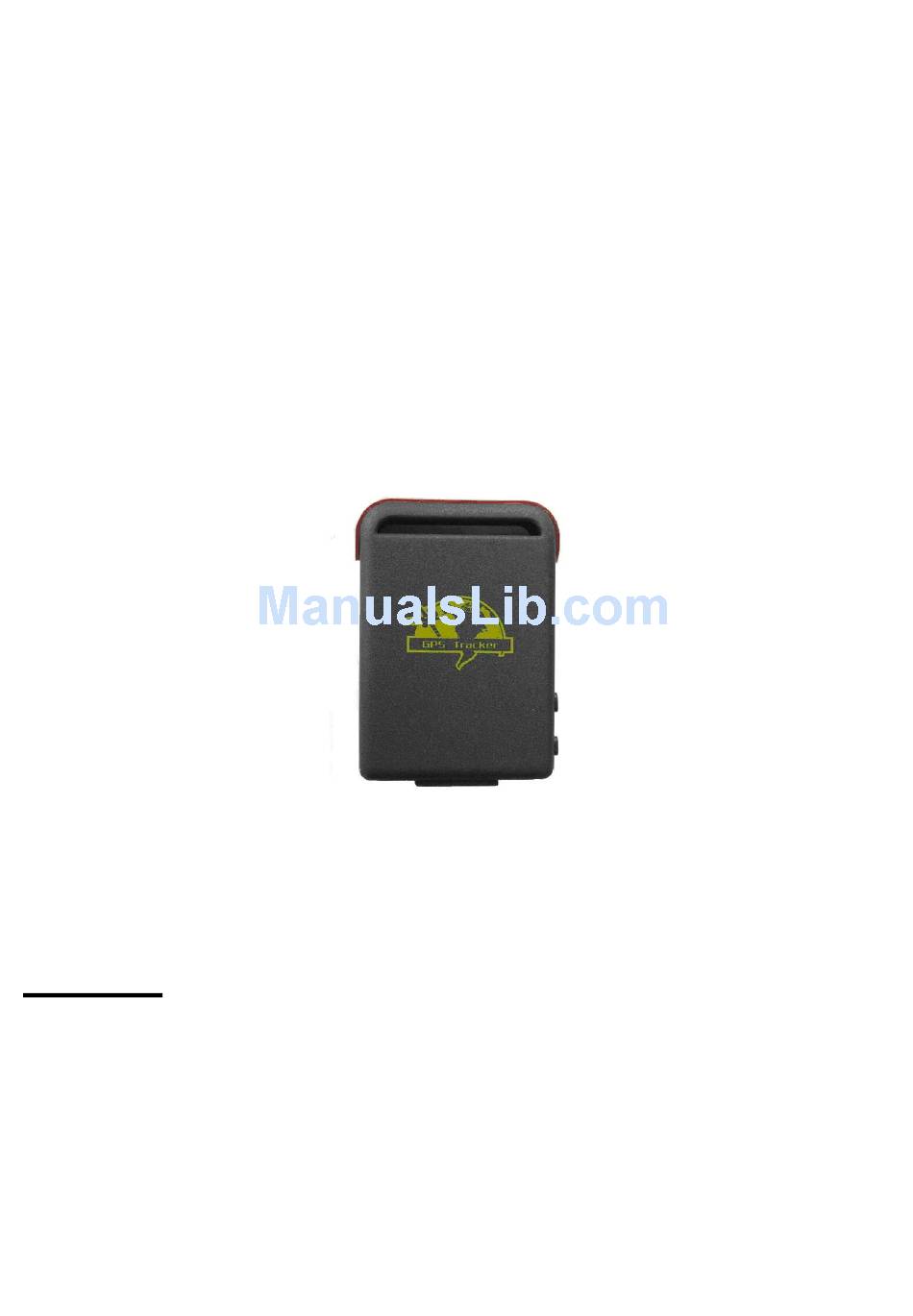

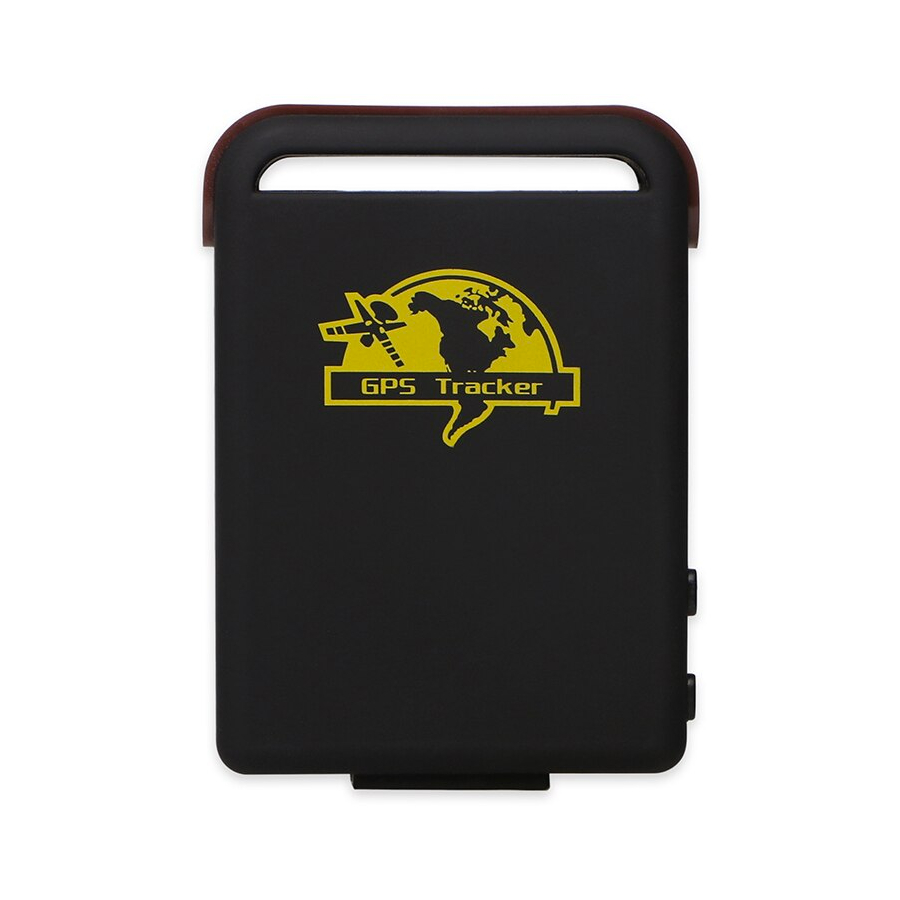

GSM/GPRS/GPS
TRACKER

USER MANUAL

preface
Thank you for purchasing GPS Tracker. This manual shows how to operate the device smoothly and
correctly. Make sure to read this manual carefully before using this product. Please note that
specification and information are subject to changes without prior notice in this manual. Any change will
be integrated in the latest release. The manufacturer assumes no responsibility for any errors or
omissions in this document.
Content
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tk 102-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Xexun Tk 102-2

Summary of Contents for Xexun Tk 102-2

  • Page 1: User Manual

    GSM/GPRS/GPS TRACKER USER MANUAL preface Thank you for purchasing GPS Tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release.

  • Page 2: Table Of Contents

    1 Summary ---------------------------------------------------------------------------------- 2 Application --------------------------------------------------------------------------------- 3 Hardware description ------------------------------------------------------------------------------------ 4 Specifications ---------------------------------------------------------------------------------------- 5 Usage SIM card installation ----------------------------------------------------------------------- Battery and Charger ------------------------------------------------------------------------ Quick Startup ---------------------------------------------------------------------- Initialization ------------------------------------------------------------------------- Change the password -------------------------------------------------------------------- Authorization -------------------------------------------------------------------------- Real-time polling ------------------------------------------------------------------------ Auto track ------------------------------------------------------------------ Voice Surveillance ------------------------------------------------------------------------ 5.10 Modes switch between “track”...

  • Page 3: Application

    2 Applications Rental vehicle / Fleet management etc Protect the child / the old / the disabled / pet etc Provide peace-of-mind for businessmen Personnel management Covert Tracking 3 Hardware Description 3.1 Front face 3.2 Rear face Indicator for signals. 3.3 Side face You can update software, charge battery from...
  • Page 4 SD card slot 4 Specs. Content Specs. Dim. 64mm x 46mm x 17mm(1.8”*2.5”*0.65”) Weight Network GSM/GPRS Band GSM850/900/1800/1900Mhz GPS chip SIRF3 chip GSM/GPRS Simcom SIM900 module GPS sensitivity -159dBm GPS accuracy Cold status 45s Time To First Fix Warm status 35s Hot status 1s 12—24V input Car charger...

  • Page 5: Usage 5.1 Sim Card Installation

    Standby 80hours Storage Temp. -40°C to +85°C Operation Temp. -20°C to +55°C Humidity 5%--95% non-condensing 5 Usage 5.1 SIM card installation Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format, can’t be identified for PDU format. Steps: 5.1.1 Open the rear cover, and pick out the battery.

  • Page 6: Initialization

    a: For it’s Li-ion battery, which contains harmful chemicals and may burst, please don’t bump, puncture it violently and keep it off fire. b: Please charge the battery in time to keep it working normally. 5.3 Startup Put the SIM card and the battery in place and turn on the unit outdoors The unit will power on automatically once the battery is inserted For first use, please initialize the unit and restore it to default setting.( please refer to 5.4 for instruction.)

  • Page 7: Real-Time Polling

    There are only 5 numbers able to be authorized. 5.6.1 Send SMS admin+password+space+cell phone number to set up a authorized number. The other authorized numbers should be set by the first authorized number. If the number is successfully authorized, the unit will reply “admin ok!” in SMS. 5.6.2 Send SMS noadmin+password+space+authorized number to delete the authorized number.
  • Page 8 Lat:22.566923N long:114.051331E speed :0.00 28/03/09 03:33 F:4.2V,0,Signal:F imei:359587011016561 05 41.9 Lat:22.566923N=Latitude long:114.05133E=Longitude Speed:0.00=speed (Km/h) 28/03/09=date 03:33=time F:4.2V=Back up battery volume is normal:4.2V L=Battery is low 0=not charging,1=charging Signal:F=GPS signal is normal,signal:L=GPS signal is low Imei:35958701101656=Imei number of the product 05=it has 5 GPS satellites 41.9=Altitude...

  • Page 9: Auto Track

    5.8 Auto-Track Report a Geo-info at 30s intervals to the authorized numbers for 5 times: 5.8.1 Set up: Send SMS t030s005n+password to the unit, it will report the Geo-info at 30s intervals for 5 times.(s: second, m: minute, h: hour). The setting must be in 3 digits and at maximum 255 in value.

  • Page 10: Movement Alert

    longitudeE/W,latitudeN/S to unit to set the restricted district. In case of breach, it will send SMS “stockade!+geo-info” to the authorized numbers. Remark : The first latitude&longitude is coordinate of the top left corner of the Geo-fence, while the second latitude&longitude is the coordinate of the bottom right corner.

  • Page 11: Imei Check

    5.14 IMEI checking: Send SMS imei+password to the unit to check the IMEI number. 5.15 SOS button Press the SOS for 3 seconds, it will send “ help me !+ Geo-info” to the first authorized number. 5.16 Low battery alert It begins to alert when it is 3.7V and sends you one SMS alert.

  • Page 12: Sd Card Function

    Shake it heavily. While shake123456 10 is the most sensitive degree and the tracker will send alert if you touch it slightly. Shake123456 0 is the sms to remove this function. 5.20 SD card function A mini SD card can be put in the tracker’s SD card slot. The GPRS data can be saved in the SD card if GPRS is off.

  • Page 13: Tlimit Function

    wIoc=addr&om=1speed:000.0, click the link,PDA shows you the map directly. 5.22 Tlimit function The default Tlimit value is 0 meter, send SMS "tlimit123456 100" to change the limited distance to 100 meters, which means when the tracker under the auto reporting mode ( for example, t030s***n123456 ), the tracker will not send any updated Geo-info if the moving distance is less than 100 meters, it will send updated Geo-info only when the moving distance is more than 100 meters.
  • Page 14 P.S. The old APN will be invalid when you set a new APN. As soon as the IP & Port & APN are set up, the user can make a call or send SMS to tracker. The tracker will hand up the telephone and report the coordinates to IP address.

  • Page 15: Cautions

    Notes: 1 Our gprs supports TCP or UDP protocol, so please confirm whether your GPRS webserver supports TCP or UDP protocol before having the order. 2 Please use the SIM card which is with GPRS function. Pls use the following SMS to set up GMT time in the SMS for the tracker time zone+password+space+ the customer’s GMT TIME Pls use the following SMS to set up YOUR website in the SMS for the tracker home+password+space+ the customer’s WEBSITE...
  • Page 16 7 Faults & The solutions Faults Solution Check the battery and see if it is fully charged or Startup Fail correctly installed. In existence of an authorized number, an unauthorized Hangup Fail number dials up the unit. Please initialize the unit and re-set up the authorized numbers.
