Step

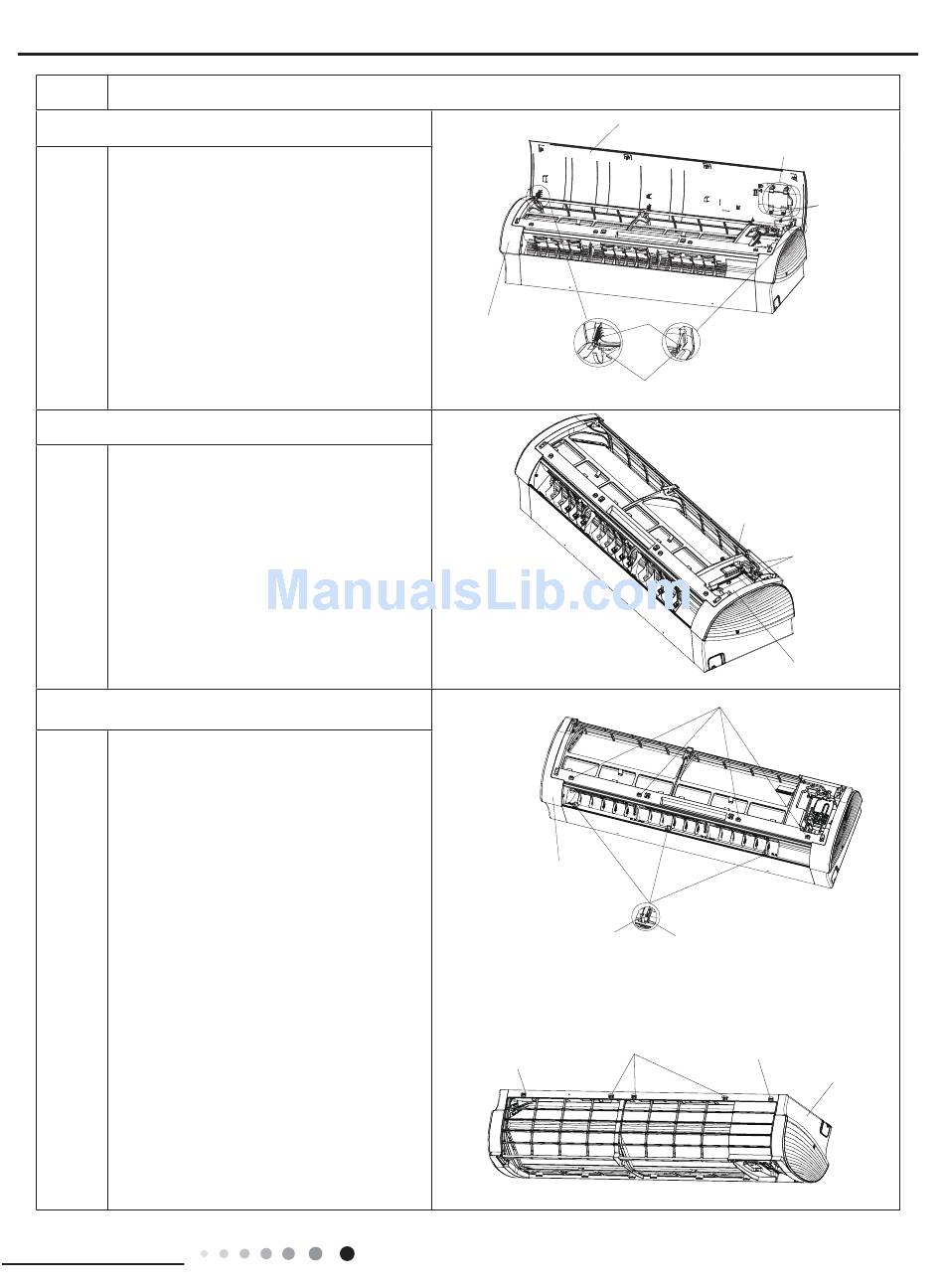

3. Remove panel

Open the front panel; separate the panel
rotation shaft from the groove fixing the
front panel and then removes the front
panel.
Note:
The display of some models is fixed on
the panel; unscrew the screws fixing the
display on the panel before removing the
panel.
4. Remove electric box cover 2 and detecting plate(WIFI)
Remove the screws on the electric box
cover 2 and detecting plate(WIFI), to
remove the electric box cover 2 and
detecting plate(WIFI).

5. Remove front case sub-assy

a
Remove the screws fixing front case.
Note:
(1) Open the screw caps before removing
the screws around the air outlet.
(2) The quantity of screws fixing the front
case sub-assy is different for different
models.
Loosen the clasps at left, middle and right
b
sides of front case. Life the front case
sub-assy upwards to remove it.
Installation and Maintenance
Procedure
Panel
Panel rotation
Front panel
Front case
sub-assy
Screws
Left clasp
Display
Groove
Detecting plate WiFi
Electric box cover 2
Screws
Screw caps
Middle clasp
Right clasp
Screws
Screw
Front case
sub-assy
95
