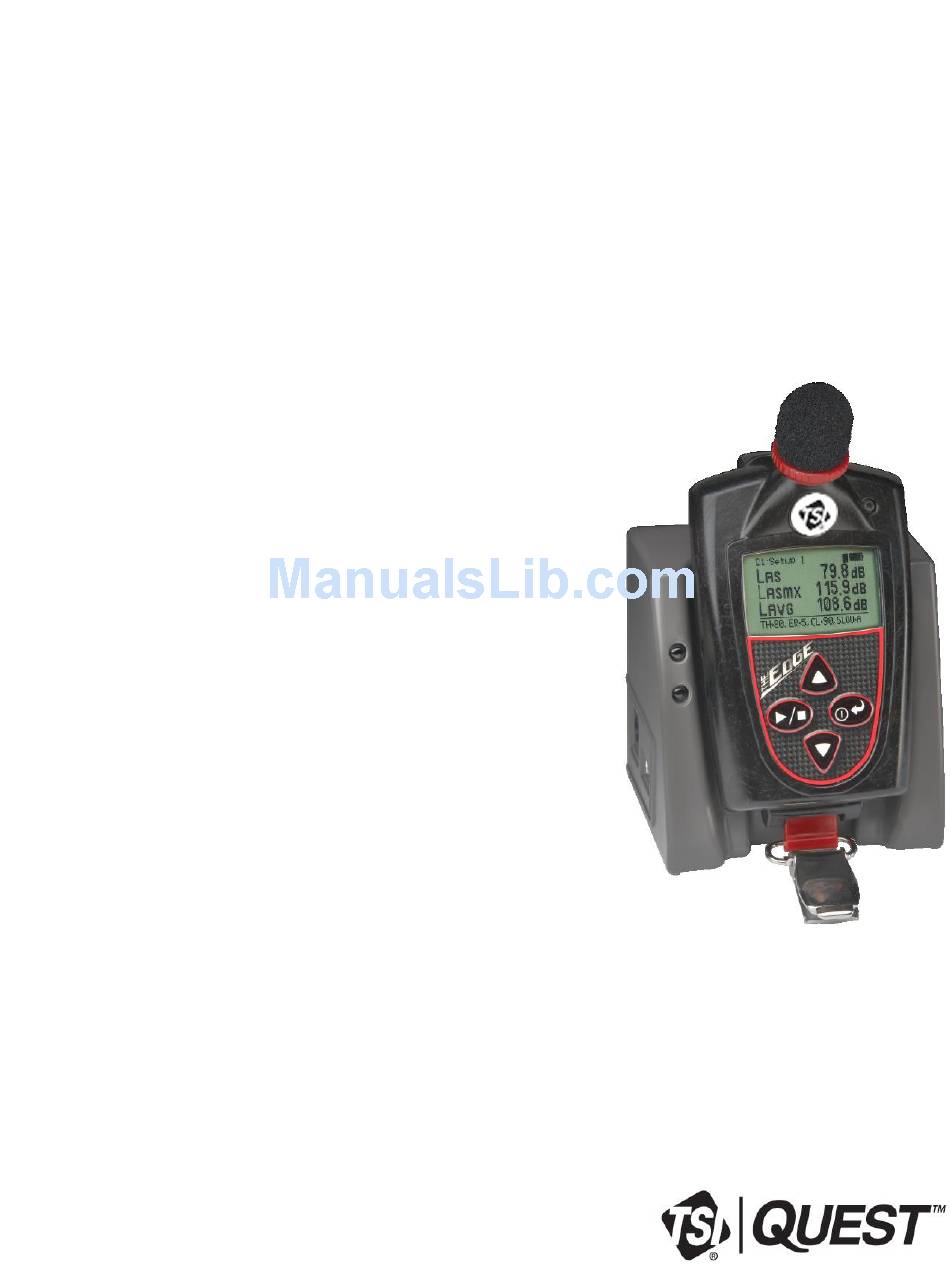

THE EDGE
PERSONAL NOISE DOSIMETER
MODEL EG4
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EG4 and is the answer not in the manual?

Questions and answers

Related Manuals for TSI Instruments EG4

Summary of Contents for TSI Instruments EG4

  • Page 1 THE EDGE PERSONAL NOISE DOSIMETER MODEL EG4 USER MANUAL...

  • Page 3: Tsi Contact/Service Information

    TSI Contact/Service Information THE EDGE PERSONAL NOISE DOSIMETER MODEL EG4 TSI Contact/Service Information Should your TSI equipment need to be returned for repair or for recalibration, please contact the service department at the following number or access the online form via http://rma.tsi.com.
  • Page 4 TSI Contact/Service Information (This page intentionally left blank)

  • Page 5: Table Of Contents

    Table of Contents Table of Contents TSI Contact/Service Information ..................... iii International customers ........................iii 1: Introduction ............................1 Dosimetry ............................1 Noise dosimeter ..........................2 Range of sound ..........................3 What do the standards say? ......................3 Applications of the Edge ........................4 Noise assessment steps ........................
  • Page 6 Table of Contents Display setting ..........................27 Security setting ..........................28 Auto Run setting ..........................29 Firmware update ..........................30 Saving and sending/setting configurations ..................31 4: Running and operating your dosimeter ..................33 Overview of running a study ......................33 Positioning the Edge on your shirt ....................
  • Page 7 Figure 1-1: The Edge and dosimetry ........................... 1 Figure 1-2: Illustration of how the dosimeter operates and processes ................ 2 Figure 1-3: Parameter setup screen for eg4 ....................... 6 Figure 2-1: Identifying your equipment ........................7 Figure 2-2: Powered on with measurement view displayed ..................8 Figure 2-3: Edge Keypad ............................
  • Page 8 Figure 5-1: Communicating between your pc and the Edge ..................43 Figure 5-2: DMS start screen ............................ 44 Figure 5-3: Downloading with the Edge models eg3/eg4 ..................44 Figure 5-4: Recent downloaded data ........................45 Figure 5-5: Data Finder page with the downloaded data ..................46 Figure 6-1: Microphone and windscreen assembly ....................

  • Page 9: 1: Introduction

    CHAPTER 1: Introduction Dosimetry 1: Introduction Dosimetry Measuring noise in the workplace is an important element of hearing conservation programs and noise reduction programs. With a noise dosimeter, you can assess and determine a worker’s daily exposure to noise levels. This information can be used to ensure compliance with regulatory bodies or to ensure if hearing conservation programs are needed.

  • Page 10: Noise Dosimeter

    1: Introduction Dosimetry Noise dosimeter What is a noise dosimeter and how does it compute measurements? Essentially, a noise dosimeter is composed of the following: a microphone with a preamplifier, a weighted network, fast or slow response time, an internal clock, calculator, and memory to store logged data.

  • Page 11: Range Of Sound

    1: Introduction Dosimetry Range of sound Sound pressure is measured in decibels, or tenths of a Bel. Sound pressure level is indicated as dB SPL. Since the human ear can detect sounds with an extensive range of amplitude, a decibel scale is used to simplify the measurement results. For example, the ratio between the threshold of hearing and threshold of pain in the human ear if measured in true energy is 10,000,000 times! The same range using the dB scale is 0–140 dB referenced to 20 µPa (Micropascals).

  • Page 12: Applications Of The Edge

    1: Introduction Dosimetry Applications of the Edge The Edge has a cable-free, mounted microphone that converts sound pressure into an electrical signal. This signal is conditioned, monitored, and integrated over time in order to provide a host of automatically calculated values that can be used in occupational and environmental noise assessments.

  • Page 13: Noise Assessment Steps

    Introduction1: Introduction Dosimetry Noise assessment steps Perform a task-based work flow analysis of unacceptable “noisy” areas and list regulations/codes you will follow.  Observe facility/areas and jot down areas of concern  Check with standards and noise ordinance regulations in your region/city. ...

  • Page 14: The Edge Model

    Dosimetry The Edge Model The “eg4” model features two virtual dosimeters with data logging. Once the parameters are set and saved in the dosimeter, you can monitor two different dosimeters by a single press of the Enter key. This will toggle you between the two dosimeters. The “eg3” model is equipped with one dosimeter setting and will not data log (older model no longer available).

  • Page 15: 2: Getting Started

    For the docking stations, you will either have an EdgeDock1 or an EdgeDock5. (For more information on parts/accessories, please refer to www.tsi.com.) USB cable- connects EdgeDock to the PC Edge model eg4  microphone and windscreen attached  mounting clasps...

  • Page 16: Turning On

    1. To turn on the Edge, press the on/off and enter button.  The Edge splash screen (see Figure 2-3 for an example) will appear indicating the model (i.e. “eg4”) and firmware version. The screen will be in the measurement view. LED Indicator Battery indicator icon If icon is fully shaded, this indicates full battery power (approx.

  • Page 17: Led Indicator

    2: Getting started Turning off LED indicator There is a three-color LED indicator on the Edge, located to the right of the TSI logo which includes Red, Amber, and Green. Table 2-1 identifies when and why the LED indicator color will appear. NOTE: The LED indicator can be disabled via DMS (see section, “...

  • Page 18: Display And Keypad

    2: Getting started Display and keypad Display and keypad The keypad is used to run and stop your studies, view your measurement values, and power on and off the dosimeter. Diagram The following diagram explains the features on the display and keypad. Windscreen and microphone LED indicator ...

  • Page 19: Tsi Detection Mangement Software (Dms)

    You can use DMS for a variety of functions related ® to the Edge dosimeter and with many other TSI instruments. DMS has the ability to customize your set-up parameters, display data, manipulate data, and create reports. Loading To load DMS, follow the screen prompts.

  • Page 20: Docking Station Components

    2: Getting started Docking station functionality Docking station components The table below explains the EdgeDock1 or EdgeDock5 LED indicators, power connector, USB connector, and contact pins. Docking station components Explanation Charging indicator Identifies if the dosimeter is “charging” or “fully charged”. A red blinking LED indicates the dosimeter is charging.

  • Page 21: Powering Edgedock1 Or Edgedock5

    2: Getting started Docking station functionality Powering EdgeDock1 or EdgeDock5  Powering EdgeDock1 or EdgeDock5 Assemble the charger adapter and plug adapter as illustrated in Figure 2-5. (It will be the same process for an EdgeDock5.) Plug the charger adapter directly into the wall (electrical wall plate). Plug the opposite end into the power connector (or jack) of the EdgeDock1.

  • Page 22: Charging Your Dosimeter

    2: Getting started Docking station functionality Charging your dosimeter impact your total charge The number of hours you have used your dosimeter from your last charge will time. For example, if the battery clock indicator (see “Checking the battery power” for more information) displays 20 hours remaining on the battery and you wish to charge the battery, the approximate charging time is 2 hours.

  • Page 23: Mounting The Docking Station To A Wall

    2: Getting started Docking station functionality Mounting the docking station to a wall The docking station is equipped with two single screw slots in case you wish to mount the docking station to the wall. The figure below displays the backside of the single bay dock. Screw slots Used to mount to a wall Figure 2-8: Backside of EdgeDock1...
  • Page 24 2: Getting started Docking station functionality (This page intentionally left blank)

  • Page 25: 3: Setting-Up The Edge Via Dms

    3: Setting-up the Edge via DMS Noise studies The eg4 model comes equipped with two customizable user setups. The eg3 model has one customizable user setup. You have the option to customize the parameters for threshold values, exchange rate values, an upper limit value, and a criterion level.

  • Page 26: Understanding What Data Is Stored

    3: Setting-up the Edge via DMS Understanding what data is stored Understanding what data is stored When you are running noise dosimetry studies, there are two types of data stored on the dosimeter which include the summary data and time history (or Logged) data. Summary data Summary data represents values that occurred over the entire run of the study.

  • Page 27: Logging

    3: Setting-up the Edge via DMS Views on the Edge Logging eg4 model only logs at one minute intervals and includes the following measurements:  Meter 1 logs Lavg/Leq, Lcpk, and L ASMX  Meter 2 logs Lavg/Leq If the dosimeter runs for one hour, then it will log 60 Lavg/Leq results, and 60 L...

  • Page 28: Definitions Of Data Log Values And Views

    3: Setting-up the Edge via DMS Views on the Edge Definitions of data log values and views To set up the Edge and work with noise-level data, you will want to have a good understanding of the terms listed in Table 3-1. NOTE: The following table is based on A-weighted, slow measurements.

  • Page 29: Table 3-1: Dosimeter Views And Definitions

    Memory storage symbol— eg4: The eg4 model displays the total memory storage remaining in hours and minutes. For example, if it displays the memory symbol 181:50 this represents 181 hours and 50 minutes of memory storage remaining on the dosimeter.

  • Page 30: Edge Measurement Descriptors/Variants

    3: Setting-up the Edge via DMS Views on the Edge Edge Measurement descriptors/variants The following is an explanation of the Edge descriptors and equivalents for L , Lmin, & Lpk. Descriptors Variants Lmax variants Sound pressure level—is the basic measure of noise loudness, expressed in decibels.

  • Page 31: Docking

    3: Setting-up the Edge via DMS Docking Docking Communicating & downloading data By using your docking station, USB cable, software, and your dosimeter, you can quickly communicate between the software and the dosimeter. There are two methods for communicating which are: ...

  • Page 32: Customizing Set-Up Parameters In Dms

    NOTE: The following DMS settings apply to the eg4 model. If you are also using other models such as the eg3/eg4 and have them docked in a 5-bay charger, they will appear in the “Edge Bay Charger”...

  • Page 33: Dosimeter Setting

    Meter1/Meter 2 settings (threshold, upper limit, exchange rate, criterion level, and RMS weighting). 2. When Meter 1 and Meter 2 settings are “enabled”, this will log (for eg4 model only) two different setups simultaneously. Typically, users will set the meter 1 and meter 2 with different regulatory or local standards (such as EU directive and OSHA).
  • Page 34 3: Setting-up the Edge via DMS Customizing set-up parameters in DMS Edge settings dosimeter Name Field Dosimeter settings for the Edge *Note: refer to Glossary for more detailed information. Heartbeat enable When enabled (or checked), the LED will flash green while running and flash amber when stopped.

  • Page 35: Display Setting

    3: Setting-up the Edge via DMS Customizing set-up parameters in DMS Display setting The display screen is used to customize the parameters which will appear on your Edge. It is organized by two columns, the “Display position” and the “Item to Display” and includes a “Set selected Items”...

  • Page 36: Security Setting

    3: Setting-up the Edge via DMS Customizing set-up parameters in DMS Security setting The security setting is a type of “locking” feature (or secure run feature) that enables you to password protect the instrument to prevent users from inadvertently terminating a study. Initially, this feature is set through the software and turned on once in run mode by pressing run/stop key three consecutive times.

  • Page 37: Auto Run Setting

    3: Setting-up the Edge via DMS Customizing set-up parameters in DMS Auto Run setting With the Edge auto run setting, you may program up to two auto start and auto stop configurations when start date and duration parameters are enabled. This may be useful if you want to pre-set the instruments to run and stop for a specific time period, such as a week-long study.

  • Page 38: Firmware Update

    3: Setting-up the Edge via DMS Customizing set-up parameters in DMS Firmware update Edge firmware updates are performed in DMS when the instruments are docked, communicating, and the update key is selected. Please follow the steps below prior to updating your Edge(s). NOTE: This feature enables you to update all of your docked Edges (when powered on and not in run mode).

  • Page 39: Saving And Sending/Setting Configurations

    3: Setting-up the Edge via DMS Customizing set-up parameters in DMS Saving and sending/setting configurations With the Edge, there are saved setup profiles used to quickly access and apply to The Edge(s). Below explains how to save configuration settings in DMS and how to send/set to the instrument. NOTE: If you want to only send the setup, please skip to step 3.
  • Page 40 3: Setting-up the Edge via DMS Customizing set-up parameters in DMS (This page intentionally left blank)

  • Page 41: 4: Running And Operating Your Dosimeter

    CHAPTER 4: Running and operating your dosimeter Overview of running a study 4: Running and operating your dosimeter The focus of this chapter is to discuss the procedures for running and operating the Edge and includes positioning, calibrating, and viewing the Edge measurements. Overview of running a study The list below is a brief overview of the steps for running a study.

  • Page 42: Positioning The Edge On Your Shirt

    4: Running and operating your dosimeter Overview of running a study Positioning the Edge on your shirt Depending on what accessories you ordered with the Edge, you may have either clips on the top and bottom of the dosimeter or some other type of mounting device. (Please refer to Appendix A, “Contact/Service information”).

  • Page 43: Checking Battery Power

    4: Running and operating your dosimeter Overview of running a study Checking battery power Typically, the life of the battery is approximately 60+ hours (see Appendix A for specific specifications). The dosimeter can be charged at any time by using your EdgeDock. There are two battery identifiers on the dosimeter which are the battery indicator icon and the battery power clock (see Figure 4-3).

  • Page 44: Calibrating

    4: Running and operating your dosimeter Overview of running a study Calibrating TSI recommends you calibrate your dosimeter before you run your study(ies) and after your study(ies) to ensure highly accurate measurement results. The steps below address how to calibrate for either a pre or post calibration.

  • Page 45: Resetting The Dosimeter

    4: Running and operating your dosimeter Overview of running a study Resetting the dosimeter The Edge can be reset through the dosimeter keypad or via DMS. The steps below outline how to reset your dosimeter.  Reset Ensure the meter is Off. Turn the meter on by pressing the on/off enter button.

  • Page 46: Setting Contrast On Dosimeter

    4: Running and operating your dosimeter Overview of running a study Setting contrast on dosimeter  Contrast Ensure the meter is Off. Turn the meter on by pressing the on/off/enter button. When the splash screen appears, press and hold the run/stop and on/off enter buttons (see Figure 4-5 for splash screen).

  • Page 47: Running Studies

    4: Running and operating your dosimeter Running studies Running studies With a couple pushes on the keypad buttons, you will be running and viewing your study (ies). Following your study (ies), you can load the data/files into DMS to manipulate, analyze, save, and create reports (See Chapter 5 for viewing your logged data in DMS).

  • Page 48: Stopping A Study

    4: Running and operating your dosimeter Stopping a study Stopping a study While the dosimeter is running, you can end the study by pressing and holding the stop button.  How to stop a noise study While running, press and hold the run/stop button.

  • Page 49: Viewing Measurements On The Display

    4: Running and operating your dosimeter Viewing measurements on the display Viewing measurements on the display The up/down arrows on the keypad of the dosimeter enable you to move through the various measurements. For specific information on the views of the Edge, please see “Views on the Edge”).

  • Page 50: Locking Or Securing

    4: Running and operating your dosimeter Viewing measurements on the display Locking or Securing  How to lock or secure Turn the dosimeter on and press the run/stop button to begin logging your study. To enable the lock, press run/stop button three consecutive times within one second intervals.

  • Page 51: 5: Viewing Your Studies In Dms

    CHAPTER 5: Viewing your studies in DMS Viewing measurements on the display 5: Viewing your studies in DMS The focus of this chapter is to discuss how to view your studies with the TSI Detection Management Software (DMS). The first section explains how to retrieve your studies from the dosimeter, and the subsequent sections will then walk you through viewing, organizing, and customizing your studies.

  • Page 52: Figure 5-2: Dms Start Screen

    Dosimetry Edge Download button EdgeDock-5 example  Click in the Edge checkboxes to download specific dosimeters Edge 3-4 Figure 5-3: Downloading with the Edge models eg3/eg4 7. Click button.  In the status field, it will state download is successful.

  • Page 53: Viewing Data And Data Finder Page

    5: Viewing your studies in DMS Viewing measurements on the display  Then, a clear the memory prompt will appear. Click yes to clear the memory or click no if you want to save the data on the dosimeter. 8. The sessions (files) will load and post to the Data Finder page under Family: Noise Dosimetry heading.

  • Page 54: Report View

    5: Viewing your studies in DMS Viewing measurements on the display 3. To view in Graphs and Tables, click on buttons. Data headings (optional: drag, drop and/or expand columns to view data) Selected Edge data Analyze button Quick Report button Figure 5-5: Data Finder page with the downloaded data Report View button provides a quick link to view/print the Edge data.

  • Page 55: Panel Layout View(Charts/Graphs)

    5: Viewing your studies in DMS Viewing measurements on the display Panel Layout View(charts/graphs) When you are in the data finder page (see above), select either the Analyze button or double-click on a session/study to view the data in charts and graphs as displayed in Figure 5-7. The measurements and parameters will be displayed in charts and graphs which may be customized for analysis and/or reporting purposes.
  • Page 56 5: Viewing your studies in DMS Viewing measurements on the display Quick tips with panels (charts/graphs)  To stretch the graph, click on one the corner’s edge of a chart or table and drag the mouse. The graph will expand and widen (depending on how you drag your mouse). ...

  • Page 57: 6: Technical Support

    CHAPTER 6: Technical Support LED indicator: disable/enable 6: Technical Support LED indicator: disable/enable Follow the instructions below to turn off the LED indicator.  To disable this feature, open DMS and select the Setup button. On the dosimeter tab, under Dose% indicator LED uncheck the following: Alarm Enable ...

  • Page 58: Replacing Microphone And Windscreen

    6: Technical Support Replacing microphone and windscreen Replacing microphone and windscreen Attaching/Detaching The Edge features a field replaceable microphone and a screw-on removable windscreen. TSI Incorporated suggests that you replace the windscreen whenever dirt has accumulated on the windscreen prior to measuring data. NOTE: If you ordered an Edge kit, extra windscreen(s) will be included in your case.

  • Page 59: Hard Hat Attachment Kit

    6: Technical Support Hard Hat Attachment Kit Hard Hat Attachment Kit The following instructions explain how to assemble and attach the hard hat kit to a standard hard hat. Hard Hat Attachment kit A. Epaulette mount B. Hard hat mount Using a 3/32”...
  • Page 60 6: Technical Support Hard Hat Attachment Kit (This page intentionally left blank)

  • Page 61: A: Specifications

    APPENDIX Appendix A Standards A: Specifications **All specifications subject to change Standards Pending testing approvals on the following:  ANSI S1.25, IEC61252 Standards for Personal Sound Exposure Meters.  Lead Free (RoHS compliant). Mechanical characteristics Housing Plastic case with black, gray check background and red outlined buttons. Size 3.5”...

  • Page 62: User Interface

    Appendix A User Interface User Interface Display Size: 128 X 64 graphic Keypad 4 keys—up arrow, down arrow, run/stop, on/off enter EdgeDock1 and EdgeDock5 EdgeDock1 and EdgeDock5 are powered by a 12-volt charger adapter with international plug adapters. The backside of the Edge slides into the hook of the EdgeDock1 or EdgeDock5 with the mounting clasps rotating to a 90 degree angle (which will rest on a table/work area).

  • Page 63: Measurements

    Special functions Security Key sequence protection through the keypad when running. Auto-Run May be programmed via DMS. Logging (eg4 only) The eg4 is a dual dosimeter with data logging which includes Lavg or Leq (1/2), Max level, and Peak level.

  • Page 64: Edge Block Diagram

    Appendix A Edge Block Diagram Edge Block Diagram Analog Board...

  • Page 65: Edge Block Diagram (Continued)

    Appendix A Edge Block Diagram (continued) Edge Block Diagram (continued)

  • Page 66: Contact/Service Information

    Return Material Authorization, or contact Customer Service. North America and Asia Pacific Europe, Middle East, and Africa TSI Incorporated TSI Instruments Ltd. 1060 Corporate Center Drive Stirling Road Oconomowoc, WI 53006-4828 Cressex Business Park High Wycombe, Bucks...

  • Page 67: Returning For Service

    Appendix A Contact/Service information Returning for Service Visit our website at http://rma.tsi.com and complete the on-line “Return Merchandise Authorization” form or call TSI at 1-800-680-1220 (USA) or (651) 490-2860, or 001 651 490-2860 (International) for specific return instructions. Customer Service will need the following information: ...

  • Page 68: Warranty

    Appendix A Warranty Warranty (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 12 months, or if less, the length of time specified in the operator's manual, from the date of shipment to the customer.

  • Page 69: B: Glossary Of Terms

    APPENDIX Appendix B Glossary of Terms B: Glossary of Terms Background Noise, effects of Background noise can cause considerable error in measurement when its level is high relative to the level of a noise source of interest. If you can make measurements both with and without the contribution of a noise source of interest, you can mathematically subtract the background noise from the combined measurement, yielding the level of the noise source of interest alone.
  • Page 70 Appendix B Glossary of Terms Combining Noise sources Because sound levels are measured in decibels they cannot be simply added together. A sound level of 90 dB plus 90 dB does not yield 180 dB but rather 93 dB. The procedure for mathematically determining a combined level of sound from independent measurements made for two noise sources is given below.
  • Page 71 Appendix B Glossary of Terms Criterion Time The time over which the Criterion Level is established, generally 8 hours. Decibel (dB) Sound Level Meters use the decibel as the unit of measure known as Sound Pressure Level (SPL). SPL uses the ratio between a reference level of 20 microPascals (.00002 Pascals) and the level being measured.
  • Page 72 Appendix B Glossary of Terms Free field setting (microphone) Measurements made in an area without sound reflections, diffractions and absorptions caused by nearby objects (including the operator). Sound waves are free to spread out continuously, like ripples on a pond, without reflection. When making free field measurements with a dosimeter set up for use as a sound level meter, the microphone is typically pointed directly at the sound source.
  • Page 73 Appendix B Glossary of Terms Leq (Equivalent Level) The true equivalent sound level measured over the run time. The term Leq is functionally the same as Lavg except that it is only used when the Exchange Rate is set to 3 dB and the threshold is set to none.
  • Page 74 Appendix B Glossary of Terms PEL (Permissible Exposure Level) The A-weighted sound level at which exposure for a Criterion Time, typically eight hours, accumulates a 100% noise dose. Projected Time The variable amount of time used to make a projected dose calculation from an actual dose measurement.
  • Page 75 Appendix B Glossary of Terms Threshold The threshold affects the Lavg, TWA, and Dose measurements. All sound below the threshold is considered nonexistent noise for the averaging and integrating functions. The threshold does not affect measurements in the sound level mode. OSHA uses two different thresholds. The original Occupational Noise Exposure Standard (1971) used a 90 dB threshold and called for engineering controls to reduce the noise levels if the eight-hour TWA was greater than 90 dB.
  • Page 76 Appendix B Glossary of Terms Weighting (A, C, Z, etc.) “A”, “B”, “C”, “Z” and LINEAR are the standard weighting networks available. These are frequency filters that cover the frequency range of human hearing (20 Hz to 20 kHz). “A” weighting is the most commonly used filter in both industrial noise applications (OSHA) and community noise regulations.

  • Page 77: C: Measurement Equations

    APPENDIX Appendix C Measurement equations C: Measurement equations The following equations are used in the Edge calculations. Some of the terms used in these equations are explained in Table B-1 while others are explained above in the “Glossary of Terms” section. ...
  • Page 78 Appendix C Measurement equations (This page intentionally left blank)
  • Page 79 INDEX eg3 ................6 Memory storage ..........21 Attaching eg4 ................6 the Edge.............. 34 Memory storage ..........21 eg4 model ..............55 Exchange Rate Background Noise, effects of Defined ..............63 Defined..............61 Export data ............... 23 Battery Checking ............. 35 Battery charge status ..........
  • Page 80 Index Model Run indicator ............39 eg3 ................ 6 Running a study eg4 ................ 6 Overview ............. 33 Mount the docking station ........15 Securing run mode ........... 42 Noise Floor Defined..............65 Defined ..............66 service international contacts .......... 58 Options menu .............
  • Page 81 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030...
