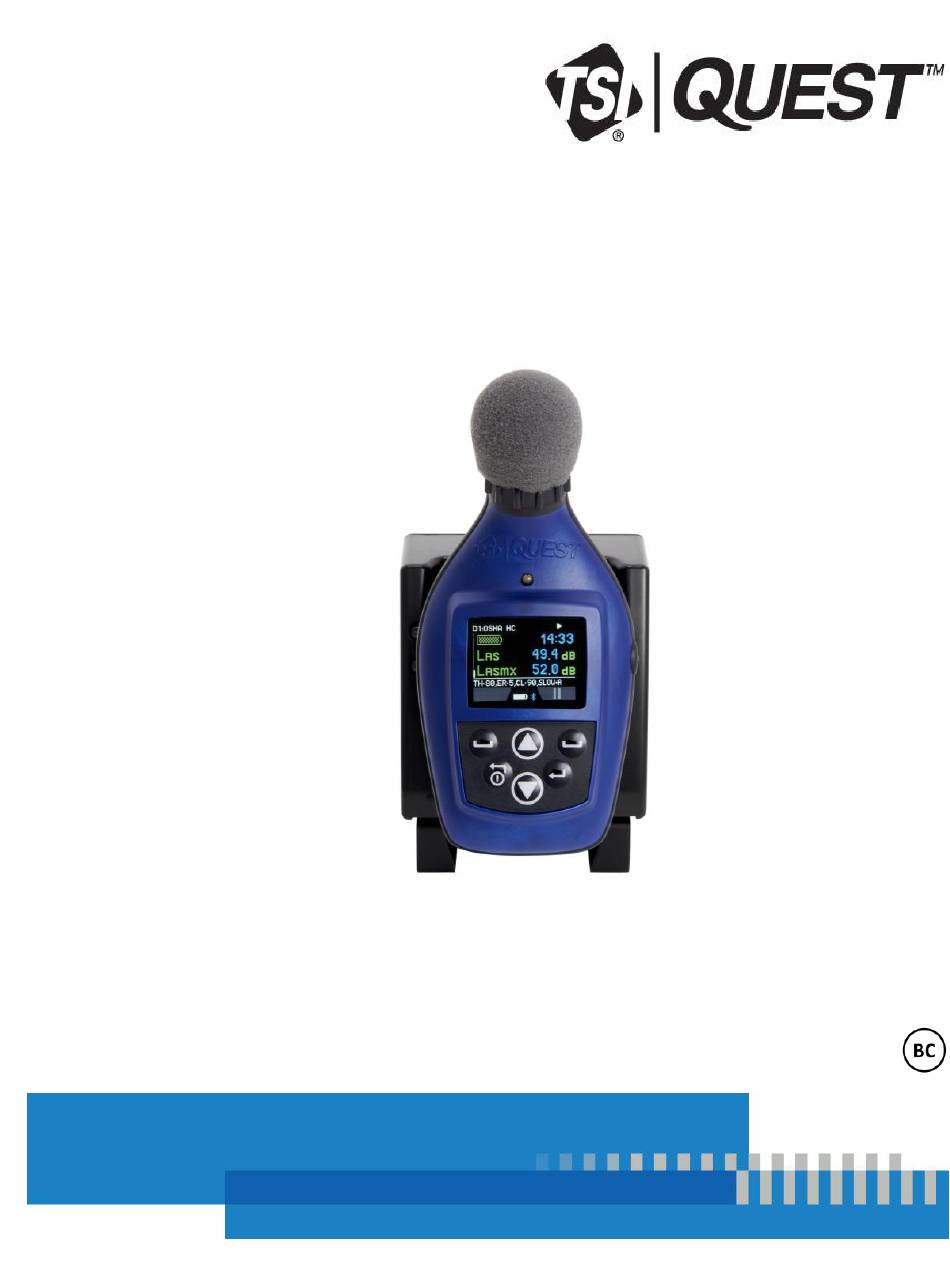

Quest
Edge 7
Personal Noise
Dosimeter
Model EG7
User Manual
P/N 6017049, Revision B
July 2023
www.tsi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quest Edge 7 and is the answer not in the manual?

Questions and answers

Summary of Contents for TSI Instruments Quest Edge 7

  • Page 1 ™ Quest Edge 7 Personal Noise Dosimeter Model EG7 User Manual P/N 6017049, Revision B July 2023 www.tsi.com...
  • Page 2 Start Seeing the Benefits of Registering Today! ® ® Thank you for your TSI instrument purchase. Occasionally, TSI releases information on software updates, product enhancements and ® new products. By registering your instrument, TSI will be able to send this important information to you. http://register.tsi.com As part of the registration process, you will be asked for your comments on TSI products and services.
  • Page 3: Manual History

    Manual History Revision Date May 2023 July 2023...
  • Page 4 (This page intentionally left blank)
  • Page 5: Warranty

    Warranty Part Number 6017049 / Revision B Copyright ©TSI Incorporated / 2023 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. 651-490-3824 E-mail Address technical.services@tsi.com Limitation of Warranty and Liability (effective April 2023) (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the length of time...
  • Page 6 OF SELLER, THE REPAIR OR REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES.
  • Page 7: Warnings, Safety Markings, & Standard Information

    Warnings, Safety Markings, & Standard Information Warnings Concerning Safe Operation N O T I C E This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 8: Tsi ® Contact/Service Information

    ® Contact/Service Information ® Should your TSI equipment need to be returned for repair or for recalibration, please contact the service department at the following number or access the online form via tsi.com/service. For technical issues, please contact Technical Support. Service Department and Technical Support ......
  • Page 9: Table Of Contents

    Contents Manual History ........................iii Warranty ........................... v Warnings, Safety Markings, & Standard Information ............vii Warnings Concerning Safe Operation ................vii Standards ........................... vii ® Contact/Service Information ..................viii International Customers ....................viii Edge Dosimeter Battery Care Best Practices ..............viii Proper Care Includes these Best Practices ..............
  • Page 10 CHAPTER 3 Setting up the Edge 7 via DMS ..............3-1 Noise Studies ........................3-1 Understanding what Data is Stored ................. 3-2 Summary Data ......................3-2 Time History ......................... 3-3 Logging ......................... 3-3 Views on the Edge ......................3-4 Definitions of Data Log Values and Views ..............3-4 Docking ..........................
  • Page 11 CHAPTER 6 Maintenance ....................6-1 Replacing Microphone and Windscreen ................6-1 Attaching/Detaching ..................... 6-1 CHAPTER 7 Technical Support/ Customer Service ............7-1 Contact/Service Information ..................... 7-1 Technical Support Contacts ..................7-1 Service Contact Information ..................7-1 Returning for Service ....................7-2 APPENDIX A Specifications* ....................
  • Page 12 List of Figures 1-1: Sample measurement display ..................1-1 1-2: Illustration of live data view and data analysis ............... 1-2 1-3: Parameter setup screen for EG7 ................... 1-6 2-1: Edge 7 powered on with splash screen displayed ............2-3 2-2: Edge 7 Powered on with measurement view screen displayed ........2-5 2-3: EdgeConnect1 (use EdgeDock1 for models EG3, EG4, EG5) ........
  • Page 13 5-1: Communicating between your PC and the Edge ............5-1 5-2: Communicating between your PC and the Edge ............5-2 5-3: DMS start screen ......................5-2 5-4: Downloading in DMS with the Edge ................5-3 5-5: Data Finder page with the downloaded data ..............5-4 5-6: Sample data report in DMS ....................
  • Page 14 (This page intentionally left blank) ™ Quest Edge 7 Personal Noise Dosimeter...
  • Page 15: Chapter 1 Introduction

    C H A P T E R 1 Introduction Dosimetry Measuring noise in the workplace is an important element of hearing conservation programs and noise reduction programs. With a noise dosimeter, you can assess and determine a worker’s daily exposure to noise levels. This information can be used to ensure compliance with regulatory bodies or to ensure if hearing conservation programs are needed.
  • Page 16: Noise Dosimeter

    Noise Dosimeter What is a noise dosimeter and how does it compute measurements? Essentially, a noise dosimeter is composed of the following: a microphone with a preamplifier, a weighted network, fast or slow response time, an internal clock, calculator, and memory to store logged data.
  • Page 17: Range Of Sound

    Range of Sound Sound pressure is measured in decibels, or tenths of a Bel. Sound pressure level is indicated as dB SPL. Since the human ear can detect sounds with an extensive range of amplitude, a decibel scale is used to simplify the measurement results. For example, the ratio between the threshold of hearing and threshold of pain in the human ear if measured in true energy is 10,000,000 times! The same range using the dB scale is 0–140 dB referenced to 20 µPa (Micropascals).
  • Page 18: Applications Of The Edge

    Applications of the Edge The Edge has a cable-free, mounted microphone that converts sound pressure into an electrical signal. This signal is conditioned, monitored, and integrated over time in order to provide a host of automatically calculated values that can be used in occupational and environmental noise assessments.
  • Page 19: Noise Assessment Steps

    Noise Assessment Steps 1. Perform a task-based work flow analysis of unacceptable “noisy” areas and list regulations/codes you will follow.  Observe facility/areas and jot down areas of concern.  Check with standards and noise ordinance regulations in your region/city. ❖...
  • Page 20: Overview

    Overview The “EG7” model features a user-configurable options of up to four virtual dosimeters with data logging, 1/1 octave band analysis, audio recording, voice notes, run/pause/stop functionality, and many more features. Once the parameters are set and saved in the dosimeter, you can monitor the different dosimeters by pressing the Enter button.
  • Page 21 Virtual Dosimeters You can monitor and log noise studies by enabling different parameter settings in one instrument, also referred to as “virtual dosimeters”. For instance, you may want to set one dosimeter to log using the OSHA HC (Occupational Safety and Health Administration – Hearing Conversation) parameters and also monitor noise with the OSHA PEL (Occupational Safety and Health Administration –...
  • Page 22 (This page intentionally left blank) ™ Quest Edge 7 Personal Noise Dosimeter...
  • Page 23: Chapter 2 Getting Started

    C H A P T E R 2 Getting Started This chapter is designed to guide you through basic information you will need to begin logging your studies. Checking the Equipment If your instrument was sent to you in a storage case, remove all the packaging and become acquainted with the equipment listed in Table 2-1 so you can quickly get started with your...
  • Page 24 Table 2-1: Identifying your equipment Item Description Item Description Edge 7 EdgeConnect1 • Microphone and (EC1-EG7-EG8) windscreen attached • DMS software (Download from www.tsi.com not in case) EdgeConnect5 • Quest™ Edge (EC5-EG7-EG8) dB App (Download from App Store or Google Play - not in case) Universal charger Extra windscreen for...
  • Page 25: Turning On

    Turning On To turn on the Edge, press the On/Off button. The Edge splash screen (see Figure 2-1) will appear indicating the firmware version and microphone serial number. After the splash screen disappears, the screen will be in the measurement view (see Figure 2-2). Figure 2-1: Edge 7 powered on with splash screen displayed Getting Started...
  • Page 26: Led Indicator

    LED Indicator There is a three-color LED indicator on the Edge. Table 2-2 explains when and why the LED indicator color will appear. N O T I C E The LED indicator can be disabled via DMS (see “Chapter 3, "Setting up the Edge DMS".) Table 2-2: LED indicators explained LED indicator...
  • Page 27: Display And Keypad

    Display and Keypad The keypad is used to run and stop your studies, view your measurement values, and power on and off the dosimeter. Features Figure 2-2 explains the features on the display and keypad. ❶ Windscreen and microphone ❶ ❷...
  • Page 28: Tsi ® Detection Management Software (Dms)

    ® Detection Management Software (DMS) ® ® Detection Management Software (DMS) is a software application designed by TSI that ® runs under the Windows operating system. You can use DMS for a variety of functions related ® to the Edge dosimeter and with many other TSI instruments.
  • Page 29: Docking Station Components

    Charging Indicator Power Indicator Charge contacts Power connector USB connector (to computer) Figure 2-3: EdgeConnect1 (use EdgeDock1 for models EG3, EG4, EG5) Docking Station Components Table 2-3 below explains the EdgeConnect1 or EdgeConnect5 (Use EdgeDock1 or EdgeDock5 for Edge models EG3, EG4 and EG5) LED indicators, power connector, USB connector, and contact pins.
  • Page 30: Edgeconnect1 Or Edgeconnect5

    EdgeConnect1 or EdgeConnect5 The EdgeConnect1 and EdgeConnect5 are powered by a 12-volt charger adapter. Figure 2-4 illustrates the assembly of the charger adapter and the plug adapter. It slides into place by guiding it down the back cavity (opening) of the power supply. N O T I C E The example is a typical adapter which may be different than the one you are using.
  • Page 31: Powering Edgeconnect1 Or Edgeconnect5

    Powering EdgeConnect1 or EdgeConnect5 Powering EdgeConnect1 or EdgeConnect5 1. Assemble the charger adapter and plug adapter as illustrated in Figure 2-5. (It will be the same process for an EdgeConnect5.) 2. Plug the charger adapter directly into the wall (electrical wall plate). 3.
  • Page 32: Charging Your Dosimeter

    Charging your Dosimeter The number of hours you have used your dosimeter from your last charge will impact your total charge time. N O T I C E To charge a fully discharged battery, it would take approximately 7 hours. How to Charge 1.
  • Page 33 ❶ Backside of Edge: The open cavity and contacts slide into the “Hook” of EdgeConnect. The contacts will align to each other. ❷ Example of the Edge Charging Dosimeter charge status (upper LED) • Flashing LED when charging • Solid Green LED when fully charged Power adapter...
  • Page 34: Mounting The Docking Station To A Wall

    Mounting the Docking Station to a Wall The docking station is equipped with two single screw slots for mounting the docking station to the wall. It is recommended to use #6 round headed screws for mounting the dock to a wall.
  • Page 35: Chapter 3 Setting Up The Edge 7 Via Dms

    C H A P T E R 3 Setting up the Edge 7 via DMS Noise Studies The EG7 model comes equipped with four (4) customizable user setups. You have the option to customize the parameters for threshold values, exchange rate values, filtering, an upper limit value, and a criterion level.
  • Page 36: Understanding What Data Is Stored

    Understanding what Data is Stored When you are running noise dosimetry studies, there are two types of data stored on the dosimeter which include the summary data and time history (or Logged) data. Summary Data Summary data represents values that occurred over the entire run of the study. For an average value, such as Lavg, it represents the average decibel value over the entire run time.
  • Page 37: Time History

    Time History Time history data is also referred to as “logged data” which plots measurement values at a configurable time interval. Time History data represents values that occurred over the most recent time period, which is the logging interval. For example, if the log interval is 10 seconds, then the Peak value is the highest Peak value for that 10 seconds, and the Lavg value is the average dB value for that 10 seconds.
  • Page 38: Views On The Edge

    Views on the Edge The Edge is a user-friendly and customizable dosimeter. With a simple click of a checkbox in DMS, you can select the appropriate measurement values or views to appear or not appear on the display of your dosimeter. The following table briefly identifies the displayed data values and views with a brief definition.
  • Page 39 Table 3-1: Dosimeter views and definitions (continued) Views on the EDGE Explanation Lavg Average sound level—(in dB) computed for a chosen time duration, based on a 4, 5, or 6 dB exchange rate. Lavg with a 3 dB exchange rate is referred to as Leq (equivalent sound level). All sound levels at or above the threshold level are averaged into the calculations relating to noise exposure.
  • Page 40 Table 3-1: Dosimeter views and definitions (continued) Views on the EDGE Explanation Typically, noise is not constant. Using a response of Slow or Fast Time Response simply smooths the noise fluctuation and makes the sound level (Fast, Slow) easier to work with. •...
  • Page 41: Docking

    Table 3-1: Dosimeter views and definitions (continued) Views on the EDGE Explanation The Current Time Clock symbol displays the current dosimeter time (24 hours format) in hour-minute-second. N O T I C E It is important that your instrument displays the correct time. Refer to page 3-21 to learn about setting the appropriate time.
  • Page 42 2. Plug the USB cable into the computer (see ❶ in Figure 3-4). 3. Plug the opposite end into the docking station (see ❷) and plug the EdgeConnect’s AC power supply into the docking station (see ❸). ❸ ❶ ❷ Figure 3-4: Communicating—connecting a docked Edge to a PC 4.
  • Page 43: Customizing Setup Parameters In Dms

    Customizing Setup Parameters in DMS Customizing and saving setups are performed via DMS. The following sections discuss each of the setup screens and explain how to save and send the parameters to the dosimeter(s). NOTICE The following DMS settings apply to the Edge 7 (EG7) model. If you are also using EG8 models and have them docked in a 5-bay EdgeConnect5 charger, they will appear in the “Edge Bay Charger”...
  • Page 44 ❶ Dosimeter settings explained in the setup table Figure 3-6: Detection Management Software (DMS): Dosimeter setup screen General Edge Parameters Table 3-2: Dosimeter fields explained for the Edge Dosimeter Description Setting NOTE: Refer to Glossary for more detailed information. Heartbeat When enabled (or checked), the LED will flash green while running and flash Enable amber when stopped.
  • Page 45 Table 3-2: Dosimeter fields explained for the Edge (continued) Dosimeter Description Setting NOTE: Refer to Glossary for more detailed information. Meter Enable When the checkbox is selected, that meter is active while in run mode recording data that can be shown in Data View panels. If not selected, that meter does not record data and will not be shown in the Data View panels.
  • Page 46 Table 3-2: Dosimeter fields explained for the Edge (continued) Voice Notes When enabled (checked) in DMS, the user can, by the press of a button on the Enable Edge, make 14 second verbal notes about, for example, location, description, or noise events. These recorded audio events can be viewed and played on the Logged Data Chart panel (see ❹...
  • Page 47 Octave Band Filter Settings The EG7 model comes equipped with an octave band filter that can be enabled via DMS. The Octave Band function is only available for Meter 1 (see Figure 3-7). Voice Notes Settings The EG7 is equipped with a voice note capability (see Figure 3-7). To start a recording, press the side button of the EG7 once.
  • Page 48 Audio Recording Settings The EG7 can automatically record audio of noise event above a preset dB level. The recorded audio is saved on the instrument and can only be listened to or visualized via DMS (the study must be downloaded to read the audio file). The current session remains uninterrupted while the recording is in progress (see Figure 3-9).
  • Page 49: Display Setting

    Dose % Indicator LED The Edge is equipped with a multifunction LED indicator. Aside from its communication-related functions while in the dock station, it can be used as a Heartbeat to indicate the dosimeter run state. In addition, while the dosimeter is running, it can also be used to provide an alarm for when the user’s dose % has exceeded a designated value (as measured by dosimeter 1).
  • Page 50 1. Click on the Display tab from the Edge’s Instrument Configuration panel (see ❶). To customize the display, click on either the Display position (see ❶) or the Item to Display field (see ❷). The field will be shaded in blue when selected. 2.
  • Page 51: Security Setting

    Security Setting The security setting is a type of “locking” feature (or secure run feature) that enables you to password protect the instrument to prevent users from inadvertently terminating a study. Initially, this feature is set through the software and turned on once in run mode by quickly pressing the left soft key button three consecutive times.
  • Page 52: Auto Run Setting

    Auto Run Setting With the Edge auto-run mode, you can program up to two auto start and auto stop configurations when start date and duration parameters are enabled. This is useful if you want to pre-set the instruments to run and stop for a specific time period, such as a week-long study. See steps below to enable.
  • Page 53: General

    ❶ ❷ ❺ ❸ ❹ ❻ Figure 3-12: DMS Edge auto run screen General ® Enable/Disable setting (see ❷), as well as The General tab (see ❶) contains the Bluetooth Setting is applicable to “BT” ® the Display Timeout and Inactivity Timeout setting. The Bluetooth ®...
  • Page 54: Firmware Update

    Firmware Update Edge firmware updates are performed in DMS when the instruments are docked, communicating, and the update key is selected. Please follow the steps below prior to updating your Edge(s). NOTICE This feature enables you to update all of your docked Edges (when powered on and not in run mode).
  • Page 55: Edge: Miscellaneous Setup

    Edge: Miscellaneous Setup The Edge miscellaneous setup screens can be used to set/get the Date Time of the instrument and set/get its identity string. Setting/Getting the Date Time Set the date time of the instrument on the Date- Time tab of the Miscellaneous setup screen. Choose either the Current System Time or Specific Time radio button.
  • Page 56 1. To save the Edge configuration in the software, click on a name in the Configuration Profile Management panel (see ❶). NOTICE The name will be shaded a light gray when selected. • To create a new profile name, click and type in a profile name.
  • Page 57: Chapter 4 Running And Operating

    C H A P T E R 4 Running and Operating As explained in Chapter 3, the view of your display is customizable via DMS. NOTICE The subsequent sections show examples of views which you may have disabled on your dosimeter.
  • Page 58: Positioning The Edge On Your Shirt

    Positioning the Edge on your Shirt How to Attach the Dosimeter Clip the dosimeter on your shirt and ensure the microphone is positioned as high on your shoulder as possible and away from your neck. a. If the noise seems to come from one direction, place it on the shoulder closest to the noise source.
  • Page 59: Checking Battery Power

    Checking Battery Power Typically, the life of the battery is up to 30 hours nominal with 20 seconds timeout display (see Appendix A for specific specifications). It is recommended to perform a daily download of the measured data while simultaneously charging the battery for maximum efficiency. A quick recharge with the EdgeConnect takes up to four (4) hours when half of the battery power is expended.
  • Page 60: Calibrating

    Calibrating It is recommended to calibrate your dosimeter before you run your study(ies) and after your study(ies) to ensure highly accurate measurement results. The steps below address how to calibrate for either a pre or post calibration. Calibrating the Dosimeter 1.
  • Page 61: Resetting The Dosimeter

    7. To match the values on the calibration display, press repeatedly the Up or Down arrow in order to select the exact output on the calibrator (i.e., 114 dB). 8. When you have selected the appropriate dB level, press the Enter button.
  • Page 62 Reset icon Arrows and enter key Indicate the valid keys Checkmark icon for the selection Select to exit the setup menu Figure 4-6: Reset Screen 4. Press and hold the Enter button. 5. A 3, 2, 1 countdown will appear and then a shaded bar will appear indicating the dosimeter is being reset.
  • Page 63: Hardware Reboot

    5. Next press the Enter button. 6. A number will appear on your display (i.e., 50). Press the Up or Down arrow increase or decrease the contrast of the Edge. 7. Press Enter button to accept the new contrast value. 8.
  • Page 64: Stopping A Study

    Stopping a Study While the dosimeter is running, you can pause the session by pressing and holding the pause soft key button then end the session by pressing and holding the stop button. How to Pause a Noise Study While running, press the Pause soft key 1.
  • Page 65: Viewing Measurements On The Display

    Indicators/Icons on the Display The Edge is equipped to notify you of operational/status updates. These indicators (or alert notices) are located on the top right-hand side of the screen. Table 4-1 explains the function of each indicator. Table 4-1: Indicators (i.e., run, stop, battery, and OL) Indicator Icon Explanation ■...
  • Page 66: Locking Or Securing Your Dosimeter During Run

    Locking or Securing your Dosimeter During Run As explained previously under DMS setup parameters, the security or lock feature is designed to lock the meter during run to ensure the study will not be stopped unless the lock feature is “Locking or Securing disabled.
  • Page 67: Chapter 5 Viewing Your Sessions In Dms

    C H A P T E R 5 Viewing your Sessions in DMS The focus of this chapter is to discuss how to view your sessions via Detection Management Software (DMS). The first section explains how to retrieve your sessions from the dosimeter, and the subsequent sections will then walk you through viewing, organizing, and customizing your studies.
  • Page 68 2. Dock the dosimeter and connect it to your PC using the USB cable (see, “Communicating and Downloading Data”). Figure 5-2: Communicating between your PC and the Edge 3. Power on the Edge by pressing the button. 4. In DMS’ start screen, choose Download Figure 5-3: DMS start screen ™...
  • Page 69 5. Select Noise Dosimetry (see ❶), Edge (see ❷), and Edge 7 (see ❸). Select the docked Edge(s) to download (see ❹). 6. Click button. • In the status field, it will state download is successful. • Then, a clear the instrument memory prompt will appear. Click yes to clear the memory or click no if you want to save the data on the dosimeter.
  • Page 70: Viewing Data And Data Finder Page

    Viewing Data and Data Finder Page When you download the data via the the download feature, the data is stored and viewable via the data finder page with advanced charting, tables, and reporting capability. The information is viewable in customizable graphs and/or with measurements/parameters displayed on the top navigational bar.
  • Page 71: Report View

    Report View button provides a quick link to view/print the Edge data. To customize the data, refer to the next session, panel view page. • Click to print the report. Edge, logged Octave Band data displayed in DMS report (scroll through to view the online report if applicable).
  • Page 72: Panel Layout View (Charts/Tables)

    Panel Layout View (charts/tables) When you are in the data finder page (see above), select either the Analyze button or double- click on a session/study to view the data in charts and tables as displayed in Figure 5-7. The measurements and parameters will be displayed in charts and tables which may be customized for analysis and/or reporting purposes.
  • Page 73 ❶ ❹ ❹ ❹ ❷ Active cursor ❹ Configure ❸ TSI Edge-7 Sample #1:Information TSI Edge-7 Sample#1:Summary D TSI Edge-7 Sample #1:Logged Dat TSI Edge-7 Sample #1:Filter Summ Figure 5-7: Panel layout view (viewing the data in charts and tables) Table 5-1: Quick Tips with Panels (charts/tables) Description Click on one of the grips along the panel’s edges and drag the...
  • Page 74 Description To customize x or y Click on these icons. axis font type To export data to Click on the export icon. .xls file To save a layout Right-click outside the panel area as displayed below. Click Remember Setting ™ Quest Edge 7 Personal Noise Dosimeter...
  • Page 75: Chapter 6 Maintenance

    C H A P T E R 6 Maintenance Replacing Microphone and Windscreen Attaching/Detaching The Edge features a field replaceable microphone and a Click-on, twist-off removable windscreen. NOTICE If you ordered an Edge kit, extra windscreen(s) will be included in your case. Before you start, turn off the dosimeter by pressing and holding the On/Off button.
  • Page 76 The following diagram illustrates how to remove and replace the microphone. Microphone (see step Existing Clip (see step Windscreen (see step Spare Clip (see step 4 Figure 6-1: Microphone and windscreen assembly ™ Quest Edge 7 Personal Noise Dosimeter...
  • Page 77: Chapter 7 Technical Support/ Customer Service

    Service Request form, or contact Customer Service. North America and Asia Pacific Europe, Middle East, and Africa TSI Incorporated TSI Instruments Ltd. 1060 Corporate Center Drive Stirling Road Oconomowoc, WI 53006-4828 Cressex Business Park High Wycombe, Bucks Telephone: 1-800-680-1220 (USA);...
  • Page 78: Returning For Service

    Returning for Service and complete the on-line “Service Request” form or call Visit our website at tsi.com/service ® at 1-800-680-1220 (USA) or (651) 490-2860, or 001 651 490-2860 (International) for specific return instructions. Customer Service will need the following information: •...
  • Page 79: Appendix A Specifications

    A P P E N D I X A Specifications * *All specifications are subject to change without notice. Standards • ANSI S1.25 Personal Noise Dosimeters • IEC61252 Personal Sound Exposure Meters ANSI S1.25 Class Designation Acoustic Dosimeter: 2AS-V/V-5 with frequency weighting C, Time constant F, and exchange rates 3 and 4 also available.
  • Page 80: Power/Electrical Characteristics

    Power/Electrical Characteristics Battery Life Up to 30 hours of continuous operation at normal operation under reference to environmental conditions when full capacity batteries are installed. It is recommended to charge the battery frequently for maximum efficiency. Type Lithium Polymer (Flat cell) Memory capacity Up to 100 days of data logging of standard noise data, without voice notes, audio recording or 1/1 Octave Band data enabled with...
  • Page 81: Temperature

    Magnetic Field The threshold level (min 70 dB) was not reached with a 4000 A/m Effects magnetic field applied. The sound exposure, after 1 hour in a 60 Hz 80 A/m magnetic field, with an electrically equivalent microphone impedance device is 0.0001 Pa h, with no cables used or needed.
  • Page 82: Edgeconnect1 And Edgeconnect5

    EdgeConnect1 and EdgeConnect5 EdgeConnect1 and EdgeConnect5 are powered by a 12-volt charger adapter with international plug adapters. The backside of the Edge slides into the hook of the EdgeConnect1 or EdgeConnect5 with the mounting clasps rotating to a 90-degree angle (which will rest on a table/work area).
  • Page 83: Measurement Parameters And Specs

    Measurement Parameters and Specs Measurement Parameters and Specs Dosimeters Four (4) dosimeters at once (EG7 and EG8 models), each with its own assignable profile (via DMS only). RMS Range RMS Linear operating range of each filter band is 70 to 140 dB RMS Weighting A or C weighting RMS Time Response...
  • Page 84 Measurement Parameters and Specs ∙h Reference Sound 1 Pa exposure Reference Filter 0 dB Attenuation ∙h Sound Exposure 0.01 to 9999.9 Pa range Sound Exposure The typical percentage deviations from the sound exposure Impulse Tolerance indicated, in response to positive-going unipolar pulses and to negative-going unipolar pulses is 0.63 %.
  • Page 85: Microphone Specifications

    Microphone Specifications The Maximum safe SPL for the microphone is 152 dB. Eg7/8 Microphone MIC-EG7-EG8 Frequency Response Nominal 90 Nominal random Nominal 0 Incidence Incidence Angle Incidence Angle 1/3 Octave Center Angle Frequency Frequency Frequency Frequency (Hz) Response (dB) Response (dB) Response (dB) -0.7 -0.7...
  • Page 86: Microphone Input Tests

    Eg7/8 Pressure Field Frequency Response Nominal Pressure 1/1 Octave Field Frequency Frequency (Hz) Response (dBA) 31.5 -40.4 -26.7 -16.2 -8.6 -3.1 1000 2000 4000 8000 -2.7 12500 -6.6 Microphone Input Tests The Edge supports microphone input testing using Input Adapter 805104. Max Input signal is 0.35 Vrms.
  • Page 87: Communications

    Communications The Edge communicates via the EdgeConnect1 and/or the EdgeConnect5. Communications is supported via USB cable from the docking station to the PC. Special Functions Security Key sequence protection through the keypad when running. Auto-Run May be programmed via DMS. Logging Data logging which includes Lavg/Leq, Lmx Lcpk.
  • Page 88 (This page intentionally left blank) ™ A-10 Quest Edge 7 Personal Noise Dosimeter...
  • Page 89: Appendix B Glossary Of Terms

    A P P E N D I X B Glossary of Terms Background Noise, effects of Background noise can cause considerable error in measurement when its level is high relative to the level of a noise source of interest. If you can make measurements both with and without the contribution of a noise source of interest, you can mathematically subtract the background noise from the combined measurement, yielding the level of the noise source of interest alone.
  • Page 90 Example Measurements with and without the noise source of interest are 91 dB and 90 dB, respectively. For a difference of 1 dB, the background noise correction value is 7 dB. Therefore, the level for the noise source of interest without the noisy background is 84 dB. Combining Noise sources Because sound levels are measured in decibels they cannot be simply added together.
  • Page 91 Example Independent measurements for the two noise sources yielded levels of 90 dB and 91 dB. For a difference of 1 dB, the correction factor taken from the curve below is 2.5 dB. Therefore, the combined level when these two sound sources are present in the measurement area at the same time 93.5 dB.
  • Page 92 Dose Related to the Criterion Level, a dose reading of 100% is the maximum allowable exposure to accumulated noise. For OSHA, 100% dose occurs for an average sound level of 90 dB over an 8-hour period (or any equivalent exposure). By using a TWA reading rather than the average sound level, the time period is no longer explicitly needed.
  • Page 93 Hearing Conservation (HC) The Occupational Safety and Health Administration (OSHA) and Mine Safety and Health Administration (MSHA) provide regulatory standards for hearing conservation programs. In addition, the American Conference of Governmental Industrial Hygienists (ACGIH) provides industrial standards for hearing conservation programs. http://www.osha.gov/ http://www.msha.gov/ , http://www.acgih.org/home.htm.
  • Page 94 Measurement Range The decibel range within which the unit’s measurements are valid. Minimum Level (Lmin) The lowest sampled sound level during the instrument’s run time allowing for the unit’s Response Time setting (Fast or Slow). Noise Floor In a “Perfectly Quiet” room, the electrical noise produced by the microphone is approximately 35 dB on A-weighting and 45 dB on C-weighting.
  • Page 95 Response Time The response determines how quickly the unit responds to fluctuating noise. Fast has a time constant of 125 milliseconds. Slow has a time constant of 1 second. Example: Typically, noise is not constant. If you were to try to read the sound level without a response time, the readings would fluctuate so much that determining the actual level would be extremely difficult.
  • Page 96 TWA (Time Weighted Average) The time weighted average always averages the sampled sound over an 8-hour period. TWA starts at zero and grows. The TWA is less than the Lavg for a duration of less than eight hours, exactly equal to the Lavg at eight hours, and grows higher than Lavg after eight hours. TWA represents a constant sound level lasting eight hours that would result in the equivalent sound energy as the noise that was sampled.
  • Page 97 Upper Limit (UL) A type of measurement parameter setting in which the user selects a certain decibel level. The dosimeter will then record the amount of time that the sound level was at or greater than the preset level. This time is then recorded as “UL Time” Windscreen A windscreen is a covering for the microphone that reduces disturbances caused by wind and direct contact with other surfaces.
  • Page 98 (This page intentionally left blank) ™ B-10 Quest Edge 7 Personal Noise Dosimeter...
  • Page 99: Appendix C Measurement Equations

    A P P E N D I X C Measurement Equations...
  • Page 100 Table C-1: Variables used in equations Variables Explanations Sound level, in decibels, that exceeds the Threshold Level. The response time is indicated by the second letter (Slow or Fast). 8-Hour Criterion Time (28800 seconds). RTIME Run Time (seconds). Exchange Rate (3, 4, 5 or 6 dB). Criterion Level (40 to 140 dB).
