DJI FOCUS
Quick Start Guide
V1.2
DJI FOCUS
www.dji.com
©2016 DJI. All Rights Reserved.
DJI Focus Diagram
10
9
8
7
14. Link Button
15. Lanyard Hole
16. Rosette Mount
17. Rear Screw
6
5
Printed in China.
1
2
3
11
12
4
13
5
6
14
15
1

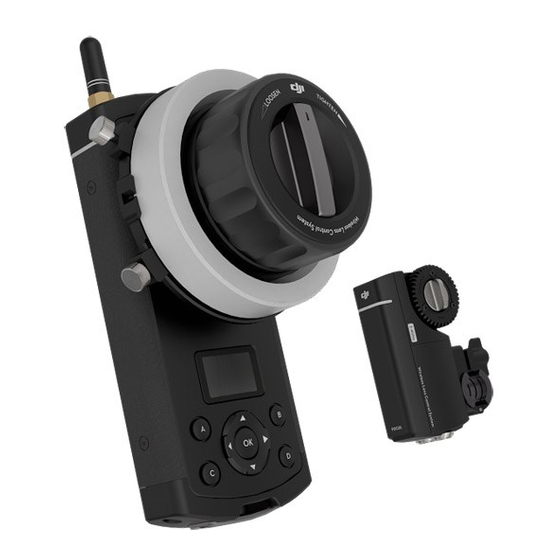

Motor
2
1. Gear
2. Gear Knob
3. Quick-Release Mount
3
4. Communication Ports
5. Link Button
6. System Status Indicator
4
Remote Controller
1. Antenna
2. Power Button
3. Communication Port
4. Marking Ring
5. Focus Wheel
6. Micro USB Port
7. Navigation Buttons
8. Quick Focus Buttons
9. OLED Screen
10. Stiffness Control
11. System Status LED
12. Hard Stop Screws
13. Backlight
