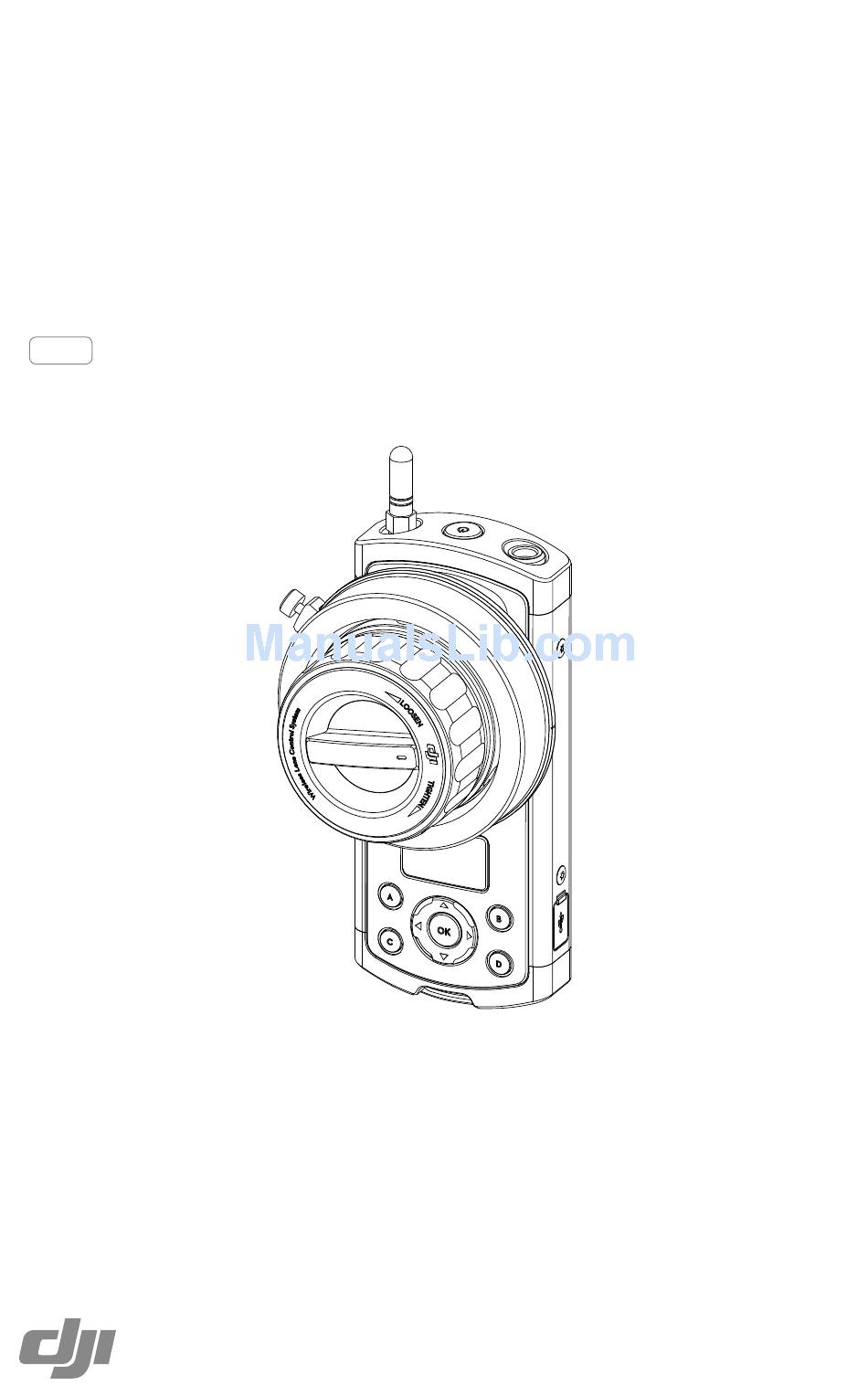

Page 1: Remote Controller
DJI FOCUS Remote Controller User Manual V1.0 2015.12... -
Page 2: Before You Begin

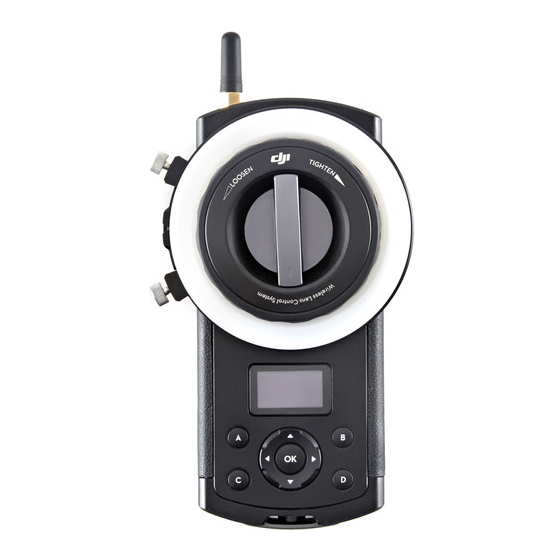

Check all of the included parts listed in the In the Box section. Read this entire User Manual and watch the informational on the product page of DJI’s official website (http://www.dji. com/product/focus). Read the disclaimers and warnings to understand your legal rights and responsibilities. - Page 3 Introduction The DJI Focus Remote Controller is able to control the focus and aperture of the Zenmuse X5 series gimbal and camera when connected to the Inspire 1 remote controller. It features an OLED screen and a host of control buttons.
-
Page 4: Getting Started
Charge the battery through the Micro USB port located on the side and check the battery level on the OLED screen. To replace the battery, remove the screw and battery cover on the back of the remote controller. Micro USB Port Screw 2015 DJI. All Rights Reserved. ©... - Page 5 Focus remote controller to the CAN Bus port on the Inspire 1 remote controller using the dedicated CAN Bus cable. Ensure that the Zenmuse X5 camera lens is set to AF mode. In the DJI GO app, ensure the shooting mode is set to 'M' (manual) or 'A' (aperture priority). 2015 DJI. All Rights Reserved.
- Page 6 LED Control: Enable or disable the LED and system status indicators on the remote controller. Default: Restores the default settings for the remote controller. About: Displays the current firmware version of the remote controller. 2015 DJI. All Rights Reserved. ©...
- Page 7 To switch from focus control to aperture control, press the 'D' button and then follow the instructions in the DJI GO app to operate the focus wheel. The remote controller overrides the in-app controls. You will not be able to adjust the focus , zoom or aperture in the DJI GO app.
- Page 8 1. Loosen the hard stop screws, slide them to the desired positions and tighten. 50.0% 2. The travel range of the focus wheel is now limited to the distance between the two hard stop screws. 50.0% 2015 DJI. All Rights Reserved. ©...
-
Page 9: Firmware Update
The DJI Focus firmware can be updated through the DJI PC/MAC Assistant. Installing the DJI PC/MAC Assistant Windows 1. Download the DJI WIN DRIVER INSTALLER and Assistant from the DJI Focus product page on DJI.com. 2. Double click the Assistant installer and follow the steps to finish the installation. Then, launch the Assistant. - Page 10 Ensure your PC is connected to the Internet. Close any antivirus programs and network firewalls. Ensure that the controller is powered on during the upgrade. Do not disconnect the USB cable during the upgrade. 2015 DJI. All Rights Reserved. ©...
-
Page 11: Specifications
Specifications General Operating Frequency 2.415-2.473 GHz Transmitter Power 14 dBm Operating Temperature -20° to 55° C Remote Controller Weight 745 g Dimensions 153×86×90 mm Battery Model: FB01-554461 LiPo 3.7 V, 1700 mAh, 6.29 Wh 2015 DJI. All Rights Reserved. ©... - Page 12 The content is subject to change. Download the latest version from http://www.dji.com/product/focus If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. 2015 DJI. All Rights Reserved. ©...
