DJI FOCUS
Wireless Lens Control System
User Manual
V1.0 2015.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOCUS and is the answer not in the manual?

Questions and answers

Related Manuals for dji FOCUS

Summary of Contents for dji FOCUS

  • Page 1 DJI FOCUS Wireless Lens Control System User Manual V1.0 2015.09...

  • Page 2: Disclaimers And Warnings

    This product and manual are copyrighted by DJI, with all rights reserved. No part of this product or manual shall be reproduced in any form without the prior written consent or authorization of DJI. No patent liability...

  • Page 3: Using This Manual

    *Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section. *Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.

  • Page 4: Table Of Contents

    Introduction ............................6 Controller ..........................6 Motor ............................8 Installation............................8 Mounting Antenna ........................8 Mounting Follow Focus Ring ..................... 9 Mounting the Motor ....................... 10 Binding ............................ 11 System Status LED Information ....................12 Settings ............................13 Calibrate ..........................13 Menu ............................

  • Page 5: In The Box

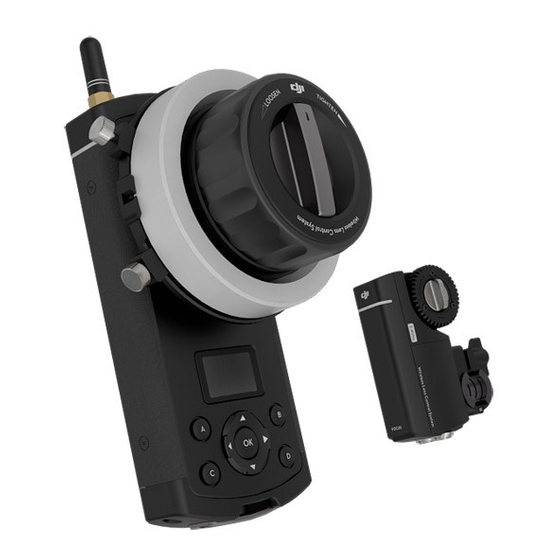

    In the Box Check to ensure that all of the following items are included in the package. If any items are missing, contact DJI or your local dealer. Controller X 1 Modular hand-held control unit, for controlling Motor. Motor X 1 For controlling lens.

  • Page 6: Introduction

    96 rpm), its maximum speed can up to 192 rpm, and the maximum torque can reach at 0.35Nm. The DJI Focus is able to work on wireless mode and cable mode, the max transmission distance is 100 m.
  • Page 7 Including an OK button and four direction buttons. 8. Quick Focus Buttons A, B, C, D buttons are separately represent a corresponding focus value, you may pre-set the focus and quickly switch to your desired focus by pressing the button.

  • Page 8: Motor

    To remove the cover of the controller by loosen this screw, so that you can replace the battery. Motor 1. Gear Screw For secure the gear, the gear can be mounted on both sides of the motor. 2. Gear For controlling the lens. 3.

  • Page 9: Mounting Follow Focus Ring

    Mounting Lens Ring DJI Focus provides four different types of lens ring, please choose the proper ring according to your camera lens. Insert the ring to the lens and tighten the screw. Be sure the ring and the lens make good contact.

  • Page 10: Mounting The Motor

    Mounting the Motor The following steps show how to mount the motor to camera support rods. The motor comes with rod clamp with two inner diameters. 1. Loosen the knob on the quick-release mount and attach the motor to the rod, and adjust the quick-released mount on the motor so that the gear can make full contact with the lens.

  • Page 11: Binding

    Do not put your fingers near the motor when it is moving. 4. DJI Focus is able to work on cable mode and wireless mode. If you willing to use cable mode, connect the data port on the controller to the other data port on the motor by using the signal cable.

  • Page 12: System Status Led Information

    2: On the controller, select Menu->Settings->Connect Motor->Connect, and then press the bind button on the motor within the following 5 seconds. The system status LEDs on both controller and motor blink slowly (blink once in a second) indicates the binding is successful. System Status LED Information The system status LED indicates the status for controller and motor.

  • Page 13: Settings

    Settings Turn on the controller and power on the motor. The OLED of controller will display the following information: [1] Battery Level [2] Scale Percentage [3] Scale Bar [4] Menu [5] Calibrate [6] Signal Strength Calibrate To control the lens accurately, you need to know the lens scale by calibrating the motor. The motor must be calibrated once restart it.

  • Page 14: Menu

    Acceleration: Setting the running acceleration for the motor, providing three options: Slow, Medium or Fast. Rack Speed: Setting the speed when switch the pre-set focus between A, B, C or D. The rack speed can be set among 1% to 100%, and the value is proportional to the Speed and Acceleration.

  • Page 15: Quick Focus Settings

    Quick Focus Settings There are four letter buttons A/B/C/D on the controller, which represent four different focus values. You may pre-set the four focus so that you can quickly switch to your desired focus by simply press one button. Settings...

  • Page 16: Using With Zenmuse X5

    Using the provided customizable cable connect the data port on the controller to the CAN Bus port on the Inspire 1 Pro remote controller. Make sure the Zenmuse X5 camera is set on AF mode when using the DJI Focus to ●...

  • Page 17: Settings

    The Assistant installer can be used on Windows XP, Win7, and Win8 (32 or 64 bit) b. Installing and Running on Mac OS X 1. Download the Assistant installer (.DMG) from DJI.com, then Run the installer and follow the prompts to finish the installation.

  • Page 18: Upgrade

    Upgrade the Controller Turn of the controller and connect it to your computer via the Micro-USB cable and wait until the indicator LED in the Assistant blinks blue. Click “Upgrade” to upgrade the Follow Focus Remote and Follow Focus Remote Radio.

  • Page 19: Specifications

    Specifications General Operating Frequency 2.415-2.473 GHz Max. Transmission Distance 100 m(out and unobstructed) Transmitter Power 12 dBm -20 to 55 ℃ Operating Temperature Range Motor Weight 170 g Dimensions 90*50*26 mm Max. Torque 0.35 Nm Max. Speed 192 rpm Working Current Static current: 80 mA (@12 V) Stall current: 2.5A (@12 V) Working Voltage...
  • Page 20 FCC Warning Message  Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.   This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 21 IC Radiation Exposure Statement:    This  equipment  complies  with  IC  RF  radiation  exposure  limits  set  forth  for  an  uncontrolled  environment.  This  transmitter  must  not  be  co‐located  or  operating  in  conjunction with any other antenna or transmitter.  The motor should be installed and operated with minimum distance 20cm between the  ...
