  • Page 1 UHF Wireless Microphone System UwMic15 User Manual...
  • Page 2 Please save it for your future reference. If the user manual can not help you to solve certain problems, please ask your retailer for help or email us: info@saramonic. com. Cautions 1. Do not use the unit under water, don't expose it to rain.

  • Page 3: Table Of Contents

    Contents General Introduction ..............2 Portable Receiver UwMic15-RX15 .......... 2 Introduction ................2 Product Structure ..............2 Attaching Accessories .............. 4 LCD Display Operation Guide ..........5 Body-pack Transmitter UwMic15-TX15 ........6 Introduction ................6 Product Structure ..............7 Antenna ..................7 Attaching Accessories ..............

  • Page 4: General Introduction

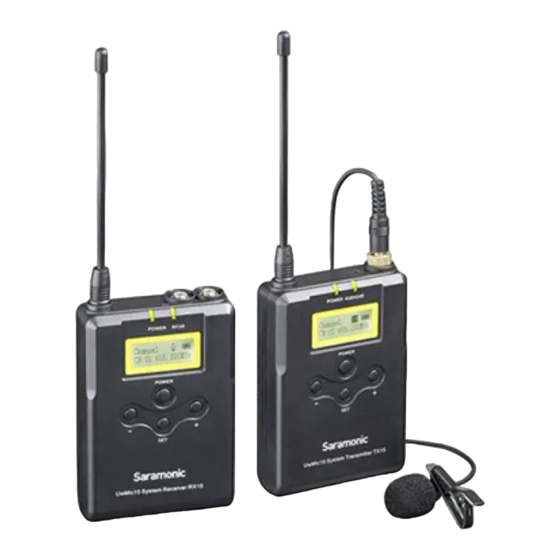

    General Introduction The Saramonic UwMic15 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering (ENG), on-the-spot interviews, and more.
  • Page 5 ④  + or - button Selects functions or values shown on the display. ⑤  POWER indicator Indicates the battery level as follows: Green light: Sufficient battery level. Red light: Low battery level. ⑥  RF indicator and infrared transmitter port The infrared transmitter port sends the set frequency to a transmitter.

  • Page 6: Attaching Accessories

    Attaching Accessories Connect the supplied cable to the output jack. ①   P lug the supplied cable into the OUTPUT jack. ② ②  For a secure connection, turn to lock the connector. ① Attach a belt clip. Please Refer to "Attaching Accessories" (page 8).

  • Page 7: Lcd Display Operation Guide

    LCD Display Operation Guide ① ② ③ Home screen If no operation is performed for 20 seconds on the other screens, the display will automatically return to the home screen. ①  Volume indicator ②  Battery level indicator Displays the battery level. Please replace both batteries immediately when the indicator starts flashing.

  • Page 8: Body-Pack Transmitter Uwmic15-Tx15

    Confirm it then the parameters of RX15 are restored to their factory default settings. Version of the UwMic-RX15 Serial Number Body-pack Transmitter UwMic15-TX15 Introduction This transmitter is a compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a locking-type microphone input connector.

  • Page 9: Product Structure

    Product Structure ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Antenna ①  POWER indicator Indicates the battery level as follows: Solid Green: Sufficient battery level. Solid Red: Battery is getting low. ②  AUDIO indicator / IR (infrared detector) AUDIO indicator: Indicates the audio input. IR (infrared detector): Gets the frequency from the receiver.

  • Page 10: Attaching Accessories

      ① Power / Mute button Function Operation Power ON Press button for one second or longer Power OFF Press button until it turns off Mute ON Short press button Mute OFF   ② + or – button Selects functions or values shown on the display.  ...

  • Page 11: Lcd Display Operation Guide

    2 Connect the mcirophone. For a secure connection, turn to lock the connector. Note: Please turn off the transmitter before attaching or removing the microphone. LCD Display Operation Guide ① ② ③ Home screen If no operatIon is performed for 20 seconds on the other screens, the display will automatically return to the home screen.
  • Page 12 Note: Please DO NOT turn on the phantom power when using with microphones that do not operate on phantom power, mixing boards or any unbalanced devices, because it may cause damage to both transmitter and audio device. Menu display section. Displays various functions. Press the + or - button to switch functions.

  • Page 13: Hand-Held Microphone Uwmic15-Sr-Hm15

    Version of the UwMic15-SR-XLR15 Serial Number Hand-held Microphone UwMic15-SR-HM15 Introduction The Saramonic SR-HM15 is a handheld wireless UHF microphone transmitter features a compact metallic body, an easy-to-read LCD display, a RF power switch and a PLL synthesizer. The broadcast quality microphone will capture crystal clear and rich sound.

  • Page 14: Setup Guide

    ③ (Option) Set the RF power to HIGH or LOW. The transmit power level varies depending on the model. ④ Press the power button to turn on the UwMic15-RX15. ⑤ Turn on the receiver UwMic15-RX15 and sync with the transmitter UwMic15-SR-HM15. Details of operation, please refer to "For UwMic15-SR-HM15"...

  • Page 15: Plug-On Transmitter Uwmic15-Sr-Xlr15

    Plug-on Transmitter UwMic15-SR-XLR15 Introduction The Saramonic SR-XLR15 is a compact XLR plug-on type transmitter features a wide switching RF bandwidth, an easy-to-read LCD display, +48V phantom power and mute function. It is suitable for portable wireless operation and can be used in a wide range of applications such as DSLR video, broadcast TV, ENG and more.
  • Page 16   ④ AUDIO indicator / IR (infrared detector) AUDIO indicator: Indicates the audio input level. IR (infrared detector): Gets the frequency from the receiver. Solid Green: Audio input level is appropriate. Flashing Red: Audio is muted (i.e., disabled). For details on setting the mute function, please refer to "Set Mute key"...

  • Page 17: Attaching Accessories

    Attaching Accessories Microphone or XLR cable Attach a microphone or XLR cable. Push the microphone or cable connector into the XLR audio input jack of the SR-XLR15 until it clicks into place. Microphone or XLR cable Release button Disconnect a microphone or XLR cable. Press the release button and pull the microphone or XLR cable out carefully in the direction of arrow.

  • Page 18: Lcd Display Operation Guide

    LCD Display Operation Guide ① ② ③ Home screen If no operatIon is performed for 20 seconds on the other screens, the display will automatically return to the home screen. ① Mute indicator Mute OFF Mute ON ② Battery level indicator Displays the battery level.
  • Page 19 Set Backlight Select ON, OFF or Delay 10 / 30 /60 seconds. Default is “Delay 10s.” Restore default setting Version of the UwMic15-TX-XLR15 Serial Number...

  • Page 20: Operation Guide

    Operation Guide 1 Install the batteries ① UwMic15-RX15 and UwMic15-TX15. Batteries can be inserted in the plug-on transmitter UwMic15-SR-XLR15 in the same manner. • Long press the Power key to turn the unit off. • Slide the two catches inward and pull out the battery compartment.
  • Page 21 3 Turn on the receiver by long pressing the power button. 4 Match the channel of receiver and transmitter ① Using the auto scan function For the TX15 and SR-XLR15 • Turn on the transmitter by long pressing the power button. •...
  • Page 22 ② Manually setting the transmitter channel. (Only available on the UwMic15-TX15 and UwMic15-SR-XLR15) • Turn on the transmitter by long pressing the power button. • Use the + or – button to display the channel setting menu on the transmitter.

  • Page 23: Specification

    Specification Transmitter TX15, SR-HM15, SR-XLR15 Channel Number Oscillator type PLL synthesizer Carrier frequencies 555MHz - 579MHz Reference deviation ±5 kHz (–60 dBV, 1 kHz input) Signal to noise ratio 70 dB or more Spur suppression -60dB Voice delay 10 ms 1/4 λ...

  • Page 24: Receiver Rx15

    Receiver RX15 Channel number Oscillator type PLL synthesizer Audio output connector 3.5mm mini jack 1/4 λ wire antenna Antenna Audio output level –60 dBV Headphone output level 30mW (16 Ω) Receive frequencies 555MHz - 579MHz Receive sensitivity -95dBm Signal to noise ratio 70 dB or more Voice delay 10 ms...

  • Page 25: Packing List

    Packing List TX15 • Body-pack transmitter: TX15 • Omni-directional lavalier microphone • Microphone holder clip • Wind screen • Belt clip SR-XLR15 • Plug-on transmitter: SR-XLR15...
  • Page 26 RX15 • Portable receiver: RX15 • Shoe mount adapter • Belt clip • XLR to 3.5mm locking-type plug audio output cable • 3.5mm locking-type plug audio cable SR-HM15 • Hand-held microphone: SR-HM15 Warranty card User manual...
  • Page 28 The Saramonic logo is trademark which is registered and owned by Saramonic International. COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL ( A brand of DSQN ) Email: info@saramonic.com...
