Summary of Contents for Saramonic VmicLink5
- Page 1 5.8GHz Wireless Microphone System VmicLink5 User Manual...
- Page 2 Please save it for your future reference. If the user manual can not help you to solve certain problems, please ask your retailer for help or email us: info@saramonic. com. Cautions 1. Do not use the unit under water, don't expose it to rain.
-
Page 3: Table Of Contents
Contents General Introduction Highlights Portable Receiver VmicLink5-RX Product Structure Attaching Accessories LCD Display Operation Guide Body-pack Transmitter VmicLink5-TX Product Structure Attaching Accessories LCD Display Operation Guide Battery Charger Specifications Packing List Package... -
Page 4: General Introduction
Operation 3 Portable Receiver VmicLink5-RX Power ON Press button for one second or longer The Saramonic VmicLink5-RX is a camera-mountable Power OFF Press button until it turns off integrated wireless receiver. It features an easy- to-read LCD display and DigRF synchronization... -
Page 5: Attaching Accessories
Battery compartment Connect the supplied cable to the Line out Install battery: • Plug the supplied 3.5mm cable into the LINE OUT. Slide the switch on the battery compartment cover according to the indicating arrow to open • For a secure connection, rotate clockwise to the battery compartment. - Page 6 RX & TX connecting indicator "———": The RX hasn't been matched with a TX in this group. Output mode "A"or"B"or"C" flashing: The RX has been The output mode can be selected to mono or matched but hasn't been connected with the TX stereo.
-
Page 7: Body-Pack Transmitter Vmiclink5-Tx

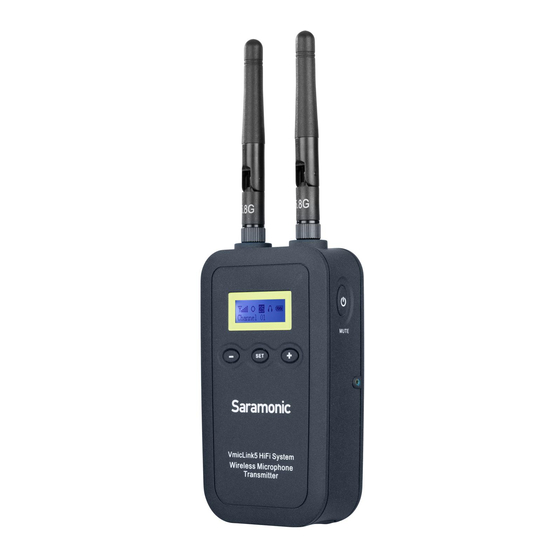

RX with TX(s) 4 Body-pack Transmitter VmicLink5-TX one by one. The VmicLink5-TX is a compact transmitter that According to the chronological order of employs a crystal-controlled PLL synthesizer. It is matching, the group number of each TX(s) will equipped with a muting function and lock-type be A, B, C by turns. -
Page 8: Attaching Accessories
or – button Select functions or values shown on the display. CD display Display menus, please refer to "1.4.3 LCD Display Operation Guide" for more details. Battery compartment Install and remove the battery instructions are the same as receiver. Mic input jack Connect to the supplied lavalier microphone. - Page 9 Volume indicator Indicates the volume of audio output. Mute indicator Mute key enable / disable Long press the SET button to enable / disable MUTE ON MUTE OFF Mute function. Note: If turn on Mute of the TX, only this TX will •...
-
Page 10: Battery Charger
Storage temperature -20°C-55°C Serial number 5 Battery Charger Use the battery charger to recharge the battery of VmicLink5 system. The indicator turns red while the battery is charging. The indicator turns green while the battery has been fully charged. -
Page 11: Packing List
VmicLink5 RX+TX+TX+TX This package includes one receiver RX and three transmitters TX. NOTE: The RX and TX in different packages can be matched. • Portable receiver: VmicLink5-RX • Shoe mount adapter • Belt clip • Antenna • Rechargeable Li-ion battery •... - Page 12 The Saramonic logo is trademark which is registered and owned by Saramonic International. COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL ( A brand of DSQN ) Email: info@saramonic.co...
