Saramonic UwMic9 User Manual

Uhf wireless microphone system
Hide thumbs Also See for UwMic9:
Table of Contents

Advertisement

Quick Links

UHF Wireless
Microphone System
UwMic9
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UwMic9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Saramonic UwMic9

Summary of Contents for Saramonic UwMic9

  • Page 1 UHF Wireless Microphone System UwMic9 User Manual...
  • Page 2 Please save it for your future reference. If the user manual can not help you to solve certain problems, please ask your retailer for help or email us: info@saramonic. com. Cautions 1. Do not use the unit under water, don't expose it to rain.

  • Page 3: Table Of Contents

    Plug-on Transmitter UwMic9-TX-XLR9 ........16 Introduction .................16 Product Structure ................16 Attaching Accessories ..............17 LCD Display Operation Guide ..........18 Plug-on Receiver UwMic9 RX-XLR9 .......... 21 Introduction .................21 Product Structure ................21 Attaching Accessories ..............23 LCD Display Operation Guide ..........23 UwMic9 SP-RX9 ................26 Product Structure ................26...

  • Page 4: General Introduction

    General Introduction The Saramonic UwMic9 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering (ENG), on-the-spot interviews, and more.

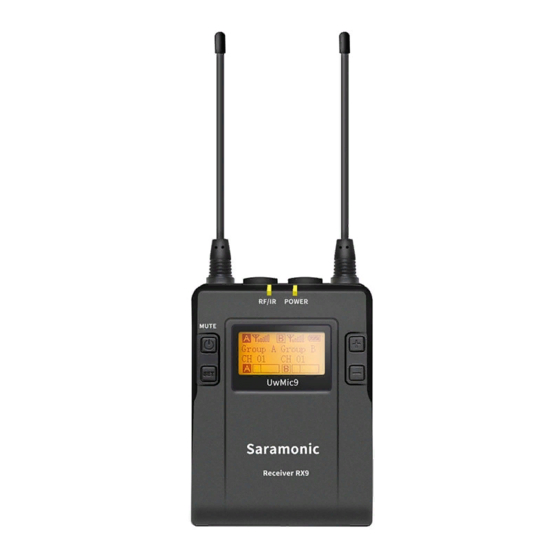

  • Page 5 ① Antennas ② Power button Long Press to turn on or off the RX9. ③ SET button Long press the SET button to enter the displayed menu. Then, short press the SET button to confirm your option or long press again to exit without saving. ④...

  • Page 6: Attaching Accessories

    Attaching Accessories Connect the supplied cable to the output jack. ② ① ① Plug the supplied cable into the OUTPUT jack. ② For a secure connection, turn to lock the connector. Attach a belt clip. Please Refer to "Attaching Accessories" (page 11).

  • Page 7: Lcd Display Operation Guide

    LCD Display Operation Guide ① ② ① ② ③ ④ ⑤ ⑥ Home screen. If no operation is performed for 20 seconds on the other screens, the display will automatically return to the home screen. ① Group icon Indicates the power of group A is turned off. Indicates the power of group A is turned on.
  • Page 8 Output mode. The output mode can be selected to mono or stereo. When the output mode is mono, the audio from left and right channel will be mixed. When it is stereo, the left (Group B) and right (Group A) audio channel output will be separated.
  • Page 9 Set output volume. Set the volume of output audio within the range 0 to 30. The setting is retained even after the power is turned off. Default is 27. Auto scan function. Automatically scan an available and clear channel. Details of operation, please refer to "Using the auto scan function"...
  • Page 10 Set backlight. Set the backgroud LED light to ON or Delay 60 /30 /10 seconds or OFF. Default is "Delay 10s." Restore default setting. Version of the UwMic-RX9. Serial Number.

  • Page 11: Body-Pack Transmitter Uwmic9-Tx9

    Body-pack Transmitter UwMic9-TX9 Introduction This transmitter is a compact transmitter that employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a locking-type microphone input connector. The RF power output can be switched among high, middle and low.

  • Page 12: Attaching Accessories

    ⑥ Battery compartment Accepts two AA batteries (alkaline, nickel metal hydride, or lithium batteries). ⑦ Power / Mute button Function Operation Power ON Press button for one second or longer Power OFF Press button until it turns off Mute ON Short press button Mute OFF ⑧...

  • Page 13: Lcd Display Operation Guide

    2. Connect the mcirophone For a secure connection, turn to lock the connector. Note: Please turn off the transmitter before attaching or removing the microphone. LCD Display Operation Guide ① ② ③ ④ ⑤ ⑥ ⑦ Home screen. If no operatIon is performed for 20 seconds on the other screens, the display will automatically return to the home screen.
  • Page 14 ⑤ Name of the channel group ⑥ Channel and frequency Indicate the current channel and frequency. ⑦ The status of Power / Mute button. ①   ① Menu display section. Displays various functions. Press the + or - button to switch functions. Set Power key.
  • Page 15 IR Match. Set to match with the receiver. The screen will display "Matching" when in process. After successful matching, it will indicate "Sync finished." Set Backlight. Select ON, OFF or Delay 10 / 30 /60 seconds. Default is "Delay 10s." Restore default setting. Version of the UwMic9-TX9. Serial Number.

  • Page 16: Hand-Held Microphone Uwmic9-Hu9

    Hand-held Microphone UwMic9-HU9 Introduction Saramonic HU9 is a handheld wireless UHF microphone transmitter features a compact metallic body, an easy-to- read LCD display, a RF power switch and a PLL synthesizer. The broadcast quality microphone will capture crystal clear and rich sound. It has a built-in antenna, a muting function and power lock function.

  • Page 17: Setup Guide

    3. (Option) Set the RF power to HIGH or LOW.The transmit power level varies depending on the model. 4. Press the power button to turn on the HU9. 5. Turn on the receiver UwMic9-RX9 and sync with the transmitter HU9. Details of operation, please refer to "For HU9" (page 36).

  • Page 18: Plug-On Transmitter Uwmic9-Tx-Xlr9

    Plug-on Transmitter UwMic9-TX-XLR9 Introduction The Saramonic TX-XLR9 is a compact XLR plug-on type transmitter. It features a wide switching RF bandwidth, an easy-to-read LCD display, +48V phantom power and mute function. It is suitable for portable wireless operation and can be used in a wide range of applications such as DSLR video, broadcast TV, ENG and more.

  • Page 19: Attaching Accessories

      ⑤ LCD screen Displays menus, please refer to "LCD Display Operation Guide" (page 18) for more details.   ⑥ Power / Mute button Turns the power or mute function to on or off. Function Operation Power ON Press the button for one second or longer Power OFF Press the button until it turns off Mute ON...

  • Page 20: Lcd Display Operation Guide

    Microphone or XLR cable Release button 2. Disconnect a microphone or XLR cable. Press the release button and pull the microphone or XLR cable out carefully in the direction of arrow. Note: Please turn off the transmitter before attaching or removing the microphone.
  • Page 21 ① ①  Menu display section. Displays various functions. Press the + or - button to switch functions. Set Power key. Select Unlocked or Locked. Set "Locked" to lock the power button to prevent the unit being turned off or muted unwittingly while using. Default is "Unlocked."...
  • Page 22 IR Match. Set to match with the receiver. The screen will display "Matching" when in process. After successful matching, it will indicate "Sync finished." Set Backlight. Select ON, OFF or Delay 10 / 30 /60 seconds. Default is "Delay 10s." Restore default setting. Version of the UwMic9-TX-XLR9.

  • Page 23: Plug-On Receiver Uwmic9 Rx-Xlr9

    Serial Number. Plug-on Receiver UwMic9 RX-XLR9 Introduction The Saramonic UwMic9 RX-XLR9 is a compact XLR plug- on wireless receiver. It plugs directly into a video camera or recorder’s XLR microphone input without getting in the way of other accessories. The XLR connector rotates both clockwise and counter clockwise.
  • Page 24   ⑤ Rotatable XLR-3-11C type (male) connector Connects the receiver to a camera or recorder’s XLR mic input. The receiver can be rotated by a maximum angle of 320°.   ⑥ Phone jack It is a 3.5mm diameter and stereo mini headphone jack. Connect a headphone to monitor the audio output.

  • Page 25: Attaching Accessories

    Attaching Accessories To mount the receiver to a video camera, proceed as follows: 1. Slide the cold shoe mount onto the hot shoe of the DSLR camera as shown, and fasten the cold show mount using the locking screw. 2. Plug the receiver’s rotatable XLR connector into the cold shoe adapter.
  • Page 26 ② RF level indicator Indicates the current reception level. ③ Battery level indicator Displays the battery level. Please replace both batteries immediately when the indicator starts flashing. ④ Channel group and channel number Displays the current channel number in Group A and Group B.
  • Page 27 Default is Group A in Channel 01 (514.56MHz) and Group B in Channel 01 (556.51MHz). Set output volume. Set the volume of output audio within the range 0 to 30. The setting is retained even after the power is turned off. Default is 27. Auto scan function.

  • Page 28: Uwmic9 Sp-Rx9

    The SP-RX9 is a compact two-channel wireless receiver and mixer, ideal for making videos with iOS or Android mobile devices and cameras. It can be used when paired with transmitters in UwMic9 system to capture audio. Meanwhile, it is an independent audio mixer that has three inputs available.
  • Page 29 ① Antennas ② Power button Long Press to turn on or off the SP-RX9. ③ SET button Long press the SET button to enter the displayed menu. Then, short press the SET button to confirm your option or long press again to exit without saving. ④...

  • Page 30: Lcd Display Operation Guide

    ⑪ Output jack (Micro USB) Connect the receiver to an iOS device with lightning input or an Android mobile device with Type-C connector. ⑫ Mini XLR microphone input ⑬ Output jack (3.5mm) Connect the receiver to an iOS, Android mobile device or camera with a 3.5mm input.
  • Page 31 Power key. Long press the SET button to unlocked or locked the power key. Lock the power key to prevent the receiver being turned off unwittingly while using. • Unlocked: Long press the power key to turn the receiver on or off (System default). •...
  • Page 32 Power of the Group. When you only use one group signal, please turn off the other group to save battery. To save battery, system default of the Group B is power off while the Group A is power on. When operating two transmitters simultaneously, please set each transmitter to a different group to prevent interference or noise.
  • Page 33 Auto scan function. Automatically scan an available and clear channel. Details of operation, please refer to "Using the auto scan function" (page 34). Group ettings Matc h with TX Group ettings Matc h with TX Infrared matching function. Match the receiver and transmitter via infrared.

  • Page 34: Operation Guide

    Version number of the receiver. Serial Number. Operation Guide 1. Install the batteries ① UwMic9-RX9 and UwMic9-TX9. Batteries can be inserted in the plug-on transmitter UwMic9-TX-XLR9 in the same manner. • Long press the Power key to turn the unit off.
  • Page 35 ② UwMic9-HU9 • Long press the power button to turn the power off. • Turn the grip in the direction of the arrow, and pull the grip down until the battery compartment is visible. • Insert two new AA batteries into the battery compartment with polarities in the correct orientation.
  • Page 36 Note:   ① Please remove the batteries from the battery compartment when the device is not used for a long time.   ② Please always use sets of the same type of battery.   ③ Replacing the batteries during operation may generate noise.
  • Page 37 A. Indicates the current least noise channel is CH 03 and ask you if you would like to use it. You can short press the SET button to confirm the channel within 20 seconds or long press the SET button to exit the displayed menu without saving.
  • Page 38 20cm of each other within 20 seconds. After 20 seconds have elapsed, the infrared transmission finishes and the display returns to the previous menu. ② Manually setting the transmitter channel (Only available on the UwMic9-TX9 and the UwMic9-TX-XLR9).

  • Page 39: Specification

    • Turn on the transmitter by long pressing the power button. • Use the + or – button to display the channel setting menu on the transmitter. • Long press the SET button to select the menu. • Use the + or – button to select the same channel as the receiver and confirm it by short pressing the SET button.

  • Page 40: Transmitter Tx9, Hu9 And Tx-Xlr9

    RX9: 170.9 × 63.5 × 30.0 mm Dimensions RX-XLR9: 112 × 63 × 26 mm Operating temperature 0 °C to 50 °C Storage temperature –20 °C to +55°C Transmitter TX9, HU9 and TX-XLR9 Channel number Channel group A or B Oscillator type PLL synthesizer Carrier frequencies...
  • Page 41 INPUT 2 & mini XLR gain 20 dB Micro USB gain 20 dB INPUT 1 & INPUT 2 power 5V power supplies Mini XLR jack phantom power 48V power supplies Antenna Built-in 1/4λ wire antenna Audio output level –60 dBV Headphone output level 30 mW (16 Ω) Receive sensitivity...

  • Page 42: Packing List

    Packing list • Body-pack transmitter: TX9 • Omni-directional lavalier microphone • Microphone holder clip • Wind screen • Belt clip TX-XLR9 • Plug-on transmitter: TX-XLR9...
  • Page 43 • Hand-held microphone: HU9 • Portable receiver: RX9 • Shoe mount adapter • Belt clip • XLR to 3.5mm locking-type plug audio output cable • 3.5mm locking-type plug audio cable...
  • Page 44 RX-XLR9 • Plug-on receiver: RX-XLR9 • Shoe mount adapter • XLR to 3.5mm audio output cable • Typc-C charging cable...
  • Page 45 SP-RX9 • Wireless receiver and mixer: SP-RX9 • Hand grip • USB Type-A to Type-C charge cable • Micro USB to USB Type-C cable • Micro USB to Lightning cable • 3.5mm TRRS to TRRS audio output cable • Mini XLR to standard XLR cable Warranty card User manual...
  • Page 48 The Saramonic logo is trademark which is registered and owned by Saramonic International. COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL ( A brand of DSQN ) Email: info@saramonic.com...
