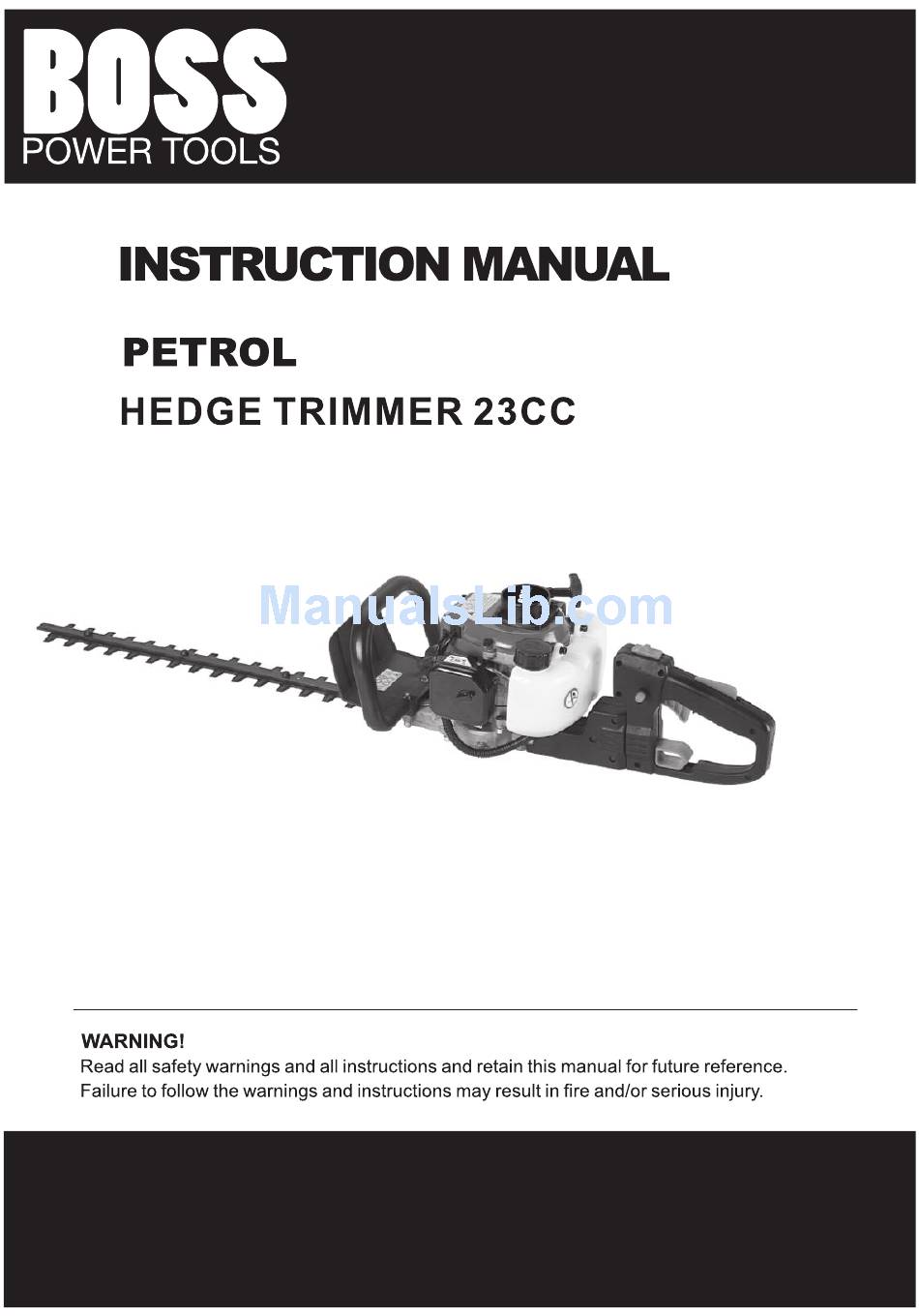

- Page 1 BPTHT230B 34 Yarraman Place Virginia, QLD, 4014 Ph: 03 8726 1471 Email: customerservice@bosspowertools.com.au Web: www.bosspowertools.com.au...
-
Page 2: Table Of Contents
The Hedge Trimmer models BPTHT230B combines the advantages of state-of-the-art technology with ergonomic design. they are light weight. handy,compact and represent professional equipment for a great variety of applications. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS General Instructions - This machine can cause serious injuries if used incorrectly. To ensure correct operation, users have to read this instruction manual to make themselves familiar with the handing of the Hedge Trimmer. Users insufficiently informed will risk danger to themselves as well as others due to improper handing (1) it is recommended only to loan the Hedge Trimmer to people who have proven to be experienced with Hedge Trimmers. - Page 4 When using the Hedge Trimmer ,always wear sturdy shoes with a non-slip sole. This protects against injuries and ensures===good footing. (4) Starting up the Hedge Trimmer - Please make sure that there are children or other people within a working range of 50 feet or 15 meters (5). also pay attention to animals in the working vicinity - Before operating, always check that the Hedge...
- Page 5 immediately if fuel has been spilled on it (danger hazard), - Inspect the fuel cap at regular interval!s making sure that it stays securely fastened. - Carefully tighten the locking screw of the fuel tank. Move at lease 10 ft (3 meters) away from the refueling point before starting engine - Never refuel in closed rooms.
-
Page 6: Specification
and nuts are securely tightened. - Never service or store the Hedge Trimmer in the vicinity of open flames, Sparks,etcs.(11) - Always store the Hedge Trimmer in a well-ventilated locked room and with an emptied fuel tank out of reach of children. Observe and follow all relevant accident prevention instructions issued by the trade associations safety board and by insurance companies. -
Page 7: Name Of Major Parts
Maximum blade speed 1.88 Idling speed 2600 1/min Clutch engagement speed 3600 1/min Carburetor type Diaphragm type Ignition system type Solid ignition system Spark plug CDK/LD type Electrode 0.6-0.7 Mixture ratio (fuel: MAKITA 2-stroke oil) 50:1 Gear ratio 14:58 1) The data takes equally into account idling and racing speed operating modes. NAME OF MAJOR PARTS... - Page 8 NAME OF MAJOR PARTS NAME OF MAJOR PARTS Blade Throttle lever Front handle Rear handle Recoil starter Muffler Fuel tank cap Gearbox Carburetor Blade cover STOP Switch (ON-OFF) FUELS/REFUELLING Fuel and oil mixture Inspect the fuel tank and fill with clean,fresh fuel of the proper mixture to...
- Page 9 assure the longer life of the tool. Use the following mixed gas. Gasoline : applicable genuine two-stroke engine oil=25:1 Gasoline :Other manufacturer’s two-stroke engine oil=25:1 recommended. FOR CALIFORNIA REGULATION THIS EQUIPMENT IS CERTIFIED TO OPERATE ON GASOLINE +TWO STROKEENGINE OIL. WHEN MIXING GASOLINE WITH TWO-STROKE ENGINE OIL.USE ONLY GASOLINE WHICH CONTAINS NO ETHANOL OR METHANOL(TYPES OF ALCOHOL).THIS WILL HELP TO AVOID POSSIBLE DAMAGE TO ENGINE FUELL LINES AND OTHER ENGINE...
-
Page 10: Precautions Before Starting
Refueling Always stop the engine and allow it to cool before refueling. - Thoroughly clean the around the fuel filler cap to prevent dirt from getting into the fuel tank . - Tightly screw on the fuel filler cap. - Clean the fuel filler cap and tank after refueling. Wipe up any fuel. -
Page 11: Starting The Machine
Electrical shock. Be aware of any and all electric lines and electric fences Check all areas for electrical lines before cutting. STARTING THE MACHINE Move at least 3 meters away from the place of refueling. Place the Hedge Trimmer on a clean area of ground make sure that the cutting tool does not come into contact with the ground or any other objects Cold starting (When the engine is cold or it has been stopped for more than 5 minutes or when fuel is... -
Page 12: Operation Of The Machine
OPERATION OF THE MACHINE Be sure to carefully read and follow safety instructions. Keep hands away from blades. Never grasp the exposed cutting blade or cutting edges，when picking up or holding the tool. Never touch the cutting device when starting the engine and during operation. -
Page 13: Maintenance Instructions
Do not use the Hedge Trimmer continuously for a long time. It is normal to take a break of 10 to 20 minutes after every 50 minutes operation. Should the cutting blades hit stones or other hard objects, immediately switch off the engine and inspect the cutting blades for damage. - Page 14 The blades have a slot around screw ② . In case you find dust in the end of any of the slots, clean it. Checking and adjusting the idling speed The cutting blade should not run when the control lever is fully released Idle speed should be set to 2,600 rpm.
- Page 15 narrow, adjust it. If the spark plug is clogged with carbon or fouled, clean it thoroughly or replace it. Use an exact replacement. Supply of grease and lubricant Supply grease to the gear case through the grease hole every 10 to 20 hours (Shell alvania No.3 or equivalent) Suction head in the fuel tank –...
-
Page 16: Storage
Before operation, always check for clogging of the cooling air passage and the cylinder fins. Clean them if necessary – Every 8 hours (Daily) Perform the following work daily after use: Clean the Hedge Trimmer externally and inspect for damage. Clean the air filter. - Page 17 engine seals damaged, cylinder or piston rings defective Outside of Improper sealing of spark plug engine Mechanical Starter Broken starter spring, broken parts inside of the fault engaging engine Tank filled Carburetor contaminated, have it cleaned Ignition spark existing Warm start Fuel supply Tank filled Incorrect idling adjustment, suction head or...
- Page 18 34 Yarraman Place Virginia, QLD, 4014 Ph: 03 8726 1471 Email: customerservice@bosspowertools.com.au Web: www.bosspowertools.com.au...
