Bosch ART 24, ART 24+, ART 27, ART 27+, ART 30, ART 30+ Manual

Safety Notes


Read all safety warnings and all instructions. Make yourself familiar with the controls and the proper use of the product. Please keep the instructions safe for later use!

Explanation of symbols on the machine

warning General hazard safety alert.
information Read instruction manual.
Make sure that bystanders are not injured by foreign objects being thrown away.

Keep a safe distance to the product when operating.
Switch off and rea.c. move plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting line.
Not applicable.
Wear eye and ear protection.
Do not use the product in the rain or leave it outdoors when it is raining.


Make sure that bystanders are not injured by foreign objects being hurled away.

Keep a safe distance from the machine when operating.

Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the machine is in operation. Thoroughly check the working area and remove any stones, sticks, wires, bones and foreign objects. When using the machine, ensure that no wildlife, pets or small tree stumps are hidden in the dense grass.

General Safety Warnings for Trimmers

  • Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
  • Save all safety warnings and instructions for future reference.
  • The term machine in the warnings refers to your mains-operated (corded) machines or battery-operated (cordless) machines.

Work area safety

  • Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  • Do not operate the machine in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
  • Keep children and bystanders away while operating the machine. Distractions can cause you to lose control over the machine. Never operate the machine while people, especially children or pets, are nearby.

Electrical safety

  • The plug of the machine must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock.
  • Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
  • Do not expose the machine to rain or wet conditions. Penetration of water in the machine increases the risk of an electric shock.
  • Never use the cord for carrying, hanging up or unplugging the machine. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
  • When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  • When operating the machine in damp environments is unavoidable, use a residual current device (RCD). The use of a residual current device (RCD) reduces the risk of electric shock.

Personal safety

  • Stay alert, watch what you are doing and use common sense when operating the machine. Do not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating the machine may result in serious personal injury.
  • Wear safety equipment. Always wear eye protection. Wearing safety equipment such as dusk mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
  • Prevent unintentional starting. Ensure the switch is in the off‑position before connecting to power source and/or battery, picking up or carrying the machine. Carrying machines with your finger on the switch or plugging in machines that have the switch on invites accidents.
  • Remove any adjusting key or spanner before turning the machine on. A spanner or a key left attached to a rotating part of the machine may result in personal injury.
  • Avoid abnormal body posture. Provide for a secure stance and keep your balance at all times; never run. This enables better control of the machine in unexpected situations.
  • Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. Always wear sturdy footwear and long trousers when operating the machine.
  • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dustrelated hazards.
  • Do not assume a false sense of security and disregard the safety regulations for machines, even if familiar with the machine through multiple use. A careless action can cause severe injury within a fraction of a second.

Use and Handling of the Machine

  • Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
  • Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired.
  • Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machines. Such preventive safety measures reduce the risk of starting the machine accidentally.
  • Store idle machines out of the reach of children. Do not allow persons unfamiliar with the machine or these instructions to operate the machine. Trimmers are dangerous in the hands of untrained users.
  • Maintain trimmers with care. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the operation of the machine. Have damaged parts repaired before using the machine. Many accidents are caused by poorly maintained machines.
  • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  • Use the machine, accessories, application tools, etc. according to these instructions. Take the working conditions and the work to be performed into account. Use of machines for operations different from those intended could result in a hazardous situation.
  • Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.

Service

  • Have your machine serviced by a qualified repair person using only identical replacement parts. This ensures that the safety of your machine is maintained.

Safety Warnings for Garden Tool
Operation

  • The operator must use the product in accordance with the regulations. The local conditions must be taken into account. When working, pay attention to other people, especially to children.
  • Never allow children, persons with physical, sensory or mental limitations or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.
  • Children should be supervised to ensure that they do not play with the product.

Application

  • When working with the machine, always hold it firmly with both hands and provide for a secure stance. The garden tool is guided more secure with both hands.
  • Always wait until the machine has come to a complete stop before placing it down.
  • Never operate the machine with a defective protection guard/cover or without safety device. Ensure that these are properly mounted. Never use the garden tool when incomplete or after unauthorised changes.
  • Never operate the machine if the cord is damaged or worn.
  • Never replace non-metallic cutting elements with metal cutting elements.
  • Never repair the garden tool yourself unless you are qualified to do so.
  • Other persons and animals should remain or be kept a suitable distance away when using the garden tool. The operator is responsible for third parties in the work area.
  • Wait until the cutting head has completely stopped before touching it. The cutting head continues to rotate after the trimmer is switched off; a rotating cutting head can cause injury.
  • Work only in daylight or in good artificial light.
  • Avoid operating the trimmer in bad weather conditions especially when there is a risk of lightning.
  • Operating the trimmer in wet grass decreases the efficiency of performance.
  • When transporting, switch the garden tool off and pull the mains plug.
  • Always ensure a safe working position when working with the trimmer. Always keep your hands and feet at a safe distance from rotating parts.
  • Take care when placing product on floor, as it may become a trip hazard.
  • Remove the mains plug before replacing the spool.
  • Inspect and maintain the trimmer regularly.
  • Always wear gloves when cleaning product or replacing cutting means.
  • Be careful of injuries from the blade used for cutting the cutting line. After feeding cutting line, always return the trimmer to a horizontal working position before switching on.

Switch the garden tool off and remove the plug from the socket:

  • whenever you leave the machine unattended for any period of time
  • before replacing the cutting line
  • if the cable is tangled,
  • before cleaning or working on the trimmer
  • before storing the trimmer u Store the product in a secure, dry place out of the reach of children. Do not place other objects on top of the product.

Electrical Safety

  • Switch the machine off and pull the mains plug before actuating the manual-feed button. This button should only be used in the event of an obstruction of the cutting line.


Switch the product off and pull the mains plug before any maintenance or cleaning. The same applies when the mains cable is damaged, cut or entangled.
Your product is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Contact your Bosch Service Centre for details. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.
For increased electrical safety use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.
Keep the supply cables away from moving hazardous parts and avoid damage to the cables; this can lead to contact with live parts.
The connections (plugs and sockets) should be kept dry and off the ground. The supply cables must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.
If the supply cable on the product is damaged, it must only be replaced by a Bosch Service Centre. Only use approved extension cables.
Use only extension cords, cables, leads, cable reels that comply with EN 61242/IEC 61242 or IEC 60884-2-7. If you want to use an extension cable when operating your product, only the following cable dimensions should be used:

  • Nominal conductor area of 1.25 mm2 or 1.5 mm2
  • Maximum length 30 m for a Cord Extension Set or maximum length of 60 m for a Cable Reel with Residual Current Device (RCD).

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.
If in doubt contact a qualified electrician or the nearest Bosch Service Centre.


Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

For products not sold in GB:

For your safety, it is required that the plug attached to the product is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.

Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

  • Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

Symbols

The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol Meaning
Movement direction
Reaction direction
Wear protective gloves
Weight
Switching on
Switching on
Permitted action
Prohibited action
Audible noise
Accessories/Spare Parts

Intended Use
The garden tool is intended for domestic use, for trimming grass, weeds and nettles. It is designed for trimming grass growing on slopes, under obstacles and lawn edges that cannot be reached by the lawn mower. The garden tool is not designed for use as a brush cutter. The garden tool is not intended for commercial or industrial use.

Delivery scope

(see figure B)
Carefully remove the garden tool from its packaging and check if the following parts are complete:

  • Grass trimmer
  • Protection guard
  • Wheels
  • Screwdriver
  • Operating instructions

When parts are missing or damaged, please contact your dealer.

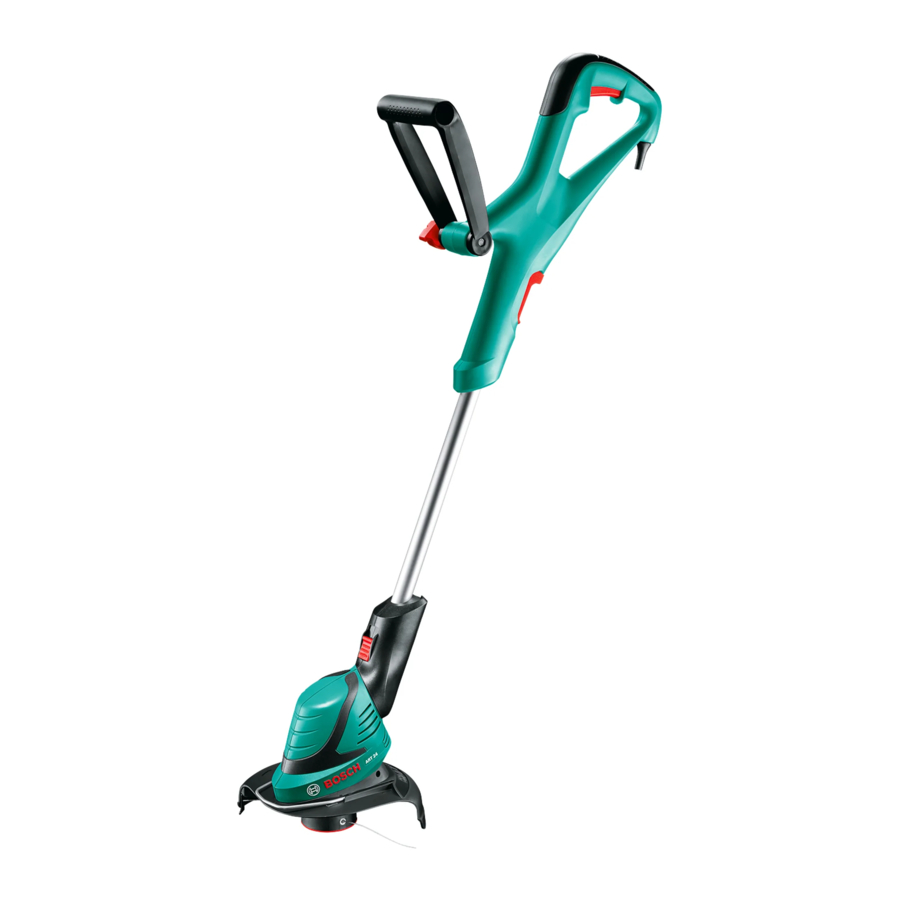

Product Features

(see figure A)
Product Features

  1. Handle-adjustment release
  2. Adjustable handle
  3. On/Off switch
  4. Mains plugA)
  5. Lawn trimming/edge cutting button
  6. Protection guard
  7. Screw for mounting protection guard
  8. Button for mounting the wheels
  9. Wheels
  10. Cable hook
  11. Spool cover
  12. Spool
  13. Hole for line wind-up
  14. Hole for line guiding
  15. Line-feed button
  1. Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Grass trimmer ART 24 ART 24+ ART 27 ART 27+ ART 30 ART 30+
Article number 3 600 HA5 8.. 3 600 HA5 9.. 3 600 HA5 2.. 3 600 HA5 3.. 3 600 HA5 4.. 3 600 HA5 5..
Rated power in- W put 400 400 450 450 550 550
No-load speed min -1 12000 12000 10500 10500 9500 9500
Cutting system automatic automatic automatic automatic automatic automatic
Adjustable handle
Wheels
Cutting line diamm meter 1.6 1.6 1.6 1.6 1.6 1.6
Cutting diameter cm 24 24 27 27 30 30
Cutting spool capacity m 2 x 3 2 x 3 2 x 3 2 x 3 2 x 3 2 x 3
Weight accordkg ing to EPTA‑Procedure 01:2014 2.6 2.8 2.7 2.9 2.8 3.0
Protection class / II / II / II / II / II / II
Serial number see type plate on garden tool

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Noise/Vibration Information

3 600 HA5 8.. 3 600 HA5 9.. 3 600 HA5 2.. 3 600 HA5 3.. 3 600 HA5 4.. 3 600 HA5 5..
Noise emission values determined according to EN 50636-2-91.
Typically the A-weighted noise levels of the product are:
  • Sound pressure level
dB(A) 74 74 74
  • Sound power level
dB(A) 94 94 94
  • Uncertainty K
dB = 2.0 = 2.0 = 2.0
Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 50636-2-91
  • Vibration emission value a h
m/s 2 6.5 6.5 6.5
  • Uncertainty K
m/s 2 = 2.0 = 2.0 = 2.0

Assembly


  • Switch the garden tool off and pull the mains plug before performing any maintenance.

Adjusting the handle (see figure C)
The handle (2) can be set to different positions. To change the adjustment, loosen the handle-adjustment release (1) a little and move the handle to the desired position. Retighten the handle-adjustment release (1) again.
Adjusting the handle

Mounting the protection guard (see figure D)
Mounting the protection guard

  • Do not disassemble guard once connected.
  • Before using, check tight seating of guard screw.
    Position the protection guard (6) on the trimmer head and fasten it with the provided screws (7). The screws (7) are already fitted to the protection guard (6) upon delivery.

Mounting the Wheels and Adjusting the Working Height (see Fig. E)
Press button (8) and mount the wheels (9) onto the shaft. To adjust the position of the wheels, press button (8) and slide the wheels (9) to the desired height. The wheels (9) can be moved up and down along the shaft.
Mounting the Wheels and Adjusting the Working Height

Operation

  • Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the machine.

  • Switch the garden tool off and pull the mains plug before adjusting or cleaning.
  • The cutting line continues to rotate for a few seconds after the trimmer is switched off. Allow the motor/cutting line to stop rotating before switching on again.
  • Do not briefly switch off and on again several times in a row.
  • Only use Bosch approved cutting elements. Cutting performance will vary with different cutting elements.

Switching On and Off (see figure G)
To switch on, press and hold the On/Off switch (3).
To switch off, release the On/Off switch (3).
Switching On and Off

Lawn Trimming/Edge Cutting (see figure F)
Press button (5). Turn the bottom part of the trimmer by 180° to position the trimmer head either for lawn trimming or edge cutting. Release button (5) so that the turning mechanism engages.
Lawn Trimming/Edge Cutting

Lawn trimming
Move the trimmer left and right, keeping it well away from the body. Cut higher grass in steps.

Edge cutting
Guide the trimmer along the edge of the lawn. Avoid contact with solid surfaces or walls to prevent rapid wear of the cutting line.

Cutting around trees and bushes
Carefully cut around trees and bushes so that they do not come into contact with the cutting line. Plants can die if you damage the bark.

Dismounting the spool, winding up the cutting line and mounting the spool (see figures H to J)
Dismounting the spool - Step 1
Dismounting the spool - Step 2

  • Remove the mains plug before replacing the spool.

Press both latches of the spool cover together and remove the spool cover (11). Afterwards, remove the empty spool (12).
Cut off approx. 6.0 m line from the refill roll. Fold the line in half, so that it has a length of 2 x 3 m. Attach the line centre to the nose on the spool (13) and wind up the line - one end in each spool compartment - uniformly distributed and taut. Slide both ends of the cutting line through the holes for line guiding (14) in the trimmer head and mount the spool back into the trimmer head. Affix the spool by mounting the spool cover (11).

Line Feeding (see figure K)
Semi-automatic Line Feeding
The trimmer is equipped with a semi-automatic feeding system. The spool feeds line each time the machine comes to a stop (On/Off switch is released); too long line is cut off when the machine is started again.
Line Feeding

Manual Line Feeding
Press the line-feed button (15), and pull the cutting line out to the desired length.

Troubleshooting

Problem Possible Cause Corrective Action

Trimmer fails to operate

Power turned off Turn power on
Mains socket faulty Use another socket
Extension cable damaged Inspect cable, replace if damaged
Fuse faulty / blown Replace fuse

Trimmer runs intermittently

Extension cable damaged Inspect cable, replace if damaged
Internal wiring of garden tool defective Contact Bosch customer service agent

Trimmer motor is stalling

Grass too high Cut in stages

Trimmer does not cut

Cutting line too short/broken off Feed cutting line using manual feed button (see figure I)
Spool empty Replace line spool

Cutting line can no longer be fed

Line inside the spool entangled Check line spool and rewind cutting line if required (see figure I)
Spool empty Replace line spool

Line retracts into spool

Cutting line too short/broken off Rewind spool

Line breaks frequently

Line inside the spool entangled Inspect the spool, rewind if necessary
Trimmer used incorrectly Only trim with the tip of the line, avoid touching stones, walls and other hard objects. Feed the line regularly to maintain full cutting diameter.

Maintenance, Cleaning and Storage

Maintenance, Cleaning and Storage

  • Before any work on the product, disconnect supply cord from the mains.
  • For safe and proper working, always keep the product clean.

Do not place other objects on the garden product.
To ensure safe and efficient operation, always keep the product and the ventilation slots clean.
Never spray the product with water.
Never immerse the product in water.
Store the product in a secure, dry place, out of the reach of children.
Do not place other objects on the product.
Keep all nuts, bolts and screws tight to ensure safe working with the product.
Inspect the product and replace worn or damaged parts for safety.
Ensure replacement parts fitted are Bosch-approved.

After-sales Service and Application Service
www.bosch-garden.com
In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product.

Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com

Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888

Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center Inside Australia:
Phone: (01300) 307044 Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353 Fax: (0800) 428570
Outside AU and NZ: Phone: +61 3 95415555
www.bosch-pt.com.au www.bosch-pt.co.nz

Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za

Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Bosch ART 24, ART 24+, ART 27, ART 27+, ART 30, ART 30+ Manual

Advertisement

Need help?

Need help?

Do you have a question about the ART 24 and is the answer not in the manual?

Questions and answers

Table of Contents
