astra telematics AT100 Quick Installation Manual

AT100 Quick Installation Guide

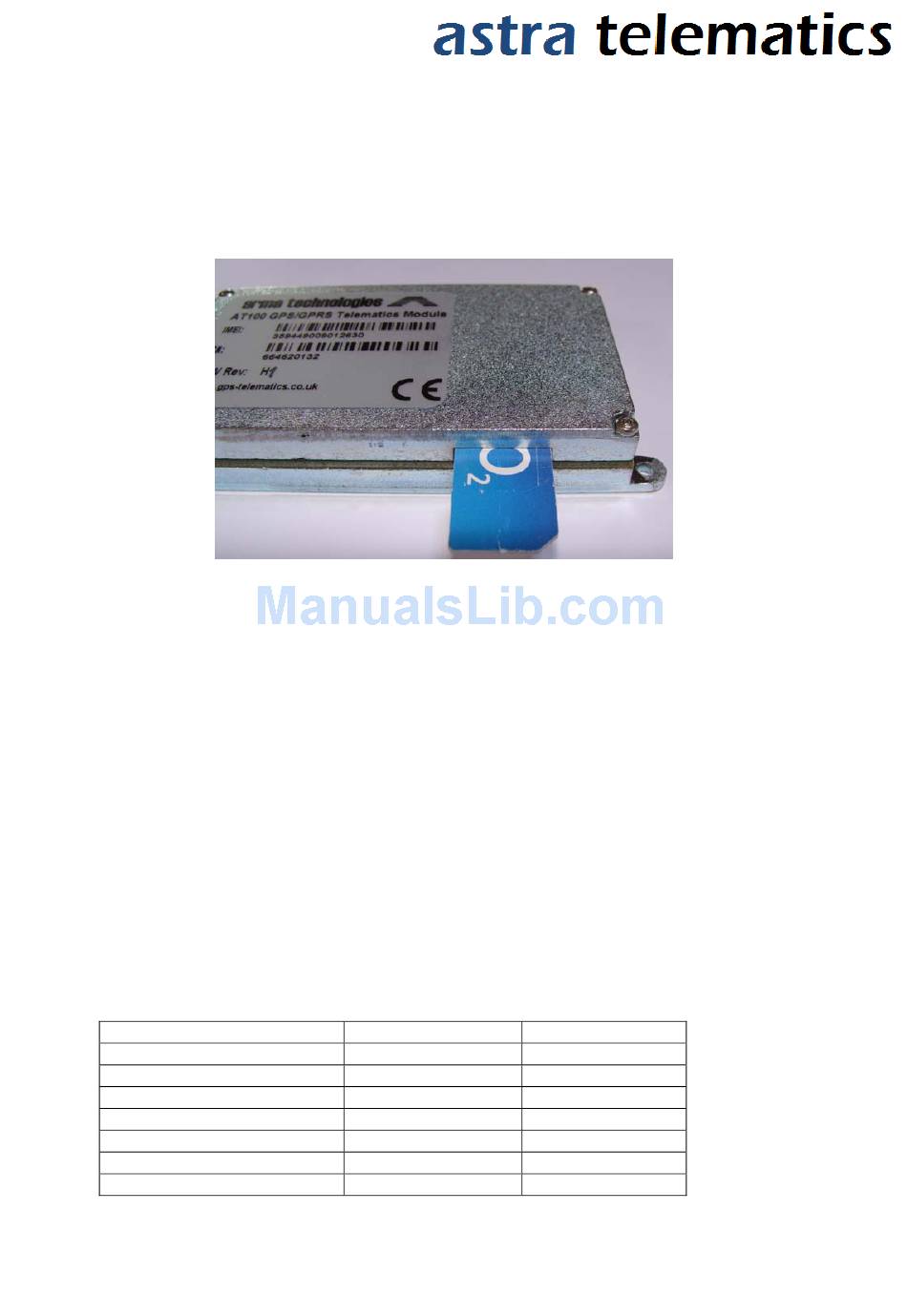

1. Install the GSM SIM card

Insert the SIM card into the small slot in the side of the AT100, until it is flush with the edge of
the case. Correct orientation of the SIM card is important for correct operation and to avoid
damage to the SIM – see below:

2. Protect SIM card

Once the SIM is installed, it is advisable to cover the SIM slot with tape or an anti-tamper
label, to protect against ingress of dirt and deter tampering.

3. Power Supply

The AT100 should be connected to a permanent power source - voltage range 6 to 30 VDC,
with a 1.0A in-line fuse, fitted to both POSITIVE and GND feeds. If using CB001 Power
Cable, hook up the RED and BLACK wires appropriately.

4. Ignition Sense Input

The white IGN SENSE wire included in the standard CB001 power loom is used to sense the
vehicle's ignition state. This wire must be connected to a source which goes high (12/24V)
only when the vehicle ignition is on. In line resistors are NOT REQUIRED.

5. Additional inputs/PTOs

If additional inputs (PTOs) are required, fit a CB004 or CB005 cable to the 36 way data
connector and connect the appropriate inputs as necessary. No ground return is necessary,
as the ground is common with the power source. In line resistors are NOT REQUIRED. No
wires should be shorted together and unused wires should be insulated.
Signal
Digjtal 1 – IGNITION
Digital 2 – PANIC BUTTON
Digital 3
Digital 4
Digital 5
Digital 6
ADC INPUT
CB004 Cable CB005 Cable
WHITE
ORANGE
CYAN
PURPLE
RED
BROWN
PINK
YELLOW
ORANGE
GREEN
BLACK
RED
BROWN
N/A
