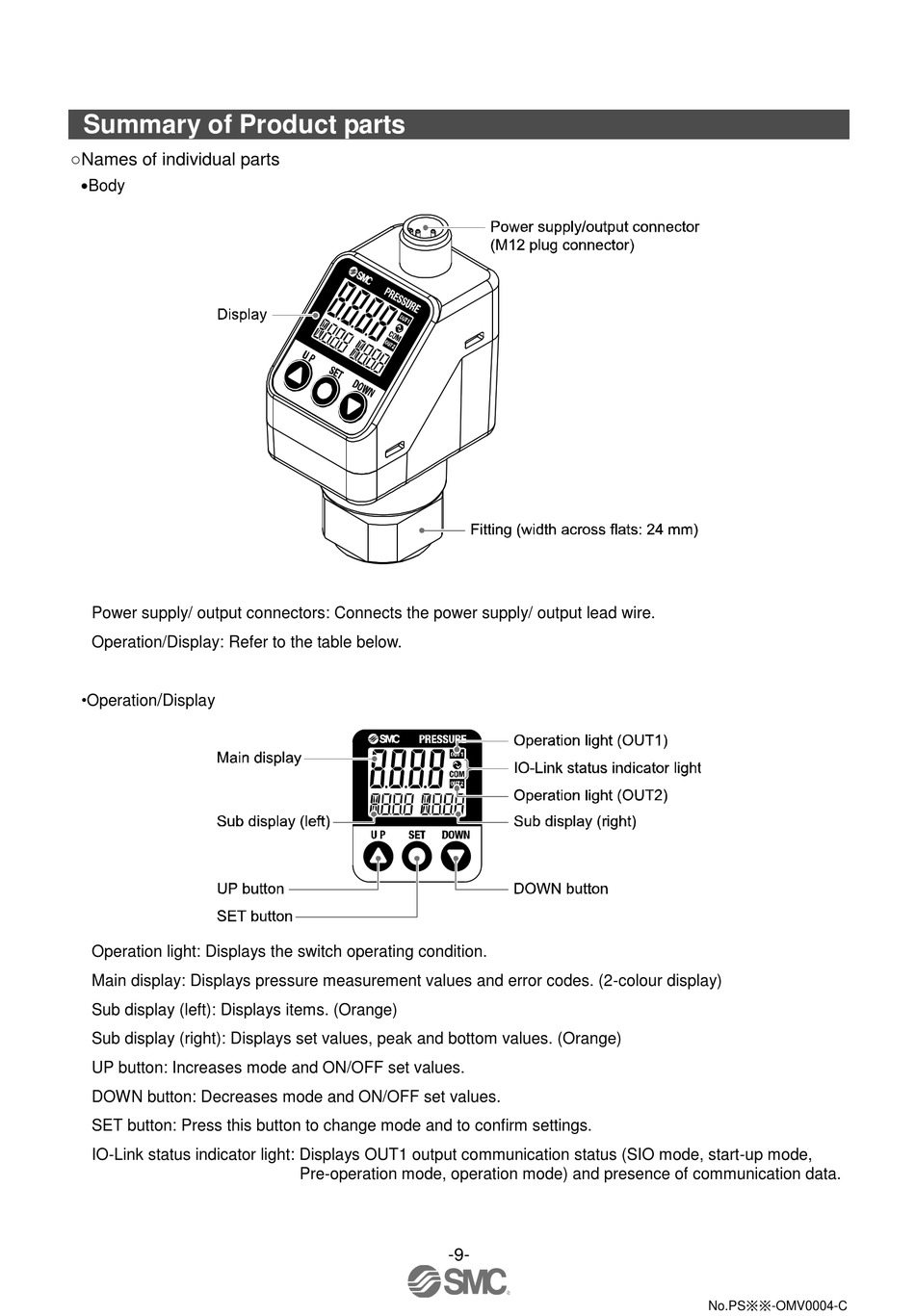

Summary of Product parts

○Names of individual parts
Body
Power supply/ output connectors: Connects the power supply/ output lead wire.
Operation/Display: Refer to the table below.
•Operation
/
Display
Operation light: Displays the switch operating condition.
Main display: Displays pressure measurement values and error codes. (2-colour display)
Sub display (left): Displays items. (Orange)
Sub display (right): Displays set values, peak and bottom values. (Orange)
UP button: Increases mode and ON/OFF set values.
DOWN button: Decreases mode and ON/OFF set values.
SET button: Press this button to change mode and to confirm settings.
IO-Link status indicator light: Displays OUT1 output communication status (SIO mode, start-up mode,
Pre-operation mode, operation mode) and presence of communication data.
