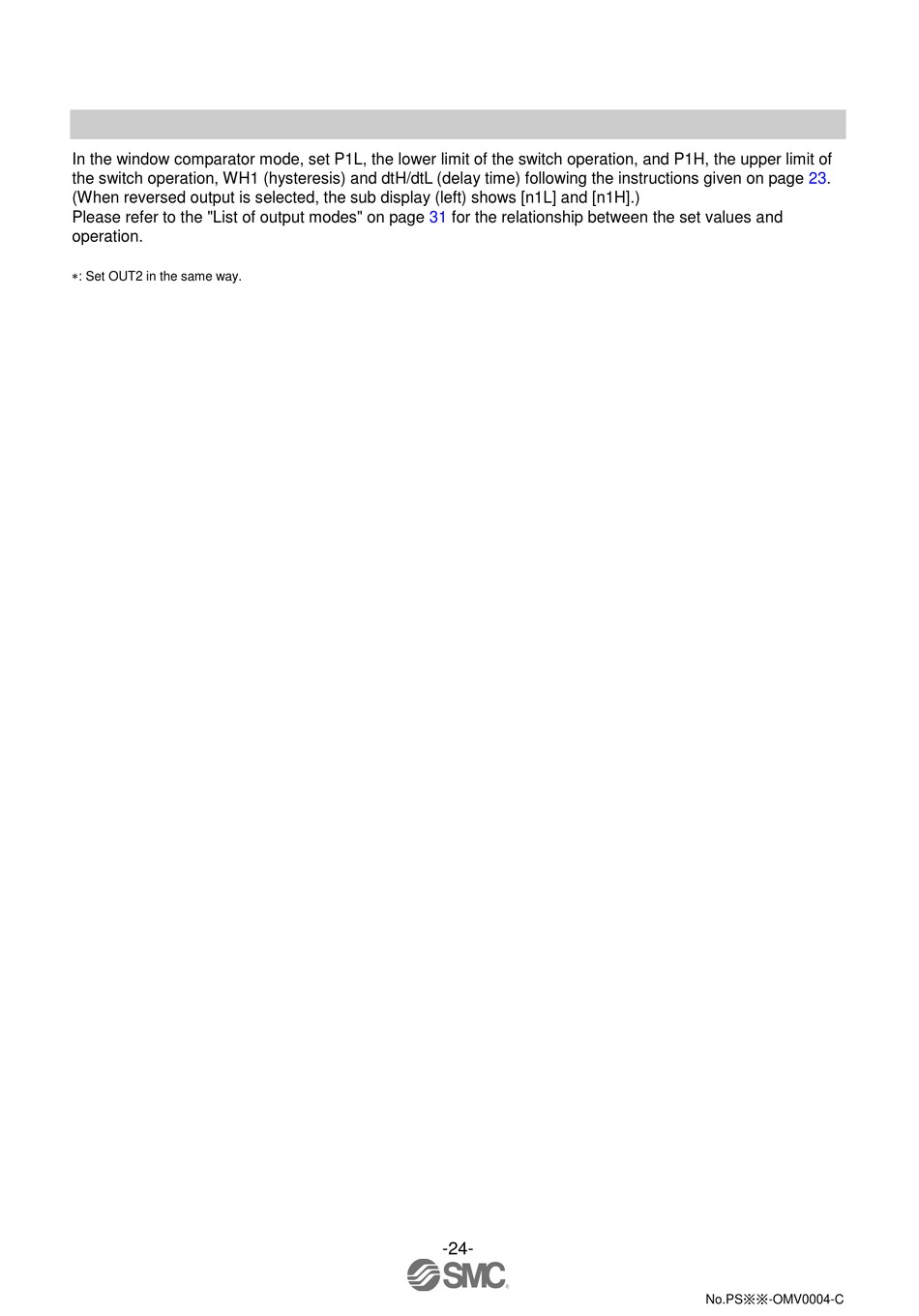

In the window comparator mode, set P1L, the lower limit of the switch operation, and P1H, the upper limit of
the switch operation, WH1 (hysteresis) and dtH/dtL (delay time) following the instructions given on page 23.
(When reversed output is selected, the sub display (left) shows [n1L] and [n1H].)
Please refer to the "List of output modes" on page 31 for the relationship between the set values and
operation.
: Set OUT2 in the same way.
