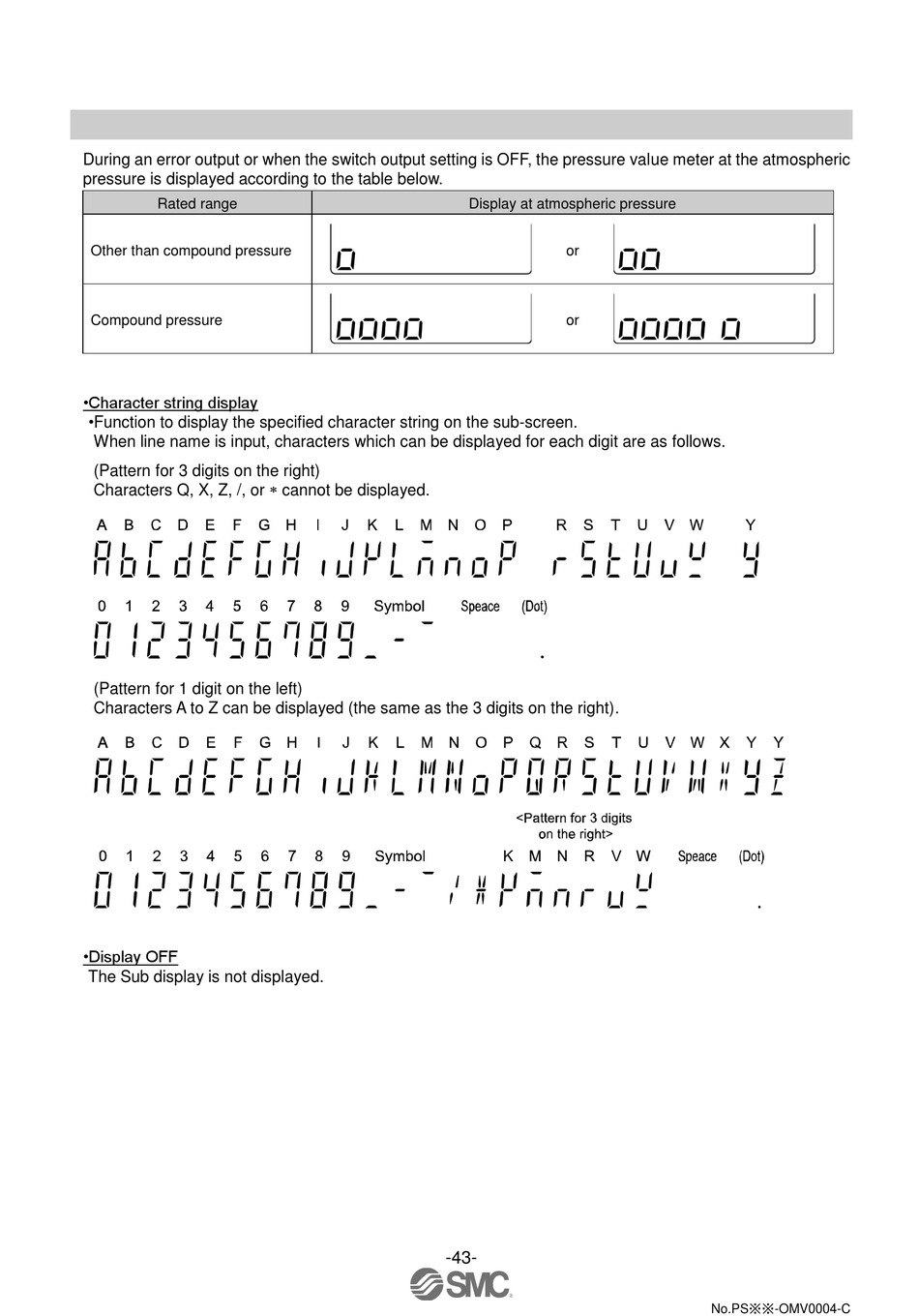

During an error output or when the switch output setting is OFF, the pressure value meter at the atmospheric
pressure is displayed according to the table below.
Rated range
Other than compound pressure
Compound pressure
•Character string display
•Function to display the specified character string on the sub-screen.
When line name is input, characters which can be displayed for each digit are as follows.
(Pattern for 3 digits on the right)
Characters Q, X, Z, /, or  cannot be displayed.
(Pattern for 1 digit on the left)
Characters A to Z can be displayed (the same as the 3 digits on the right).
•Display OFF
The Sub display is not displayed.
Display at atmospheric pressure
or
or
-43-
No.PS※※-OMV0004-C
