Page 1: Service Manual

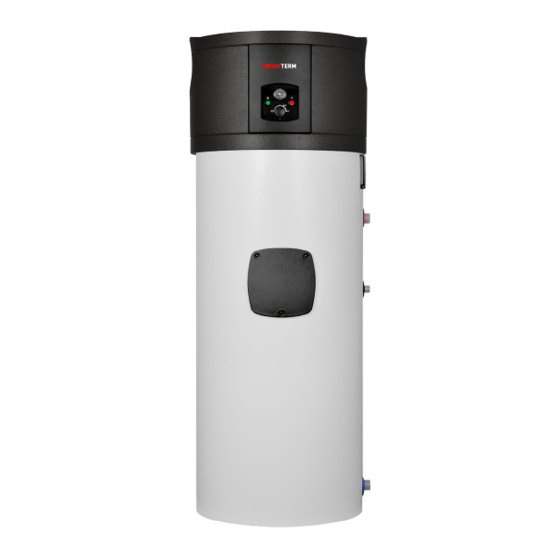

Service manual Heat pump for sanitary water WP2 LF-202B ID.: 17-16-32-3052-02 / 6.2017 SERVICE SERIAL NUMBER OF DATE OF INTRODUCTION REVISION THE INTRODUCTION EXCEPTION OF CHANGES OF CHANGES... - Page 2 This document is copyrighted. Any use outside the provisions of the copyright law without the permission of Kronoterm d.o.o. is illegal and punishable by law. All previous versions of this document are void. We reserve the right to make changes and printing errors.
-
Page 3: Table Of Contents
1. Kazalo Kazalo ........................2 Structure of serial number ..................3 Components ......................3 Cover removal – cover of electronic ..............6 Electrical wiring diagram ..................7 Tehnični podatki ....................8 ID.: 17-16-32-3052-02 6.2017... -
Page 4: Structure Of Serial Number
2. Structure of serial number Example: 116390001-WXXYYZZZZ W XX YY ZZZZ Serial number in current year KRONOTERM Year Calendar week (0001, 0002, 0003, etc.) 3. Components ID.: 17-16-32-3052-02 6.2017... - Page 5 ID.: 17-16-32-3052-02 6.2017...
- Page 6 KOSOVNICA WP2 LF-202B Name Ident Number BOILER 200 L 2222000081126 AGGREGATE COVER 2222000076047 COVER RIM 2222000076030 AIR CONNECTOR 2222000077303 FRONT COVER 2222000081324 FLANGE COVER 2222000082086 COMPRESSOR 2222000081171 DIFFUSER 2222000076078 FAN 220 2222000016081 FAN HOLDER 2222000081225 EVAPORATOR 2222000081195 FILTER 2222000035051 THERMOEXPANSION VALVE...
-
Page 7: Cover Removal - Cover Of Electronic
4. Cover removal – cover of electronic To get acces to electronic components of the device it is necessary to remove the screws (Imbus 4) on the cover of the device. Lift the cover up and remove it (1). Push the front cover of the electronic up in the direction of the arrow (2) and pull it out towards you(3). -
Page 8: Electrical Wiring Diagram
Thermostat of evaporator Electric heater switch 1-0 Compressor condenser Compressor switch 1-0 Pressure switch Temperature fuse Working thermostat Standard supply cable with plug Connecting clip Electric heater Fan capacitor Slika 1: El. Vezalna shema za izvedbe WP2 LF-202B ID.: 17-16-32-3052-02 6.2017... -
Page 9: Tehnični Podatki
6. Tehnični podatki Product: Product: Model: WP2 LF-202B Thermal power: 1850 (3350)* Electrical power: 440 (1940 )* Max. electrical power: 560 (60 ° C) (2060)* El. heater: 1500 Power supply: ~ 230 Coolant: R134a (1,0 kg) Max. water temperature: ° C... - Page 10 ID.: 17-16-32-3052-02 6.2017...
- Page 11 ID.: 17-16-32-3052-02 6.2017...
- Page 12 Company headquarters and production Kronoterm d.o.o. Trnava 5e 3303 Gomilsko Tel.: (00386) 3 703 16 20 | Fax: (00386) 3 703 16 33 | Web-page: www.kronoterm.com E-mail: info@kronoterm.com | Customer support and service.: (00386) 3 703 16 26 | E-mail.:...
