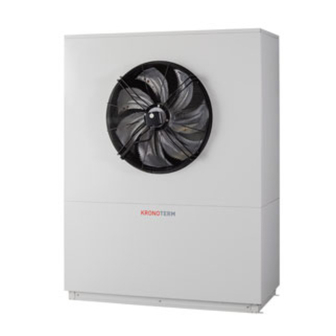

Kronoterm WPL-16-K1 NT Service Instructions Manual

Air/water heat pump

Hide thumbs

Table Of Contents

Service instructions

For the Air-Water Heat Pump

WPL-16-K1 NT (WPL-16-K1 NT/HK 3F E)

WPL-18-K1 HT (WPL-18-K1 HT/HK 3F E)

WPL-23-K1 HT (WPL-23-K1 HT/HK 3F E)

WPL-31-K1 HT (WPL-31-K1 HT/HK 3F)

ID.: 17-17-16-4517-01 / 4.2017

ENG

SERVICE

SER. NO. OF

DATE OF INTRODUCED

EXCEPTIONS

REVISION

INTRODUCED CHANGE

CHANGE

216330314

28.9.2016

Table of Contents

Need help?

Do you have a question about the WPL-16-K1 NT and is the answer not in the manual?

Questions and answers

Summary of Contents for Kronoterm WPL-16-K1 NT

Page 1: Service Instructions
Service instructions For the Air-Water Heat Pump WPL-16-K1 NT (WPL-16-K1 NT/HK 3F E) WPL-18-K1 HT (WPL-18-K1 HT/HK 3F E) WPL-23-K1 HT (WPL-23-K1 HT/HK 3F E) WPL-31-K1 HT (WPL-31-K1 HT/HK 3F) ID.: 17-17-16-4517-01 / 4.2017 SERVICE SER. NO. OF DATE OF INTRODUCED...
Page 2 ©Termo-tehnika, d.o.o. Service manual - Version 01 / 4.2017 Printed in Slovenia, copyright: Termo-tehnika, d. o. o. This document is copyrighted. Any use outside the provisions of the copyright law without the permission of Termo-tehnika d.o.o. is illegal and punishable by law. All previous versions of this document are void.
Page 3: Table Of Contents
WPL-16-K1 in WPL-18-K1 ..................9 WPL-23-K1 in WPL-31-K1 ..................11 Components ......................13 Bill of materials WPL-16-K1 NT (WPL-16-K1 NT/HK 3F E) ........13 Bill of materials WPL-18-K1 (WPL-18-K1 HT/HK 3F E) ..........14 Kosovnica WPL-23-K1 (WPL-23-K1 HT/HK 3F E) ..........16 Kosovnica WPL-31-K1 (WPL-31-K1 HT/HK 3F) .............17 Position on the device ....................19...
Page 4: Serial Number Structure
©Termo-tehnika, d.o.o. 1. Serial number structure The serial number is structured to include the following information: T - type of device/sales group YY - year of manufacture WW - calendar week of device manufacture XXXX - serial number of the product in the production year. T YY WW XXXX (written without spaces) Example: 215460001 0001...
Page 5: The Position Of Connections And Dimensions
©Termo-tehnika, d.o.o. 2. The position of connections and dimensions Removable lid for connecting water in the installation mode V1 (on the bottom of the device) Supply pipe for heating Return pipe for heating 3. Technical data See Installation manual for the air-water heat pump ID: 17-15-45-2567-xx. 4.
Page 6: Cooling Piping Diagram
©Termo-tehnika, d.o.o. 5. Cooling piping diagram WPL-16-K1 Temperature sensor HP (high pressure) switch LP (low pressure) switch Flow switch Permanent direction Heating Defrosting / Cooling Refrigerant Control and data Return pipe for heating Supply pipe for heating Unit limit ID.: 17-17-16-4517-01 4.2017...
Page 7 ©Termo-tehnika, d.o.o. Compressor HP switch Condenser LP switch Evaporator Flow switch TXV (thermostatic expansion valve), Economiser heating Filter, dehydrator TXV, Eco Moisture indicator Electromagnetic valve 4-Way valve Moisture indicator Eco TXV, cooling Check valve Tank Check valve Check valve Capillary pipe Check valve LP switch Closing ball valve...
Page 8: Wpl-18-K1, Wpl-23-K1, Wpl-31-K1
©Termo-tehnika, d.o.o. WPL-18-K1, WPL-23-K1, WPL-31-K1 Temperature sensor HP (high pressure) switch LP (low pressure) switch Flow switch Permanent direction Heating Defrosting / Cooling Refrigerant Control and data Return pipe for heating Supply pipe for heating Unit limit ID.: 17-17-16-4517-01 4.2017...
Page 9 ©Termo-tehnika, d.o.o. Compressor HP switch Condenser LP switch Evaporator Flow switch TXV (thermostatic expansion valve), Economiser heating Filter, dehydrator TXV, Eco Moisture indicator Electromagnetic valve 4-Way valve Moisture indicator Eco TXV, cooling Check valve Tank Check valve Check valve Capillary pipe Check valve LP switch Closing ball valve...
Page 10: Electrical Wiring Diagram
©Termo-tehnika, d.o.o. 6. Electrical wiring diagram WPL-16-K1 in WPL-18-K1 MARK OF THE ELEMENT CONNECTING CLIPS DESCRIPTION Connecting clip Grounding wire , PE Neutral wire L1, L2, L3 Connecting phases of the supply cable Safety thermostat Reversible valve Connecting clip ~ 230 V Neutral wire Functional grounding F2, F3, F4, F5...
Page 12: Wpl-23-K1 In Wpl-31-K1
©Termo-tehnika, d.o.o. WPL-23-K1 in WPL-31-K1 MARK OF THE ELEMENT CONNECTING CLIPS DESCRIPTION Connecting clip Grounding wire , PE Neutral wire L1, L2, L3 Connecting phases of the supply cable Safety thermostat Reversible valve Connecting clip ~ 230 V Neutral wire Functional grounding F2, F3, F4, F5 Circuit Breakers...
Page 14: Components
©Termo-tehnika, d.o.o. 7. Components 7.1 Bill of materials WPL-16-K1 NT (WPL-16-K1 NT/HK 3F E) Ident Name Quantity 2222000072346 WPL-16-K1 NT (WPL-16-K1 NT/HK 3F E) COMPRESSOR PIECE 2222000020668 HEAT CONDUCTOR - CONDENSER PIECE 2222000043872 EVAPORATOR PIECE 2222000021078 THERMO-EXPANSION VALVE - HE...
Page 15: Bill Of Materials Wpl-18-K1 (Wpl-18-K1 Ht/Hk 3F E)
©Termo-tehnika, d.o.o. PT SENSOR PIECE 2222000050658 4-WAY VALVE COIL 2222000045944 OIL HEATER PIECE 2222000022594 ELECTRONICS LID PIECE 2222000065652 VENT VALVE PIECE 2222000032982 FRONT LOWER SMALL PANEL PIECE 2222000072872 PIECE 2222000072889 FRONT LOWER BIG PANEL PIECE 2222000072896 ROOF PIECE 2222000072902 FRONT UPPER PANEL PIECE 2222000072919 SIDE UPPER PANEL...
Page 16 ©Termo-tehnika, d.o.o. JET OF THE THERMO-EXPANSION VALVE - ECO PIECE 18.2 2222000077990 PIECE 2222000033583 ELECTROMAGNETIC VALVE PIECE 2222000085360 MOISTURE INDICATOR PIECE 2222000057398 CHECK VALVE 12MM PIECE 2222000057398 CHECK VALVE 12MM 2222000000301 CAPILLARY PIPE PIECE 2222000058647 PRESSURE SWITCH Y 0,3/1,0 PIECE 2222000023348 RELAY PANEL MBIO12 PIECE...
Page 17: Kosovnica Wpl-23-K1 (Wpl-23-K1 Ht/Hk 3F E)
©Termo-tehnika, d.o.o. Kosovnica WPL-23-K1 (WPL-23-K1 HT/HK 3F E) Ident Name Quantity 2222000072445 WPL-23-K1 HT (WPL-23-K1 HT/HK 3F E) COMPRESSOR PIECE 2222000033170 HEAT CONDUCTOR - CONDENSER PIECE 2222000049348 EVAPORATOR PIECE 2222000062972 THERMO-EXPANSION VALVE - HE PIECE 2222000077976 JET OF THE THERMOSTATIC EXPANSION VALVE - HE PIECE 2222000078010 DEHYDRATOR...
Page 18: Kosovnica Wpl-31-K1 (Wpl-31-K1 Ht/Hk 3F)
©Termo-tehnika, d.o.o. 4-WAY VALVE COIL PIECE 2222000045944 OIL HEATER PIECE 2222000054885 ELECTRONICS LID PIECE 2222000065652 VENT VALVE PIECE 2222000032982 FRONT LOWER SMALL PANEL PIECE 2222000072872 PIECE 2222000072889 FRONT LOWER BIG PANEL PIECE 2222000072896 ROOF PIECE 2222000073008 FRONT UPPER PANEL PIECE 2222000072919 SIDE UPPER PANEL PIECE...
Page 19 ©Termo-tehnika, d.o.o. 2222000087074 PIECE MOISTURE INDICATOR 2222000006839 PIECE CHECK VALVE 16MM 2222000006839 PIECE CHECK VALVE 16MM 2222000000301 CAPILLARY PIPE 2222000058647 PIECE PRESSURE SWITCH Y 0,3/1,0 2222000023348 PIECE RELAY PANEL MBIO12 2222000002688 PIECE CONTACTOR KNL 12-01/220/240V 2222000018122 PIECE CONTACTOR 30 220V 2222000008925 PIECE SWITCH MS...
Page 28 ©Termo-tehnika, d.o.o. Before replacing the pressure switch, check the declared value. Positions 15 and 24 may be replaced. ID.: 17-17-16-4517-01 4.2017...
Page 32 The headquarters of the company and place of production Termo-tehnika, d.o.o. Orla vas 27a 3314 Braslovče Tel.: (00386) 3 703 16 20 | Fax: (00386) 3 703 16 33 | Web-page: www.kronoterm.com E-mail: info@kronoterm.com...
