- Page 1 Instructions for Use and Installation Of the Heat Pump for Heating DHW WP2 LF-202S WP2 LF-302S The manual has to be handed over to the end user after installation. ID.: 17-16-20-2976-06 / 6.2017...
- Page 2 This document is copyrighted. Any use outside the provisions of the copyright law without the permission of Kronoterm d.o.o. is illegal and punishable by law. All previous versions of this document are void. We reserve the right to make changes and mistakes in print.
-
Page 3: Table Of Contents
1 Index Index Important information Symbols General warnings and instructions Safety warnings and instructions Obligations of the manufacturer Obligations of the installer during installation Customer support and service Obligations of the user Factory testing Storage 2.10 Transport 2.11 Delivery package Technical description General Components... - Page 4 Errors Disposal Care and maintenance Disturbances in the operation Electrical wiring diagram Technical data Legend of data label ID.: 17-16-20-2976-06 | 6.2017...
-
Page 5: Important Information
2 Important information The manual describes the process of installation and maintenance of the device. The installation and maintenance can only be performed by qualified personnel. Read the manual carefully before the installation, this way you will be informed about the intended use, functionality and process of handling the device. -
Page 6: Safety Warnings And Instructions
NOTE The installation of the device has to be performed in accordance with the manual; otherwise the manufacturer does not acknowledge the warranty. NOTE It is necessary to consider all technical data and instructions in this manual as well as all warnings and notes during planning, design, installation and use of the device. - Page 7 WARNING The connecting cable has a standard plug suitable for a standard socket (16 A; 230 V ac). This socket has to have its own power supply directly from the main electrical cabinet. Other devices must not be connected to the same line.
- Page 8 WARNING The device must not be obstructed, objects must not be laid up against it. Free access to the device must be provided at all time. If during the operation of the device the water temperature exceeds 85 ° C, the service department has to be notified.
-
Page 9: Obligations Of The Manufacturer
2.4 Obligations of the manufacturer The manufacturer guarantees that the device is in accordance with current European directives and standards. The device is marked with the mark CE and it has all the necessary documentation. We reserve the right to make changes to the manual without prior notice. As manufacturer, we do not take responsibility for the consequences in the following cases: Non-compliance with the manual for the installation of the device. -
Page 10: Factory Testing
Ensure regular inspections and maintenance of the device by the authorised maintenance worker. These instructions for installation and use must be kept in a suitable dry place close to the device. 2.8 Factory testing For ensuring the high quality standard, every device is tested in production for the following: Tightness of the cooling cycle. -
Page 11: Delivery Package
The pump is not allowed to be tilted forward or backward for more than 30 ° . CAUTION Horizontal transport without packaging is allowed only during final positioning in the building and not during transport from supplier to customer. CAUTION While moving the device, it has to be disconnected from the power supply. -
Page 12: Components

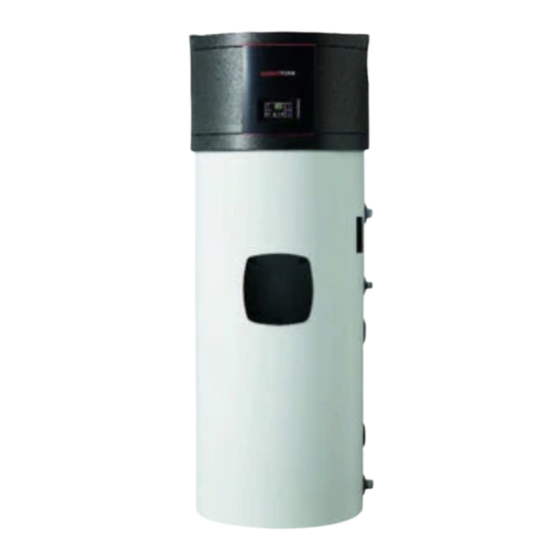

3.2 Components A Air intake Φ180 B Air outlet Φ180 C Device generator casing D Fan E Compressor F Evaporator G Controller H Buffer tank for DHW (boiler) I Anti-corrosion anode Heat exchaanger (heating water) K Condenser M Electric heater The device consists of the device generator (compressor, evaporator, fan ...) and buffer tank for DHW. - Page 13 the buffer thank for DHW has a built-in anti-corrosion anode (Mg) which prevents rusting of the buffer tank in the event of damage to the enamel. Electric heater The device is standard fitted with an electrical heater of 1.5 kW which serves as additional or backup heat source.
-
Page 14: Operating Principle
3.3 Operating principle 1 Compressor 6 Fan 2 Condenser 8 Temperature sensor for the expansion valve 3 Dehydrator 9 Electric heater 4 Expansion valve 10 Buffer tank for DHW (boiler) 5 Evaporator The cooling system of the device is a closed circuit system with the heat exchange liquid R134A. -
Page 15: The Position Of Connections And Dimensions
4 The position of connections and dimensions WP2 LF-202S WP2 LF-302S A [mm] B [mm] C [mm] D [mm] E [mm] 1057 1390 F [mm] 1387 1720 G [mm] 1700 2030 H [mm] I [mm] 1597 1927 J [mm] 1252... -
Page 16: Installation Of The Device
5 Installation of the device The lowest ceiling height in the room with the heat pump WP2 LF202S is 1900 mm; with the heat pump WP2 LF-302S it is 2200 mm. The device is designed to take the heat from the surrounding air or suck the air through air channels and blow it into the adjoining rooms or surroundings. -
Page 17: Minimal Clearance From The Device
The most common installation of the device enables it to draw air from rooms with a lot of excess heat. A part of heat is drawn from this air and then released into the surroundings. The air in kitchens, washing or sanitary rooms often has unpleasant odours, this is why it is released into the surroundings. -
Page 18: Levelling Of The Device
At least 1 m of space must be provided in front of the device for control and servicing purposes. If the air is drawn from the room device is located, the volume of the room must be at least 30 m 5.2 Levelling of the device CAUTION During operation, the device has to be placed in a vertical position to prevent... - Page 19 CAUTION Because different materials are used on the pipe installation, all connections on the device (cold and hot water, circulation, heat conductor) have to be in galvanic isolation; otherwise corrosion of connections can occur on the inner side of the buffer tank for DHW.
-
Page 20: Installation Of Air Ducts
CAUTION For normal operation of the expansion tank, it is necessary to perform proper adjustments of the tank’s working pressure. The pressure is adjusted according to the pressure of the water supply. The settings have to be checked every 6 months. 5.4 Installation of air ducts. - Page 21 On the air outlet side it is necessary to enable unobstructed air flow at least 1 m behind the air connection. On the side of the ceiling it is necessary to enable at least 20 cm of unobstructed air flow. NOTE The device must be installed in a manner which prevents mixing of the air on the intake and outlet.
-
Page 22: Connection For Water Condensate
5.5 Connection for water condensate By extracting heat from the air, water condensate starts forming on the surface of the evaporator. The intensity of moisture extraction from the air and the quantity of water condensate change depending on the temperature and relative moisture. In some cases no water is extracted from the air, in other cases more than 10 litres of water condensate can be extracted. -
Page 23: Connecting The Pipe Heat Conductor
5.6 Connecting the pipe heat conductor The water in the buffer tank for DHW can be heated by the device’s generator - the heat pump (primary source) and/or various external heat sources. When filling the device, follow the instructions outlined below. CAUTION Because different materials are used on the pipe installation, all connections on the device (cold and hot water, circulation, heat conductor) have to be in galvanic... - Page 24 TYPE OF PRESENT SUBSTANCE UNIT CONCENTRATION INFLUENCE TO THE HEAT CONDUCTOR Organic sediment mg/L < 2 Ammonia (NH mg/L 1 - 20 > 20 < 300 Chloride mg/L > 300 Allowed water hardness ° dH 5–10 < 10 Electrical conductivity µS/cm 10-500 >...
- Page 25 Below there are some possible wiring diagrams for connecting the external source for heating DHW. Closing valve Circulation pump Pressure reducing valve Device generator Check valve Safety valve Heating water buffer tank Expansion tank Solar energy collector Charging pipe Differential thermostat 2 3 1 Picture 9: Device in combination with the DHW 2 3 1...
-
Page 26: Installation Of The Temperature Sensor For The External Controller
2 3 1 Picture 11: Device in combination with buffer tank for DHW 5.7 Installation of the temperature sensor for the external controller In case of using a controller for the additional source, install the temperature sensor for the external controller in the appropriate duct on the right side of the device under the black plastic cover, as indicated on the picture. -
Page 27: Electrical Connection
NOTE For ensuring safe and efficient operation of the additional heat source for DHW (DHW, solar collectors) the controller for the external source has to be set to maximum water temperature of 85 ° C. The recommended temperature setting is 65 °... -
Page 28: Commissioning Of The Device
Picture 14: The connection clips for adjusting the speed of the fan and connecting the external signal switch The fan of the device has two different speeds. Changing the speed can be performed by different connections of the bridge between clips A1, A2 and A3. The fan operates with low speed (v1) •... -
Page 29: Connecting The Device To The Electrical Supply
6.3 Connecting the device to the electrical supply The device is equipped with a standard connection cable. Before commissioning, the plug of the connection cable has to be plugged into the standard socket 16 A, 230 V ac. 6.4 Commissioning of the device After connecting the electrical plug to the mains, the version of the regulator and factory settings parameters L.1–L.7, H.0–H.9 and d.0–d.6 and their values appear on the screen after 2 seconds. -
Page 30: Controller
7 Controller 7.1 Controls The device is operated by the use of 4 keys on the controller interface OPTITRONIC. The controller interface has a display with a sixteen-segment display (6) which displays the current state of the device and five device status indicators (1-5). The controller interface OPTITRONIC on the device: BUTTON Description... -
Page 31: The Program And Parameters
7.2 The program and parameters The controller provides setting the operation in five different programmes described below and enables setting three different desired heating temperatures. The “Antifreeze” programme P.0 enables the display of set temperature of the programme. Programmes “Normal” P.1, “Res. Source”, P.0 and “Automatic” P.5 enable settings of one value of desired temperature. -
Page 32: Settings For Programmes And Parameters
7.3 Settings for programmes and parameters 7.3.1 Setting the water temperature Pressing the key for the first time displays the currently set temperature, additionally pressing the key (in the time frame of 10 seconds) triggers its modification. If we wait for 5 seconds, the new setting will be stored after the blinking stops. -
Page 33: Programme "Automatic" P.5
NOTE Water overheating in the programme “Res. Source” P.3 is performed with an electrical heater. The temperature of the evaporator does not influence the operation. 7.3.7 Programme “Automatic” P.5 Basic The device operates in the programme “Automatic” P.5 and heats the water with the device’s generator up to the set temperature. -
Page 34: Programme "Overheating-Antilegionella
NOTE The device senses the evaporator temperature and it is lower than the temperature of the surrounding air where the device is located or the air which the device takes The electric heater will perform a parallel activation at the set temperature. Shut-down of electric heater occurs 30 minutes after the temperature of the evaporator is raised by 3 °... -
Page 35: Warnings And Errors
NOTE During the operation of quick heating the indicator “1” blinks. NOTE In case the heating is not successful in 12 hours, the function turns of and continues with normal heating. Quick heating does not work in programmes “Normal” P.1 and “Res. -
Page 36: Disposal
9 Disposal The device has a lifetime of at least 8 years if the instructions for safe use and maintenance are considered. Individual components have different lifetimes, this is why they have to be replaced with new parts in cases of possible malfunctions, wear and mechanical damage. Replacement can be performed only by using technically adequate or original replacement parts. - Page 37 N ČR N EG N KO N V1 N V2 N L N L N N N L L L N L N L N L Picture 15: Electrical wiring diagram ID.: 17-16-20-2976-06 | 6.2017...
-
Page 38: Technical Data
13 Technical data Product: Device for heating DHW with guided air Model: WP2 LF-202S WP2 LF-302S Thermal power: 1850 (3350)* Electrical power: 440 (1940 )* Max. electrical power: 560 (65 ° C) (2060)* El. heater: 1500 Power supply: ~ 230... -
Page 39: Legend Of Data Label
14 Legend of data label Characteristics Mark Maximal compressor electrical power. Maximal electrical heater power. Maximal additional load electrical power (circulation pump, etc.). Maximal electrical power of the device (compressor + electric heater + additional load). Cooling circuit. DHW. Heat exchanger in the DHW. Heating system. - Page 40 Company headquarters and production Kronoterm d.o.o. Trnava 5e 3303 Gomilsko Tel.: (00386) 3 703 16 20 | Fax: (00386) 3 703 16 33 | Web-page: www.kronoterm.com E-mail: info@kronoterm.com | Customer support and service.: (00386) 3 703 16 26 | E-mail.:...
