Foscam FI9804W Quick Installation Manual

Quick Installation Guide

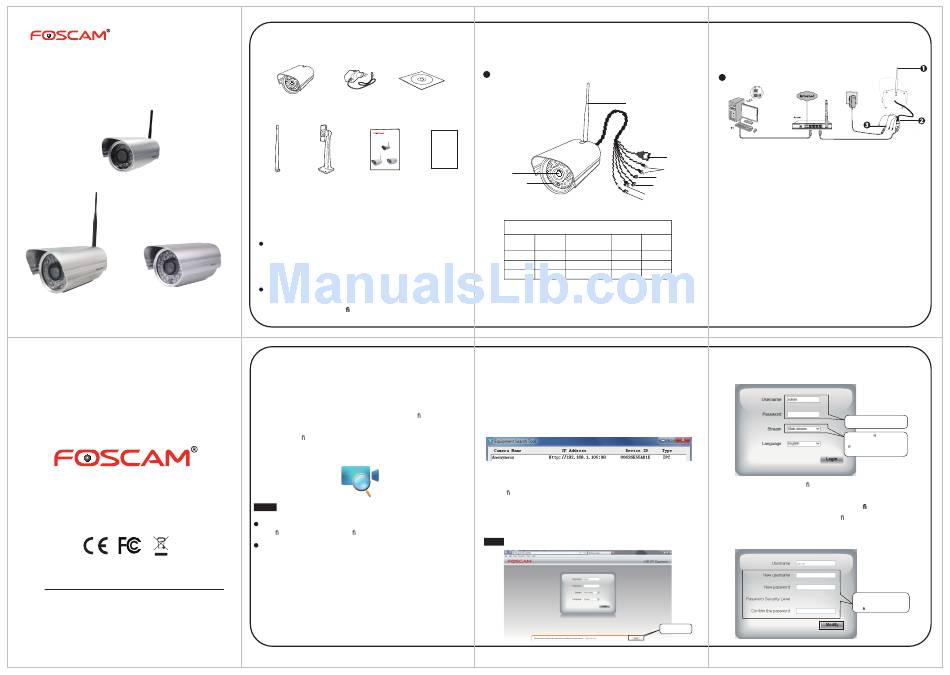

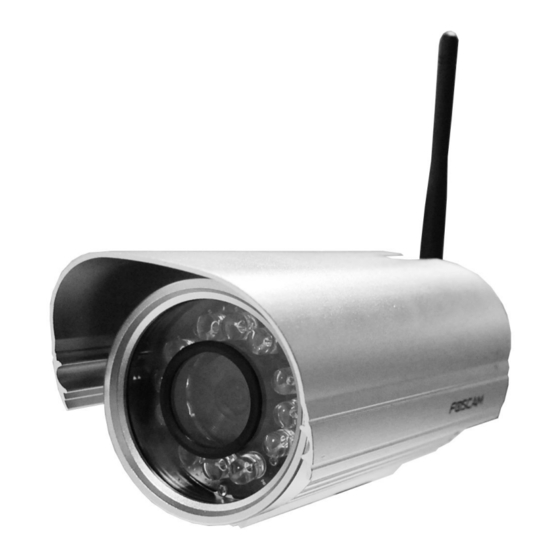

Outdoor HD IP Camera
Model: FI9804W
Model: FI9805E
Model: FI9805W
EQ980518
CE Certificate Website:
http://www.foscam.com/company/ce-certificate.html
www.foscam.com

Package Contents

IP Camera Power Adapter
Quick Installation Guide
Outdoor HD IP Camera
Model: FI9804W
Model: FI9805W Model: FI9805E
Wi-Fi Antenna Mounting Bracket
Quick Installation Guide
(except FI9805E)
Security Warning
Foscam cameras and NVRs require good security
practices to safeguard your privacy. You should
regularly change your camera or NVR password which is
the combination of numbers, letters and symbols .
You should update your camera or NVR regularly. Make
sure your camera or NVR has the latest rmware
installed for your speci c model and better experience.
V5.2.1
2

Software Installation

1. Insert the CD into the CD drive of your computer.
2. Open the folder "Equipment Search Tool" and nd the folder
"For Windows OS" or "For Mac OS". Copy and paste the
search tool le to your computer, or drag it onto your
desktop.
Notes:
If your computer (Windows OS) supports autorun function, you
can nd the corresponding le in the opened control panel.
If your computer doesn't have CD drive, you can download
the Equipment Search Tool from our website for free.
1

Hardware Introduction

Physical Description
Resource CD
WARRANTY CARD
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~
LENS
Warranty Card Infrared LED
Differences
PoE(Power over
Model Wireless
Ethernet)
FI9804W √
FI9805W √
FI9805E ×
3

Access the Camera

1. Enable the DHCP feature of your router (Enabled by default
normally), then open the Equipment Search Tool program. It
should display the camera's IP address in your LAN (Local Area
Network).
2. Double click the camera listed here, and your default browser
will open up to the camera's login page. When logging in for
the rst time, you will need to download and install the
add-on. We will use Internet Explorer as an example. For
Google Chrome, Apple Safari, or Mozilla Firefox, please refer
to the User Manual.
Note: Doesn't support 64-bit browser.
Hardware Connection
Antenna
LAN
1. Mount the antenna and make it stand vertically (Only for the
Audio In/Out
device with external antenna).
Power
2. Connect the camera to the LAN network (router or switch) via
RS485
Alarm in/out network cable.
Reset Button
3. Connect the power adapter to the camera.
Alarm
RS485
in/out
× × ×
× × ×
√ √ √
3. After installing the add-on, refresh the browser and click
Login.
4. When you log in for the rst time, it will request that you
modify the default username and / or password. Input the
New username, New password and Con rm the password,
click Modify to complete the modi cation. You will now use
the new username and password to log in to the camera in
the future.
Click Install
WPS
Default user is admin with no
password.
Main stream o ers the highest
quality video while Sub stream
o ers less quality, but also less
delay when viewing.
Input the new username,
new password and
con rm the password.
