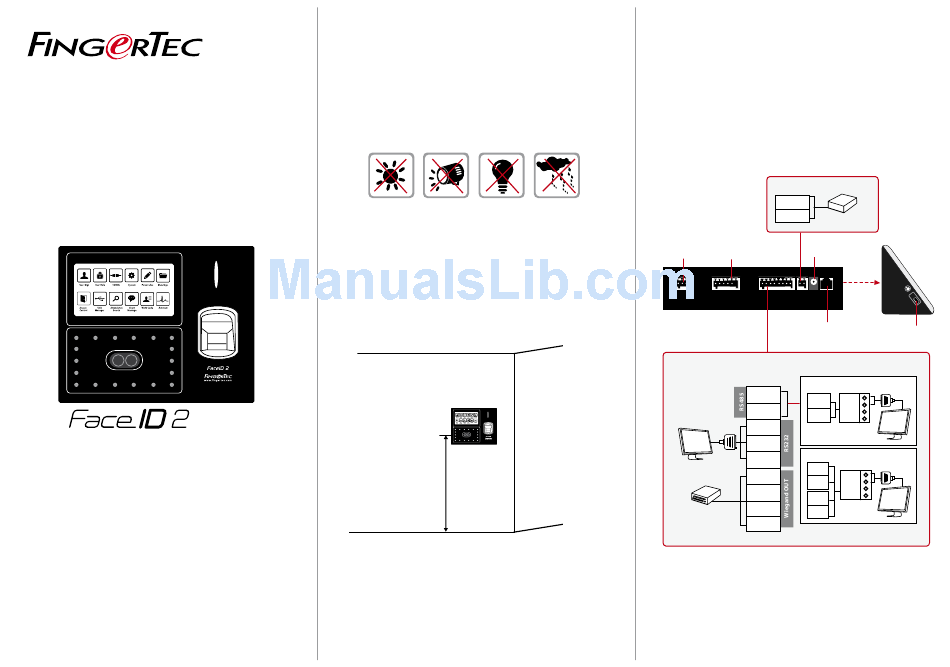

Installation Guide
(FMM)

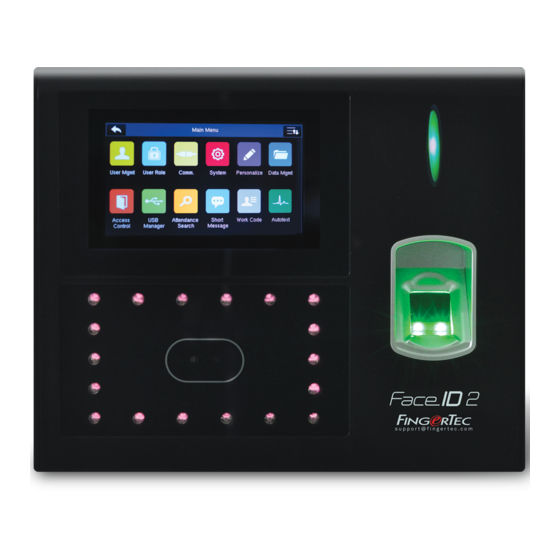

Face & Fingerprint Recognition System for
Door Access & Time Attendance
© 2017 Timetec Computing Sdn Bhd. All rights reserved.• 032017
Step 1
Determine the Installation Location
•
Avoid installing the terminals in locations that have contact with
strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground to the camera is 1.2 meter.
Step 2
Mount Terminal on a Wall
4 feet / 1.2 meter
(recommended)
1. Avoid strong sunlight
2. Install the terminal 1.2m from the ground level (measure the
height from the ground to the face camera)"
After measuring the height accordingly and make relevant markings on
the wall, drill the screws into the wall to secure the back plate.
Attach the terminal to the back plate and tighten the screws.
Refer to Appendix II for dimensions and measurements of installation.
Step 3
Wiring for Power Supply
Use the power adapter provided in the package and insert the
power adapter to the Power Port (A).
OR
Use power cables (black and red) to connect to a linear power sup-
ply with specifications of 12VDC 3A to Power Port (B).
Power Port (B)
GND
+12V
DC12V 3A
Power Supply
External
Power Port (A)
Alarm Port
Access Control Port
........
TCP/IP Port
RS485-Wiegand Connection Port
1. RS485 Single Connection
485-
485+
485+
485-
GND
RS232/RS485
Data Converter
TXD
RS232
2. RS485 Network Connection
RXD
cable
485+
WD0
485-
WD1
485+
RS232/RS485
3rd party controller
SGND
4851
with 26 bits Wiegand
input
GND
USB Port
RX+
RX-
RX+
RX-
Data
Converter
