IMPORTANT INFORMATION

Safety information
This appliance can be used by children aged from 3 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
These wired remotes provide a secondary method of 'Start/Stop' for Quartz
can operate each outlet by pushing and holding the 'Start/Stop' button for a few seconds as required. The wired remote may be sited inside the showering
area, as long as it is not subjected to continuous spray, or it can be sited outside the showering area – up to 10 metres from the Quartz Smart Valve
QUARTZ REMOTES ONLY - ENSURE THE CORRECT DIVERT OR NON-DIVERT VERSION IS INSTALLED AND USED WITH THE RELEVANT DIVERT OR
TM
NON-DIVERT SHOWER SYSTEM. QUARTZ TM DIVERT REMOTES ARE NOT COMPATIBLE WITH QUARTZ
These wired remotes are only suitable for use with the Quartz
TM
THIS PRODUCT MUST BE INSTALLED BY A COMPETENT PERSON IN ACCORDANCE WITH ALL RELEVANT CURRENT WATER AND ELECTRICAL
SUPPLY REGULATIONS.
ALL PRODUCTS REQUIRING AN ELECTRICAL CONNECTION MUST BE INSTALLED BY A QUALIFIED PERSON FOLLOWING THE LATEST REVISION OF
THE ELECTRICAL WIRING REGULATIONS, BOTH NATIONAL AND LOCAL AND CERTIFIED TO CURRENT BUILDING REGULATIONS.
Cables which are chased into the wall must be protected by a suitably sized conduit or sheathing to allow for removal in the event of service and
maintenance purposes.
Ensure that the conduit is run to avoid the wired remote fixing holes.
Surface mounted cables must also be protected by a suitable approved conduit, even in a loft, where there may be a risk of damage from vermin.
The wired remote is supplied from a safety low voltage source.
This product is suitable for domestic use only.
The wired remote must not be installed in situations where the ambient temperature is likely to fall below 5ºC or rise above 40ºC.
We do not recommend the use of wired remotes in steam therapy facilities.
Aqualisa products are supplied complete with a 1 year guarantee that can be upgraded by registering the product with Aqualisa.
See www.aqualisa.co.uk/guarantee for details.
Please refer to the main installation guide Important Information section for further safety information.
Declaration of conformity
Aqualisa Products Limited declares that the remote in conjunction with the Quartz Smart Valve
requirements and other relevant provisions of the Low Voltage Directive (2014/35/EU) and the EMC Directive (2014/30/EU).
Components
Quartz™ components shown for illustrative purposes
TM or Rise TM shower systems. When used with the diverter system, the remote
TM NON-DIVERT SYSTEMS AND VICE VERSA.
or Rise product range.
TM
, diverter and main controller complies with the essential
TM
Wired remote
.
TM

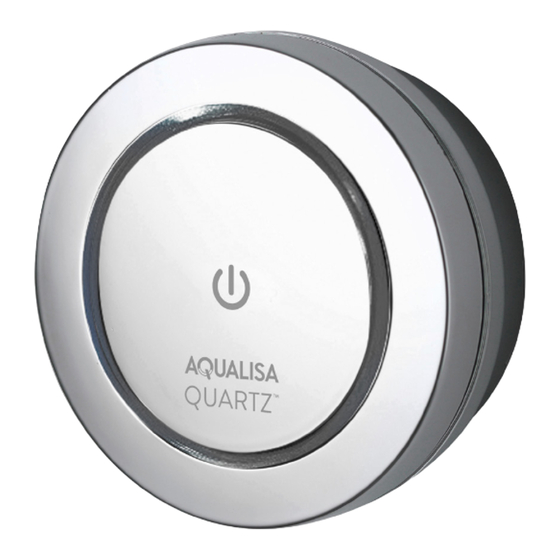

Quartz™ wired remote
single outlet
Quartz™ wired remote
dual outlet
Rise™ wired remote
single & dual outlet
