iSys
TM
Digital
Remote control
Installation guide
iSys Digital remote control installation instructions
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the iSys ISD.B3.DS.14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aqualisa iSys ISD.B3.DS.14

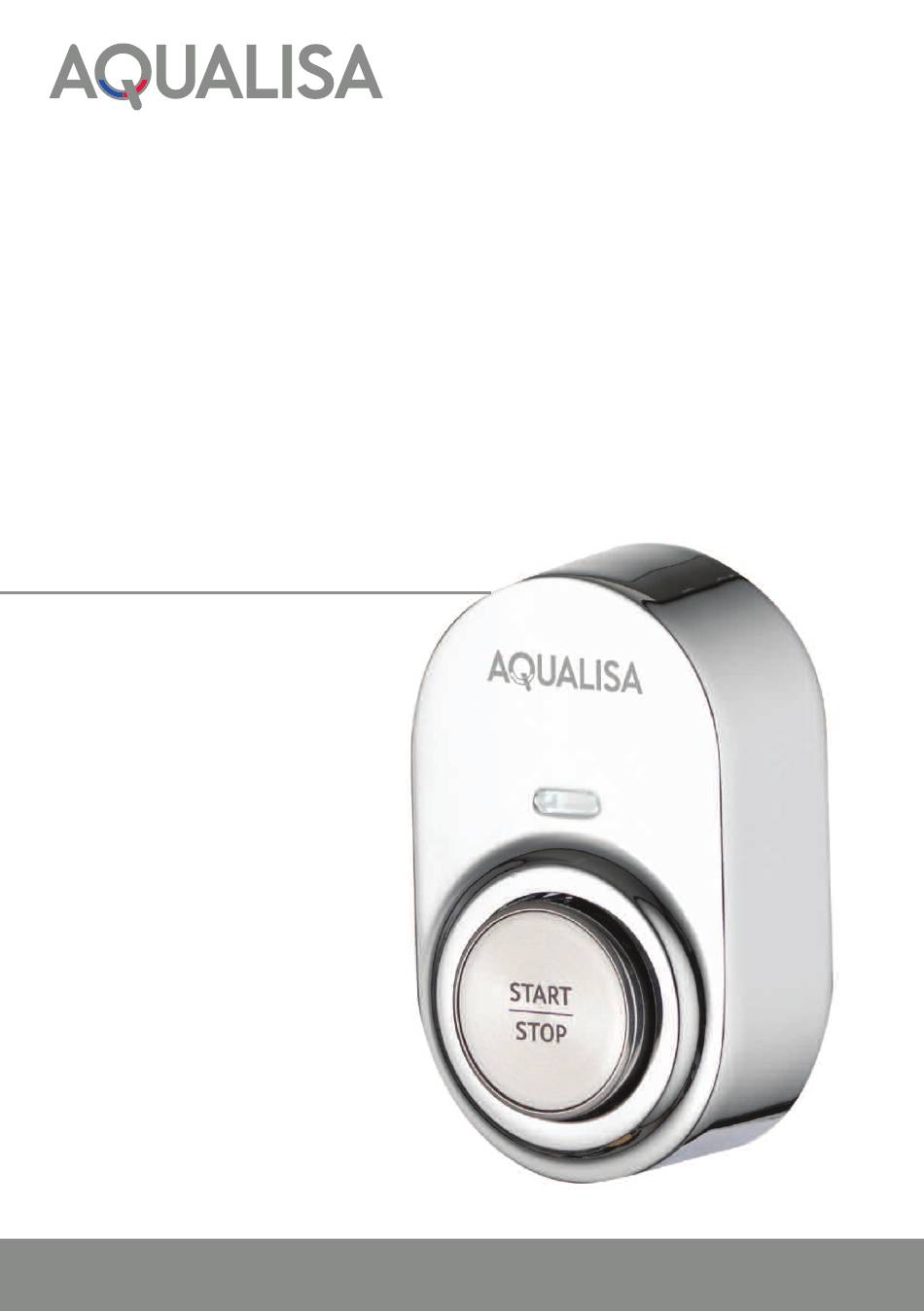

  • Page 1 iSys Digital Remote control Installation guide iSys Digital remote control installation instructions Page 1...
  • Page 2 iSys Digital remote control iSys Digital remote control ISD.B3.DS.14 iSys Digital remote control installation instructions Page 2...
  • Page 3 Components Literature not shown iSys Digital remote control installation instructions Page 3...
  • Page 4 – up to 10 metres from the Digital processor. The iSys Digital remote control is not suitable for use with any other Aqualisa Digital product range. THIS PRODUCT MUST BE INSTALLED BY A COMPETENT PERSON IN ACCORDANCE WITH ALL RELEVANT CURRENT WATER AND ELECTRICAL SUPPLY REGULATIONS.
  • Page 5: Installation Instructions

    Installation instructions iSys Digital remote control In addition to the guide below it is essential that the written instructions below are read and understood and that you have all the necessary components (shown overleaf) before commencing installation. Failure to install the product in accordance with these instructions may adversely affect the warranty terms and conditions.
  • Page 6 10m Data Cable 10m Data Cable Wiring diagram Using the back plate as a template, mark the position of the fixing screws and a Ø16mm hole for the data cable entry point. The cable entry point should be made in the top right hand corner of the back plate recess, to ensure the two holes are kept separate.
  • Page 7 Prepare a suitable route and install the 10m low voltage data cable leaving a working end of at least 70mm including the connector plug. The end of the data cable closest to the processor should terminate at a maximum of 500mm from the processor to allow for connection to the data cable connection block.
  • Page 8 Locate the slot at the top of the button assembly, onto the locating peg at the top of the back plate assembly, and lower the button into position. Secure the button to the back plate by carefully but firmly pushing the button assembly onto the locking clip at the bottom of the back plate.
  • Page 9 The Digital processor features a secondary data cable socket next to the main data cable connection for use with the Digital remote control secondary ‘Start/stop’ button. Carefully snap and remove the entry pillar and connect the cable to the socket as shown. If using a Digital Divert system, the cable plugs into the diverter using the splitter box provided.
  • Page 10 10m Data 10m Data Cable Cable Splitter box 2m Data Cable Wiring diagram iSys Digital remote control installation instructions Page 10...
  • Page 11 Using the back plate as a template, mark the position of the fixing screws and a Ø16mm hole for the data cable entry point. The cable entry point should be made in the top right hand corner of the back plate recess, to ensure the two holes are kept separate.
  • Page 12 Push the data cable plug into the back of the button fully home to ensure a water tight seal making sure the seal is no longer visible. Locate the slot at the top of the button assembly, onto the locating peg at the top of the back plate assembly, and lower the button into position.
  • Page 13 To release the button, insert a small flat bladed screw driver into the small slot at the bottom of the button assembly, to release the locking clip, taking care to avoid damaging the plated surface. Carefully lift the button out and up off of the back plate top locating peg.
  • Page 14 Plug the end of the attached data cable feeding from the splitter box into port 1 of the Digital Diverter. Plug the end of the 10m low voltage data cable feeding from the main controller, as well as the end of the 10m low voltage data cable feeding from the remote button, into the two side by side entry ports on the splitter junction...
  • Page 15 Part No:700982 Issue 01 Jan 14 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
