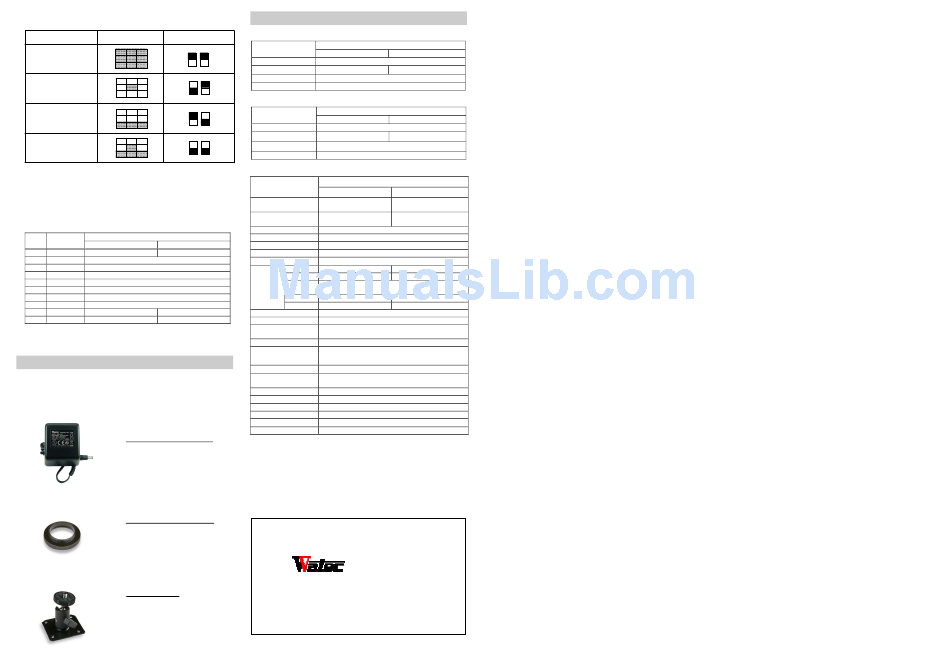

11) Select any required back light area by ⑬BACK LIGHT to one of its 4
positions.
Area Switch
ON
1. Default
1
ON
2. Center
1
ON
3. Lower
1
ON
4. Center + Lower
1
※The switches are set to OFF(Default) upon shipment.
12) Set the shutter mode by ⑭ELECTRONIC SHUTTER ON/OFF SWITCH
When shutter mode is OFF, fix the shutter speed to EIA1/60, CCIR1/50.
When shutter mode is ON, select the shutter speed mode by ⑮AE MODE
CONTROL.
※The switch is set to OFF upon shipment.
13) Select any required shutter speed by the ⑮AE MODE CONTROL to one of
its 10 positions.
Shutter Speeds (Sec.)
No. Mode
EIA CCIR
0 FL 1/100 1/120
1 ES 1/250
2 ES 1/500
3 ES 1/1000
4 ES 1/2000
5 ES 1/5000
6 ES 1/10000
7 ES 1/100000
8 EI: OFF 1/60-1/100000 1/50-1/100000
9 EI: FL 1/100-1/100000 1/120-1/100000
※An intense light may leave a trail on the screen longitude. This smearing is
a natural phenomenon and is not due to equipment failure or fault.
※The dial is set to 0(FL) upon shipment.
Options
To purchase these options, please contact the distributor or dealer from which
you purchased the WAT-902H ULTIMATE.
2/3
AC Adaptor (AD901-120/230)
The recommended AC adaptor for the
WAT-902H ULTIMATE for a constant
2/3
and stable power supply.
C-mount Adaptor (30CMA-R)
This lens mount adaptor is used to
convert a CS-mount to a C-
mount.
Mini Stand (MS50)
A convenient stand for the
WAT-902H ULTIMATE. With this
2/3
stand, the camera can be adjusted
to any desired angle.
Specifications
WAT-902H 2 ULTIMATE
WAT-902H
Model
EIA
Pick-up Element 1/2 inch interline transfer CCD image sensor
2 Unit Cell Size 8.4 μ m(H)×9.8 μ m(V)
Minimum Illumination 0.0001 lx. F1.4
Power Consumption 1.32W (110mA)
2
WAT-902H 3 ULTIMATE
WAT-902H
Model
EIA
Pick-up Element 1/3 inch interline transfer CCD image sensor
2
μ μ
Unit Cell Size 6.35 m(H)×7.4 m(V)
Minimum Illumination 0.0002 lx. F1.4
Power Consumption 1.26W (105mA)
2
WAT-902H 2 ULTIMATE / WAT-902H 3 ULTIMATE
WAT-902H
Model
EIA
Number of
811(H)×508(V)
Total Pixels
Number of
768(H)×494(V)
Effective Pixels
Sync. System Internal
Scanning System 2:1 interlace
Video Output
Composite video, 1.0 V(p-p) 75Ω (Unbalanced)
Resolution (H) More than 570TVL (Center)
S/N More than 50dB (AGC=5dB, γ=1.0)
OFF 1/60 sec.
FL 1/100 sec.
1/250, 1/500, 1/1000, 1/2000
AE Mode
ES
1/5000, 1/10000, 1/100000 sec.
EI: OFF 1/60-1/100000 sec.
EI: FL 1/100-1/100000 sec.
AGC HI: 5-60dB / LO: 5-32dB
MGC 5-60dB
Gamma
γ≒0.35(HI) / γ≒0.45(LO) / γ=1.0(OFF)
Characteristics
Lens iris Video / DC (EIAJ arrangement, Auto-select)
Back Light
ON / OFF
Compensation
Power Supply
DC+12V±10%
Operating
-10 - +40℃ (Without condensation)
Temperature
Operating Humidity Less than 95% RH
-30 - +70℃ (Without condensation)
Storage Temperature
Storage Humidity Less than 95% RH
Lens Mount CS-mount (Back focus adjustable)
Size 36(W)×40(H)×63(L) (mm)
Weight Approx. 98g
Design and specifications are subject to change without notice.
•
Watec is not responsible for any inconvenience or the attendant damages
•
to the video and monitoring recording equipment caused by misuse, mis-
operation or improper wiring of our equipment.
If for any reason the WAT-902H 2/3 ULTIMATE does not work properly, or if you
•
have any questions regarding installation or operation, please contact the
distributor or dealer from which it was purchased.
Contact information
Watec Co., Ltd. Watec Co., Ltd. Watec Co., Ltd. Watec Co., Ltd.
iAdd.: i254-2 Nihonkoku, Daihoji, Tsuruoka- Shi,
iYamagata-Ken, 997-0017 Japan
TEL: +81-235-23-4400 FAX: +81-235-23-4409
Email: info-o@watec.co.jp
URL: http://www.watec.net
