Summary of Contents for Chauvet FREEDOM FLEX H4 IP

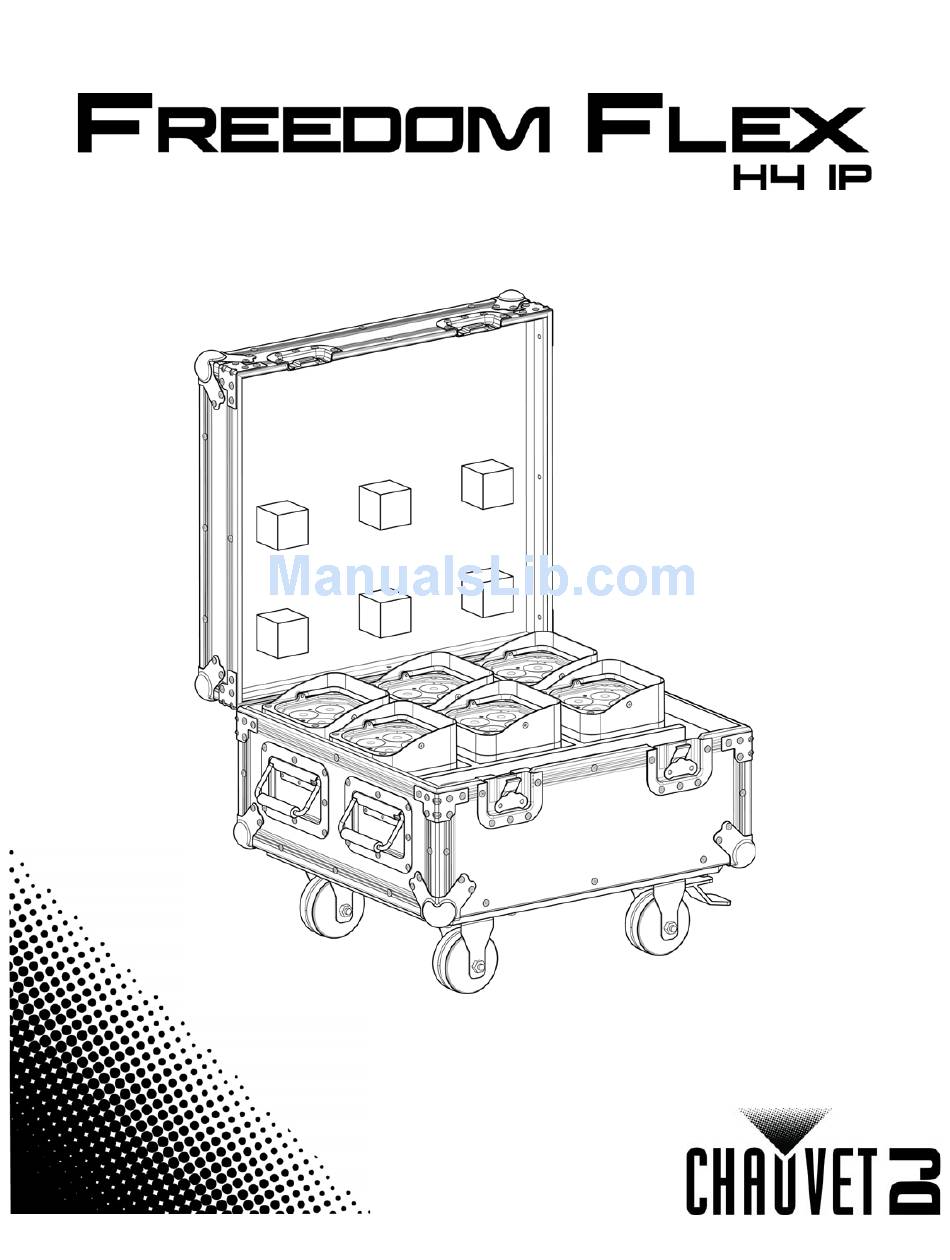

- Page 1 User Manual...
-
Page 2: Table Of Contents
Auto-Program Speed ..................Preset Color Mode ..................... Custom Color Mixing ..................Configuration (Settings) ................Dimmer Speed Mode ..................Passcode Mode ....................IRC-6 Infrared Remote Control ..............IRC-6 Operation ....................Master/Slave Mode ..................Freedom Flex H4 IP X6 User Manual Rev. 2... - Page 3 Table of Contents 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................Freedom Flex H4 IP X6 User Manual Rev. 2...
-
Page 4: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 5: Product At A Glance
• Always connect the product to a grounded circuit to avoid the risk of electrocution. • Always turn off the Freedom Flex H4 IP before cleaning. • Always disconnect the charging case from power before cleaning or replacing the fuse. -
Page 6: Introduction
Ensure the Freedom Flex Battery is properly installed to preserve the product’s IP rating. Product Dimensions 5.4 in 138 mm 8 in 204 mm 5.7 in 145 mm Page 3 of 17 Freedom Flex H4 IP X6 User Manual Rev. 2... -
Page 7: Setup
Setup 3. Setup DC Power Each Freedom Flex H4 IP comes with a Freedom Flex Battery, which can be charged in the Freedom Flex Case. AC Power (Freedom Flex Case) Fuse Holder Power In Charging Indicators Freedom Flex Battery Charging Slots The Freedom Flex Case is an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. -
Page 8: Freedom Flex Battery
Ensure the Freedom Flex Battery is properly installed to preserve the product’s IP rating. Charging the Battery The Freedom Flex Battery must be removed from the Freedom Flex H4 IP to be charged in the charging slots of the Freedom Flex Case. -
Page 9: Battery Charge Notes
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Freedom Flex H4 IP may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Wireless Turns on wireless DMX and sets S-tr transmitter or receiver channel dtCH dt 1–16 Passcode Locks the display. Passcode: <UP>, PASS Mode <DOWN>, <UP>, <DOWN>, <ENTER>. Page 7 of 17 Freedom Flex H4 IP X6 User Manual Rev. 2... -
Page 11: Wireless Dmx Linking
Use <UP> or <DOWN> to select the starting address, from d 1–512. Press <ENTER>. Wireless DMX Configuration The Freedom Flex H4 IP offers wireless control of 2 or more products with a single DMX controller. To set up the D-Fi 2.4 GHz transceiver, follow the instructions below. For the transmitting product: Press <MENU>... -
Page 12: Dmx Channel Assignments And Values
101 Dimmer speed mode off Dimmer Speed Mode 152 Dimmer speed mode 1 (fast) 203 Dimmer speed mode 2 (medium) 255 Dimmer speed mode 3 (slow) Page 9 of 17 Freedom Flex H4 IP X6 User Manual Rev. 2... -
Page 13: 8-Ch
Channel Function Value Percent/Setting 255 0–100% Green 255 0–100% Blue 255 0–100% Amber 255 0–100% White 255 0–100% Ultraviolet 255 0–100% Freedom Flex H4 IP X6 User Manual Rev. 2 Page 10 of 17... -
Page 14: Configuration (Standalone)
Press <ENTER>. The product will return to the last selected mode. Preset Color Mode To run the Freedom Flex H4 IP on a static color, follow the instructions below. Press <MENU> repeatedly until C-- shows on the display. Press <ENTER>. -
Page 15: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The Freedom Flex H4 IP is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below. Press <MENU> repeatedly until SEt shows on the display. Press <ENTER> to accept. -
Page 16: Master/Slave Mode
The Master/Slave mode allows a single Freedom Flex H4 IP product (the “master”) to control the actions of one or more Freedom Flex H4 IP products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave (receiver) products will be set to operate in Slave mode. -
Page 17: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Freedom Flex H4 IP X6 User Manual Rev. 2 Page 14 of 17... -
Page 18: Technical Specifications
104 °F (40 °C) Convection I/O Connector Channel Range Wireless 6, 8 or 12 Ordering Product Name Item Code UPC Number Freedom Flex H4 IP X6 03031381 781462217303 Page 15 of 17 Freedom Flex H4 IP X6 User Manual Rev. 2... -
Page 19: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 20: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Fol- low the instructions to request support or to return a product. Visit our website for contact details. Page 17 of 17 Freedom Flex H4 IP X6 User Manual Rev. 2...
