US-5000 / US-5500 Semiautomatic Net Weigh Scale

The US-5000 and US-5500 Net Weigh systems are versatile semiautomatic bagging systems which provides for
fast bagging of kits or one type of part per bag, in counts up to 10,000 pieces.
If your company bags a wide variety of parts with multiple parts of various counts in bags, the US-5000 and US-
5500 Kit Packaging systems are an excellent solution.
This option is accessed through the Options screen. A separate manual is provided if this option is purchased or is
available upon request.
PB-20 Optical Palm Buttons
Palm Buttons can be used to cycle the machine instead of a
foot switch. Two buttons, positioned on opposite sides on the
machine must be touched simultaneously to cycle the
bagger. If both buttons are not touched at the same time, or
if one of the buttons is held while the other button is
touched, the machine will not cycle. As an additional safety
function, the Automatic cycle mode is disabled when the
Palm Button option is turned ON. The foot switch input is
also disabled when the Palm Button option is turned ON.

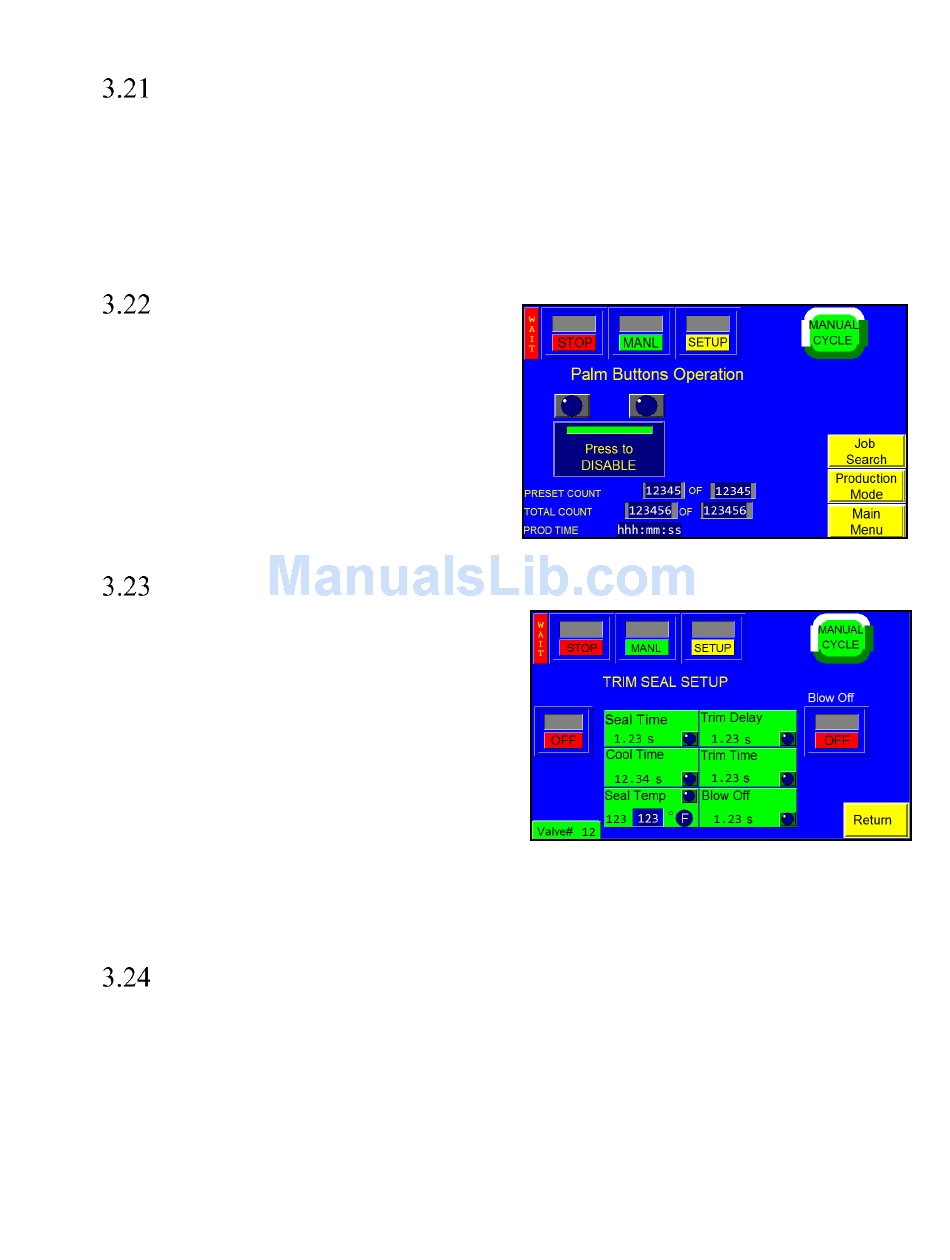

See Figure 3 - 22.
TS-10 Trim Seal Assembly
Trim Seal option removes excess film from the bag above the
seal. See Figure 3 - 23.
Note: To properly "trim-off" excess film, the bag length
may have to be increased to provide the required finished
bag size. We recommend trimming at least 1.25" of film
from the bag.
Press the <ON/OFF> toggle button to enable and disable the
operation of the Trim Seal option. Seal Time, Seal Temp,
Cool Time, Trim Del and Trim Time settings affect the
operation of this option. Adjust the settings until bags are
trimming consistently.
<Blow-Off > indicates the time which a blower will remove the excess film from the bag.
ES-10 E-Stop Circuit
This option can be used to stop the cycle operation of the T-1000 and possibly other auxiliary infeed or out-feed
equipment. One or more Estop buttons may be equipped.
If depressed, the Estop button will cut power to the drive motors, turn off air pressure or otherwise halt moving
components within the system. However, due to the wide range of equipment options, E-stops may function
differently from one system to another depending on the components and safety requirements requested. When
the Estop is pressed, a message screen will be displayed.
37
Figure 3 - 22
Figure 3 - 23
