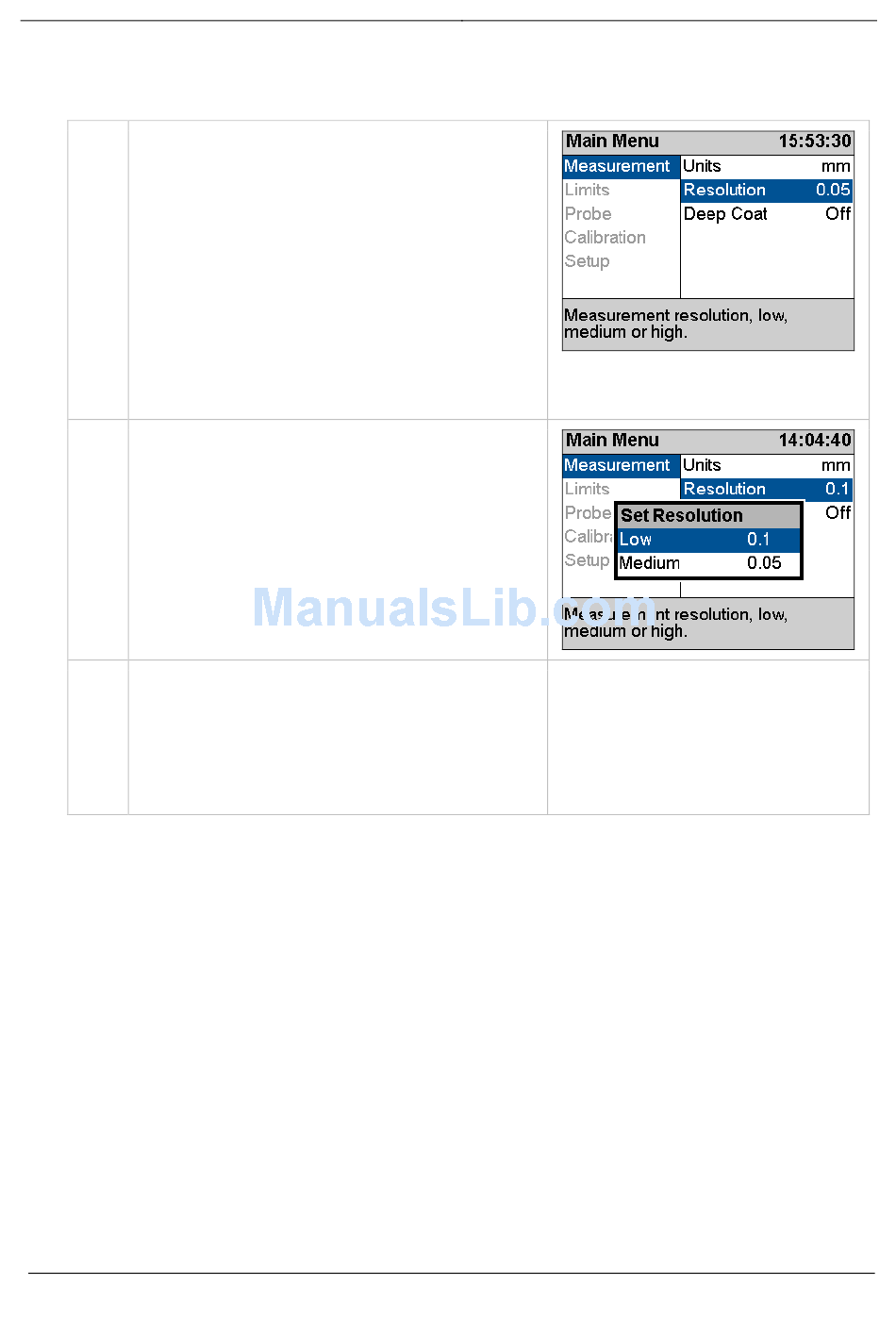

To change the Resolution setting:
1. Access the Menu and scroll down
to the 'Measurement' group.
Then scroll right and select
'Units'.
Press the Ok/Select key to open
the 'Resolution' function
2. Use the Up and Down keys to
select the required Resolution
3. Press the OK/Select key to save.
Or press the X/Cancel key to exit
without saving.

Limit Functions

The gauge has a Limit function that can be used to;
• Give visual indication of measurements between minimum,
reference and maximum limits.
• Vibrate Alert the operator if measurements are outside the
minimum or maximum limits
The Limit function can be turned ON or OFF as required and the
Vibrate Alert can be enabled as required.
There are three Limit measurement values you can set;
