4. Selecting the Right Probe

The performance of any thickness gauge, and its ability to get a
reliable measurement depends on selecting the right ultrasonic
probe for the application and conditions. Cygnus gauges are
therefore offered with a selection of probes suitable for most
thickness gauging applications.
The following section helps you select the right probe for the
application.
The gauge must be set for the probe connected to it.

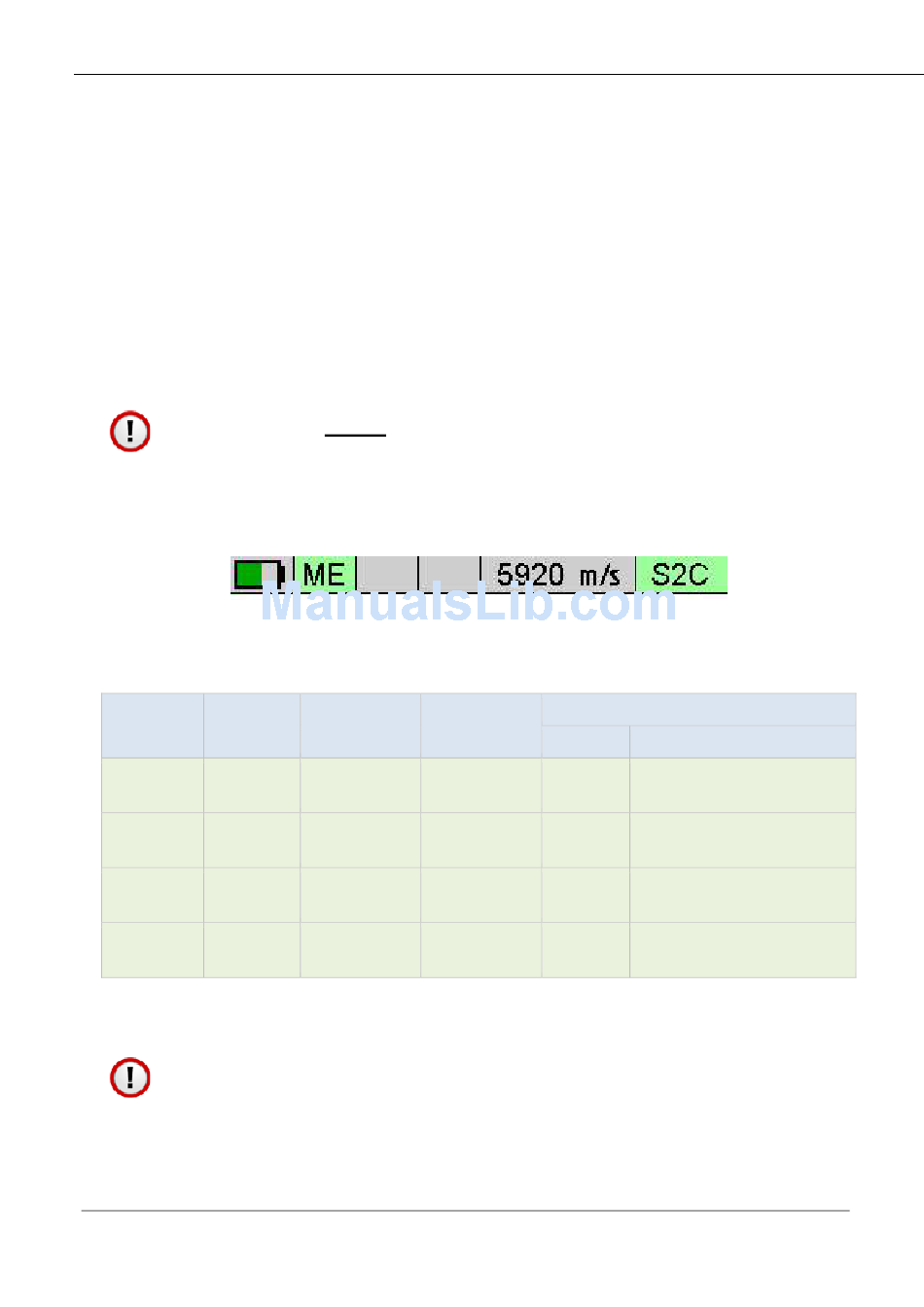

The probe type is displayed at the top of the measurement screen
in the status area.

Measuring Metals

Material Coating Corrosion Thickness
Steels Any
Steels Any
Steels Any
Steels Any
The S2C probe is suitable for most applications.
When measuring in Multiple Echo mode the coating will be
ignored and just the metal thickness measured.
Probe Type set to S2C.
Non to 1 mm+
Moderate
Non to 2 mm+
Moderate
Non to 3 mm+
Moderate
Non to 3 mm+
Moderate (0.12"+)
Cygnus 4 Operating Manual
Recommended..
Probe Measurement Mode
S5A Multiple Echo
S3C Multiple Echo
S2C Multiple Echo
S2D Multiple Echo
