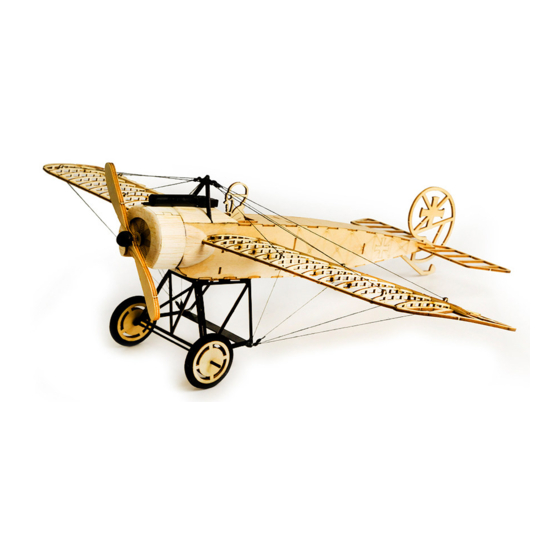

Fokker-e 1:23 wooden aircraft static model

Advertisement

Fokker-E
(X08)
INSTRUCTION MANUAL
Wingspan:410mm
Length:308mm
Pls take down the parts from the board by knife,and
assemble them as per the procedures as below,we
suggest you to shape with 502 glue,and firm with
white latex.

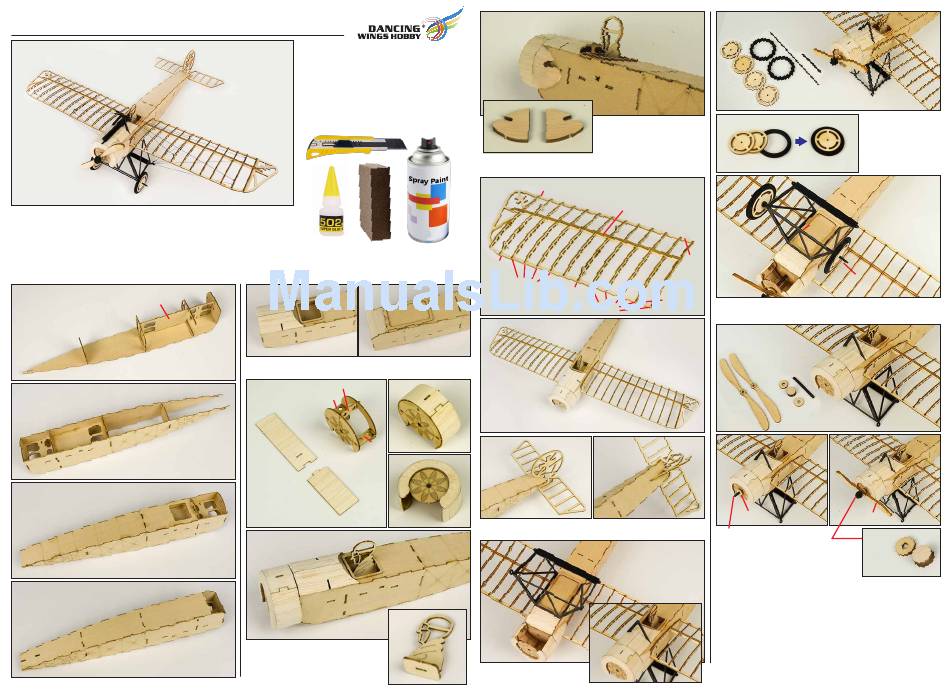

1.Assemble the Fuselage

F-11
F-10
F-12
F-13
F-1
F-1
F-2
F-3
Material:
1. Basswood
2. Balsawood
3. Paulownia
4. Fiberglass and others
Tools Needed
F-9
F-16
F-15
F-17

1.2Assemble the Cowling

F-6
F-8
F-7
F-5
F-18
F-7
F-18-1
F-19
F-19

2.Assemble the Wing

W-3
W-7
W-2
W-1
W-2
F-14
W-9
W-8
F-4
W-8

3.Assemble the Landing gear and wheels

F-27
F-28
Polish the F-19 with
F-24
F-20
suitable shape and then
paste onto the fuselage.
W-5x2
W-6
W-4
W-1

4.Assemble the Propeller

W-9
F-26
Carbon rod
Paste together the F-26 and
F-29,polish them into
semicircle,paint in black and paste
onto the carbon rod.
Take down the
F-24,polish it
with wheel
shape,and paint
in black.
Carbon rod
Heat-shrinkable Tube
F-25x2
F-26
F-29

Advertisement
