Use
Functions
Key functions
CE1N2464en
2017-07-31

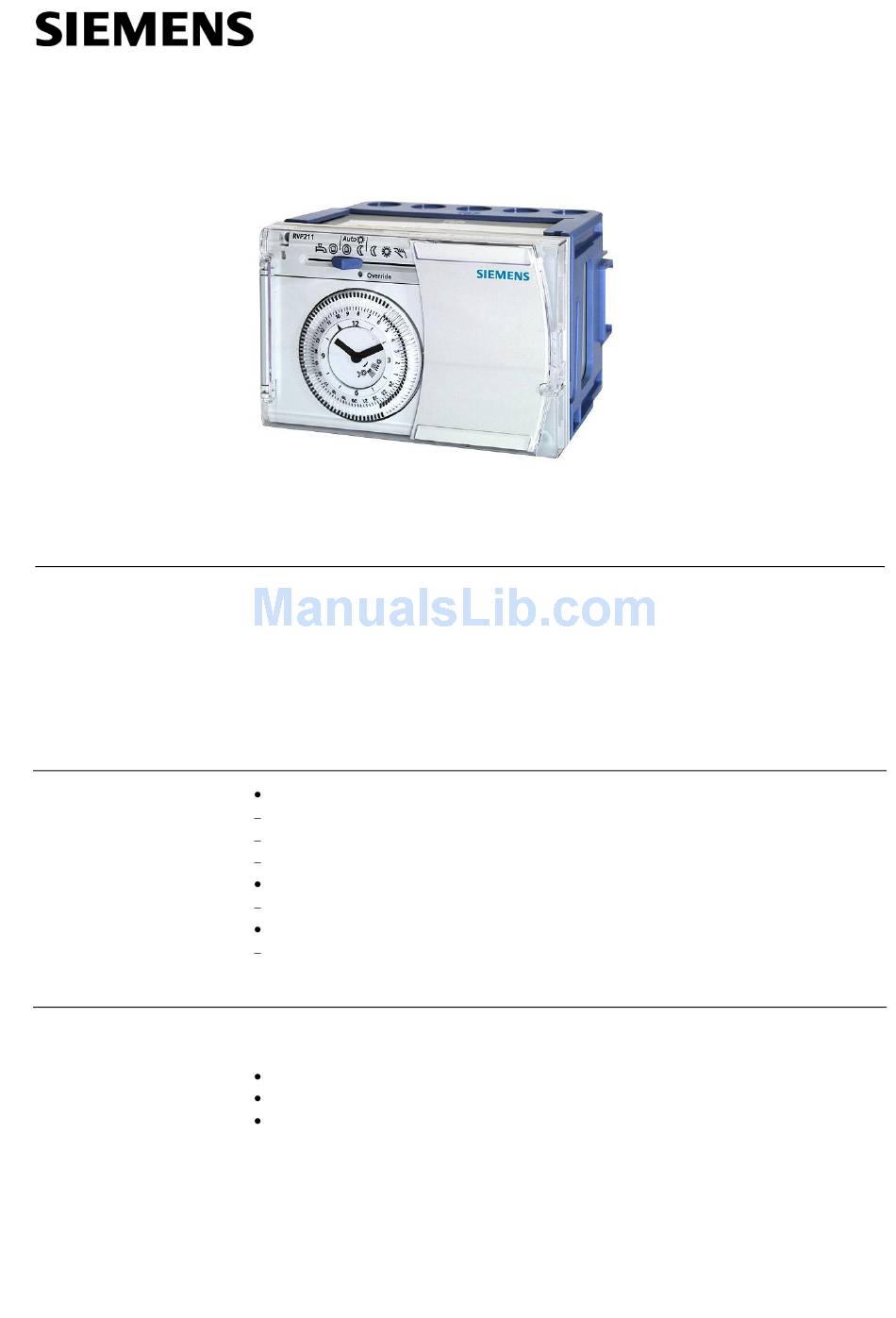

Heating Controller
with or without d.h.w. heating
Heating controller for use in residential or smaller non-residential buildings that
have their own heat generating plant.
Weather-compensated flow temperature control with or without room tempera-
ture influence or room temperature control.
Control of three-position or two-position actuators or direct control of burner,
control of circulating pump, control of d.h.w. heating.
Analog operating elements for the end-user. Operating voltage AC 230 V.
Types of houses and buildings:
Small multi-family houses
Single-family houses or holiday houses
Smaller non-residential buildings
Types of plant:
Heating zones with their own heat generating equipment and own d.h.w. heating
Types of heating systems:
Radiator, convector, underfloor and ceiling heating systems, as well as radiant panels
The RVP201/211 heating controller has been designed for use with the following types
of control systems and plants:
Flow temperature control via a motorized three-position mixing valve
Flow temperature control via a motorized two-position mixing valve
Boiler temperature control via single-stage burner and a circulating pump
2
464
RVP201.0
RVP211.0
Building Technologies
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Siemens RVP201.0
Summary of Contents for Siemens RVP201.0
- Page 1 RVP201.0 Heating Controller RVP211.0 with or without d.h.w. heating Heating controller for use in residential or smaller non-residential buildings that have their own heat generating plant. Weather-compensated flow temperature control with or without room tempera- ture influence or room temperature control.
-
Page 2: Other Functions
Note: d.h.w. heating is provided only by the RVP211 Type summary Type of unit Type ref. Heating controller without time switch RVP201.0 Heating controller without time switch, with d.h.w. heating RVP211.0 Analog 24-hour time switch AUZ3.1 Analog weekly time switch AUZ3.7... -
Page 3: Suitable Actuators
Ordering When ordering, please give type reference according to "Type summary" If a controller with a weekly time switch is required, the type RVP201.0 or RVP211.0 plus the required time switch (AUZ3.7 or AUZ3.1) must be ordered Sensors, room unit, actuator and valve must be ordered as separate items... -
Page 4: Boiler Temperature Control
Outside temperature 1.5 °C: the heating circuit pump will be switched on for 10 minutes at 6-hour intervals Outside temperature –5 °C: the heating circuit pump runs continuously Without outside sensor: 4/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies 2017-07-31... - Page 5 Resolution of switching points: one hour Shortest on or off times: two hours Digital time switch Any of these three time switches can also be fitted at a later time. 5/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies 2017-07-31...
-
Page 6: Mechanical Design
When connecting an external switching contact to the controller's terminals A6-MD, the operating mode can be selected from a remote location: Contact closed: controller is in protection mode Contact open: controller uses the operating mode selected with the slider 6/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies 2017-07-31... -
Page 7: Engineering Notes
When using the RVP201/211 together with third-party devices not specifically mentioned, correct functioning must be ensured by the user. In that case, Sie- mens will assume no responsibility for service and warranty. 7/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies... - Page 8 Application with one room temperature sensor and one out- 3.5% door temperature sensor and on/off control Application with one room temperature sensor and on/off 1.5% control *) The documents can be downloaded from http://siemens.com/bt/download. 8/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies...
-
Page 9: Ambient Conditions
Humidity <95 % r.h. <95 % r.h. <95 % r.h. (non-condensing) (non-condensing) Mechanical conditions class 3M2 class 2M2 class 1M2 Use above sea level max. 3000 m above sea level 9/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies 2017-07-31... -
Page 10: Connection Diagrams
External switch Burner Three-position actuator Thermal reset limit thermostat Two-position actuator Manual reset safety limit thermostat Actuator for d.h.w. changeover valve (only with the RVP211) D.h.w. thermostat (only with the RVP211) 10/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies 2017-07-31... -
Page 11: Application Examples
Boiler or flow temperature sensor M1 Heating circuit pump D.h.w. temperature sensor M3 D.h.w. charging pump Outside sensor N1 Controller RVP201/211 Boiler Motorized three- or two-position mixing valve Load (room) Motorized changeover valve 11/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies 2017-07-31... - Page 12 Siemens Switzerland Ltd. Building Technologies Division International Headquarters Gubelstrasse 22 6301 Zug Switzerland Tel. +41 41-724 24 24 © Siemens Switzerland Ltd 2007 www.siemens.com/buildingtechnologies Delivery and technical specifications subject to change 12/12 Siemens Heating Controller RVP201, RVP211 CE1N2464en Building Technologies...
